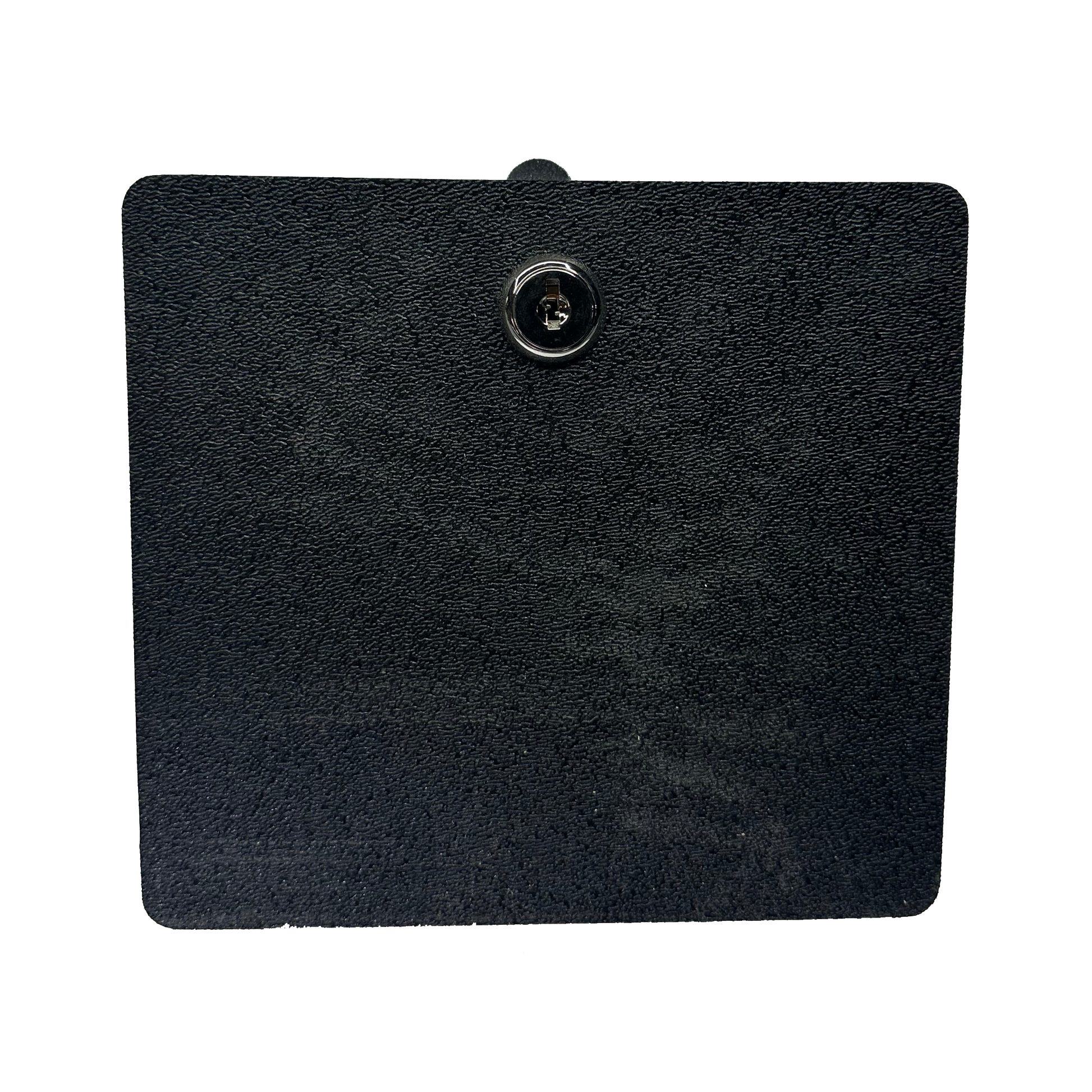

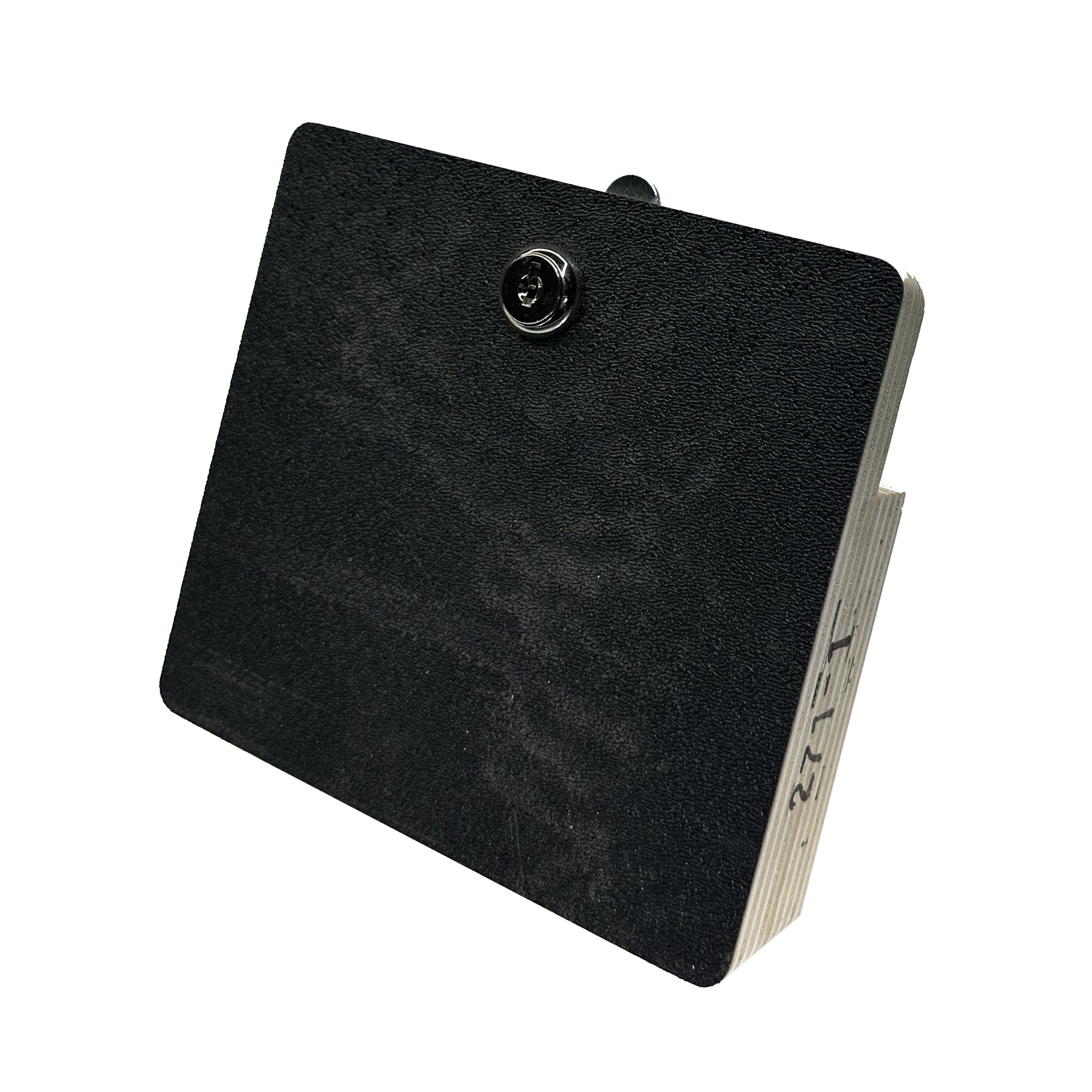

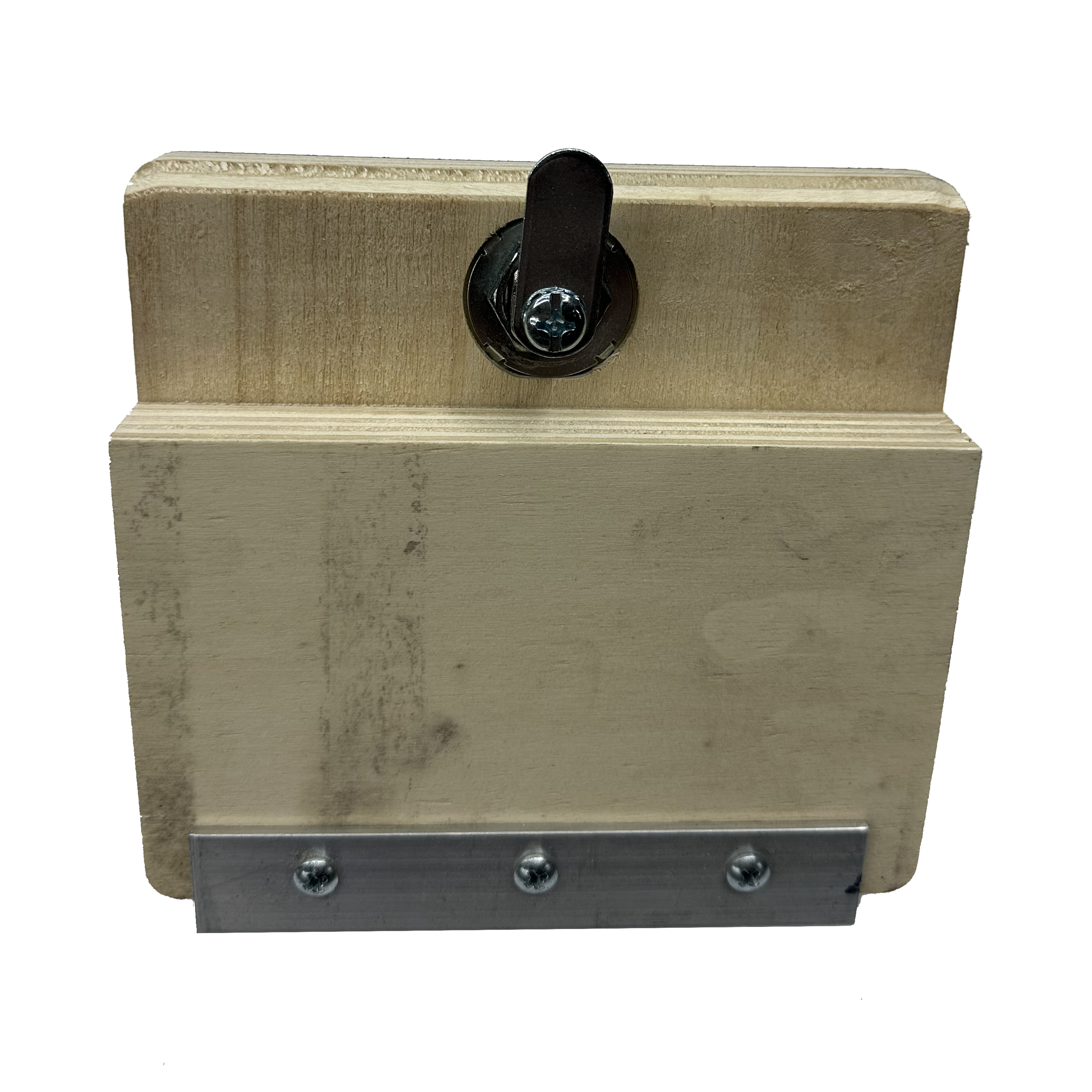

The Diamond Smart table body panel access door is a precision-engineered service door designed specifically for the Diamond Smart Table. This essential component provides quick, clean, and secure access to the internal ball track and electronics compartments of the table, making maintenance and servicing faster and more efficient.

The door blends seamlessly into the table’s body panel while offering long-lasting performance in commercial environments. Its lockable latch system ensures authorized access only, adding an extra layer of security for high-traffic pool halls and venues.

Whether you're cleaning or servicing components, the Diamond Body Panel Access Door keeps your Smart Table both functional and professional—designed with operators and technicians in mind.

IMPORTANT

• The lock is not included with this Access Door.
• Add a lock with 502 Key by clicking the link below.
• Diamond Smart Table Locks – Diamond Billiard Products

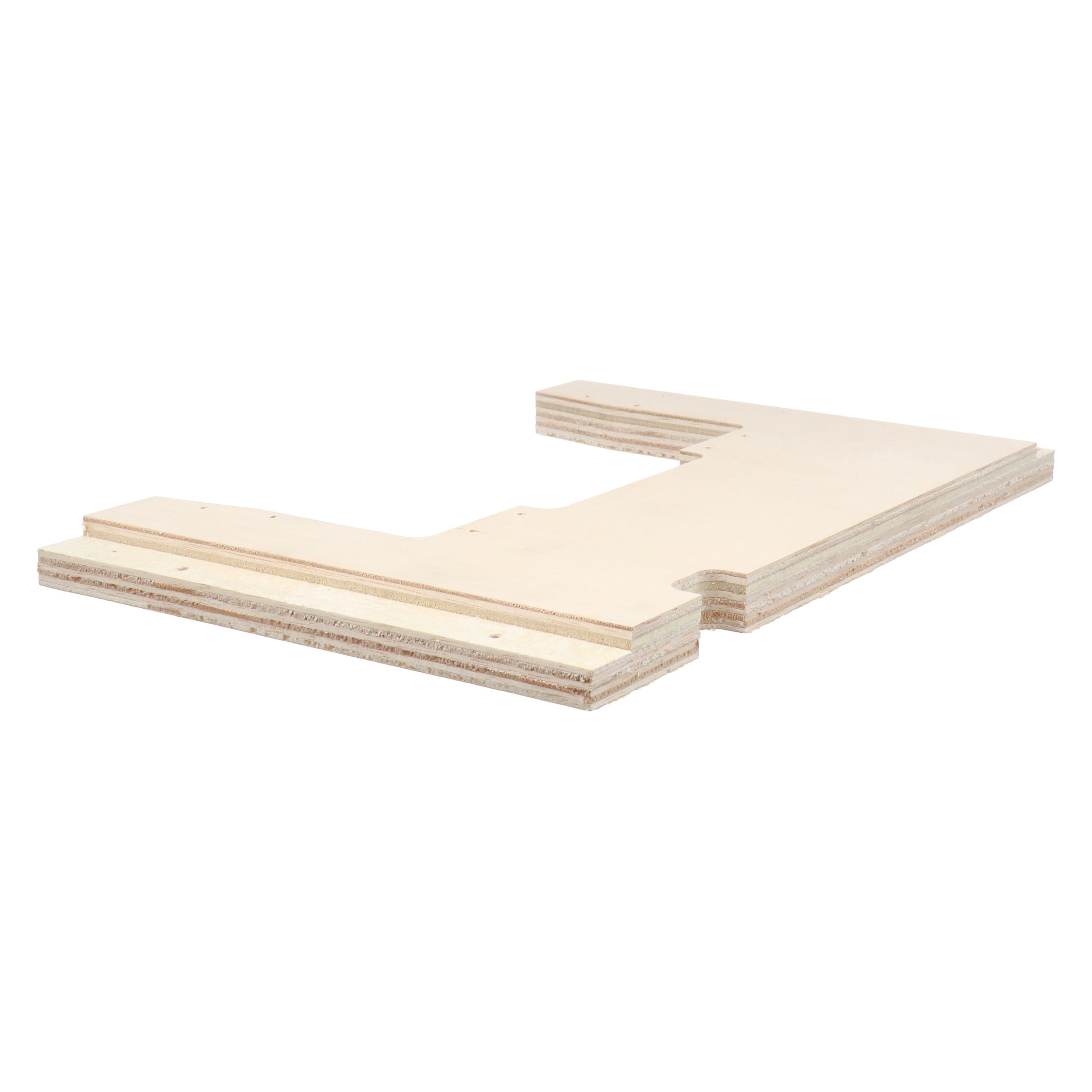

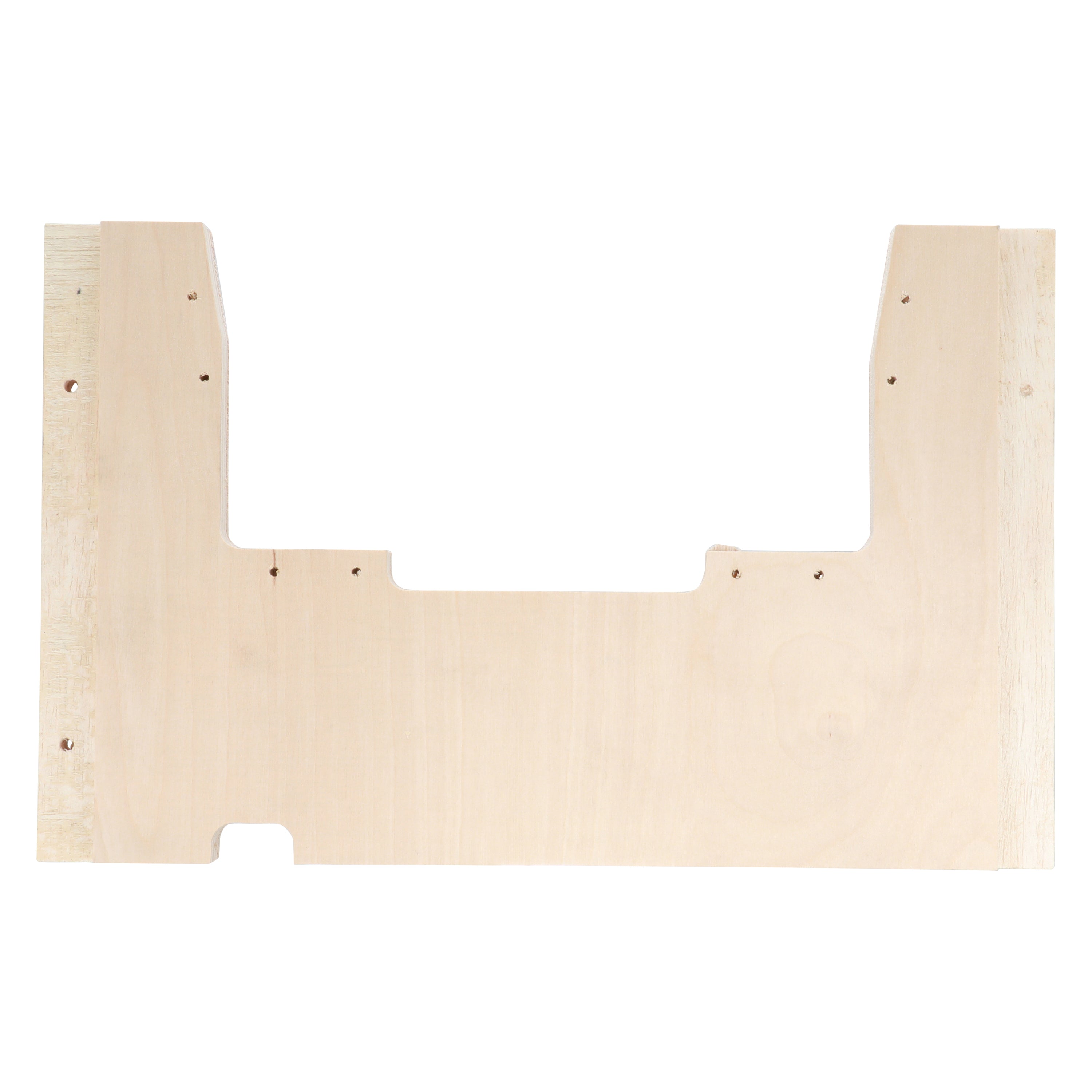

Diamond Billiard Products Cash Box Plywood Lid is designed to cover the cash box and mount various parts for the ball drop system. As a genuine OEM replacement, it guarantees the same quality and performance as the original used at the factory.

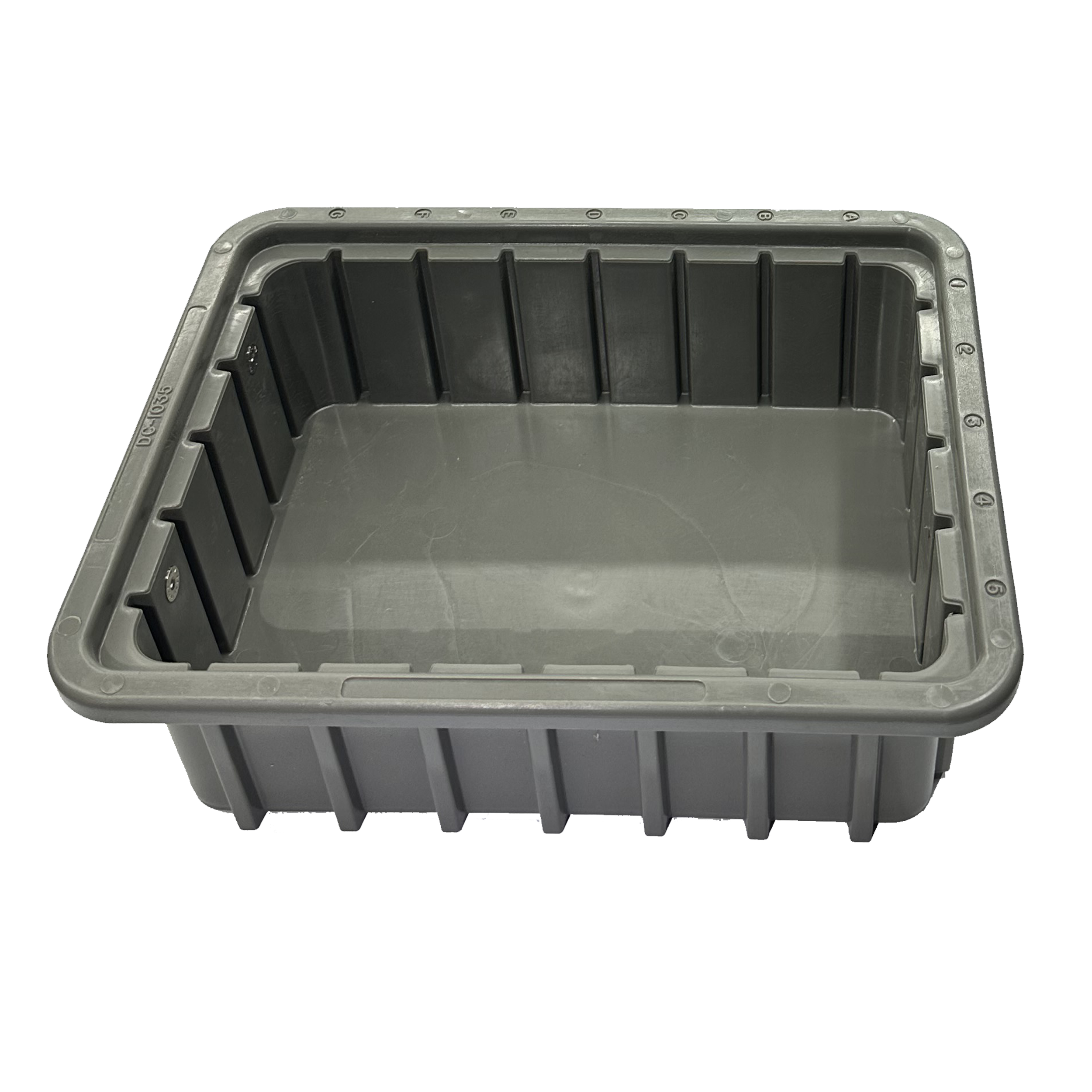

The Diamond Smart Table Coin Bucket is an internal component for use in Diamond Smart Pool Tables. Built from rugged, high-impact plastic, this coin bucket provides a secure and efficient solution for collecting and storing coins or tokens during commercial play.

Its form-fitted design allows for easy placement and removal within the table’s coin mechanism compartment, ensuring quick access for operators while keeping collected revenue protected and organized. The bucket's sturdy build resists warping or cracking, even under high-volume use.

Perfect for pool halls, bars, and tournament venues, the Diamond Coin Bucket is a reliable part of the Smart Table’s trusted revenue system—combining smart functionality with durable craftsmanship.

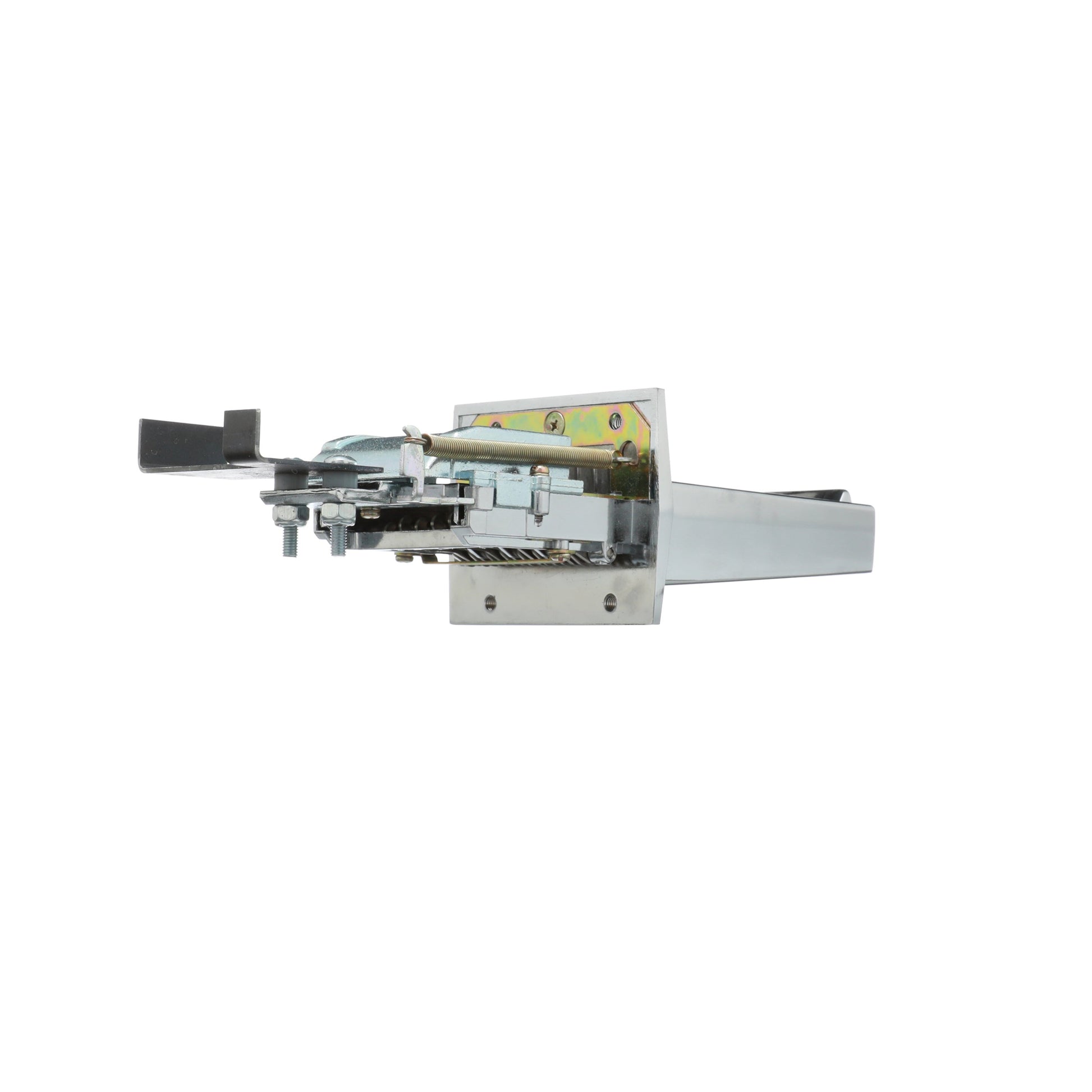

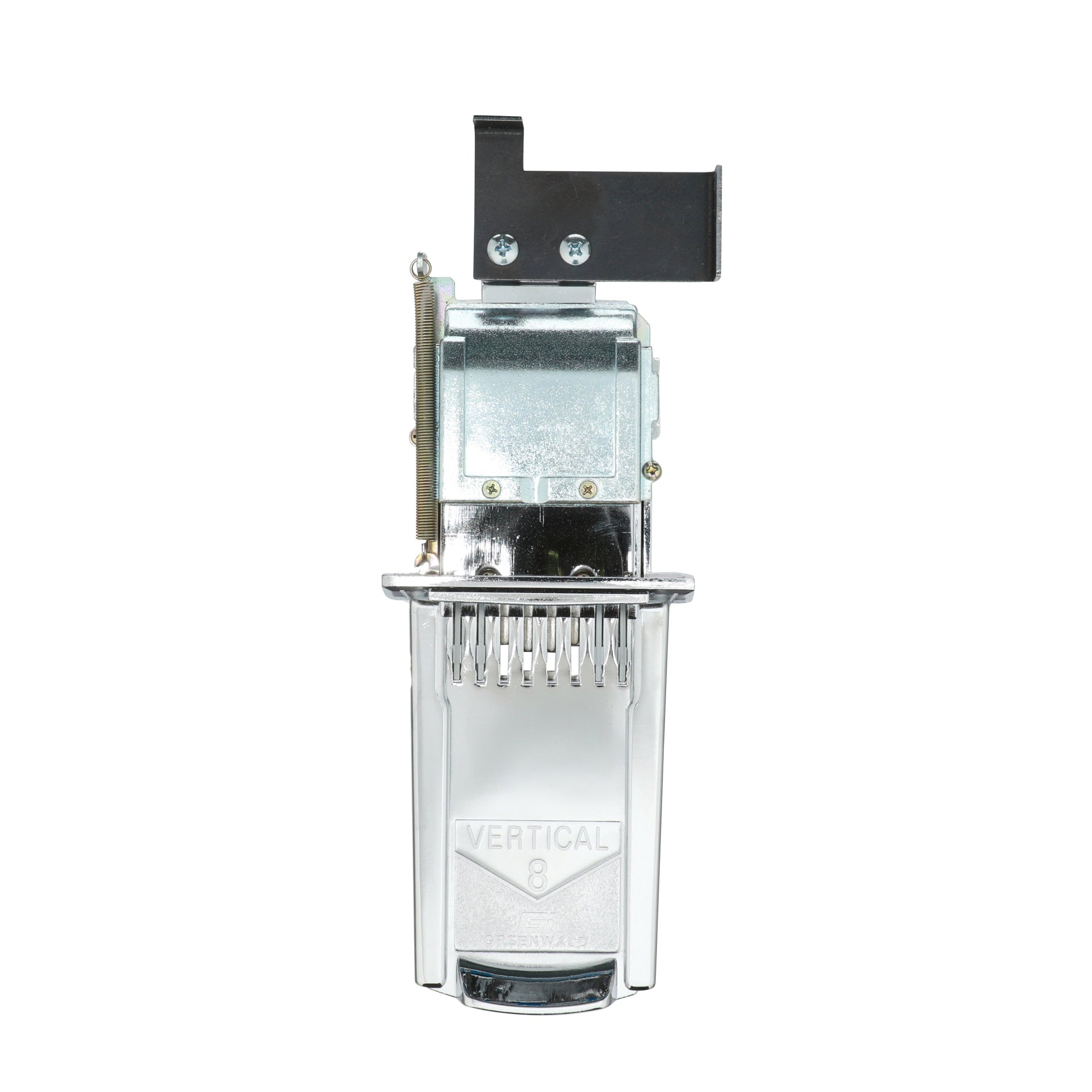

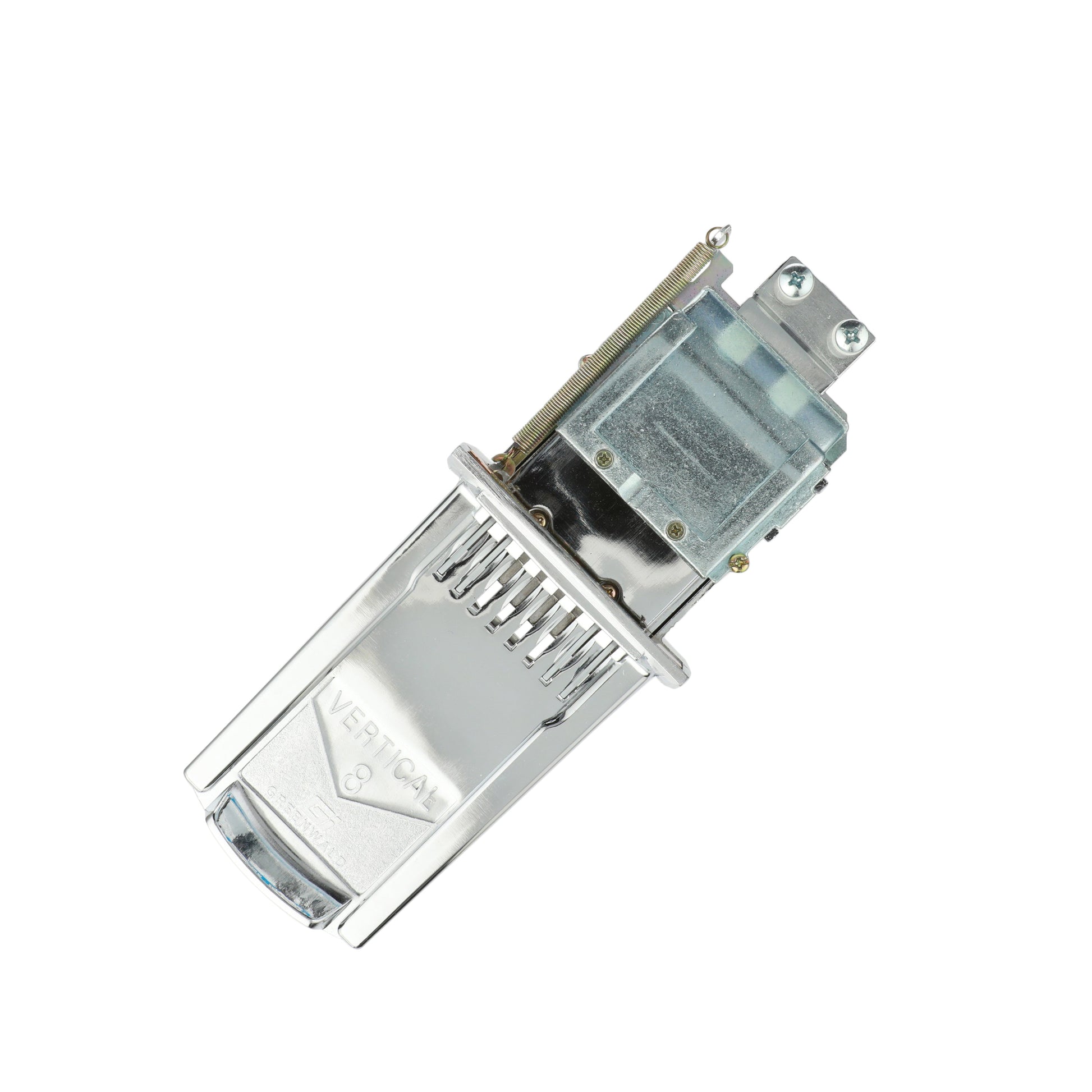

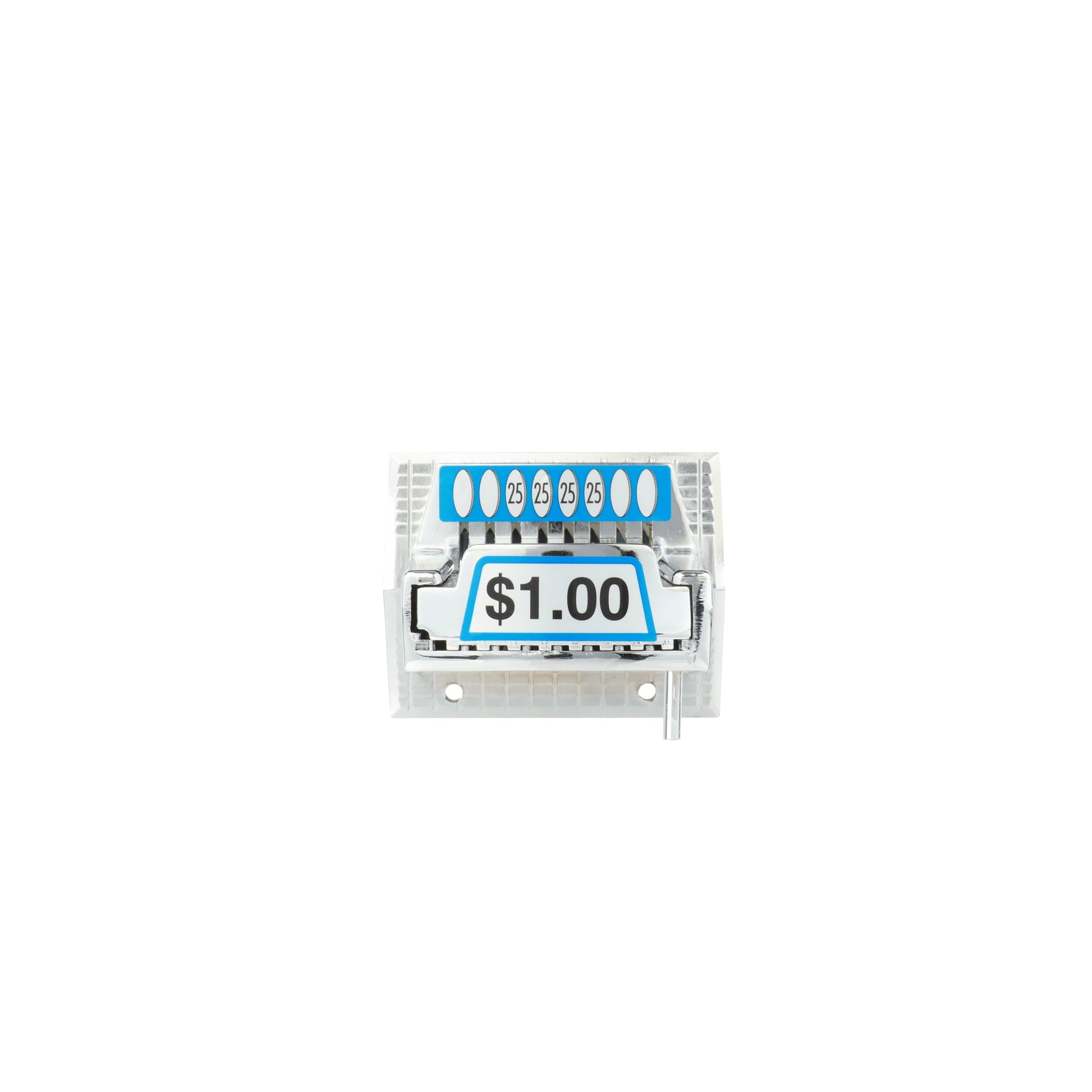

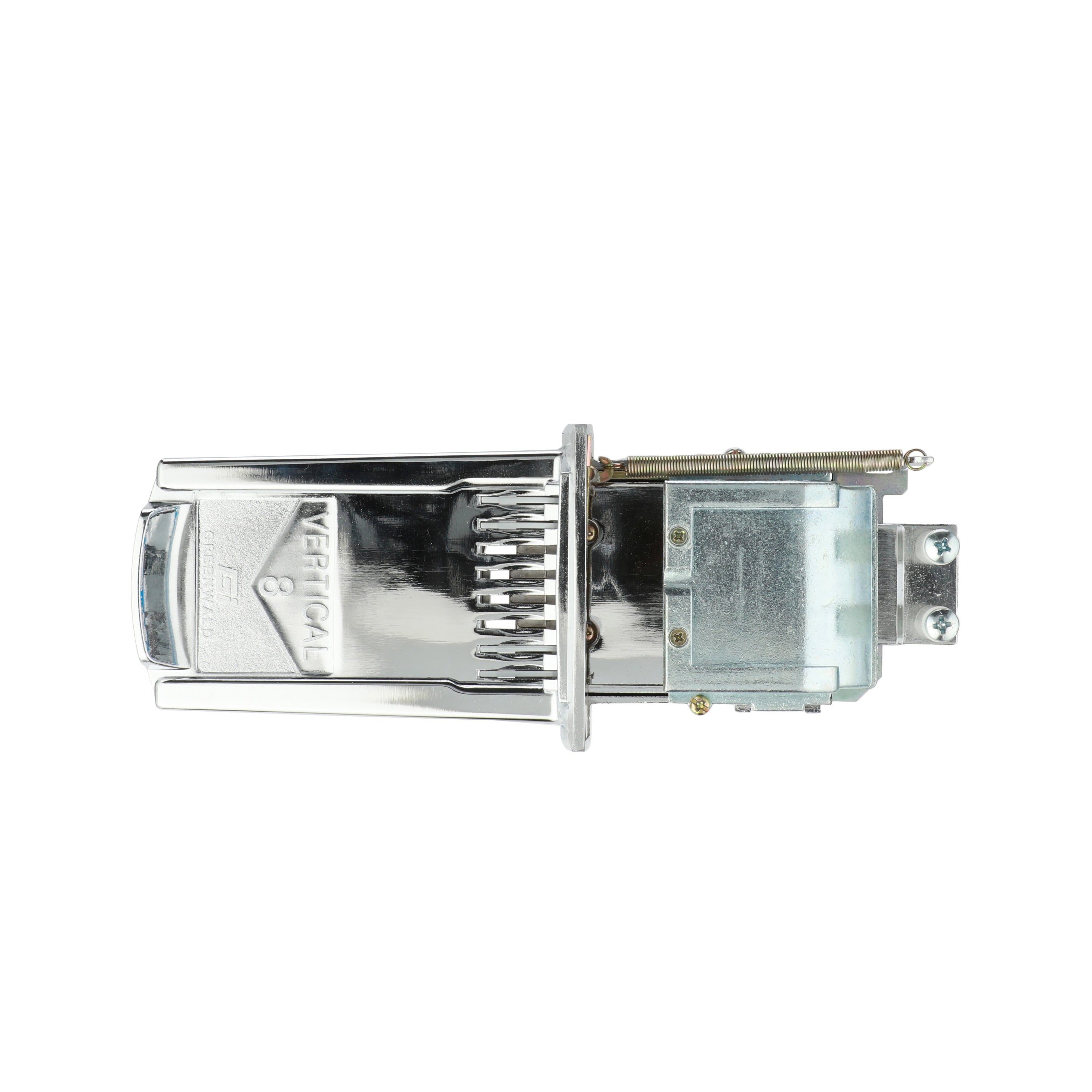

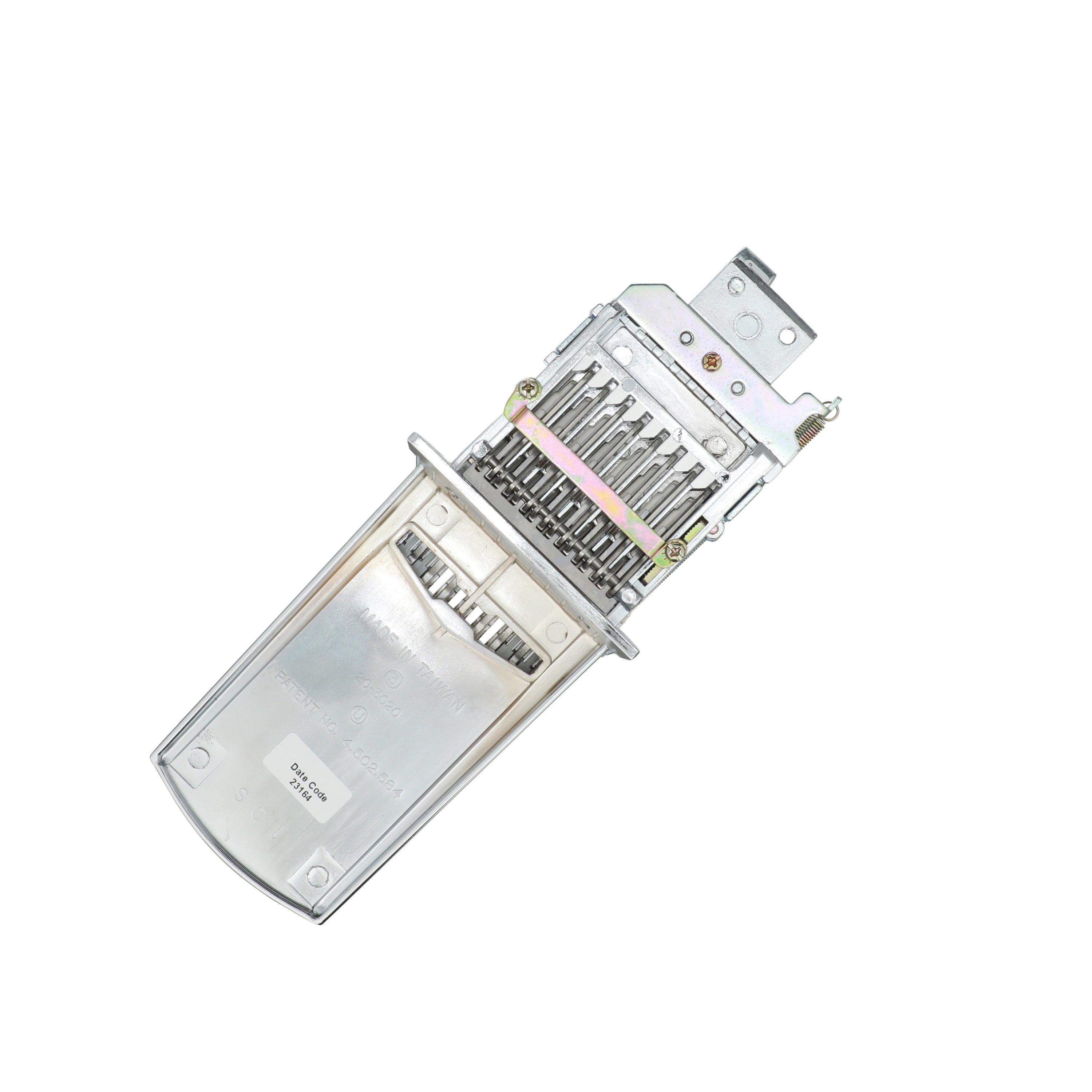

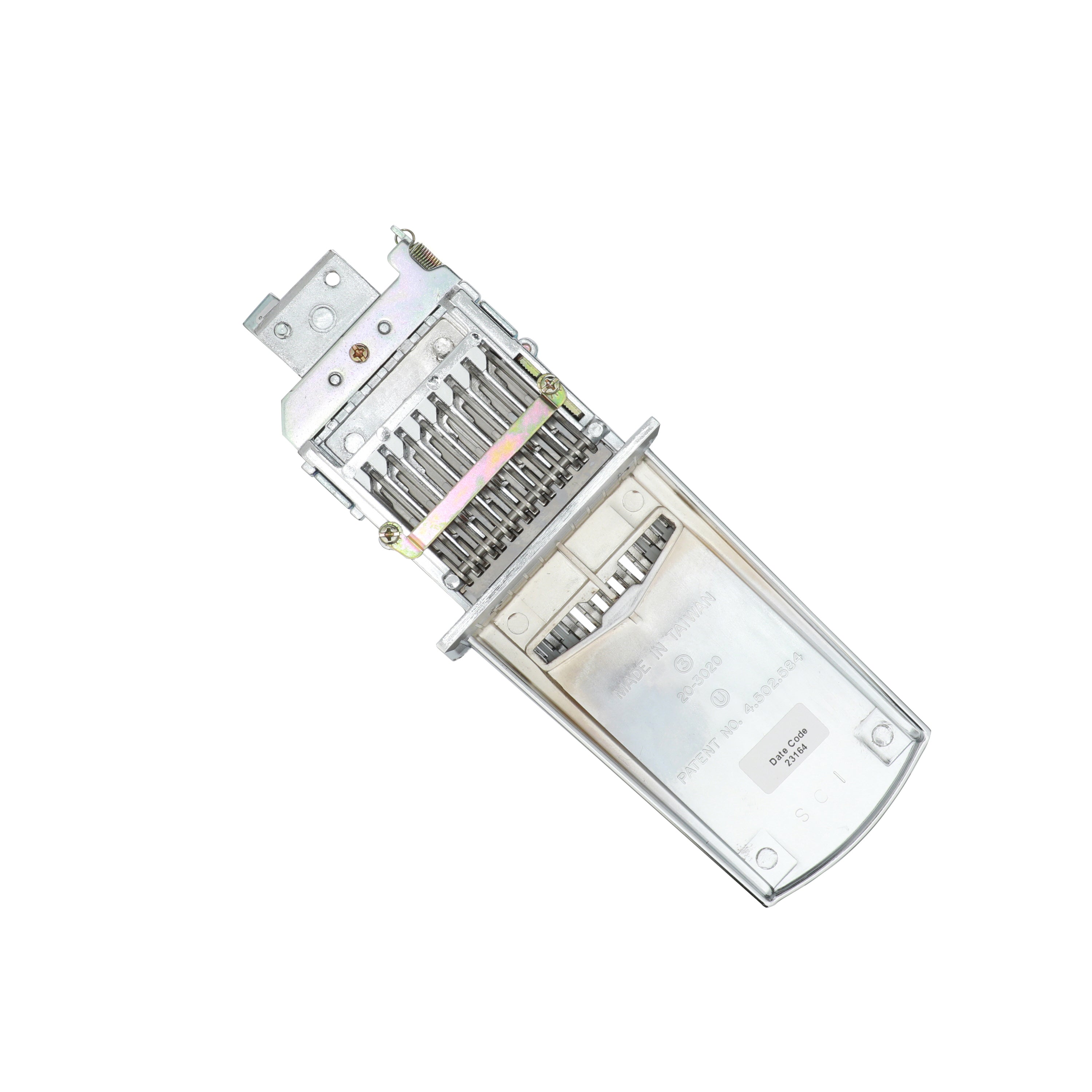

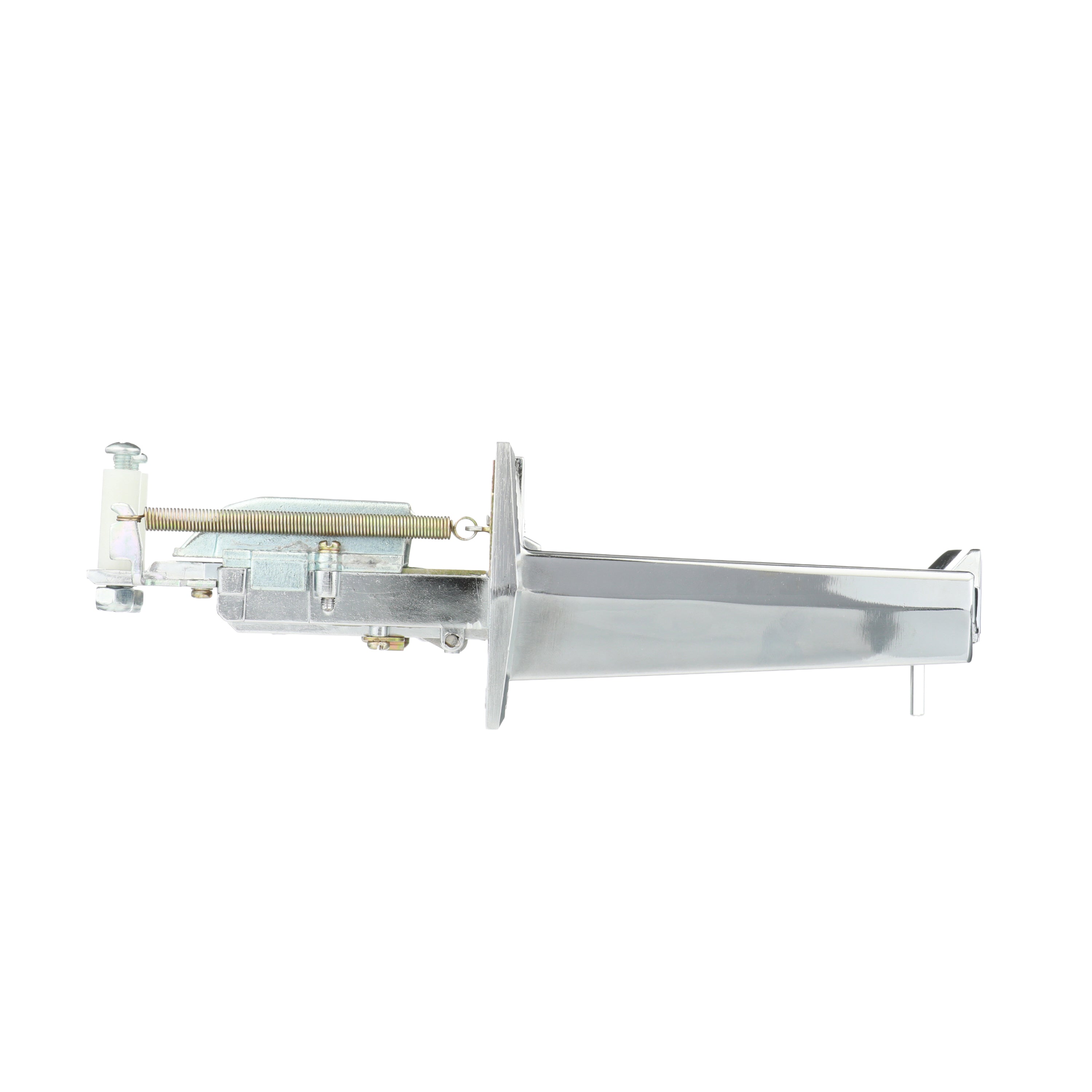

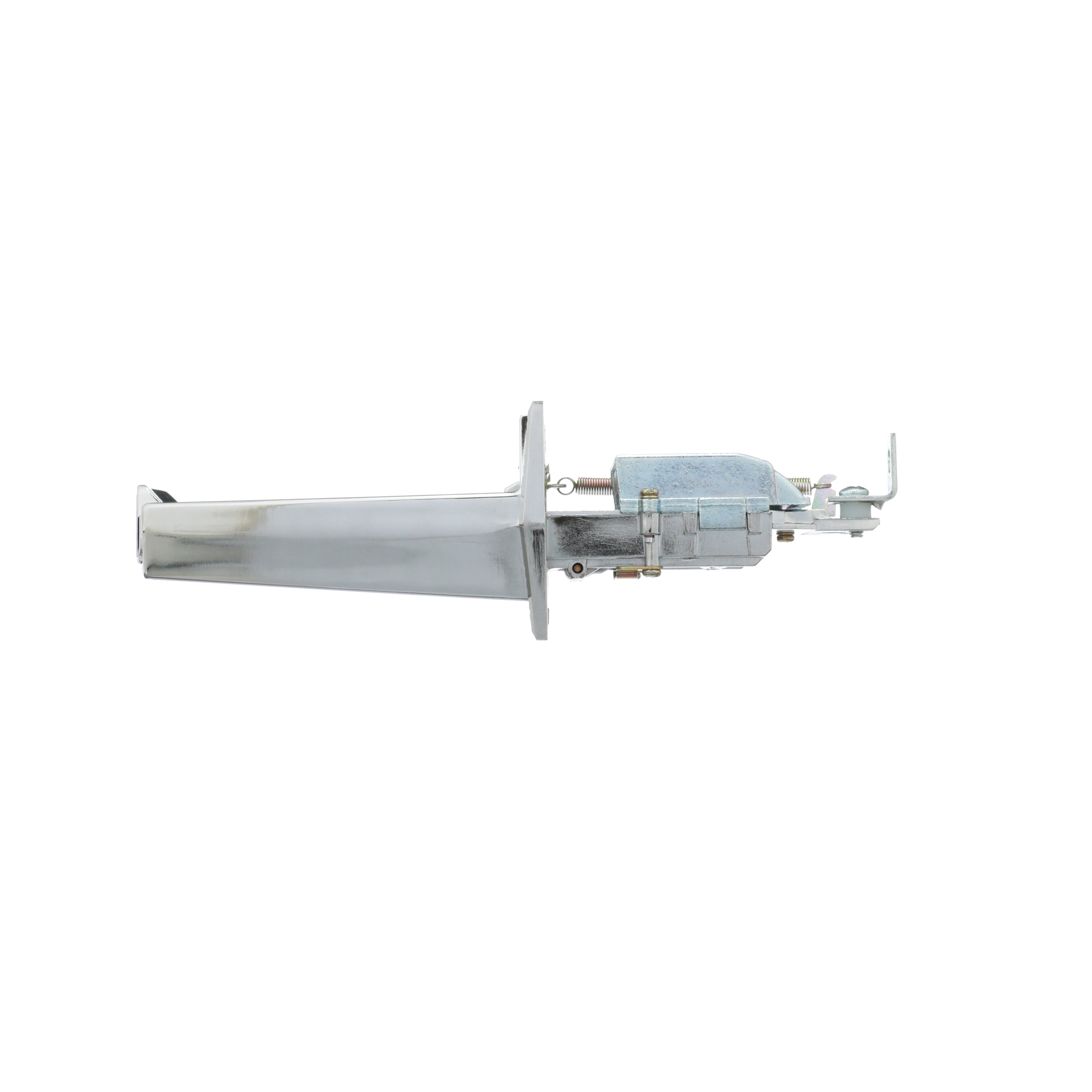

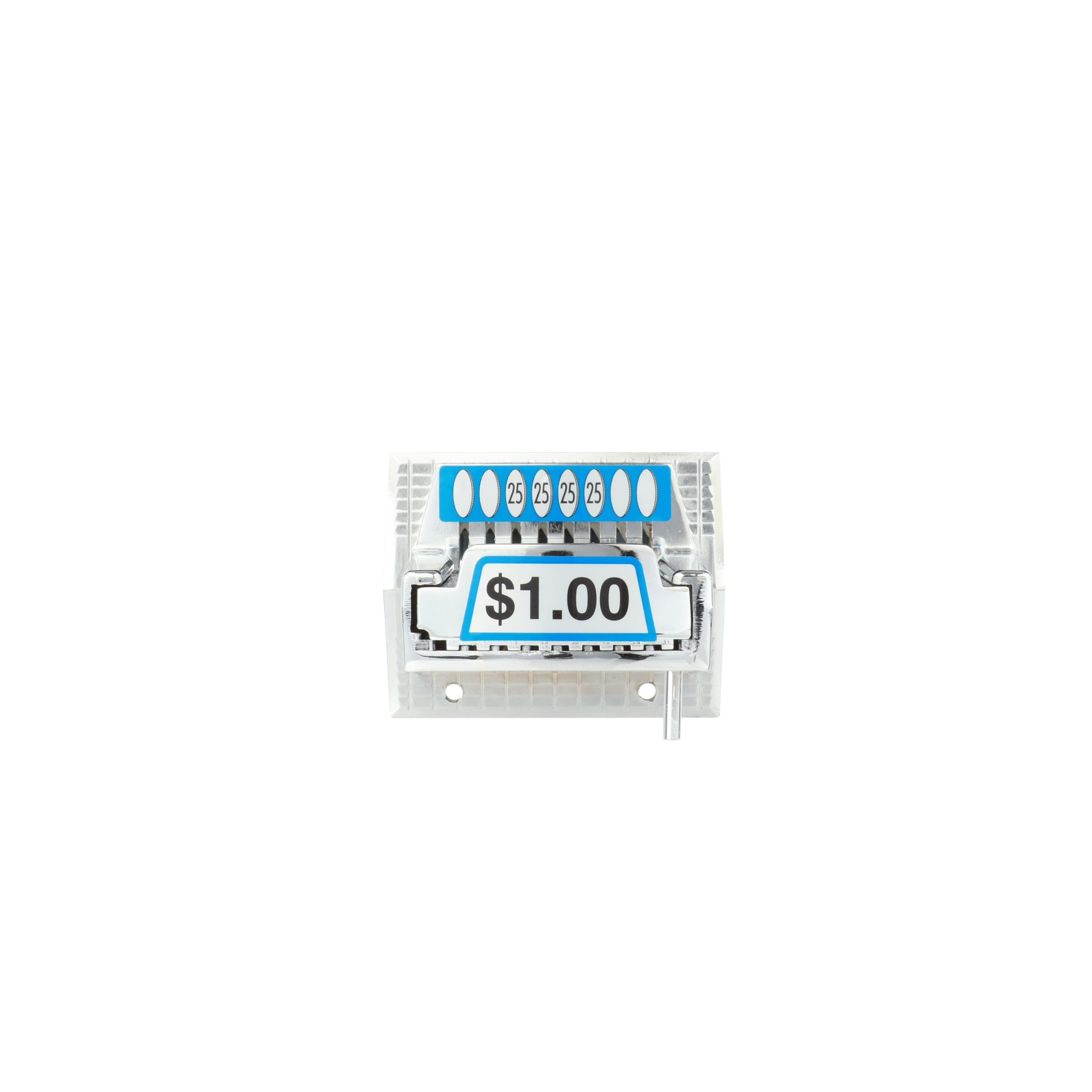

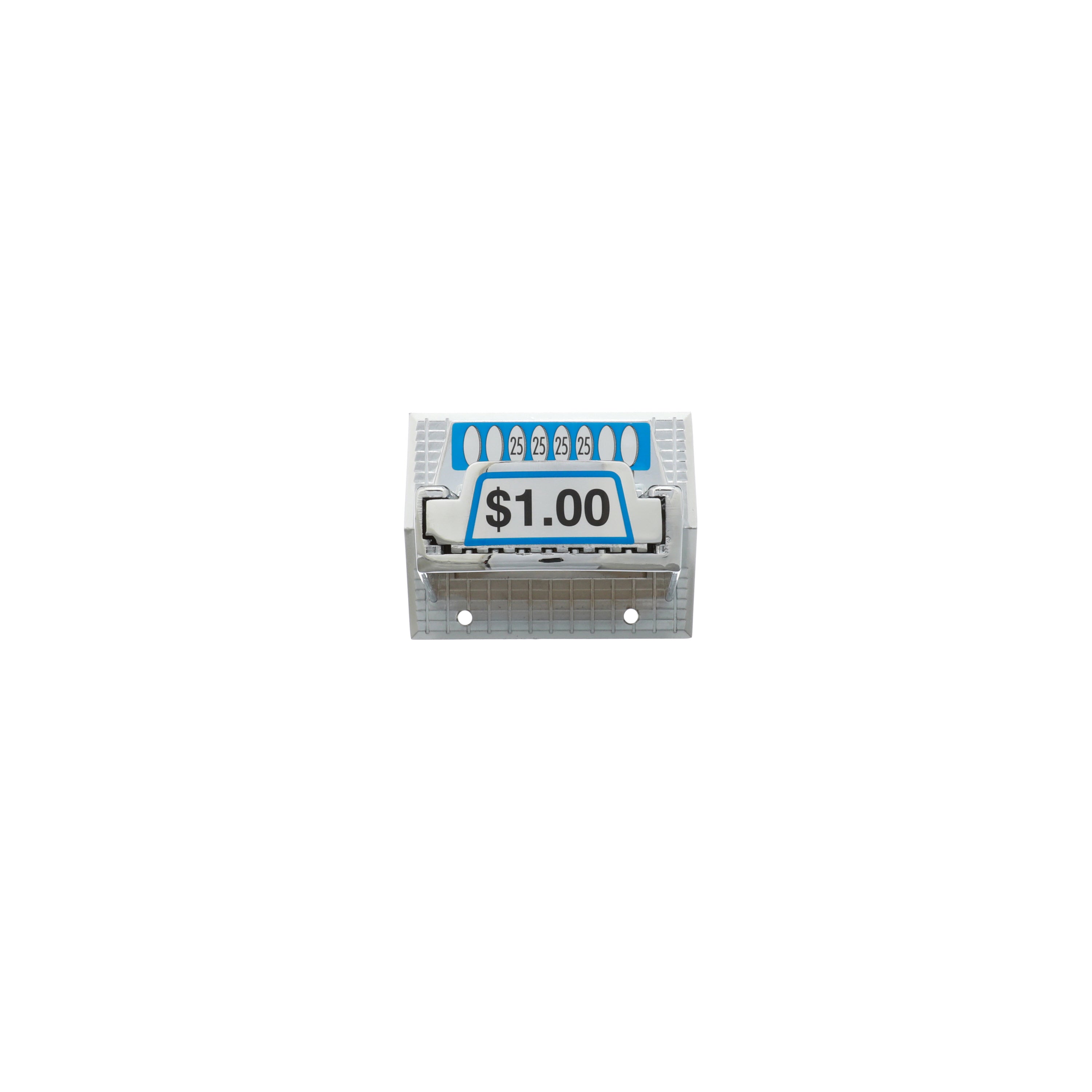

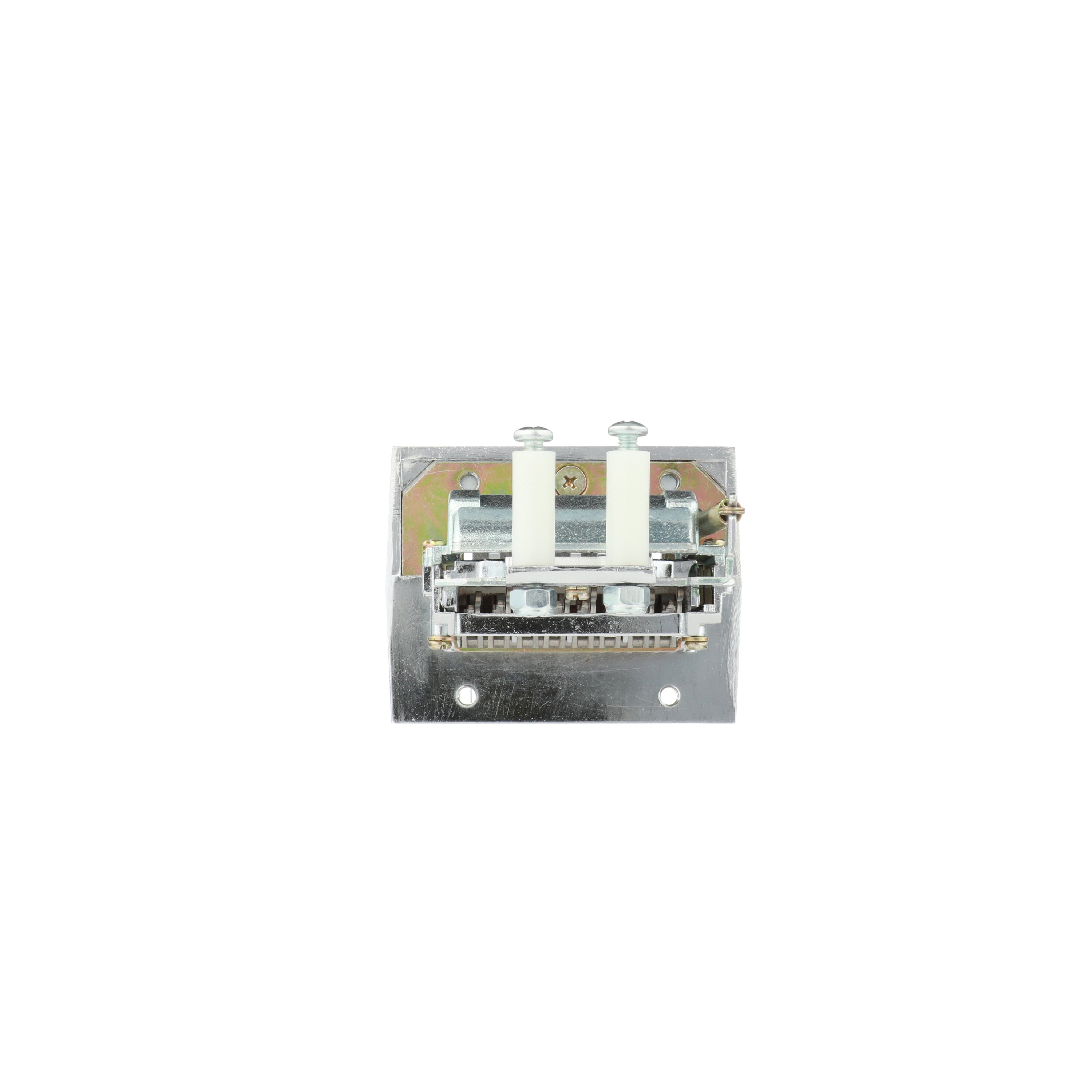

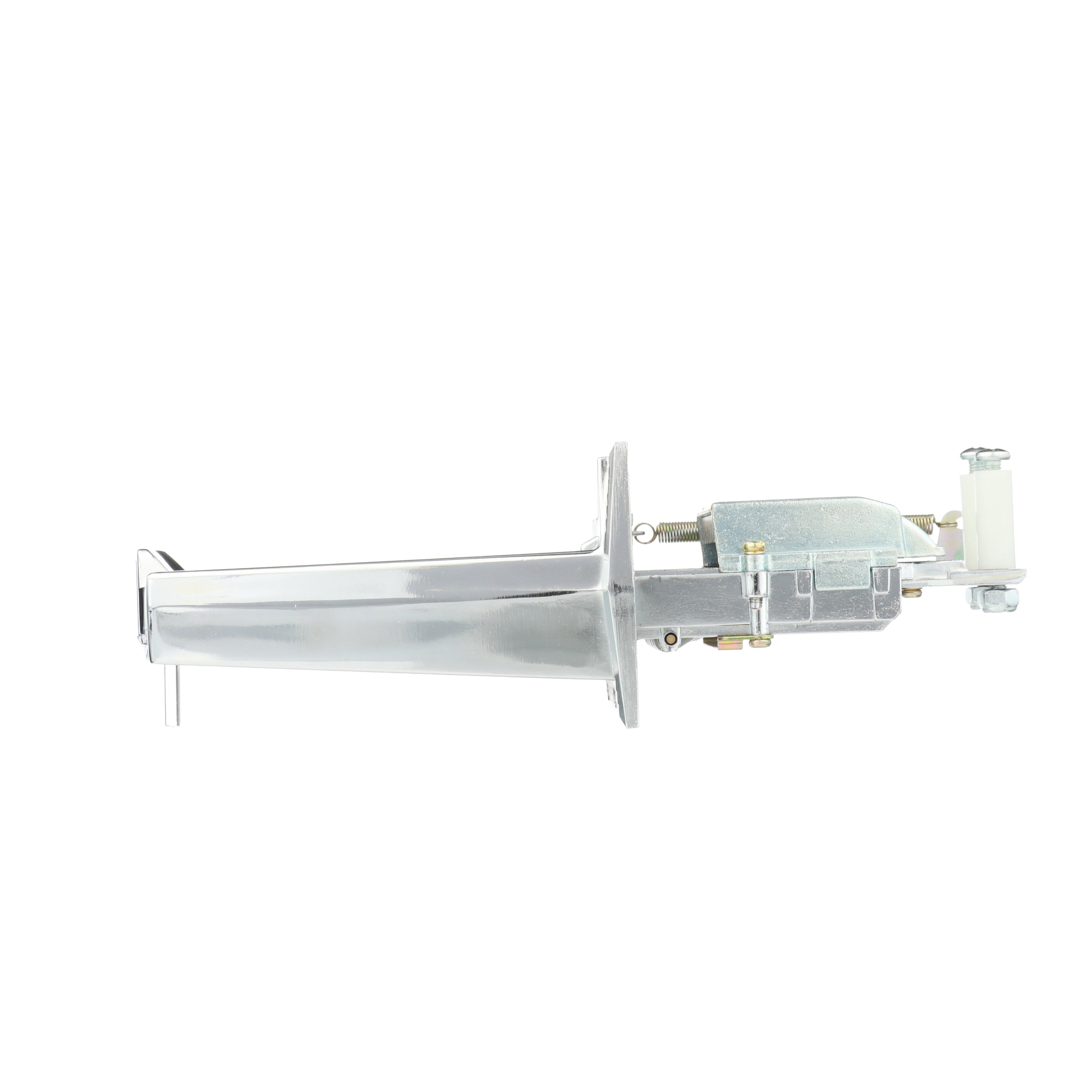

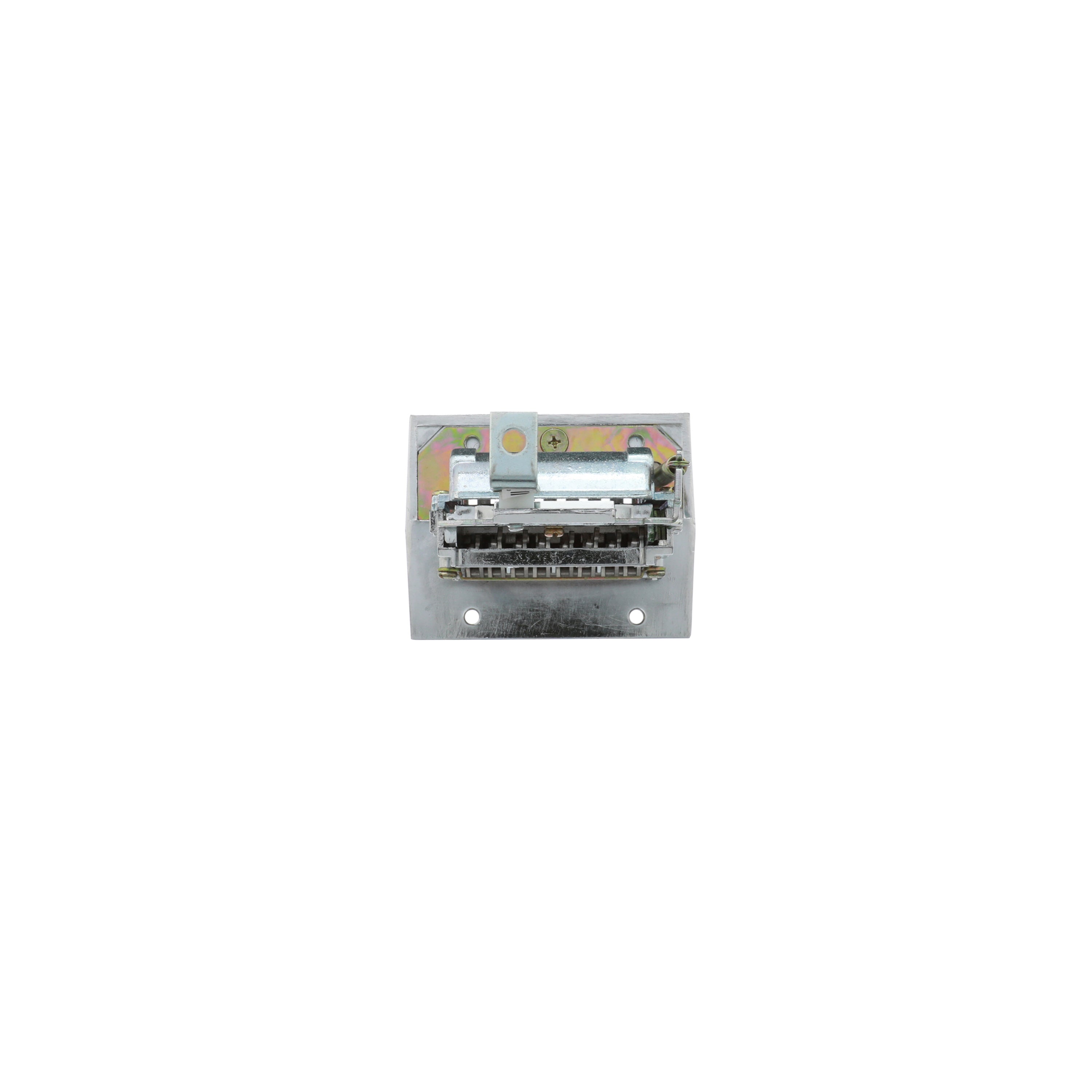

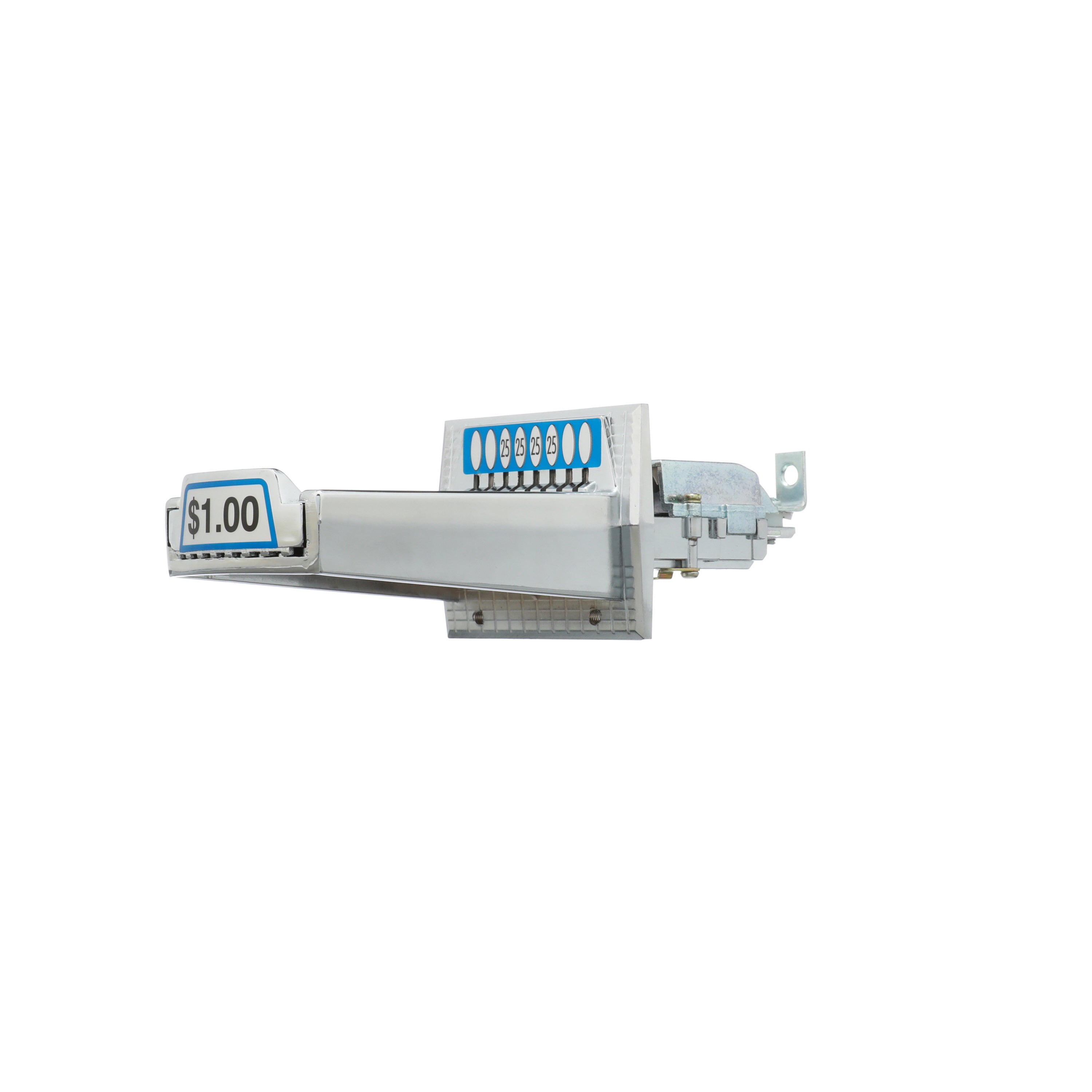

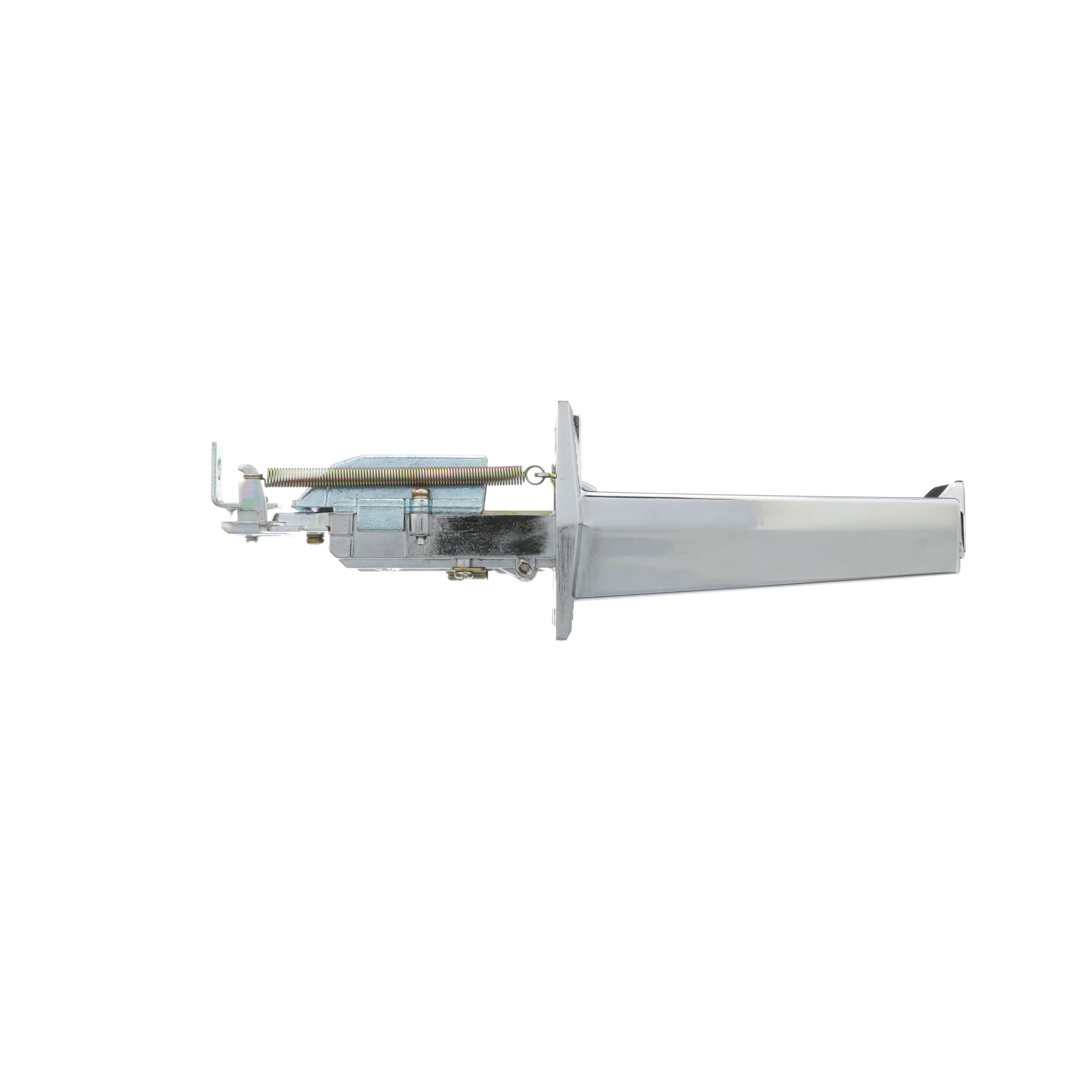

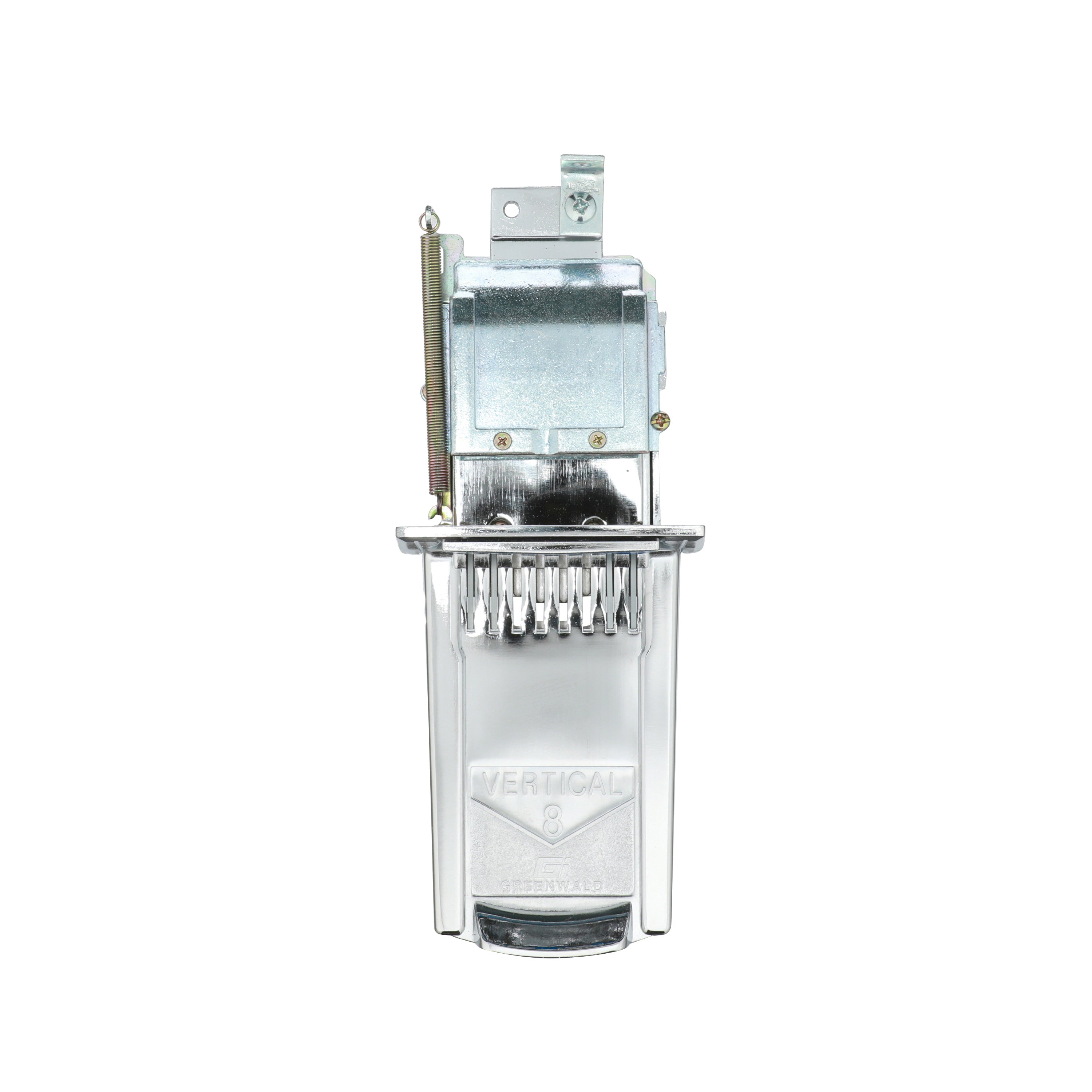

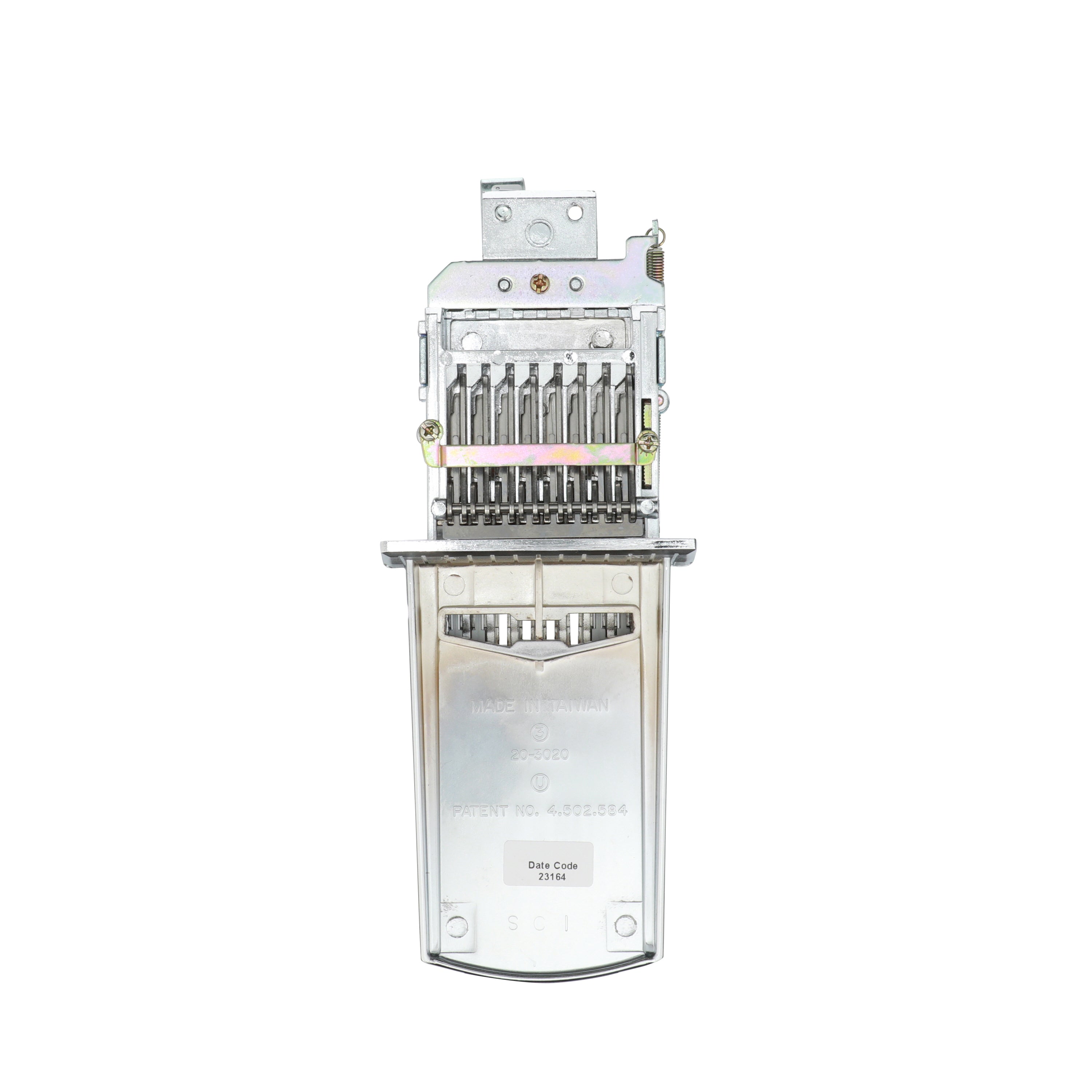

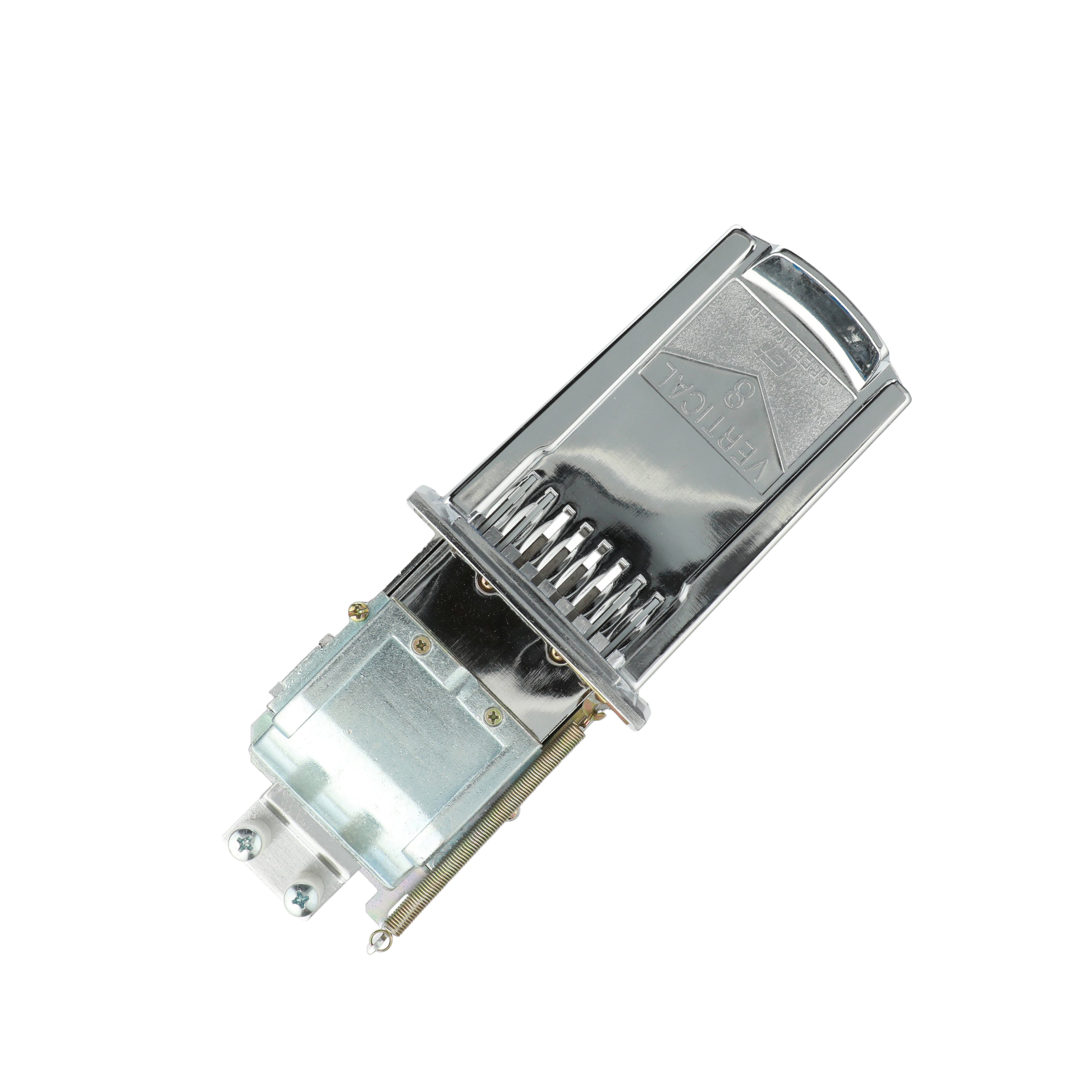

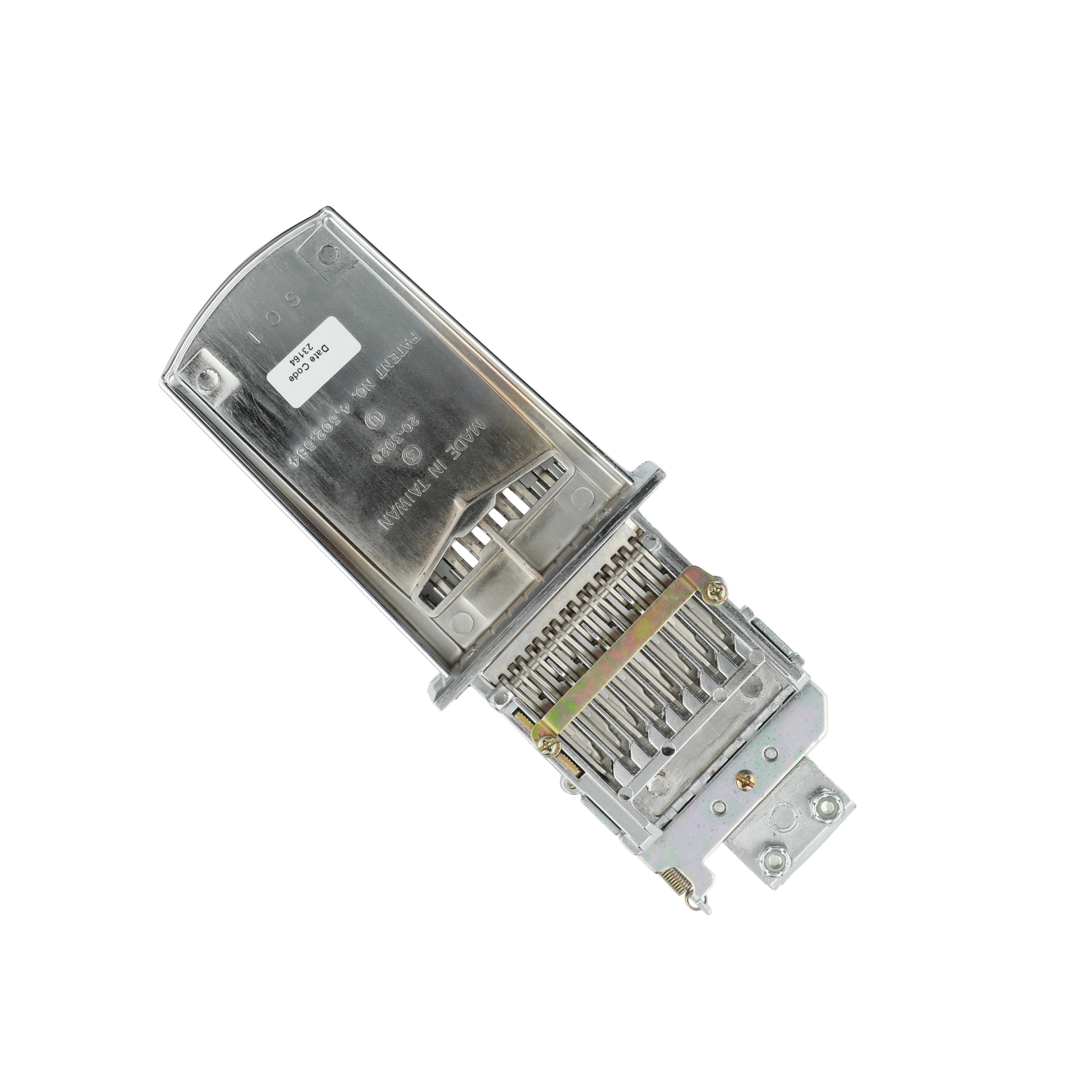

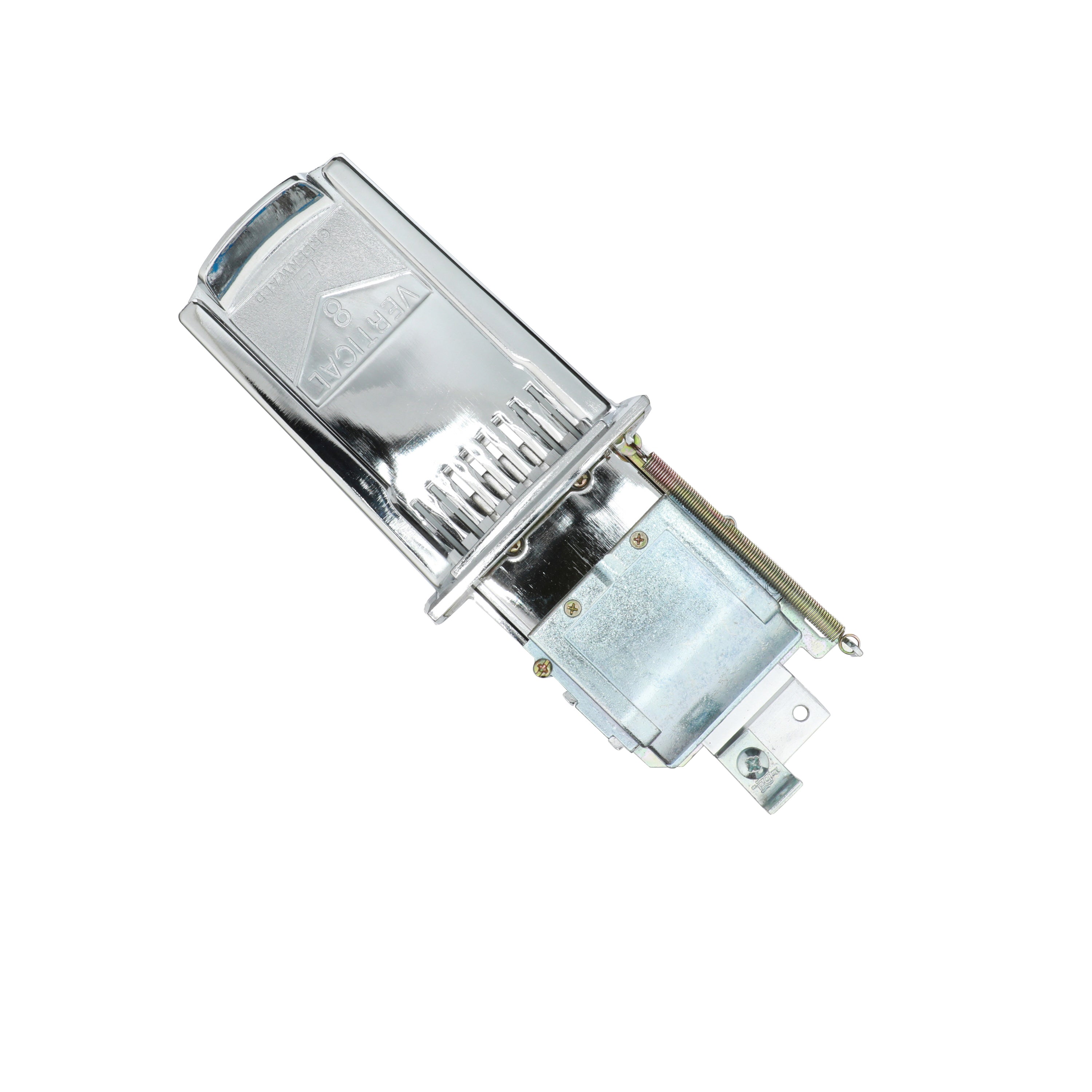

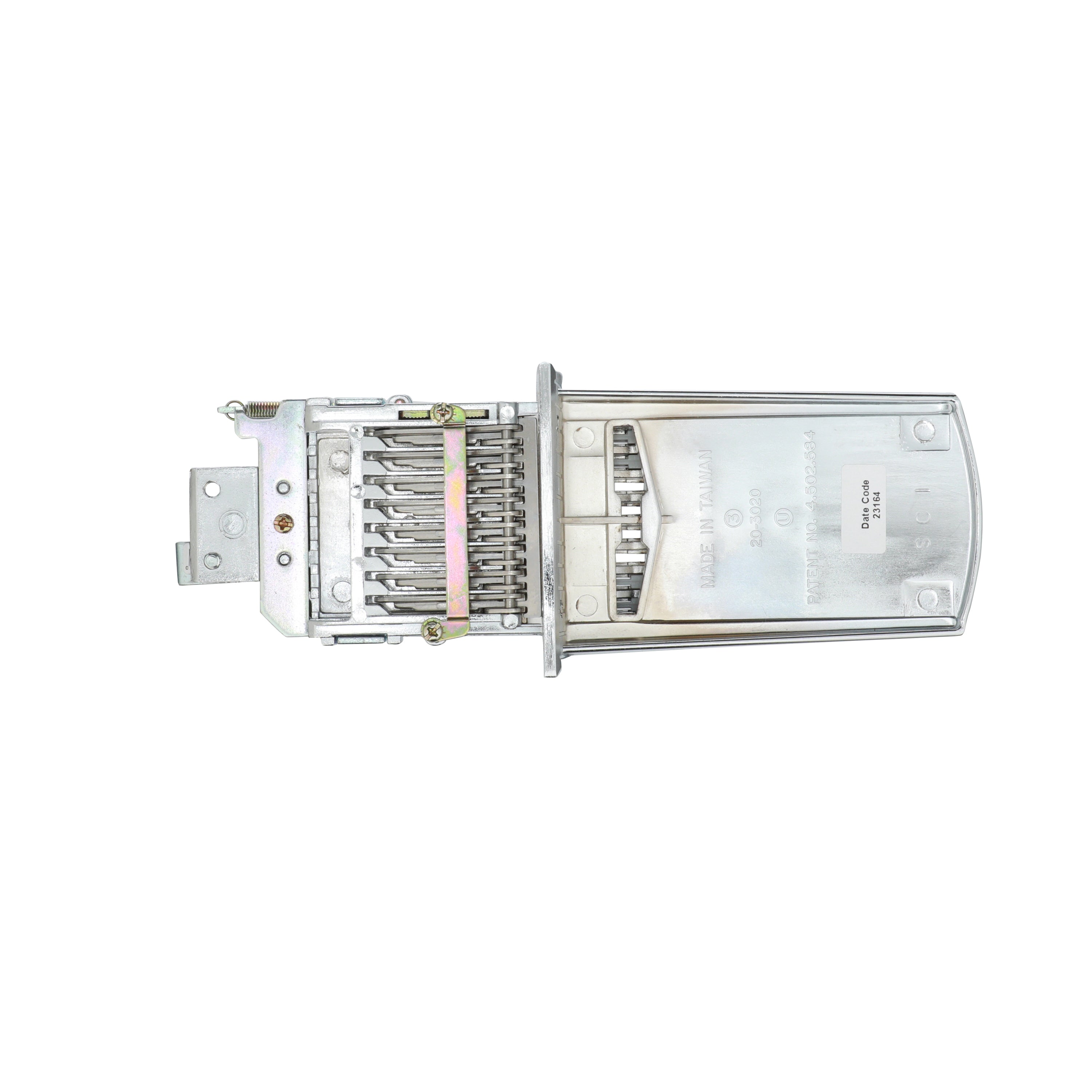

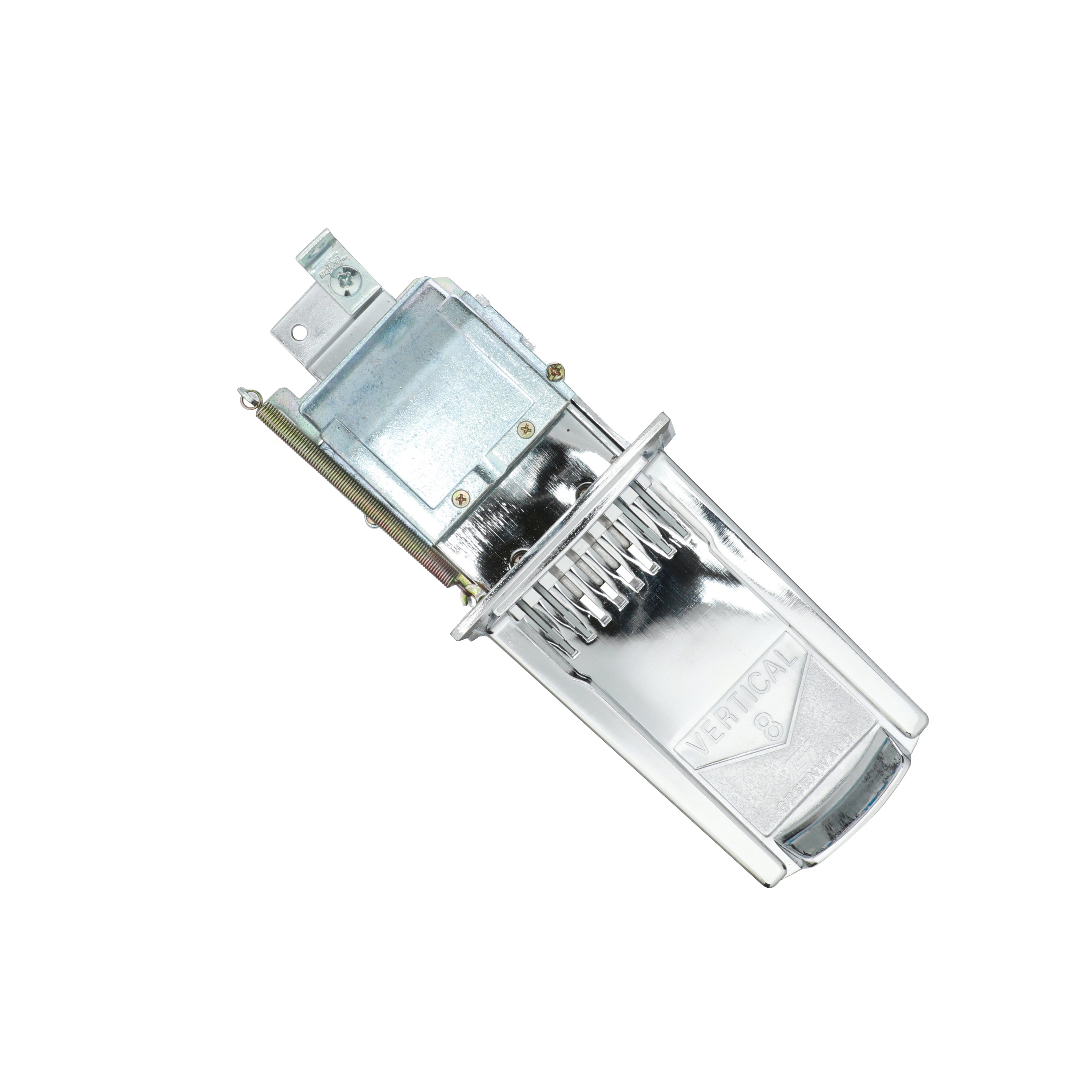

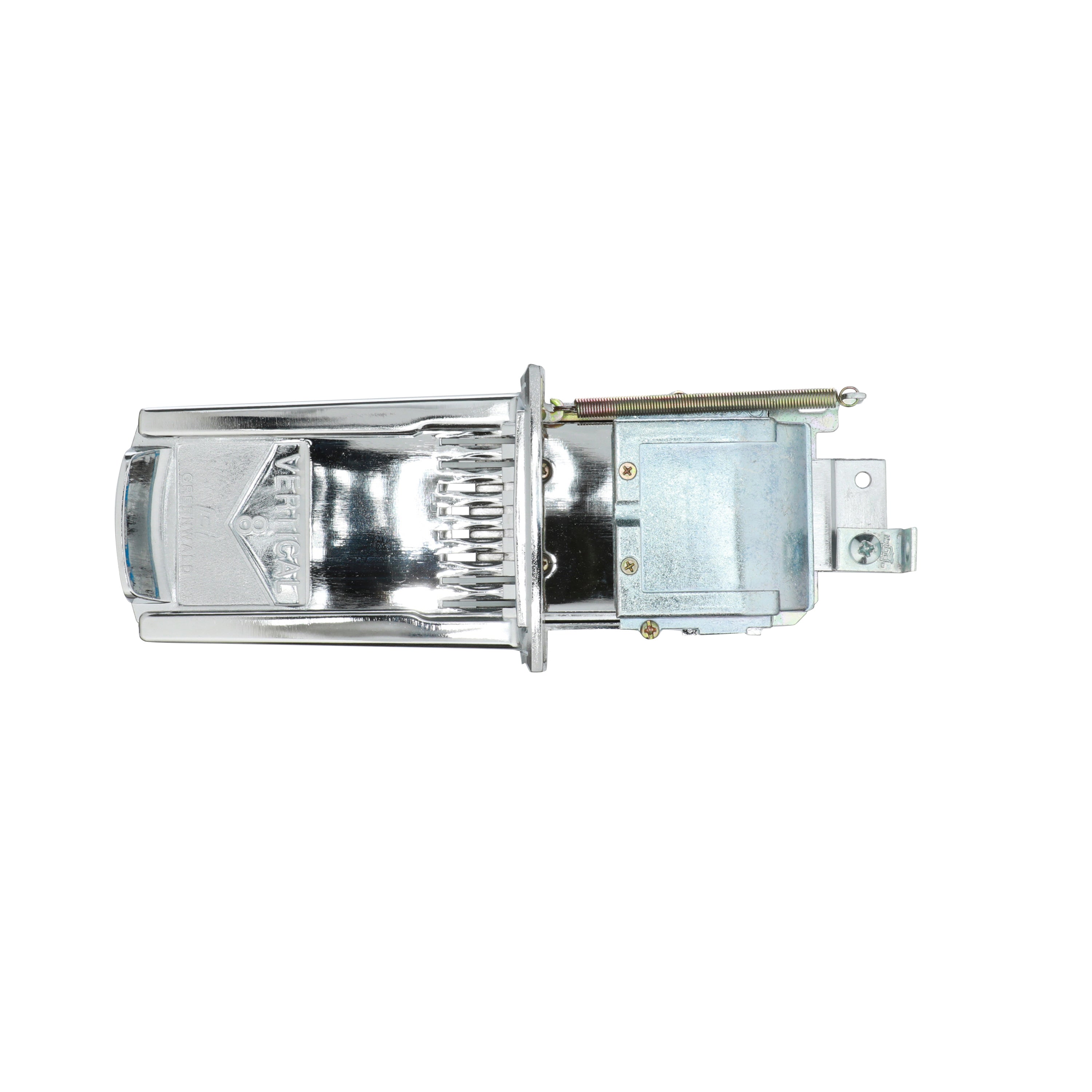

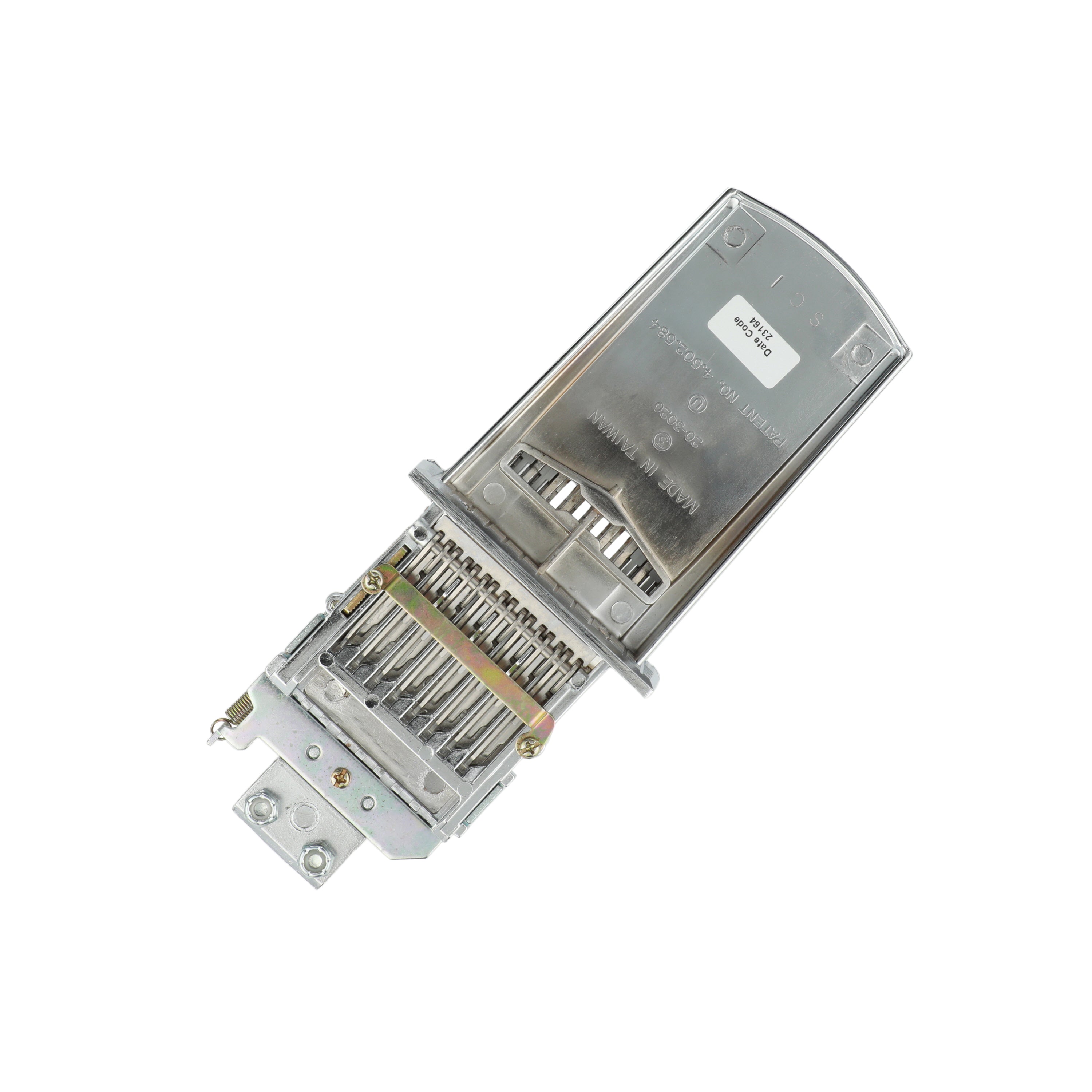

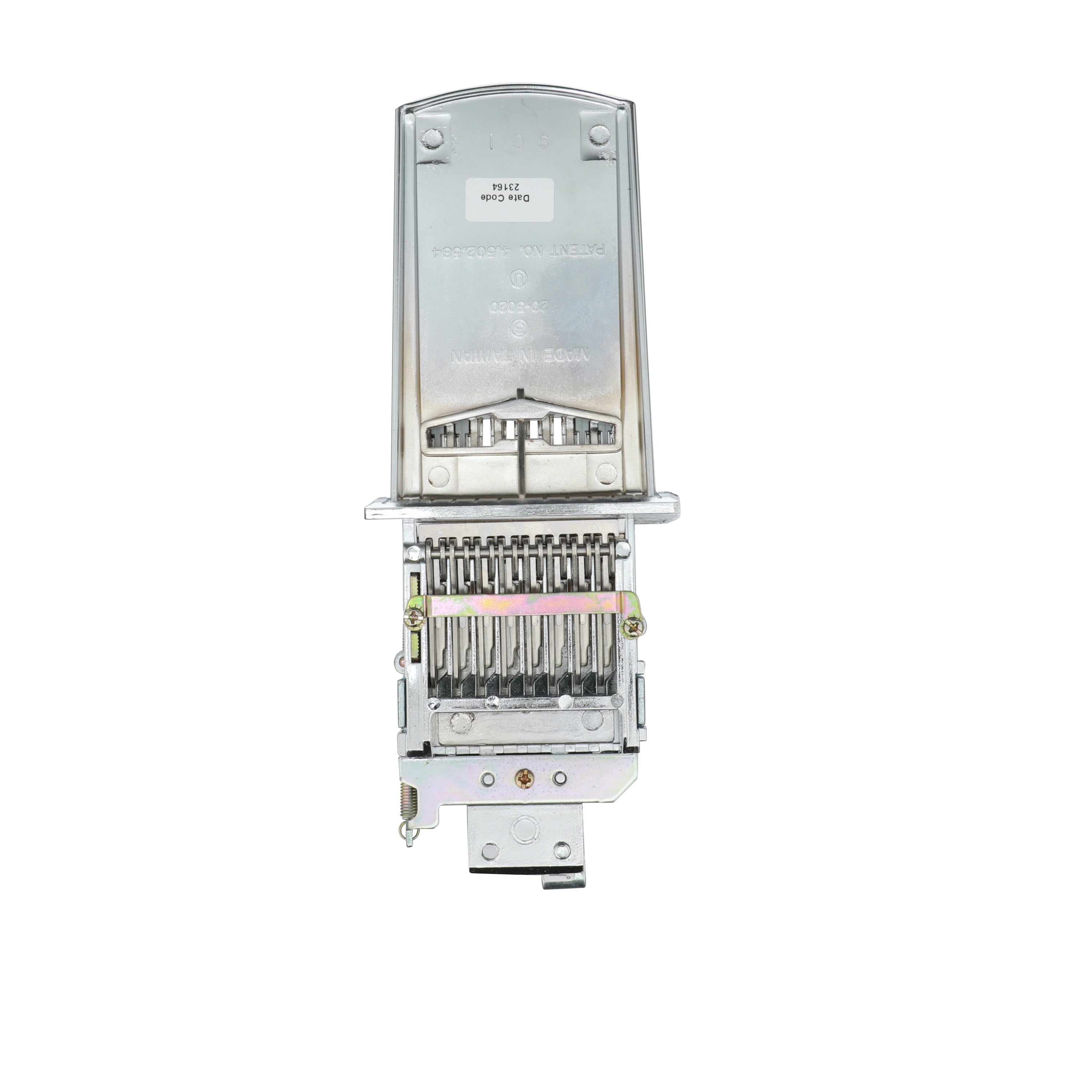

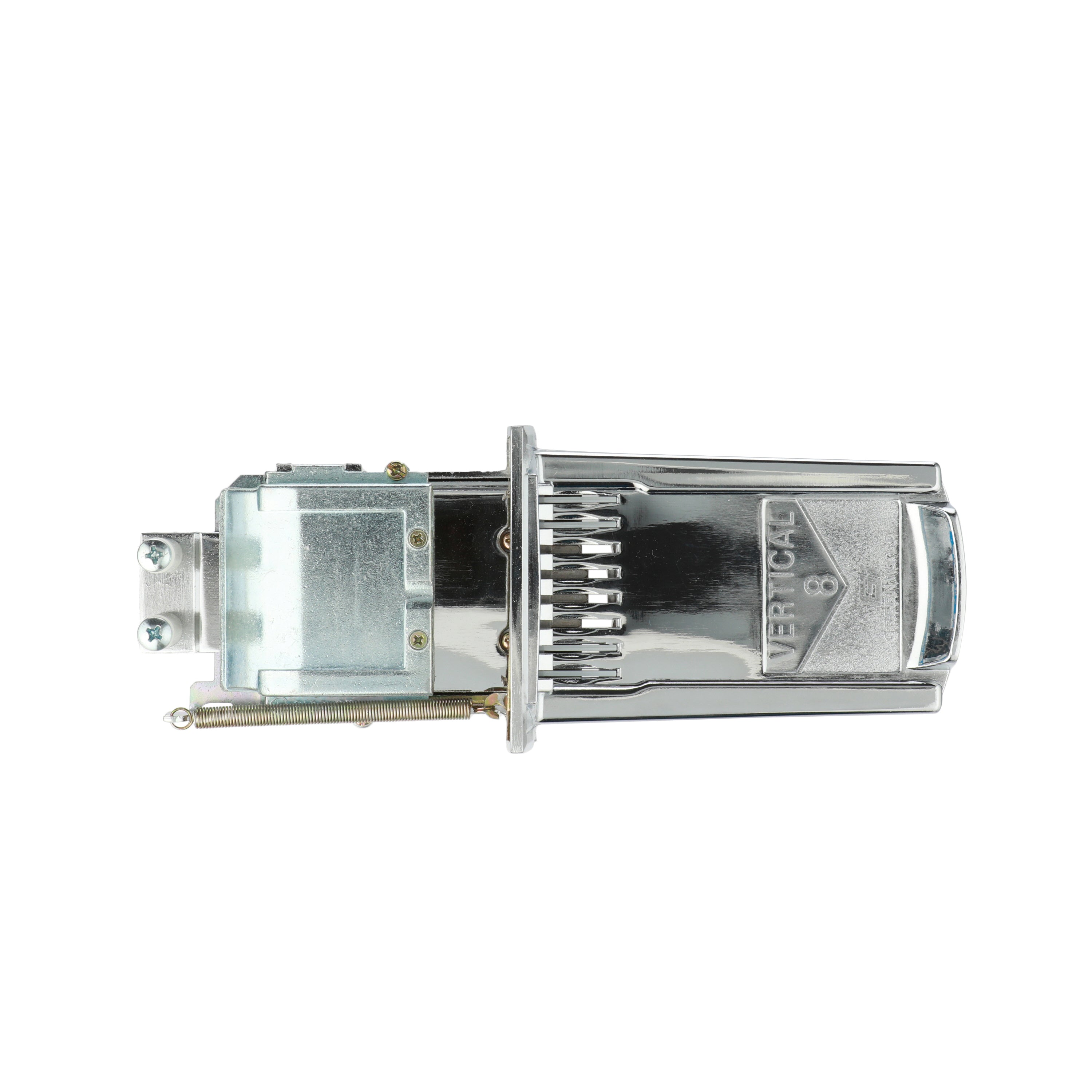

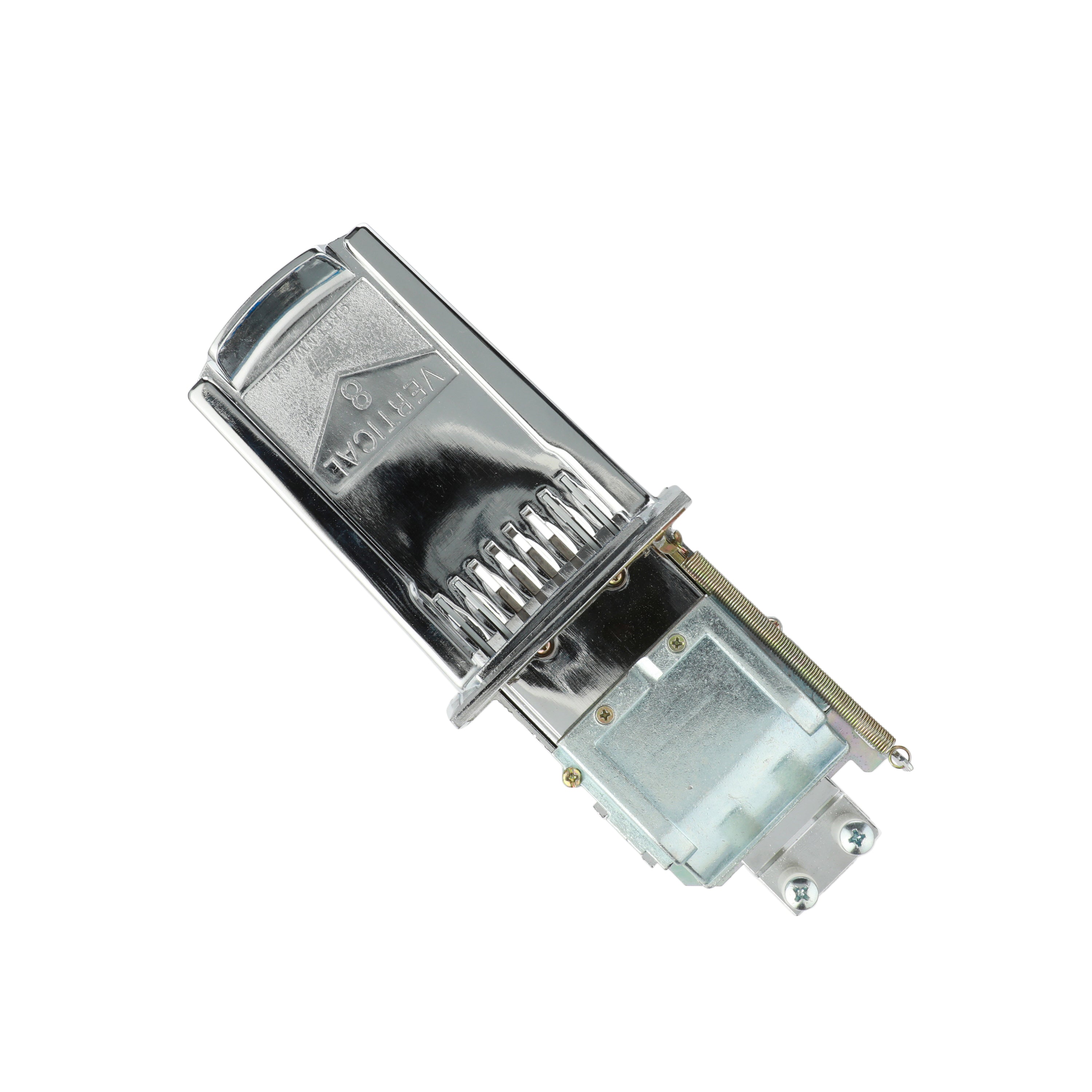

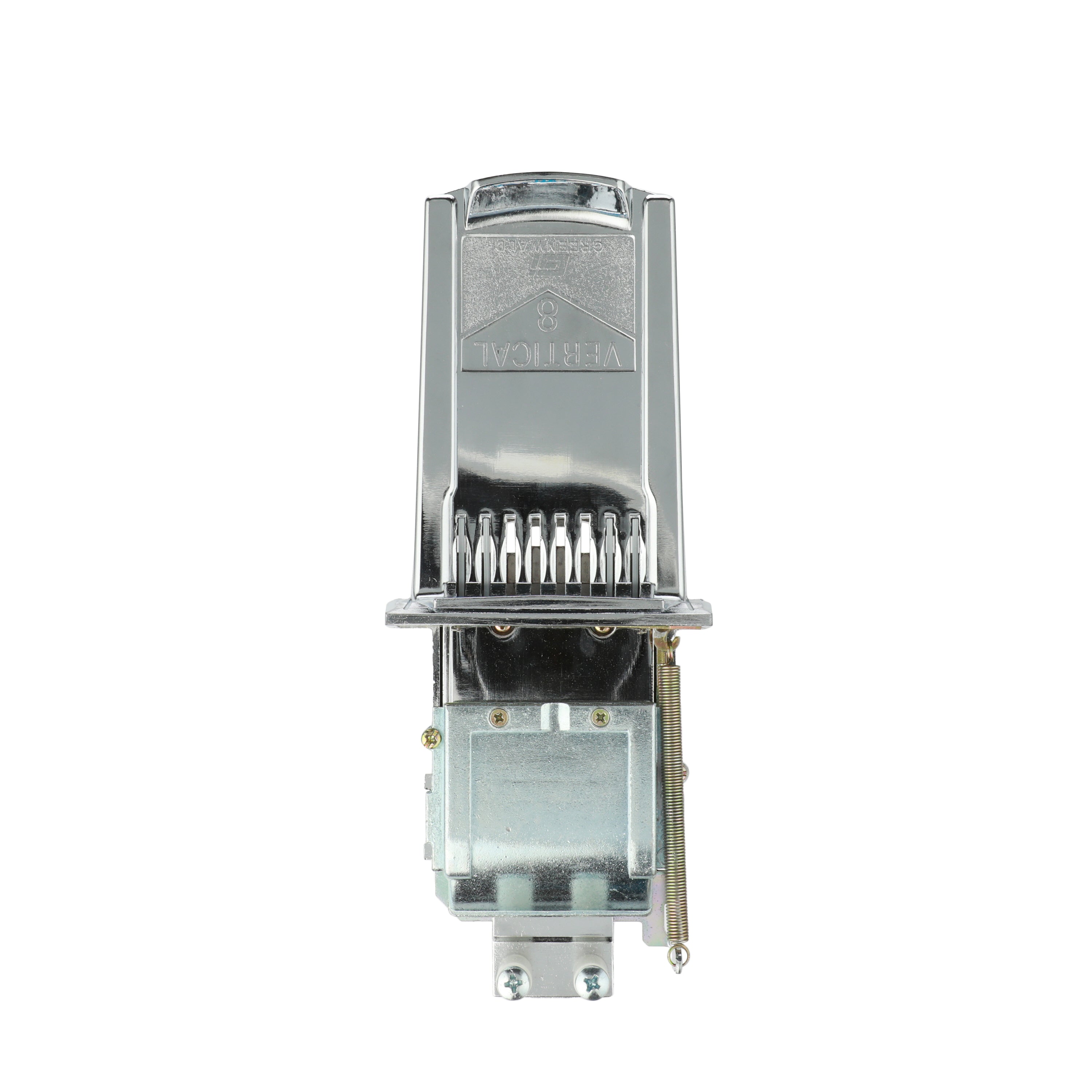

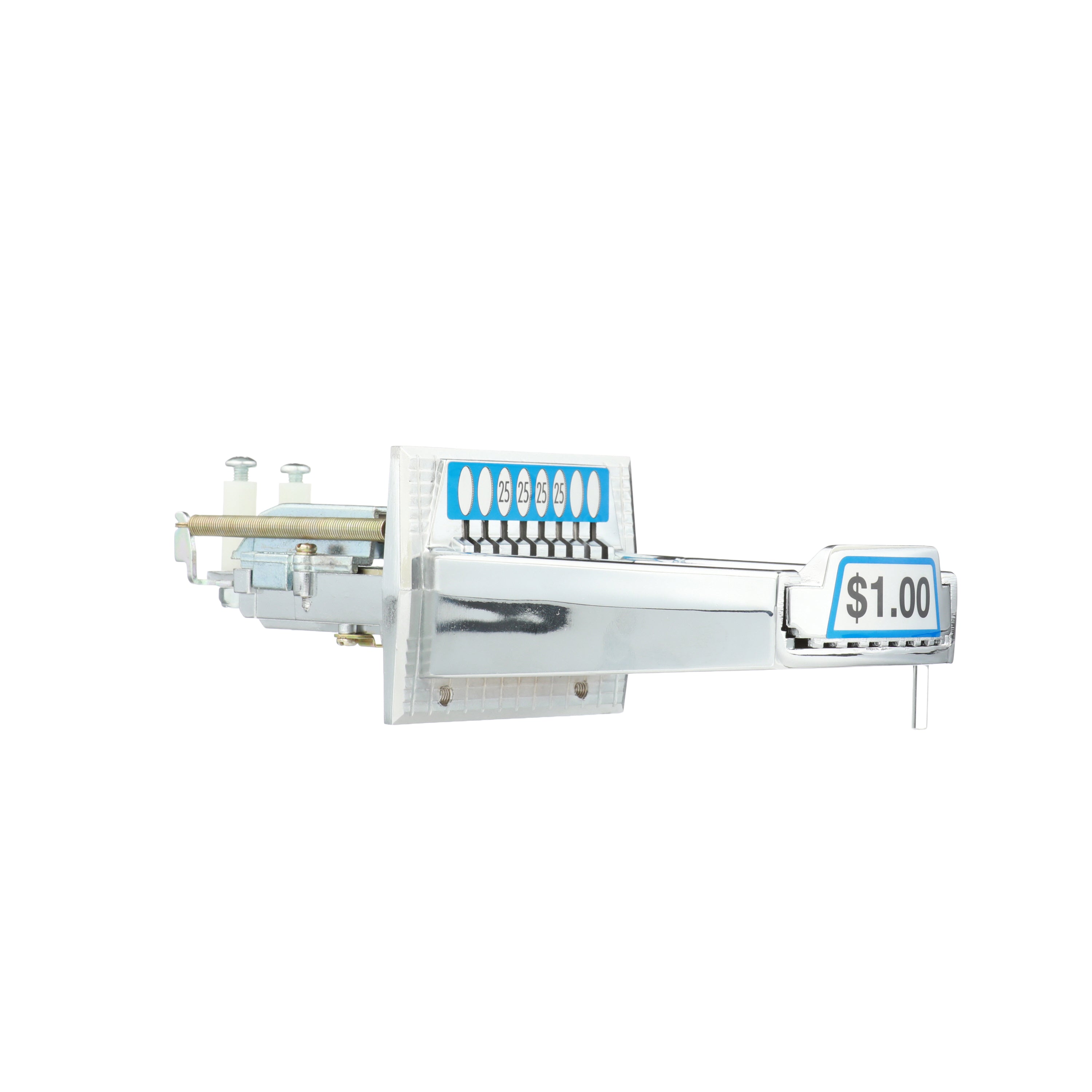

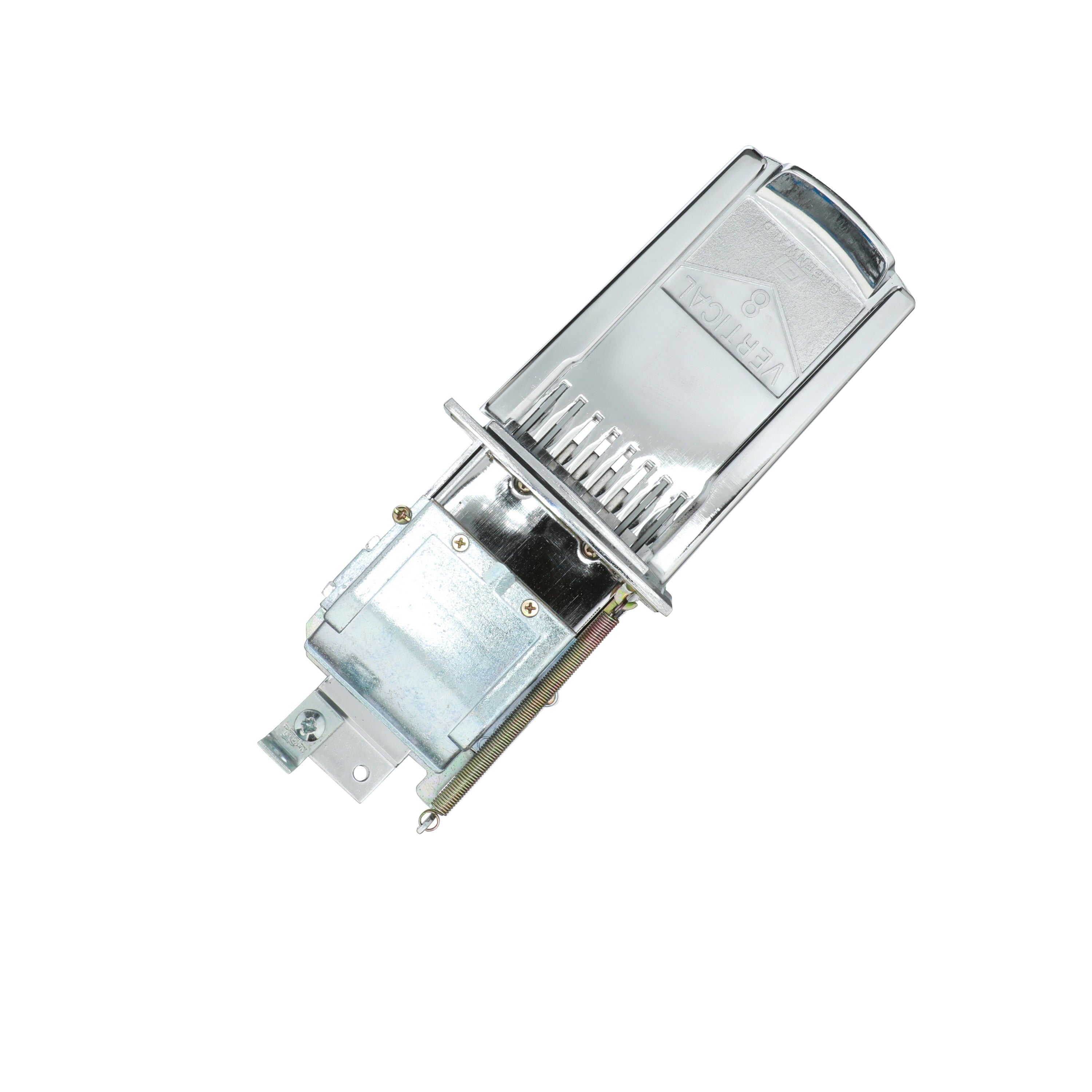

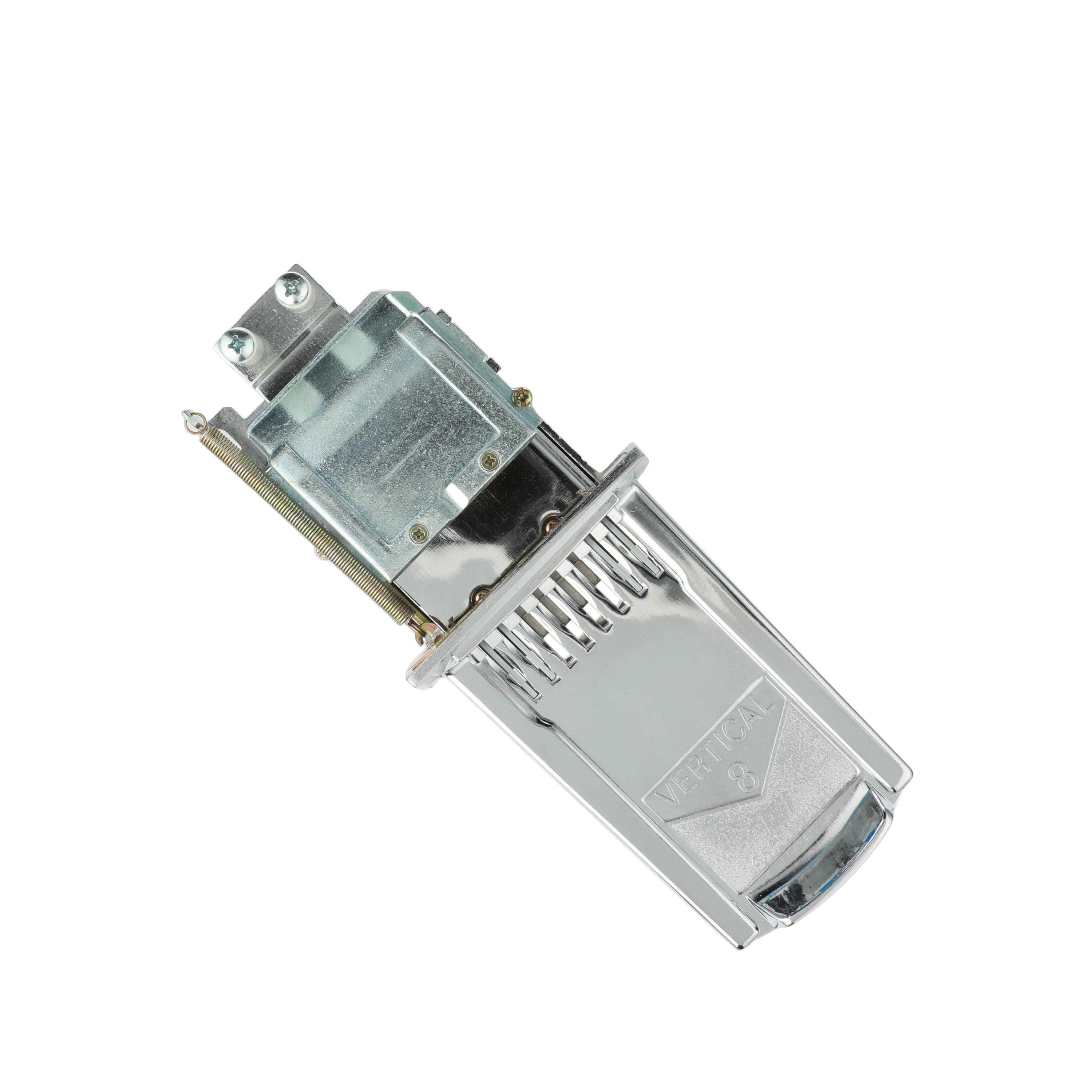

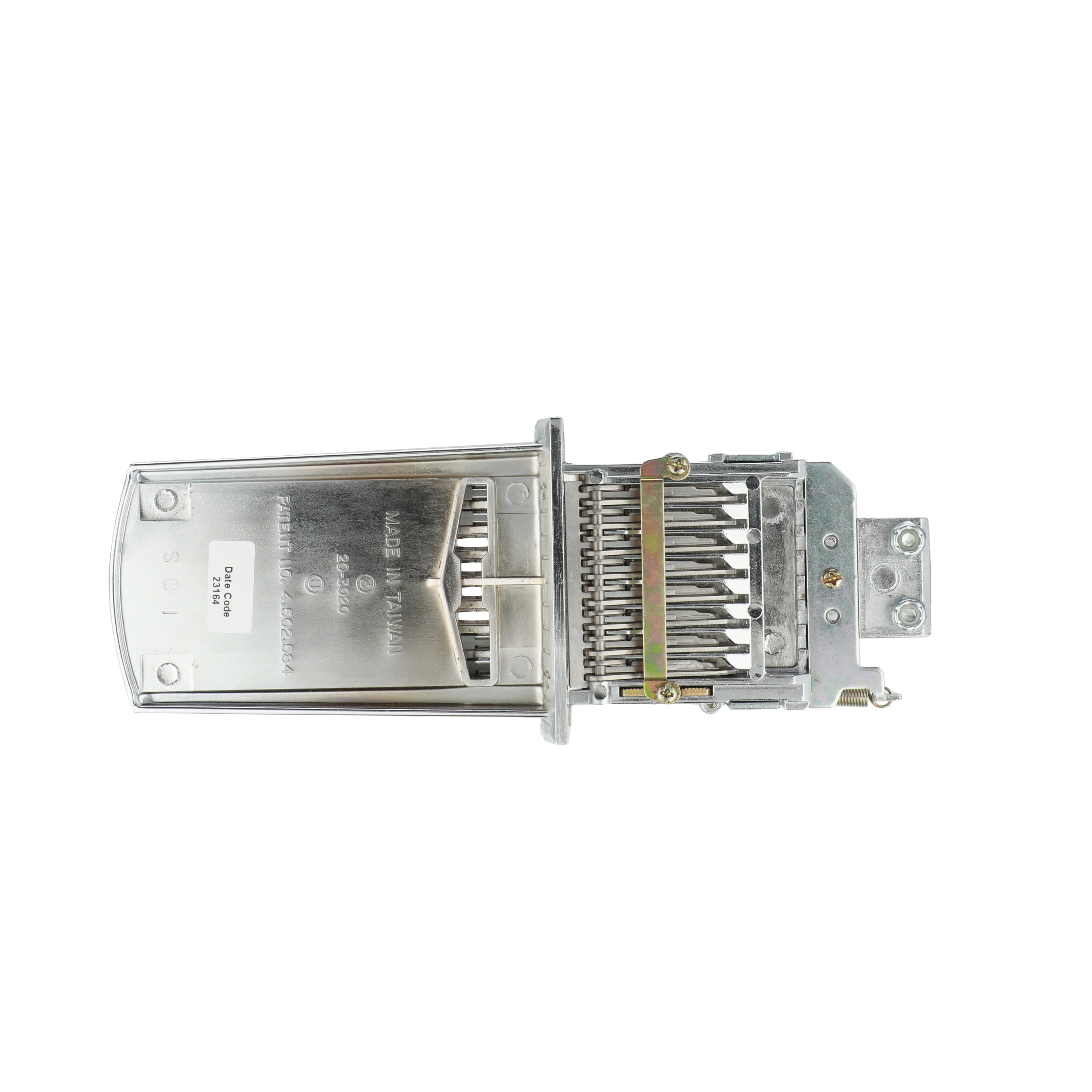

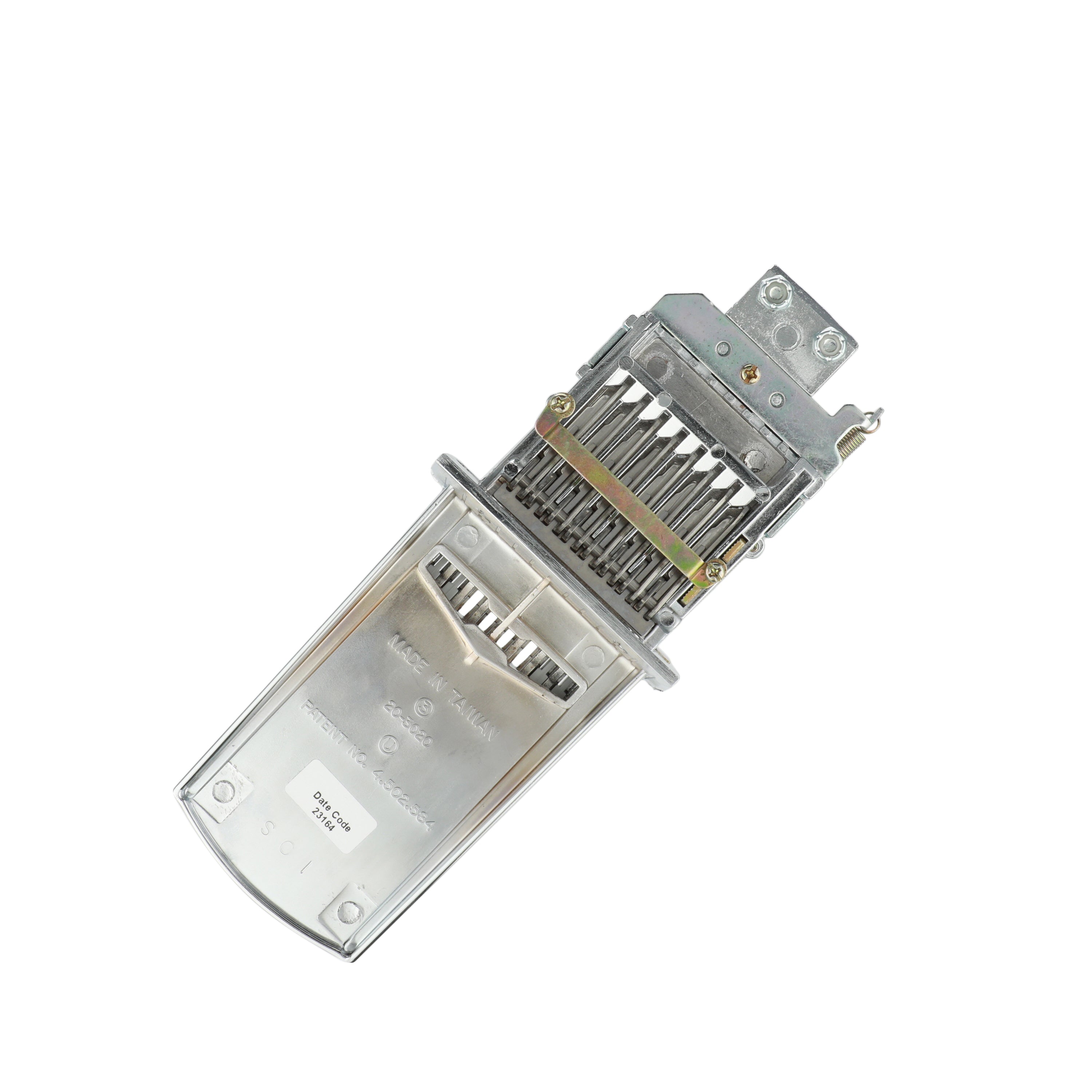

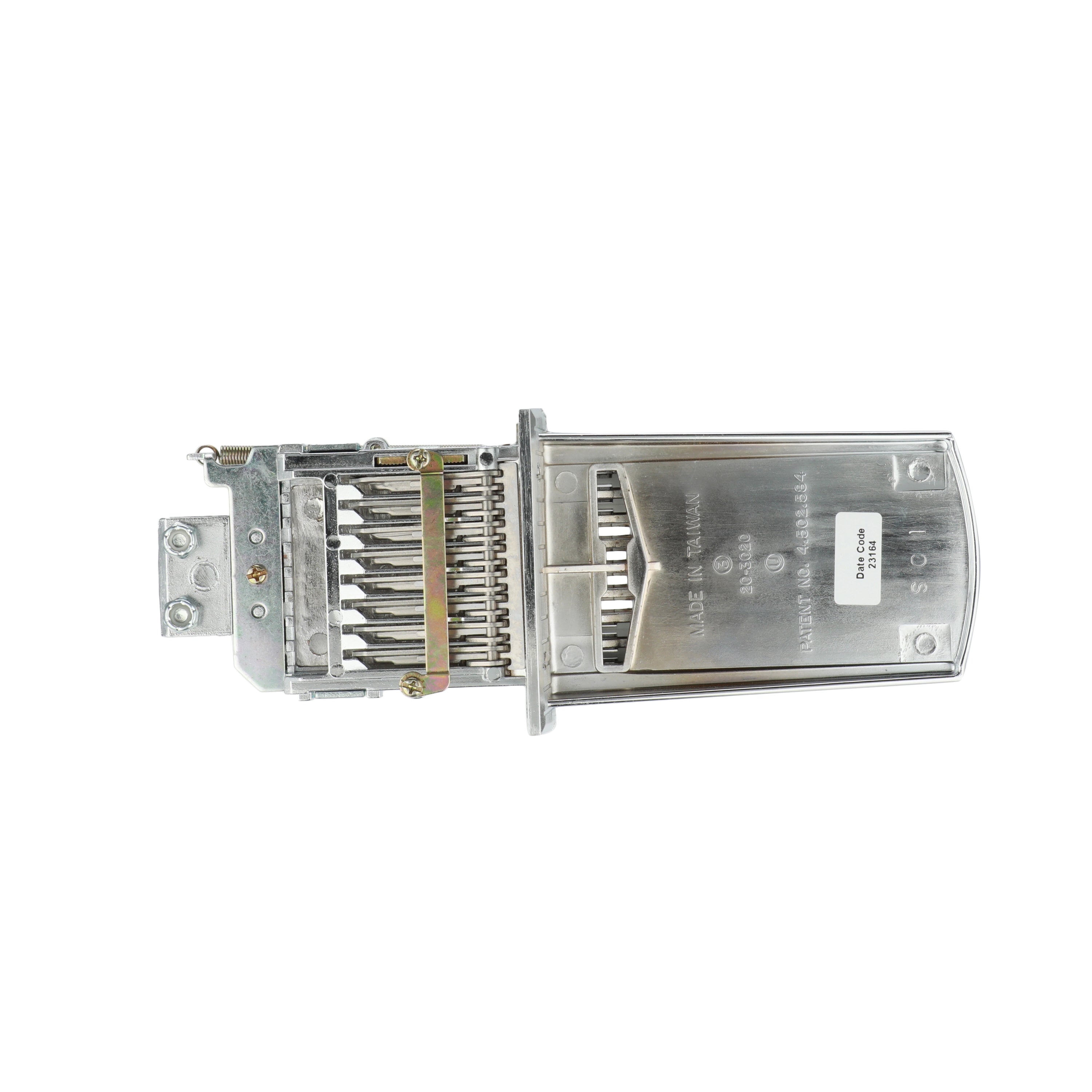

The ESD Vertical Coin Mechanism utilized on the Diamond Smart table is designed to provide seamless functionality and convenience. Featuring 8 open slots, this mechanism can be set up with quarters, dollar coins, or custom tokens, making it perfect for various settings. This mechanism is exclusively designed for use on the Diamond Smart Tables, ensuring a perfect fit and optimized performance.

IMPORTANT

• Please make sure to determine your table's coin mech rear contact model: Post, "L" Bracket, or Anti-Cheat so that the coin mech will work with your table version.
• This coin mechanism is utilized on the right side of the coin door for single game play.

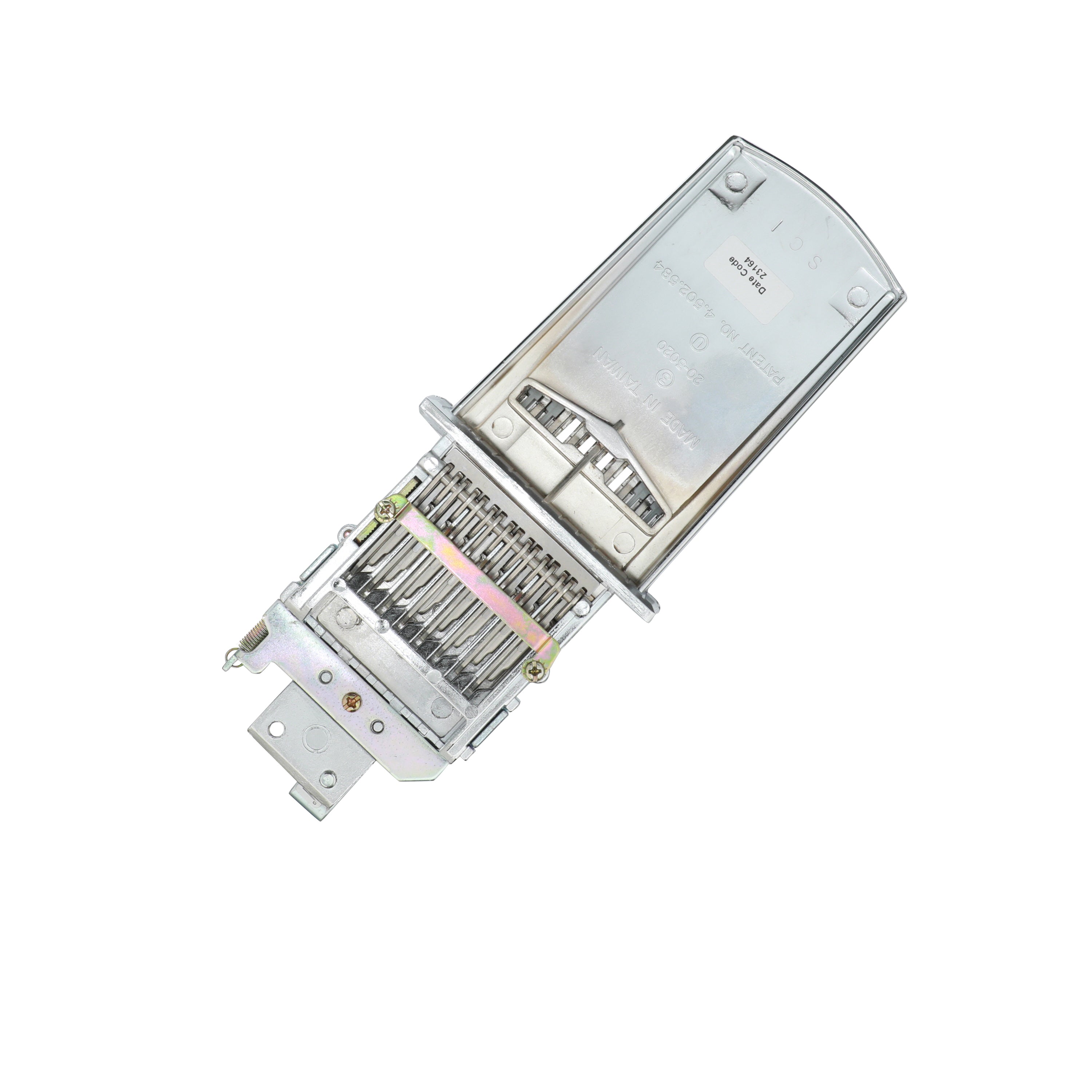

The ESD Vertical Coin Mechanism utilized on the Diamond Smart table is designed to provide seamless functionality and convenience. Featuring 8 open slots, this mechanism can be set up with quarters, dollar coins, or custom tokens, making it perfect for various settings. This mechanism is exclusively designed for use on the Diamond Smart Tables, ensuring a perfect fit and optimized performance.

IMPORTANT

• Please make sure to determine your table's coin mech rear contact model: Post, "L" Bracket, or Anti-Cheat so that the coin mech will work with your table version.
• This coin mechanism is utilized on the right side of the coin door for single game play.

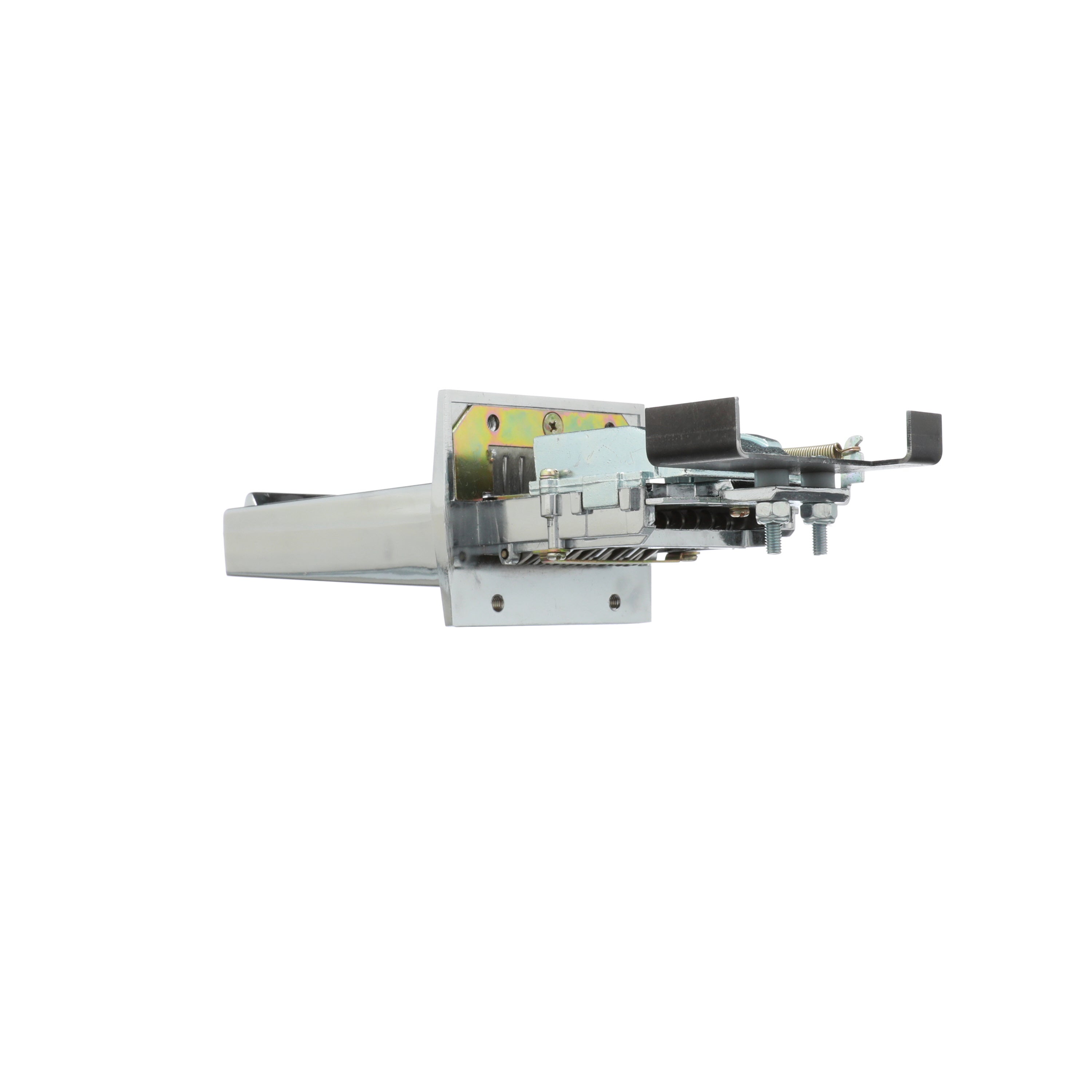

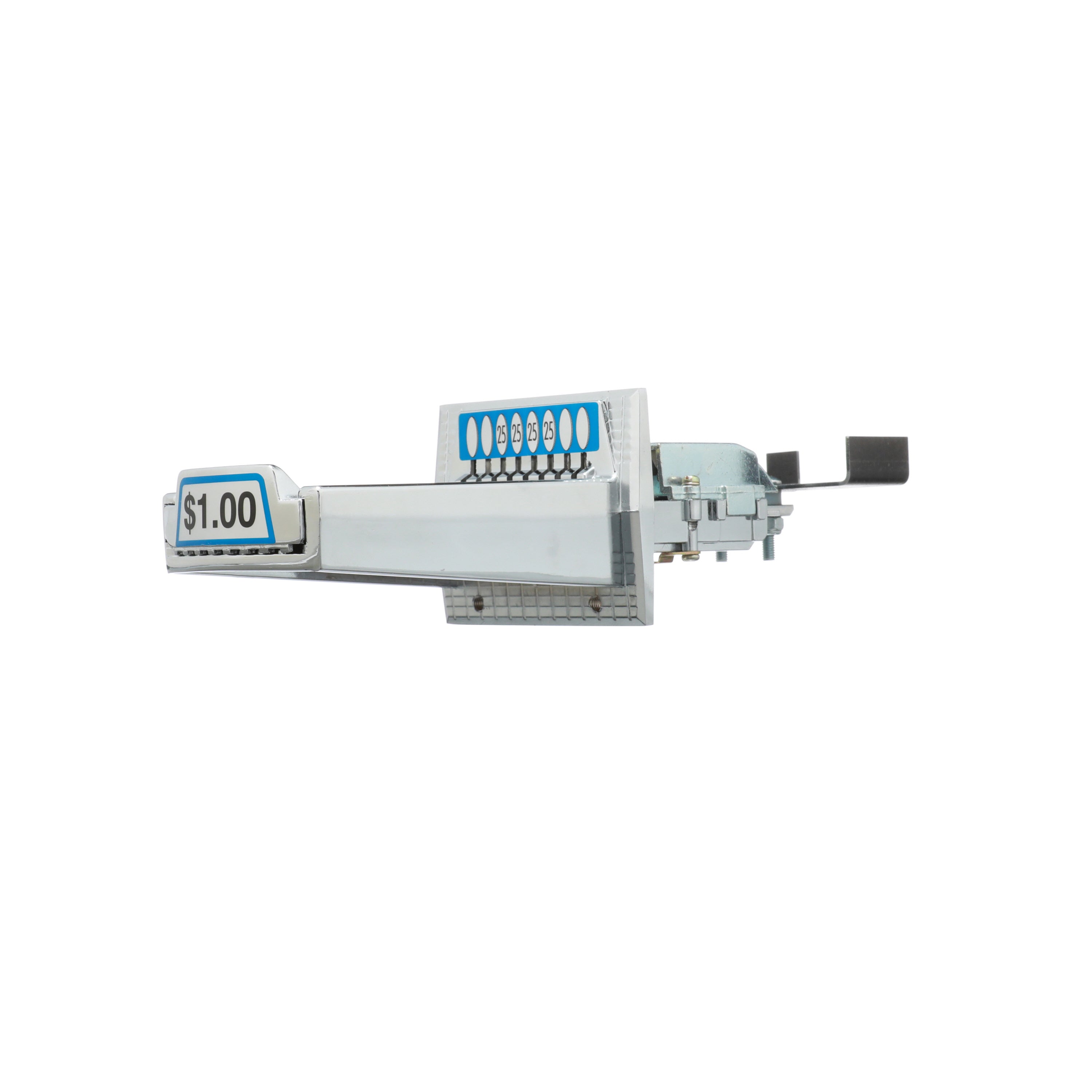

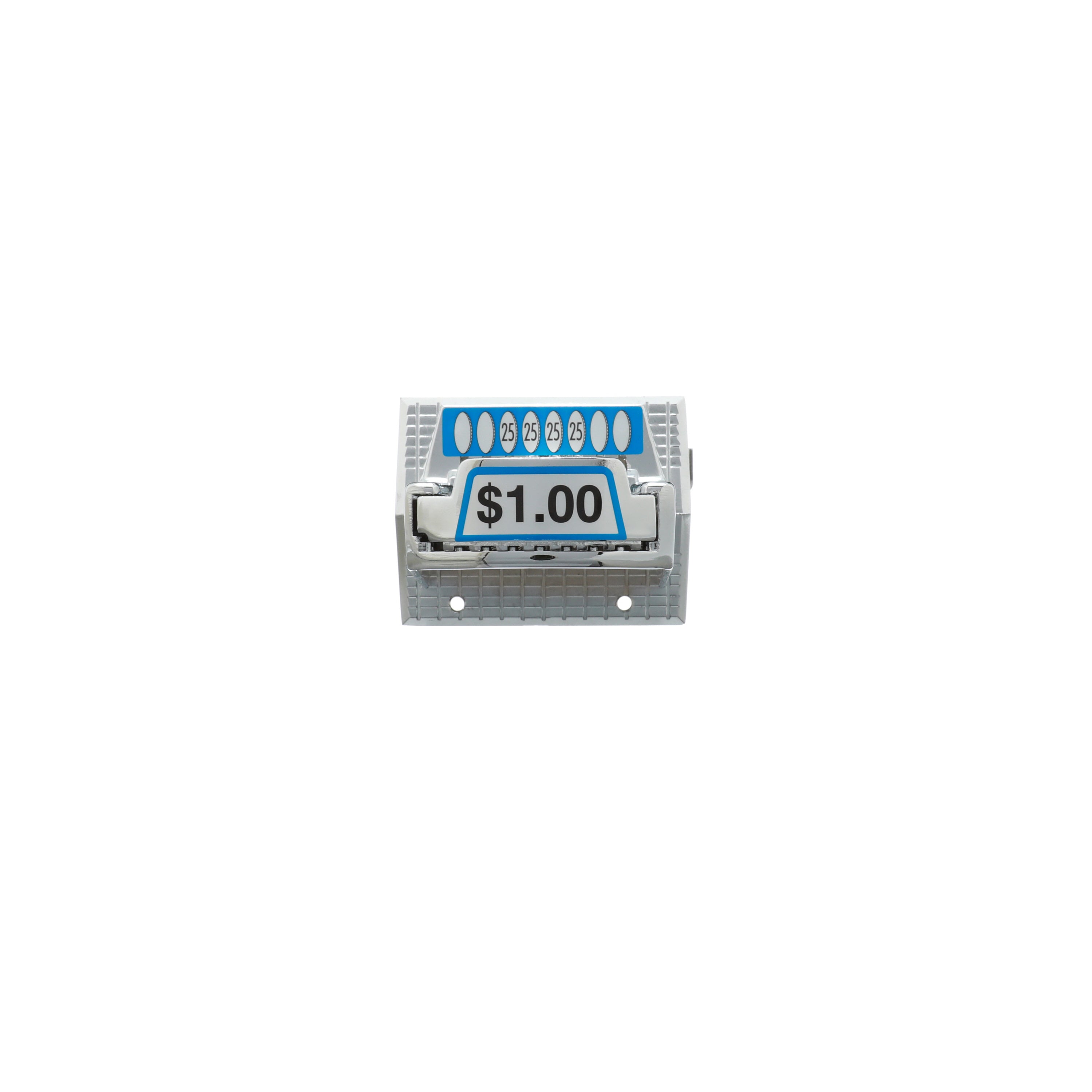

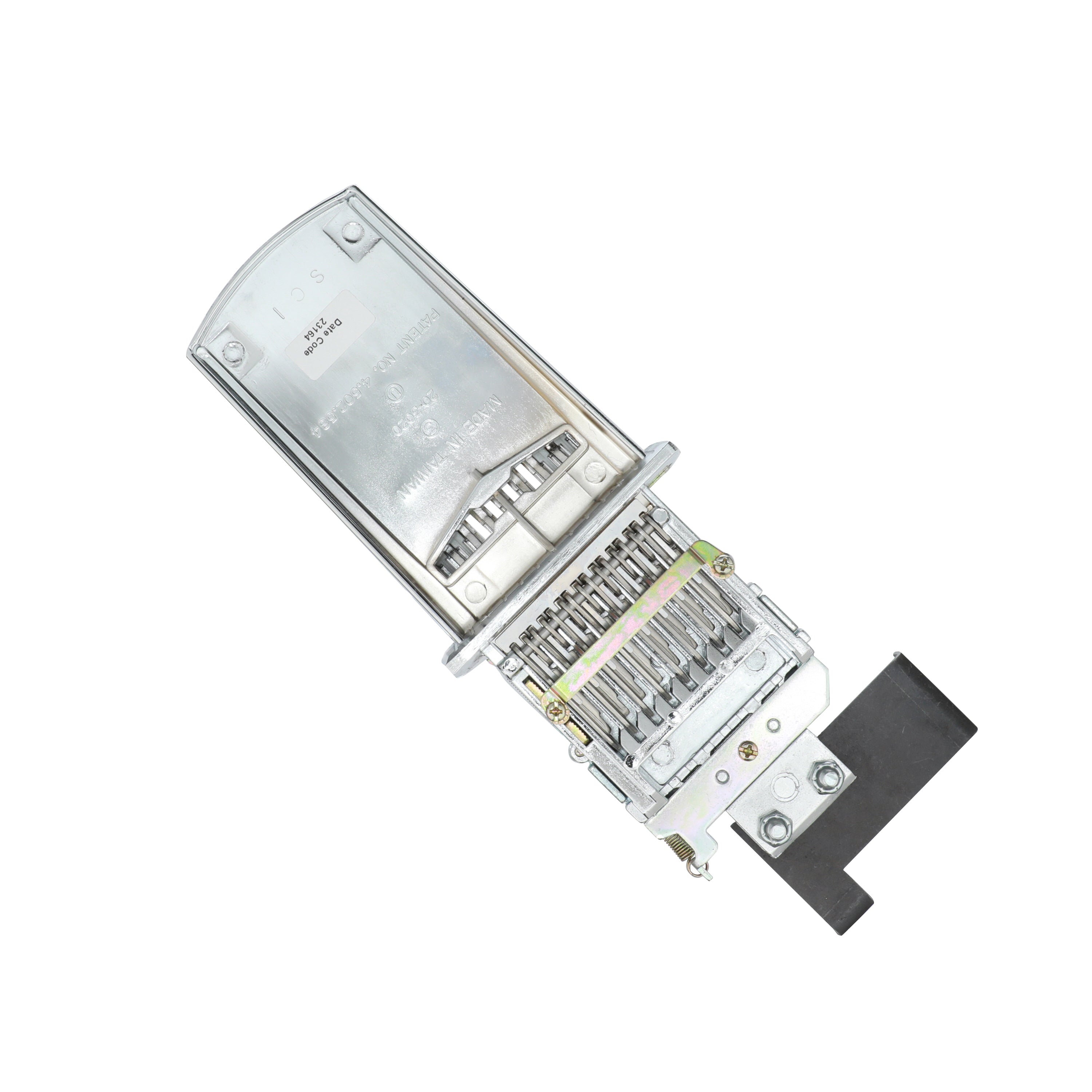

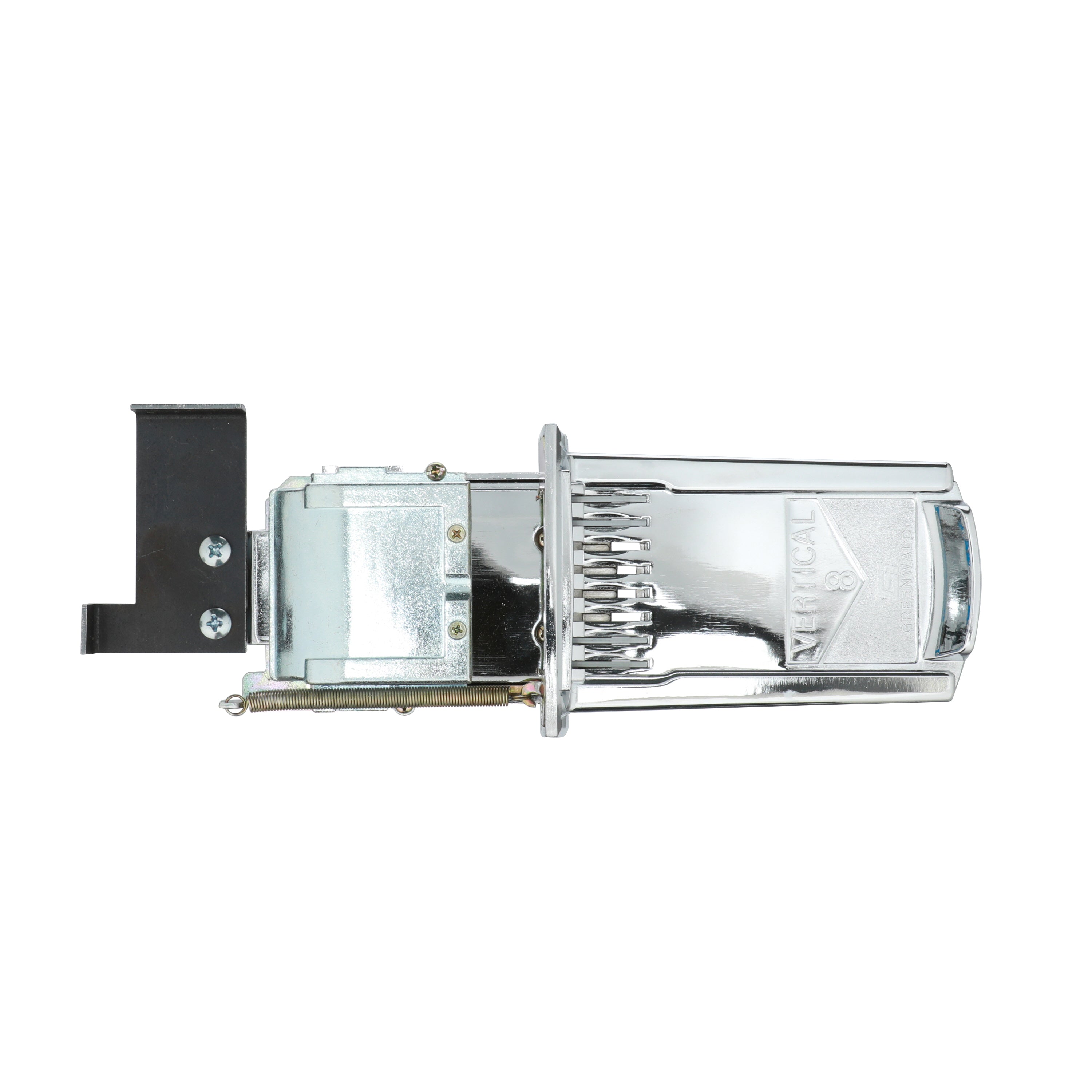

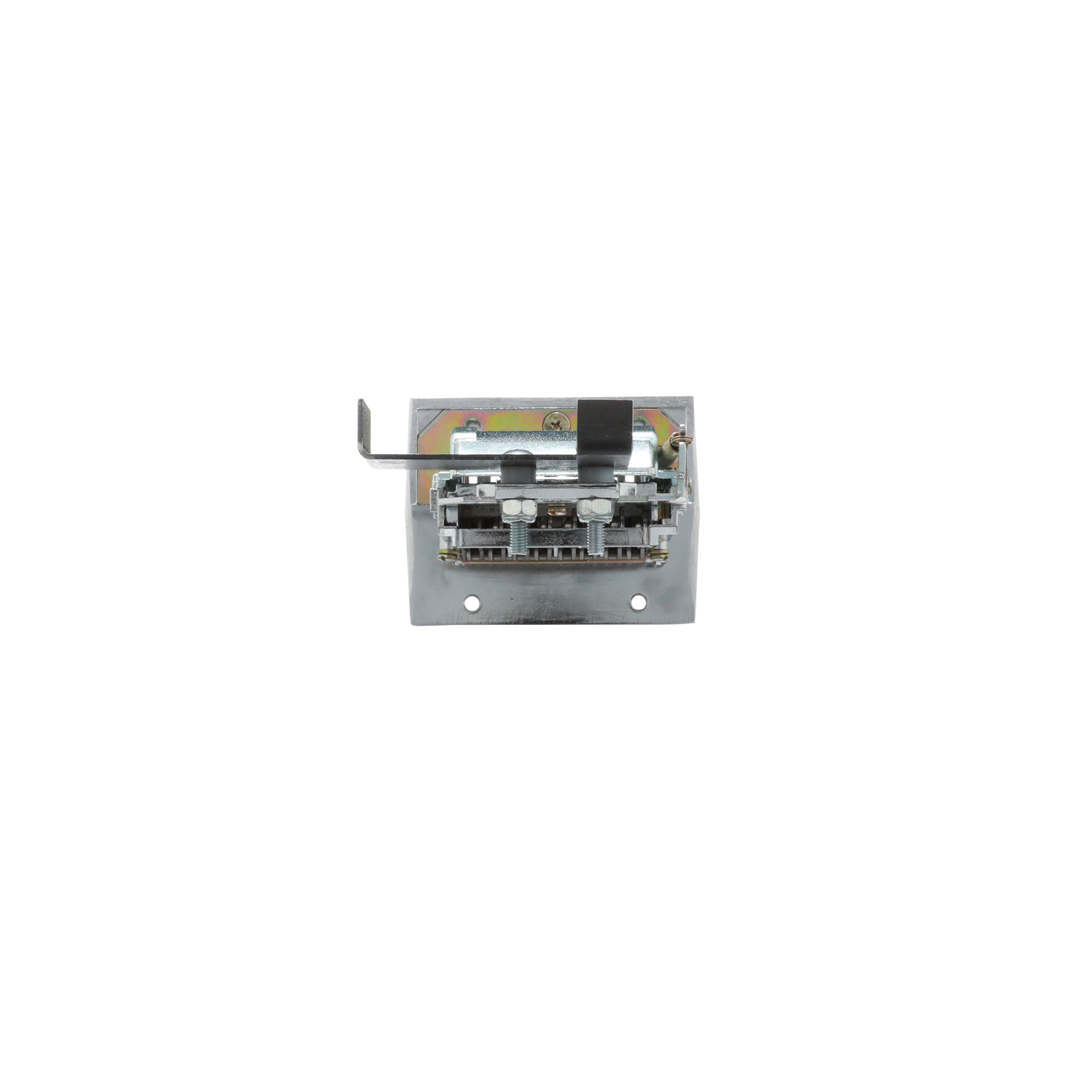

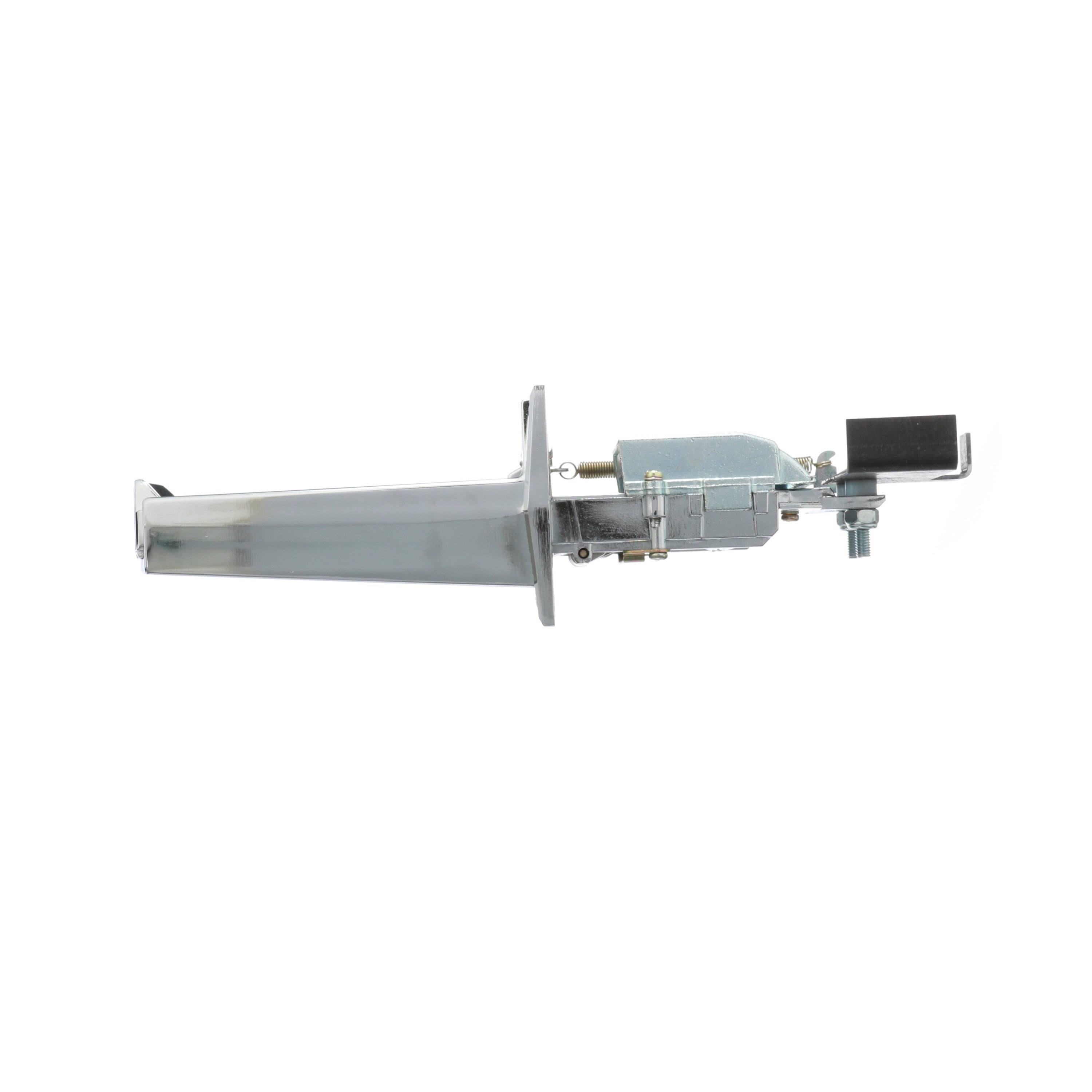

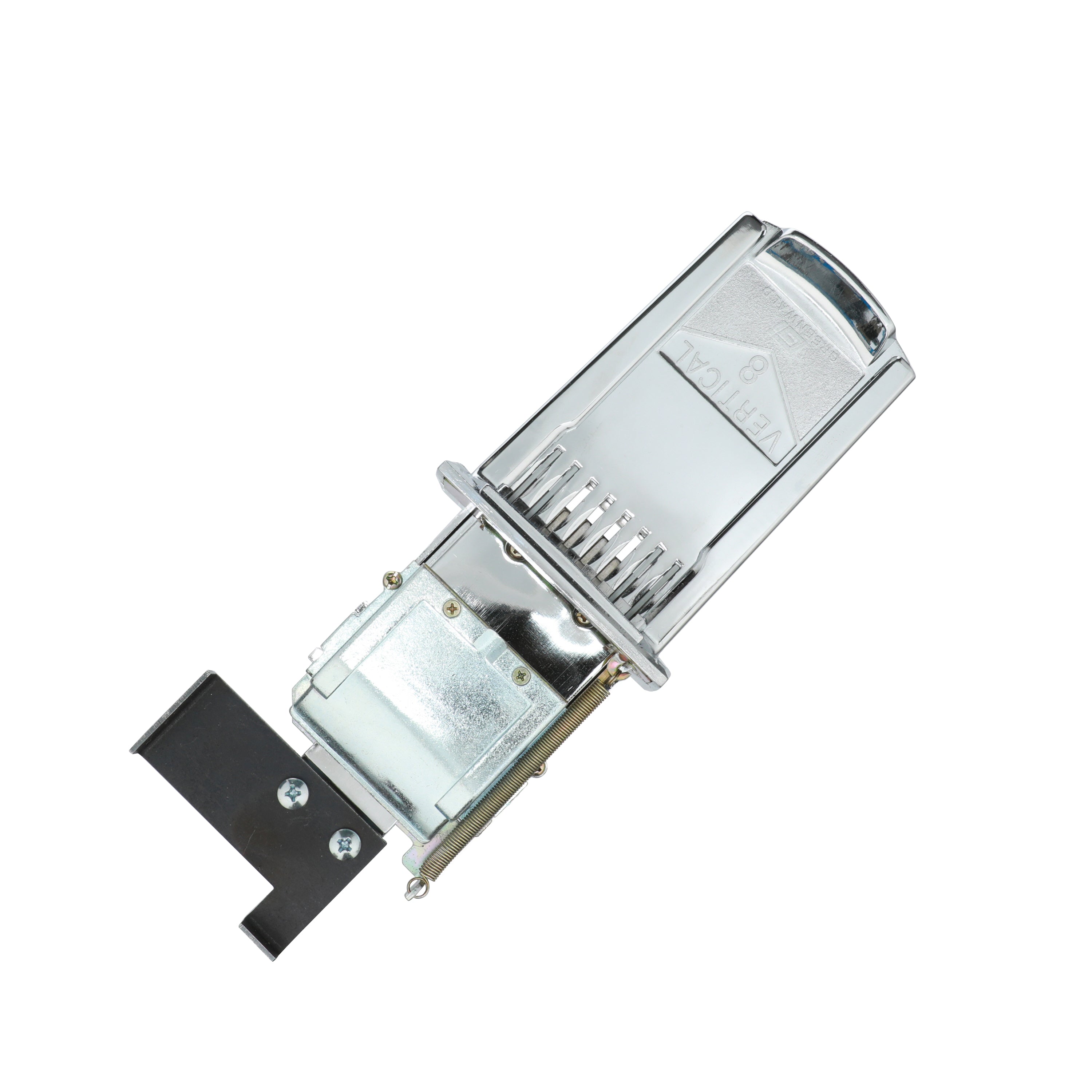

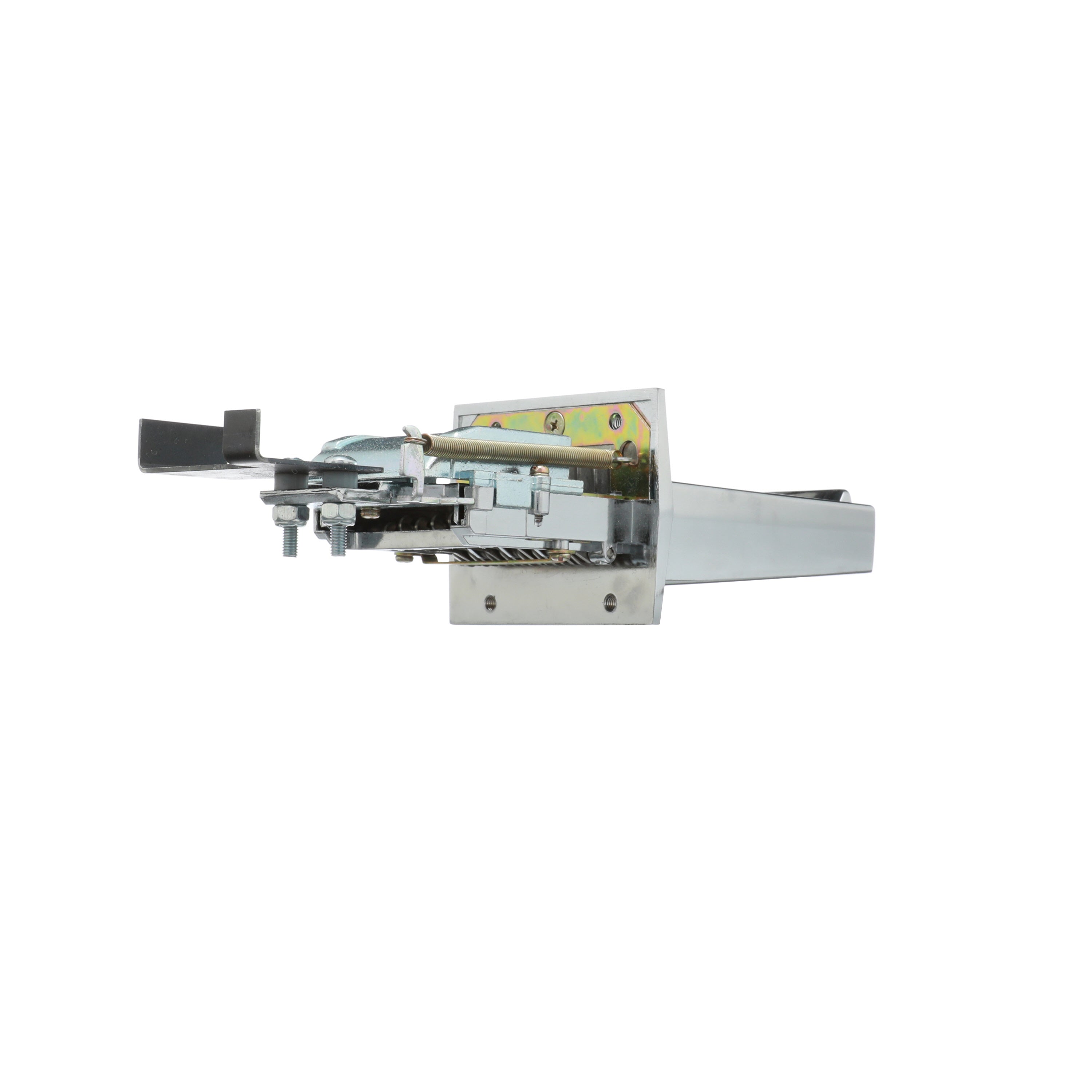

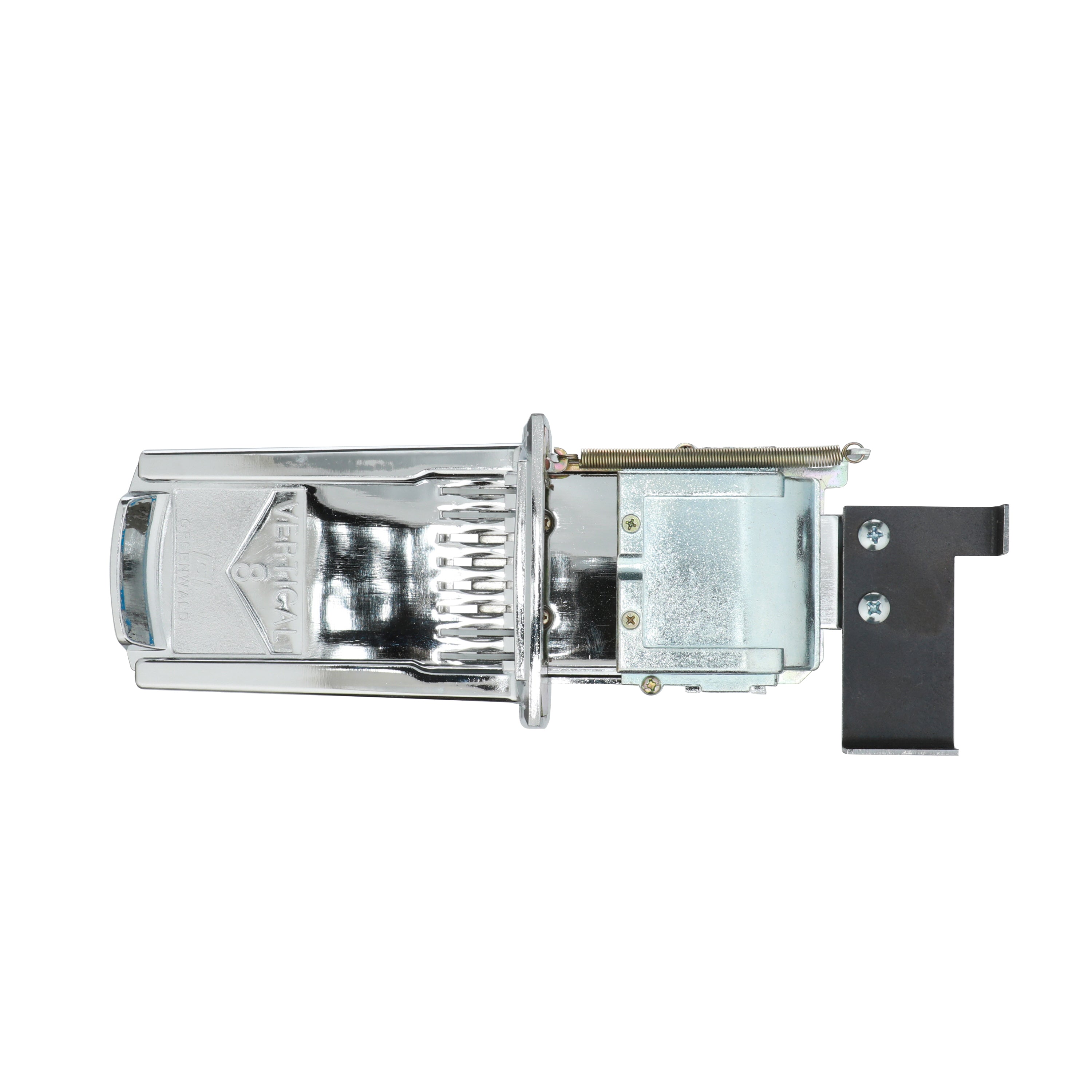

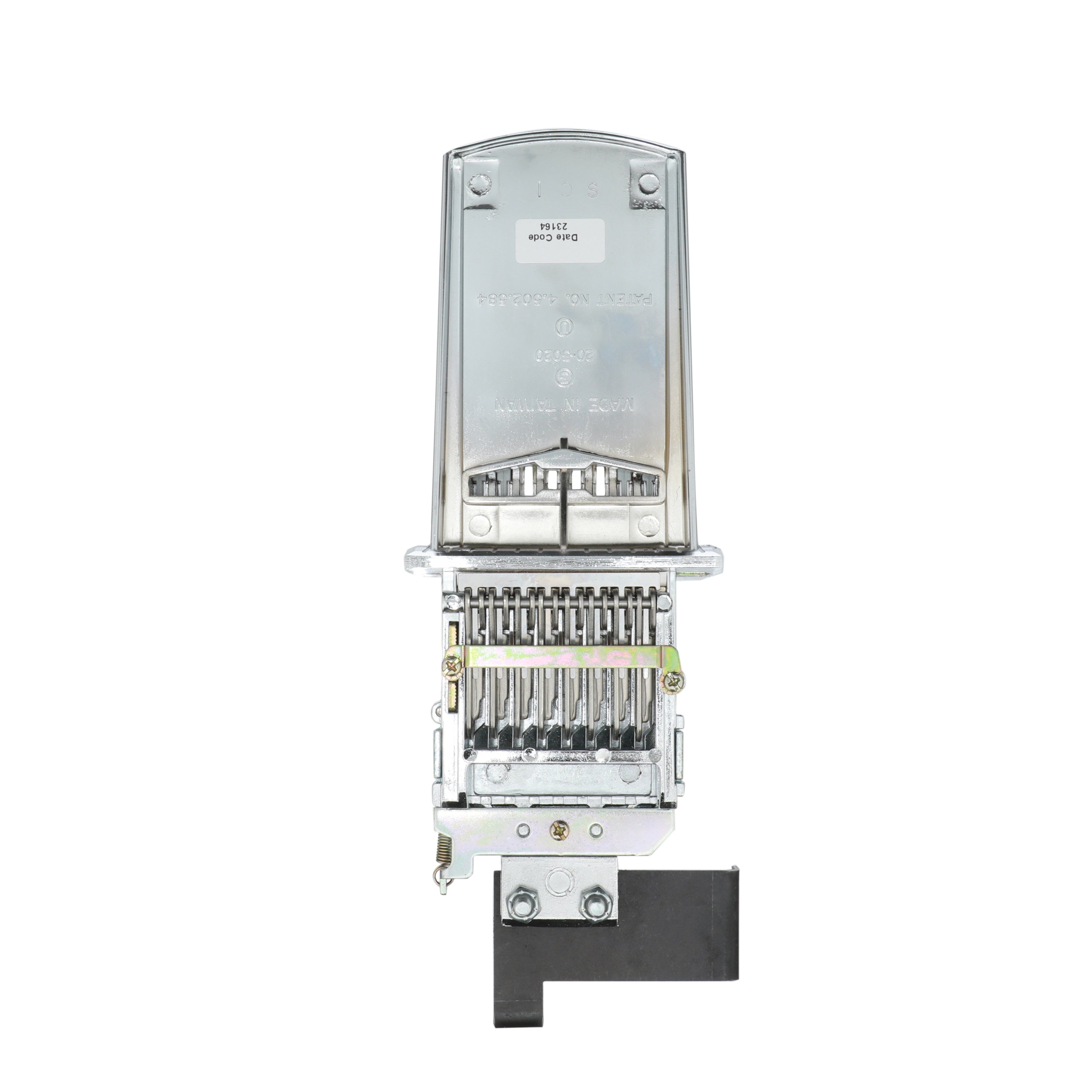

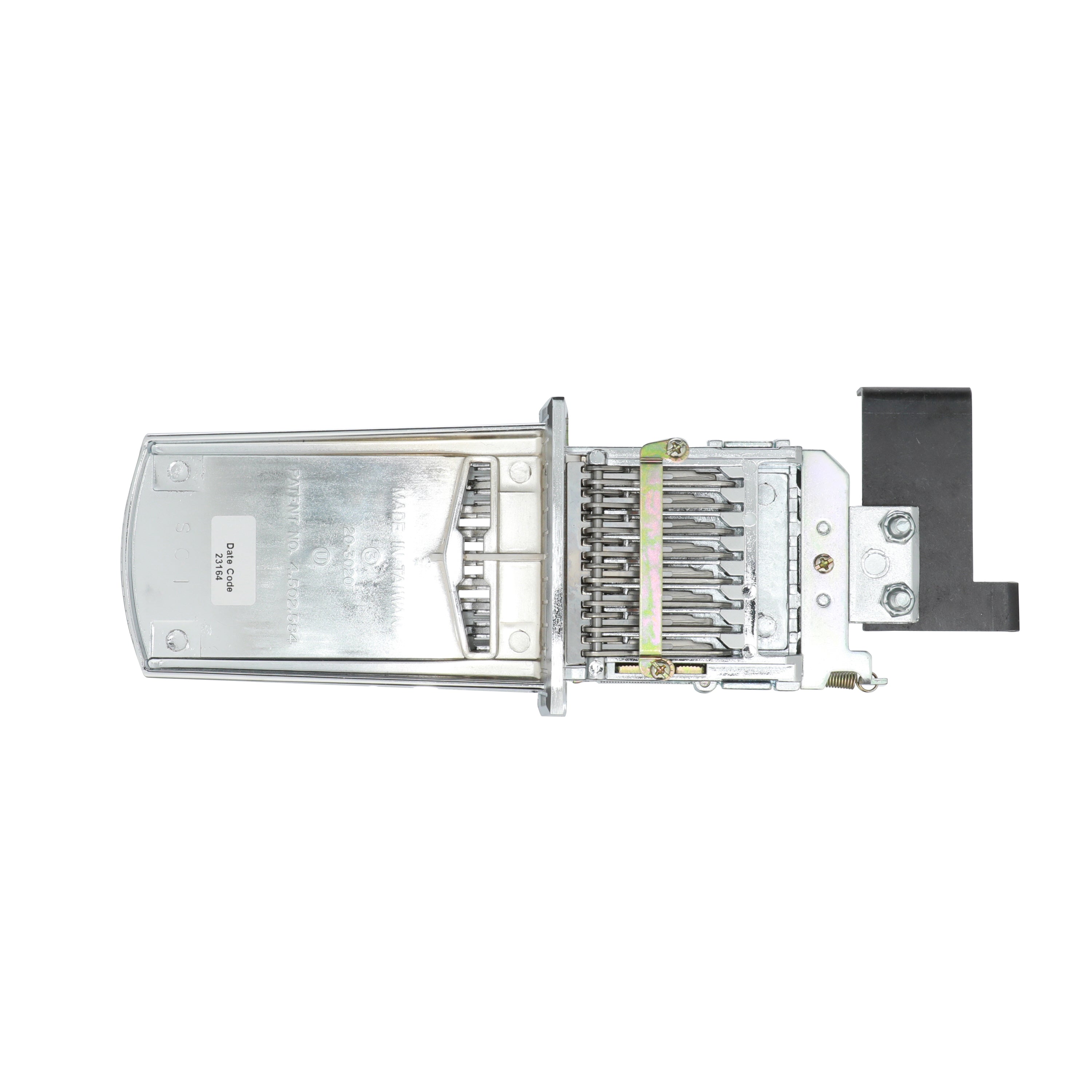

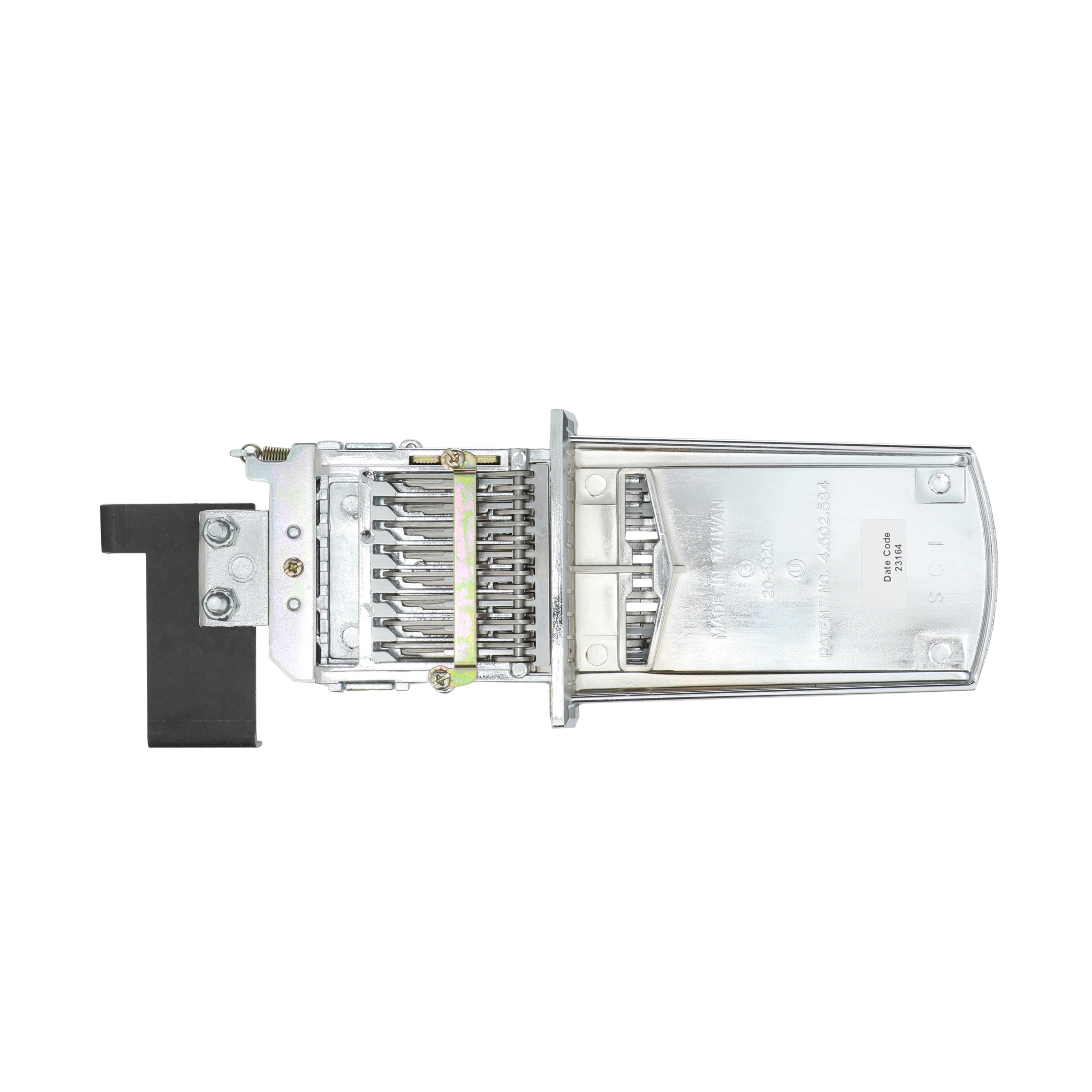

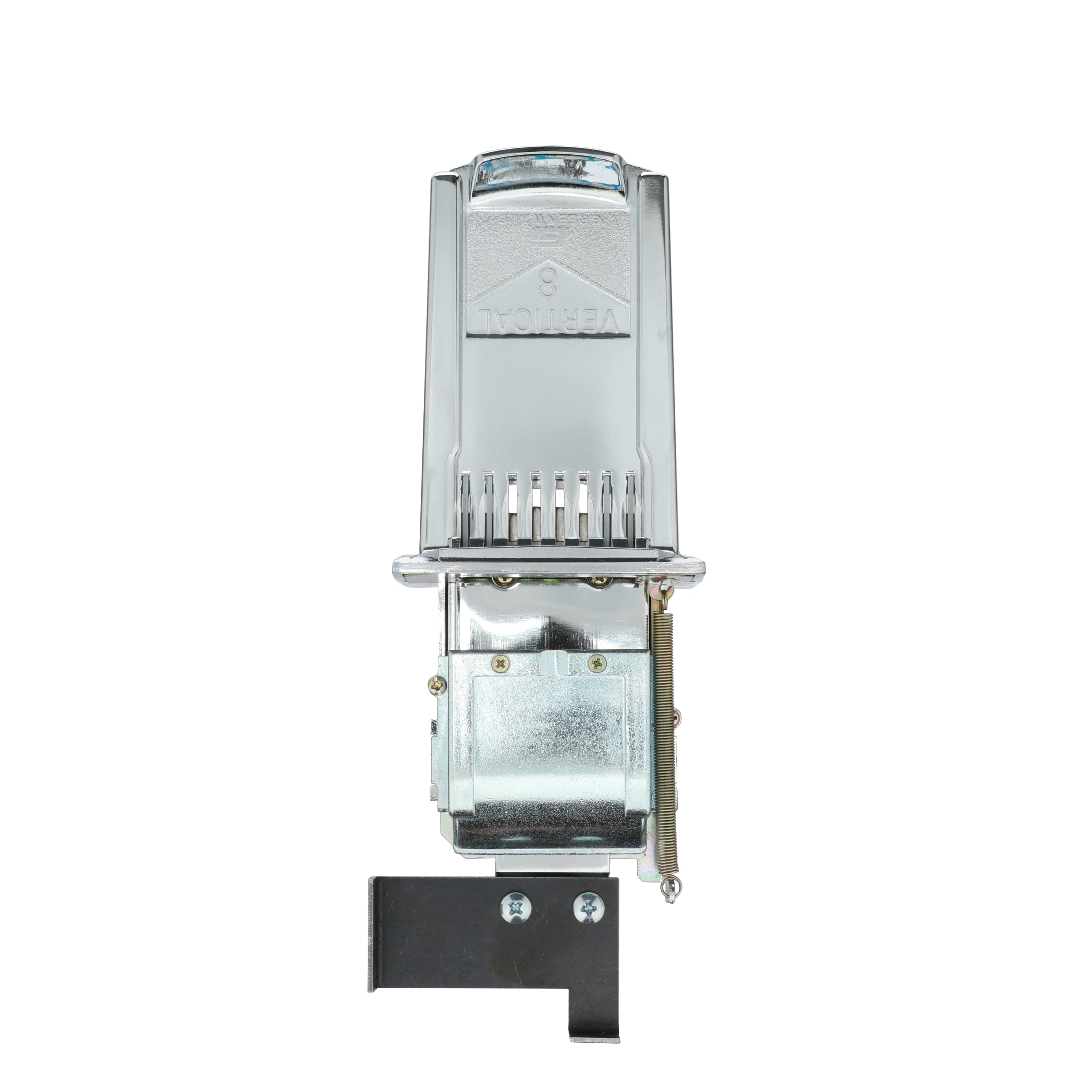

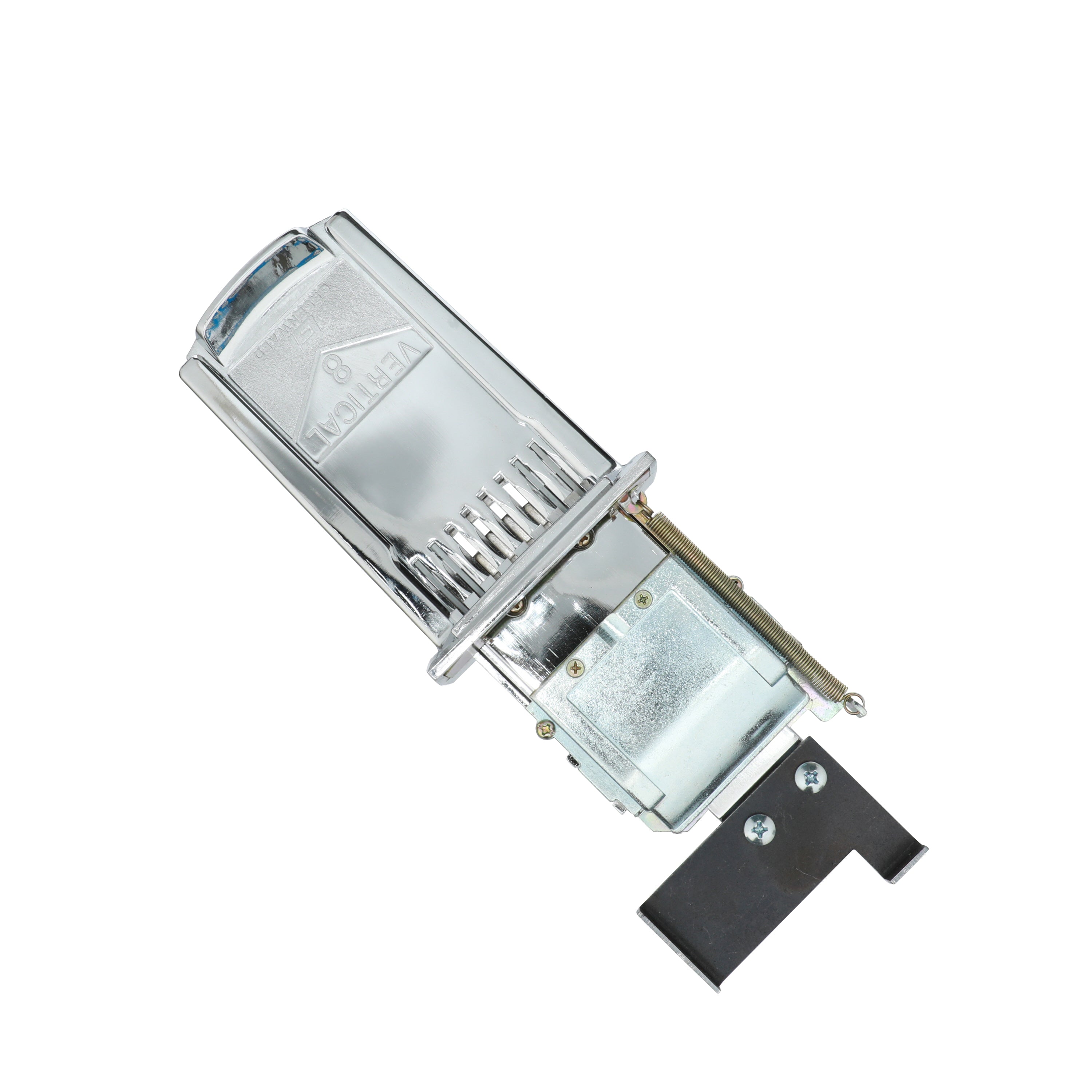

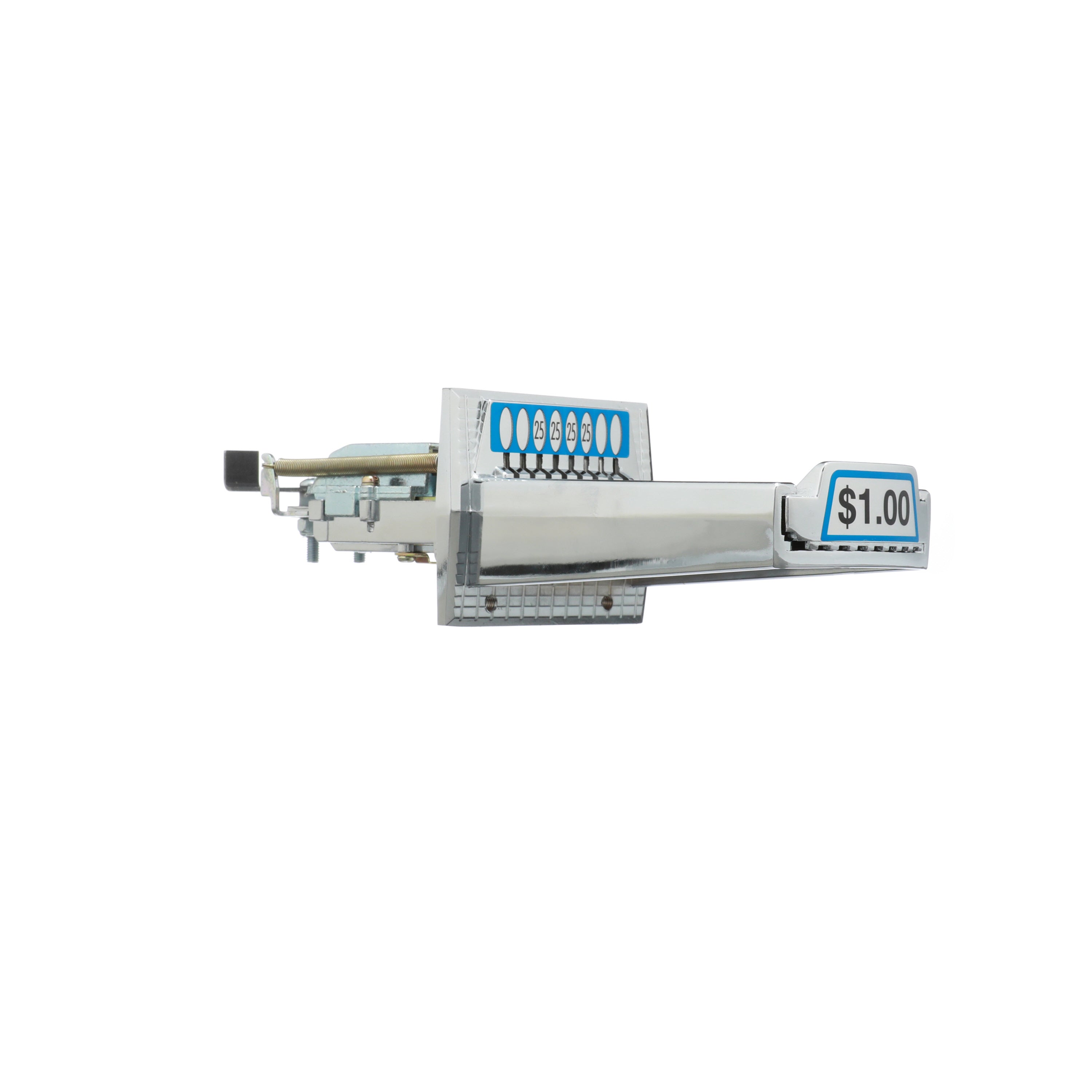

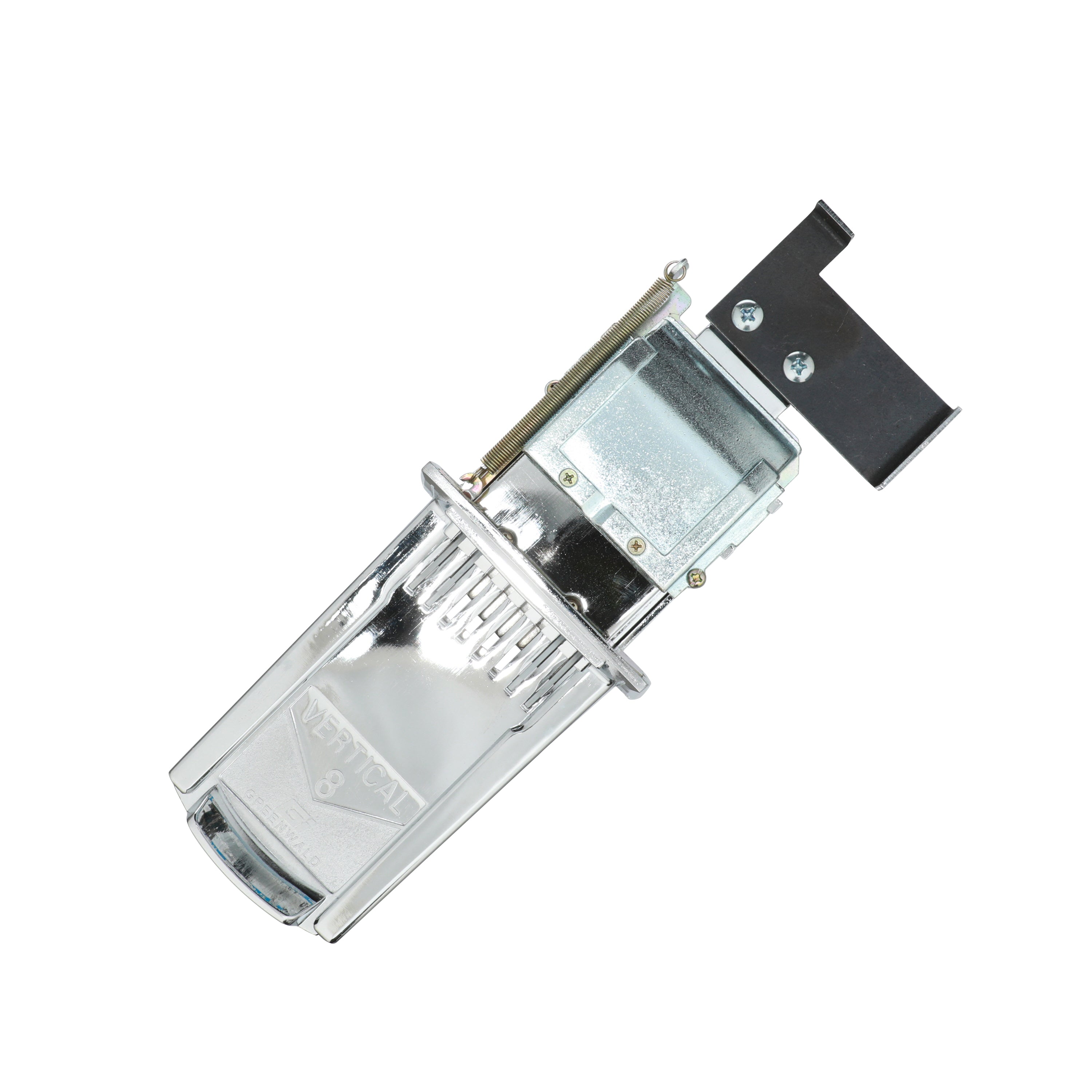

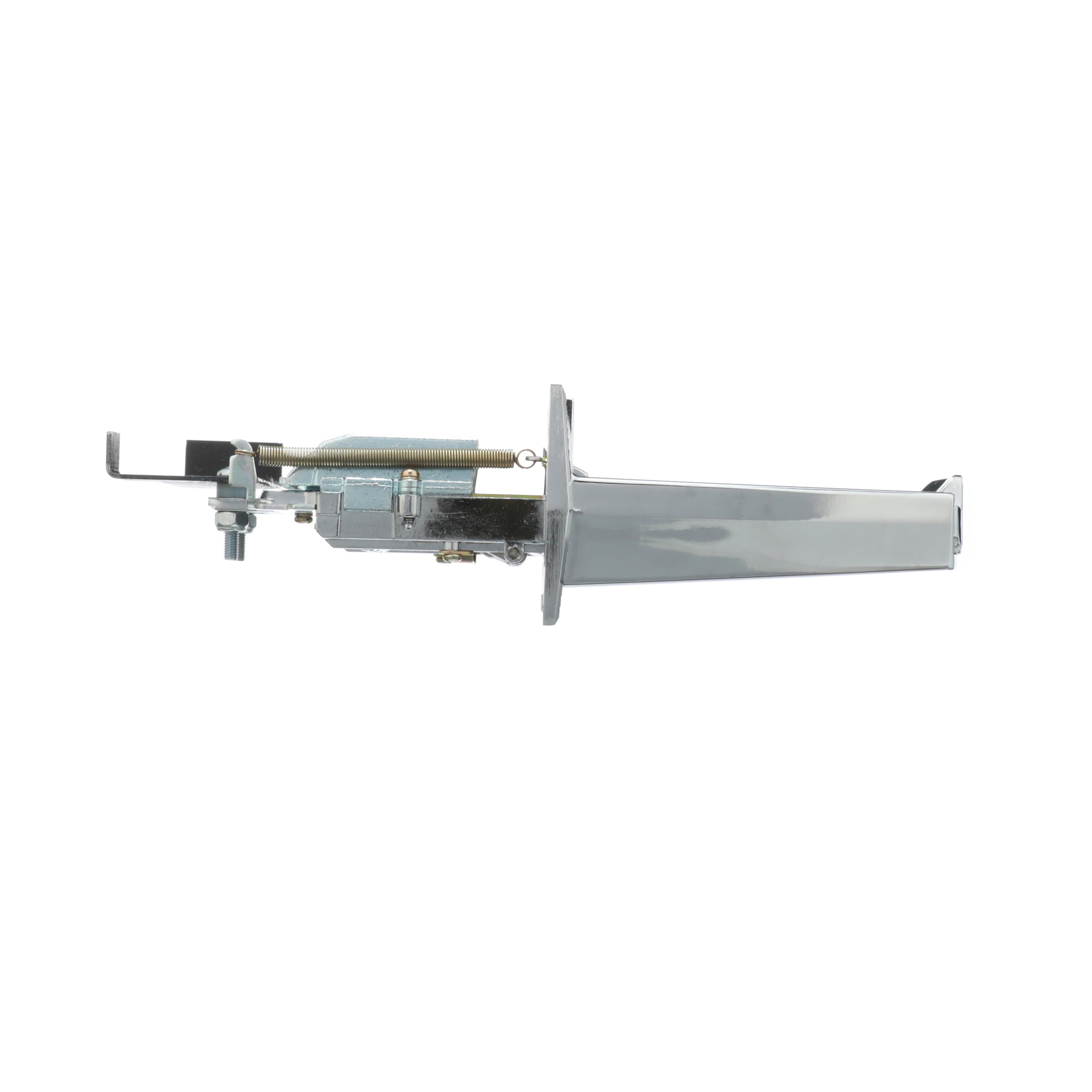

The ESD Vertical 5 Coin Mechanism utilized on the Diamond Smart table is designed to provide seamless functionality and convenience. Featuring 5 open slots, this mechanism can be set up with quarters, dollar coins, or custom tokens, making it perfect for various settings. This mechanism is exclusively designed for use on the Diamond Smart Tables which activates the 30 minutes of free play vs per game play.

IMPORTANT

• Please make sure to determine your table's coin mech rear contact model: Post, "L" Bracket, or Anti-Cheat so that the coin mech will work with your table version.
• This coin mechanism is utilized on the left side of the coin door for 30 minute play.

The ESD Vertical Coin Mechanism utilized on the Diamond Smart table is designed to provide seamless functionality and convenience. Featuring 8 open slots, this mechanism can be set up with quarters, dollar coins, or custom tokens, making it perfect for various settings. This mechanism is exclusively designed for use on the Diamond Smart Tables for per game play only.

IMPORTANT

• Please make sure to determine your table's coin mech rear contact model: Post, "L" Bracket, or Anti-Cheat so that the coin mech will work with your table version.
• This coin mechanism is utilized on the right side of the coin door for single game play.

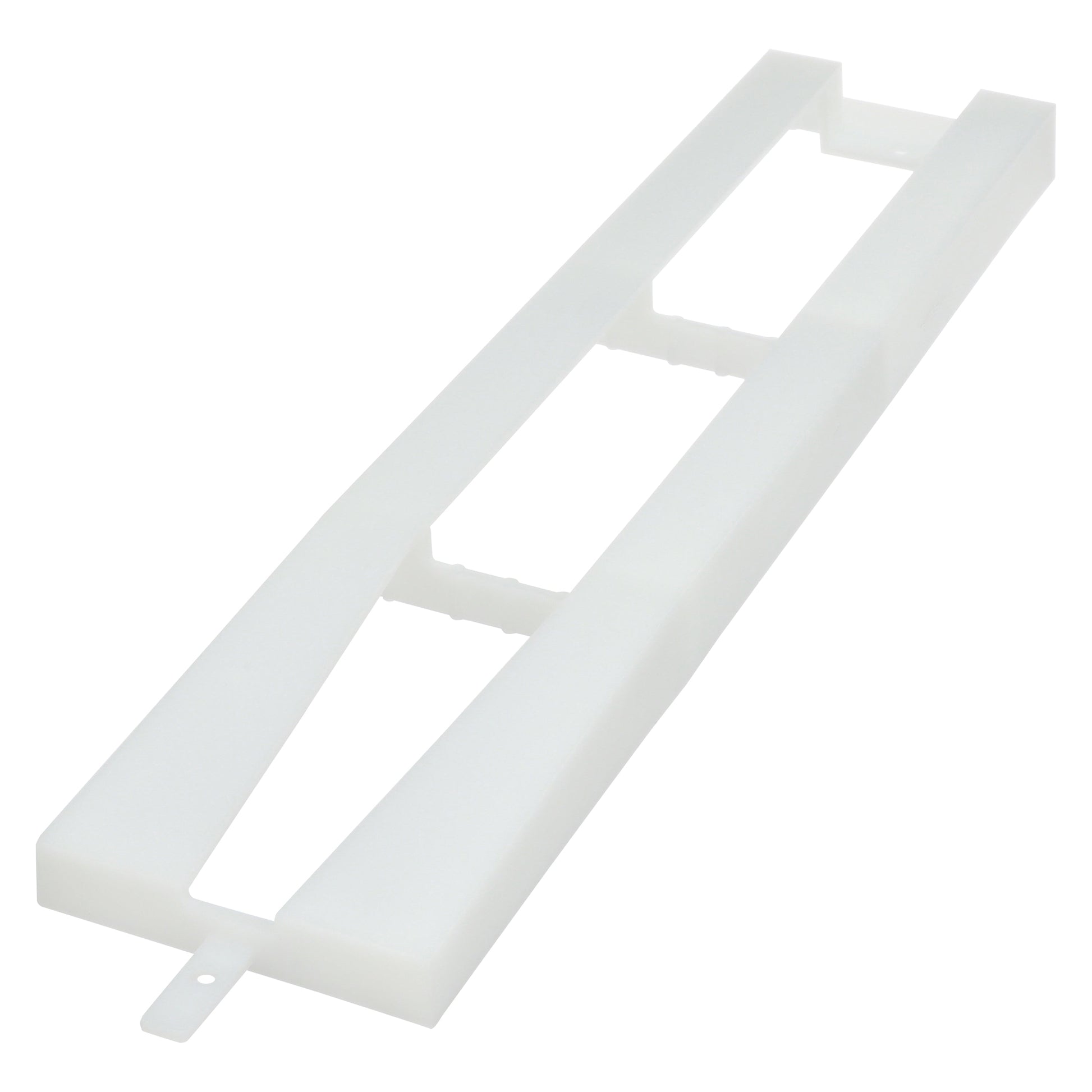

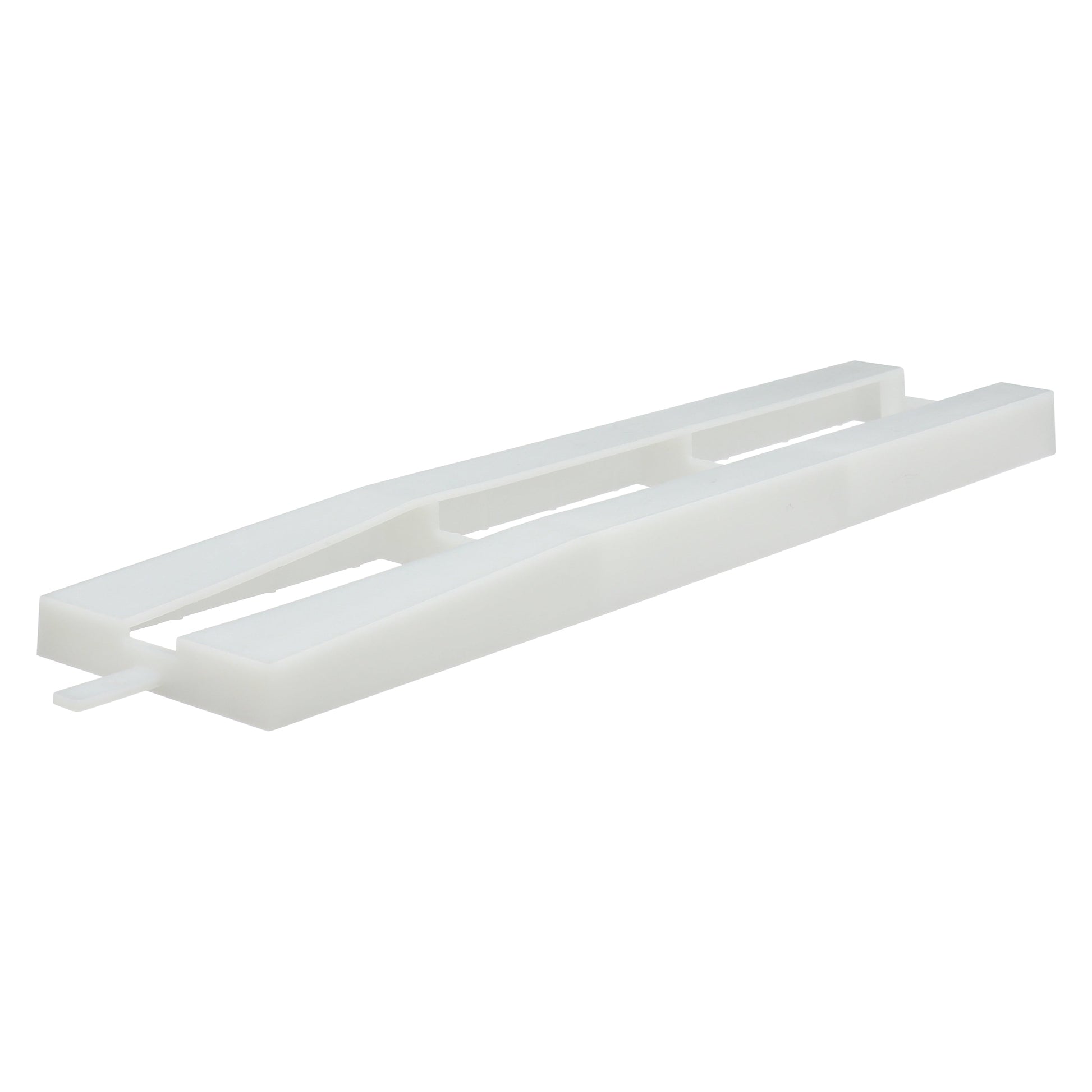

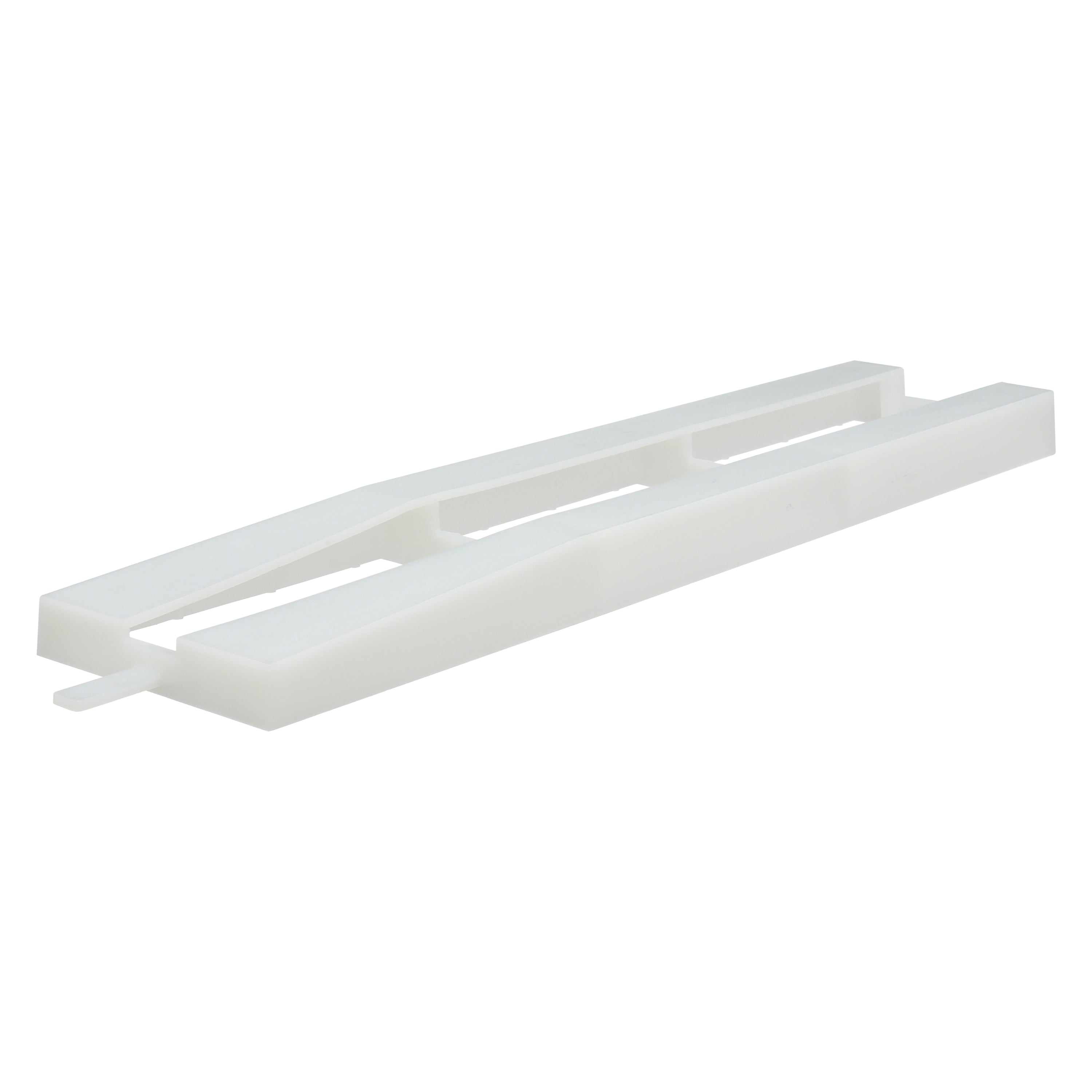

Diamond Billiard Products Crossover is responsible for directing the balls to the ball separator, ensuring smooth and efficient gameplay within the Diamond Smart table. Made from high-quality materials, this OEM replacement part guarantees the same quality and performance as the original.

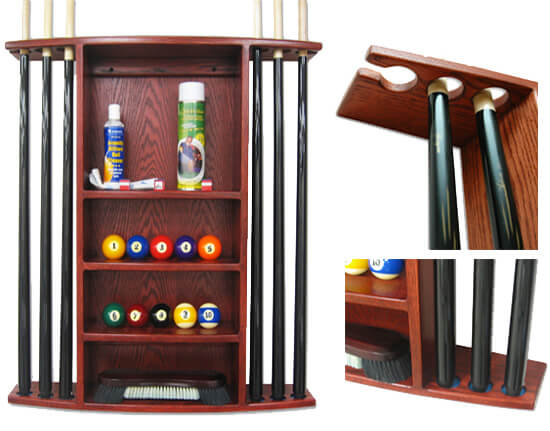

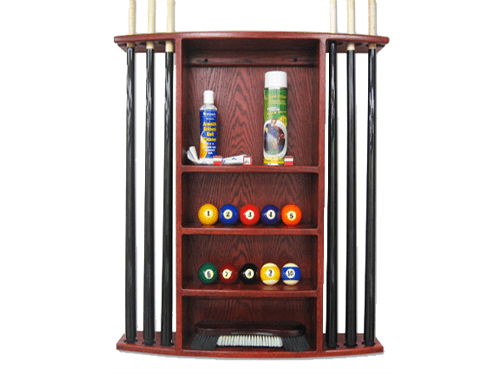

Diamond Billiard Products Ball & Cue Rack is crafted from solid Oak hardwood by default and can be custom-ordered in your choice of stains and wood species to perfectly match your pool table and room décor. The standard Diamond rack with shelves holds 6 cues, while a shelf-free version is available that holds 12 cues.

IMPORTANT:

• Wall rack will take 4 months to produce prior to shipping as they are made to order.

• Height - 31”   Width – 29”   Depth – 6"
• Both wall racks are shipped assembled by UPS insured shipping.

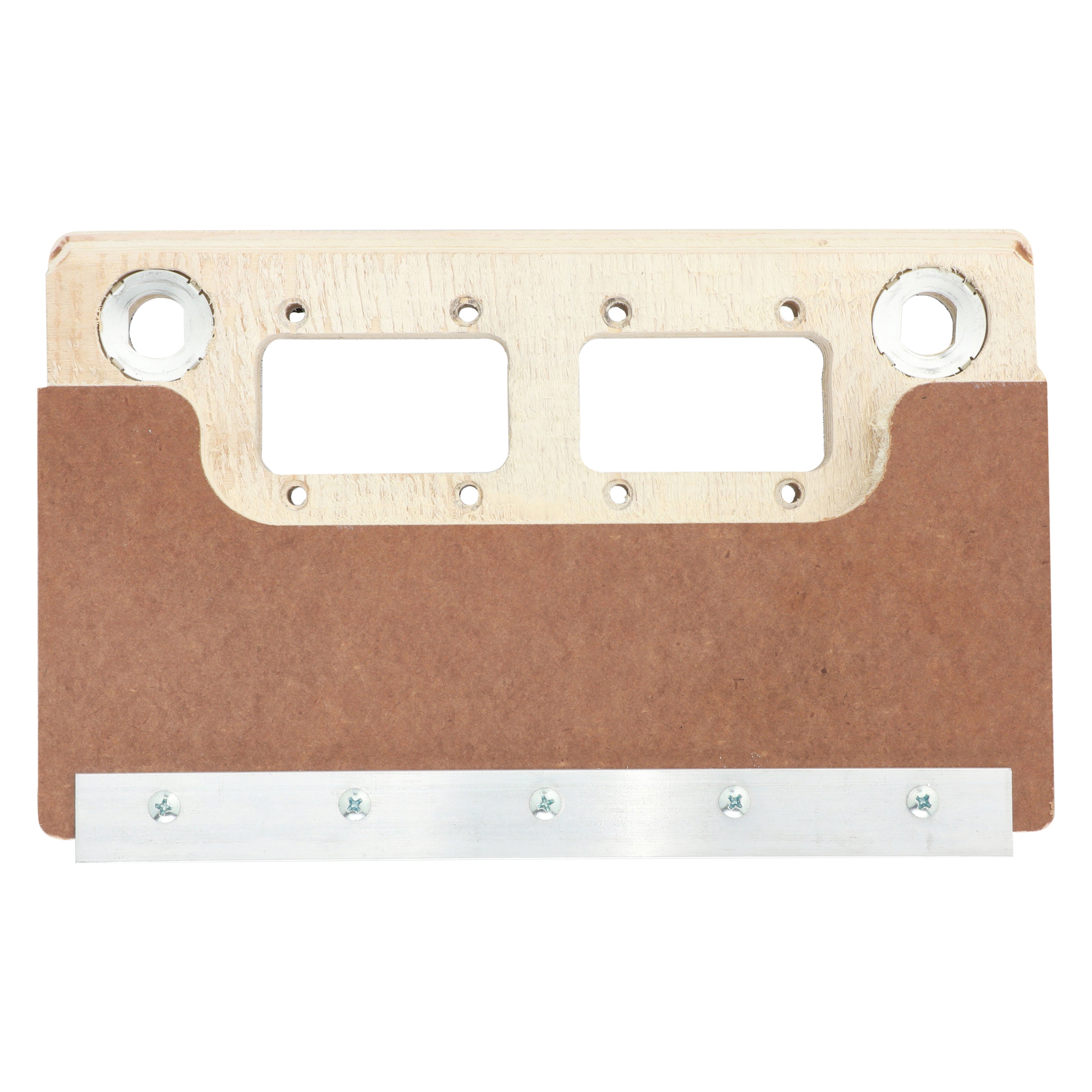

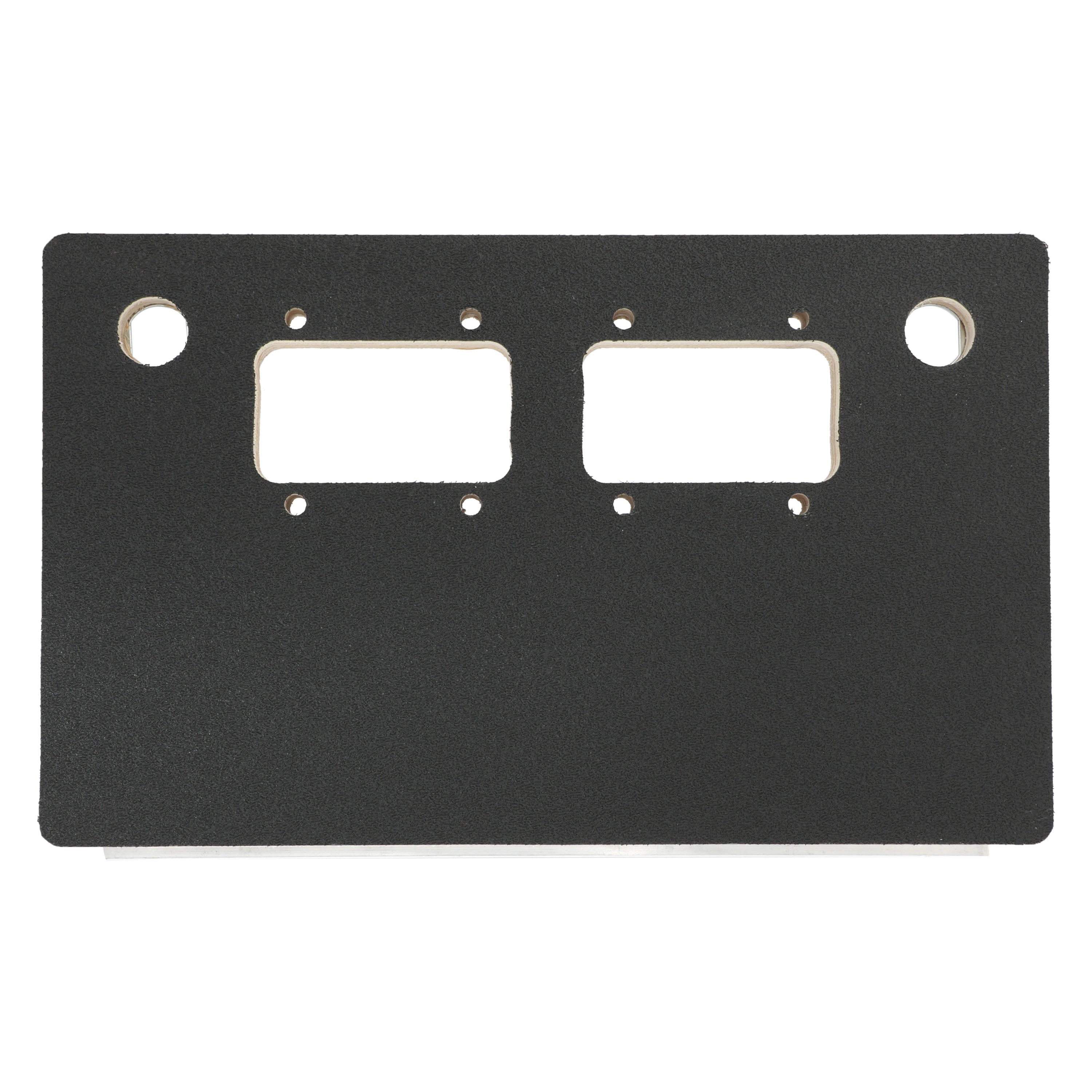

Diamond Billiard Products Dual Coin Door is designed specifically for the Diamond Smart Table. This high-quality replacement part includes two coin mechanism openings for pay per game or with a 30 minute time allowing for streamlined payment processing during gameplay. Built from durable materials, this genuine OEM replacement part is designed to last and maintain optimal performance.

IMPORTANT

• The coin mechanisms and locks are not included with this dual Coin Door.
• Each dual coin door requires a 502 and 503 Lock for proper installation. It is designed to accommodate two coin mechanisms on the left and right side of the door.
• If you are ordering coin mechanisms separately, please verify the rear contact model of your Diamond Smart Table’s coin mechanisms: Post, L-Bracket, or Anti-Cheat.

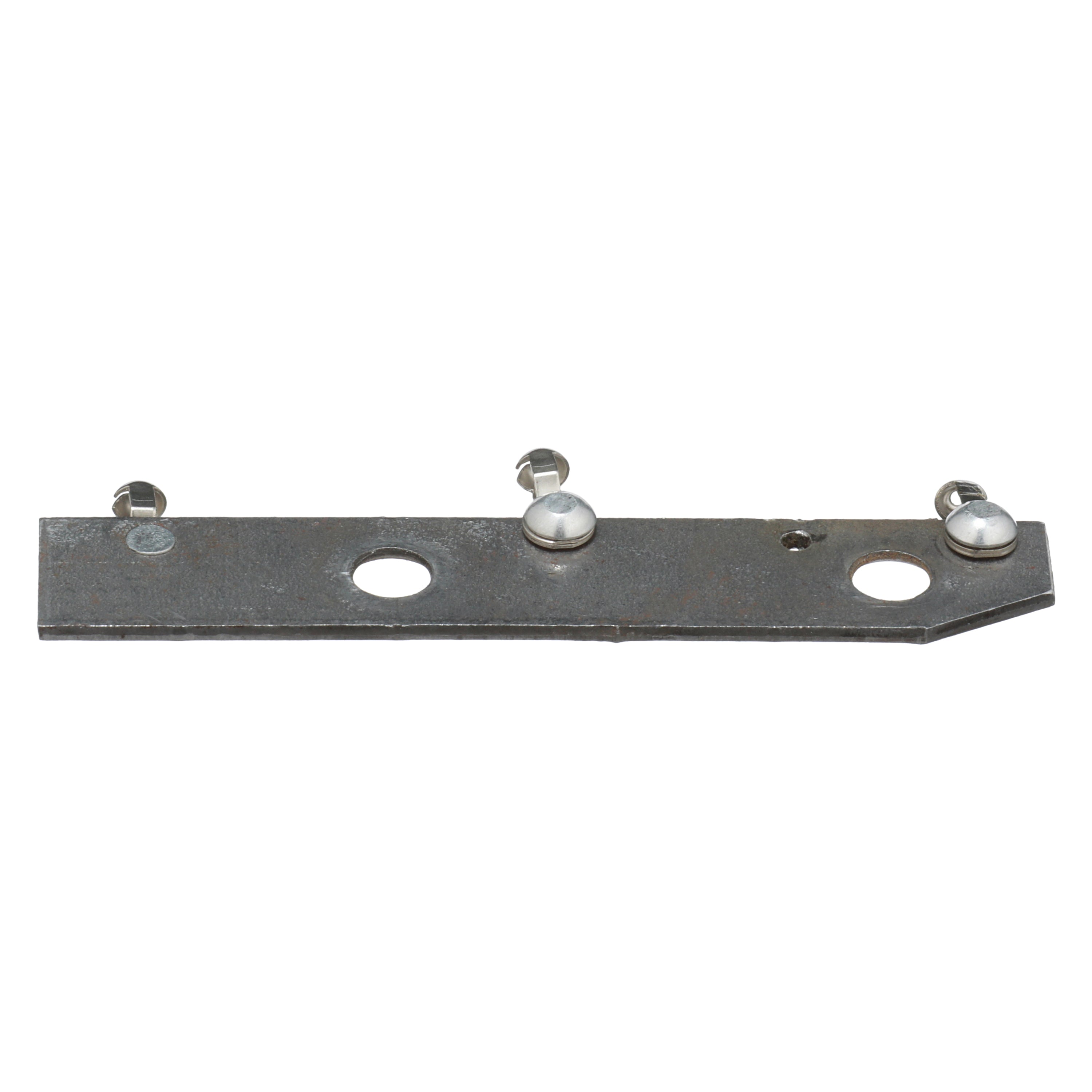

Diamond Billiard Products Latch Release internal component is a critical part of the ball drop system and ensures seamless gameplay within the first generation Smart Tables.

Specifically, the latch release locks the teeter when the table is not in use and releases the teeter when the Smart table is vended, providing smooth operation and reliable performance. As a genuine OEM replacement part, you can trust the Diamond Latch Release to be high-quality and durable.

This Diamond Billiards black leg bolt and washer set is utilized on every Diamond Smart table and Diamond Pro-Am table. This set is installed on our composite legged tables only which require 16 bolts (1/4" - 20 x 2-1/2") and 16 washers.

If your table utilizes our wood legs you'll require a different set which are longer also sold on our website.

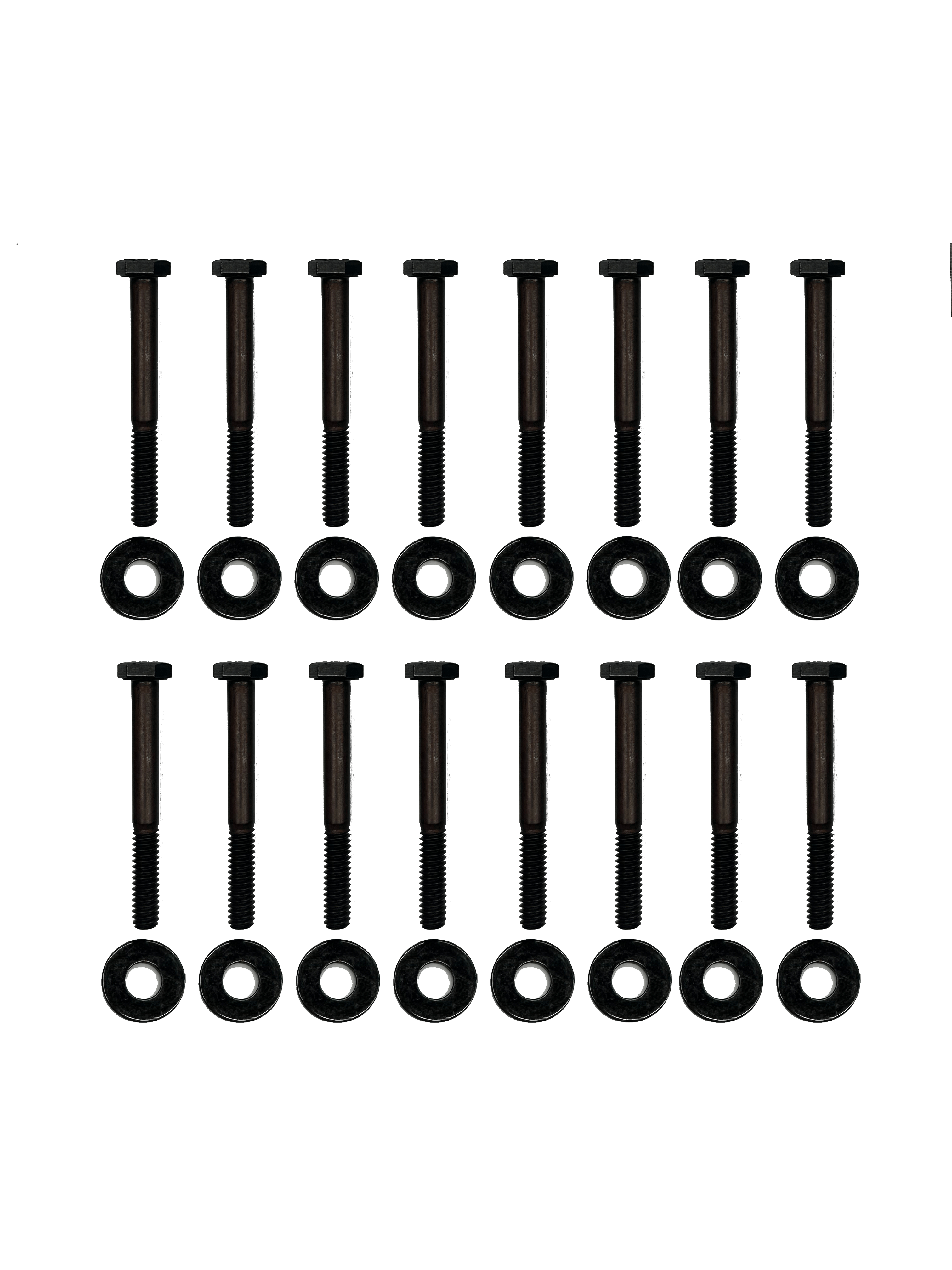

This Diamond Billiards black leg bolt and washer set is utilized on every Diamond Smart table and Diamond Pro-Am table. This set is installed on wood legged tables only which require 16 bolts (1/4" - 20 x 2-1/4") and 16 washers.

If your table utilizes our composite legs you'll require a different set which are shorter also sold on our website.

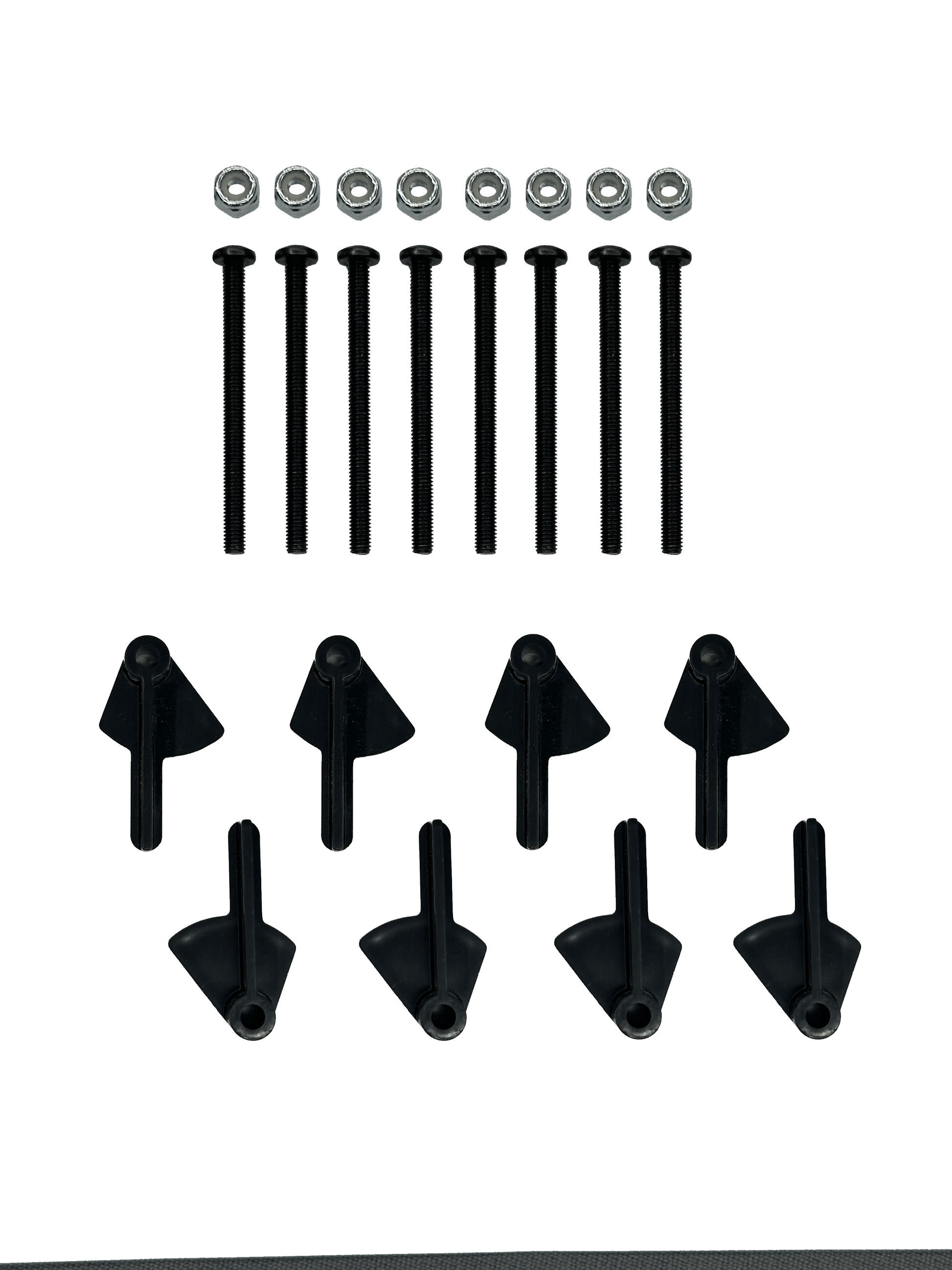

The Diamond Billiards Leg Cap Hardware Set is designed for all Diamond Smart and Pro-Am tables with composite legs. This essential hardware securely attaches the composite leg cap to the body panel corner above the leg. Each kit includes 8 cams, bolts, washers, and nuts for a complete and secure installation.

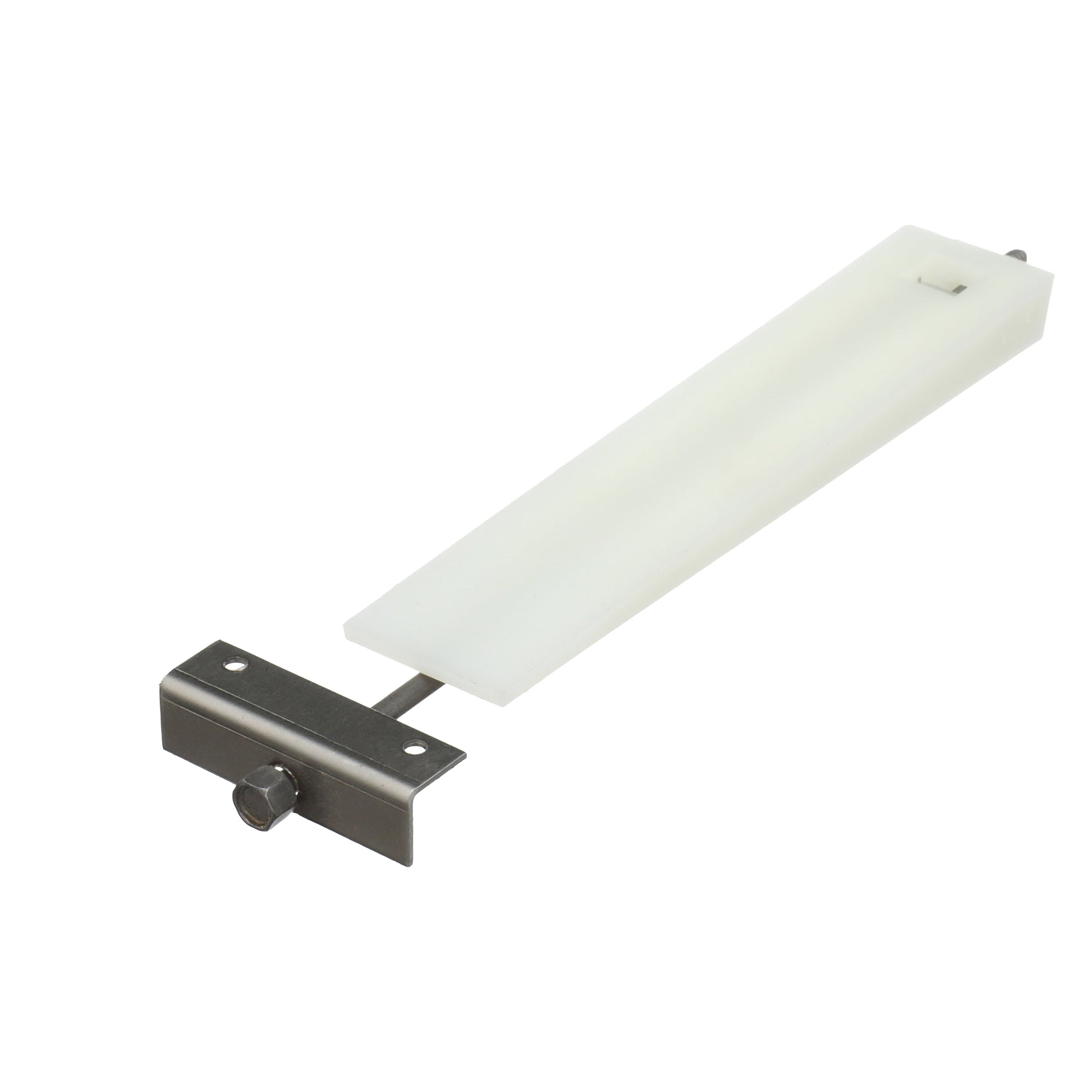

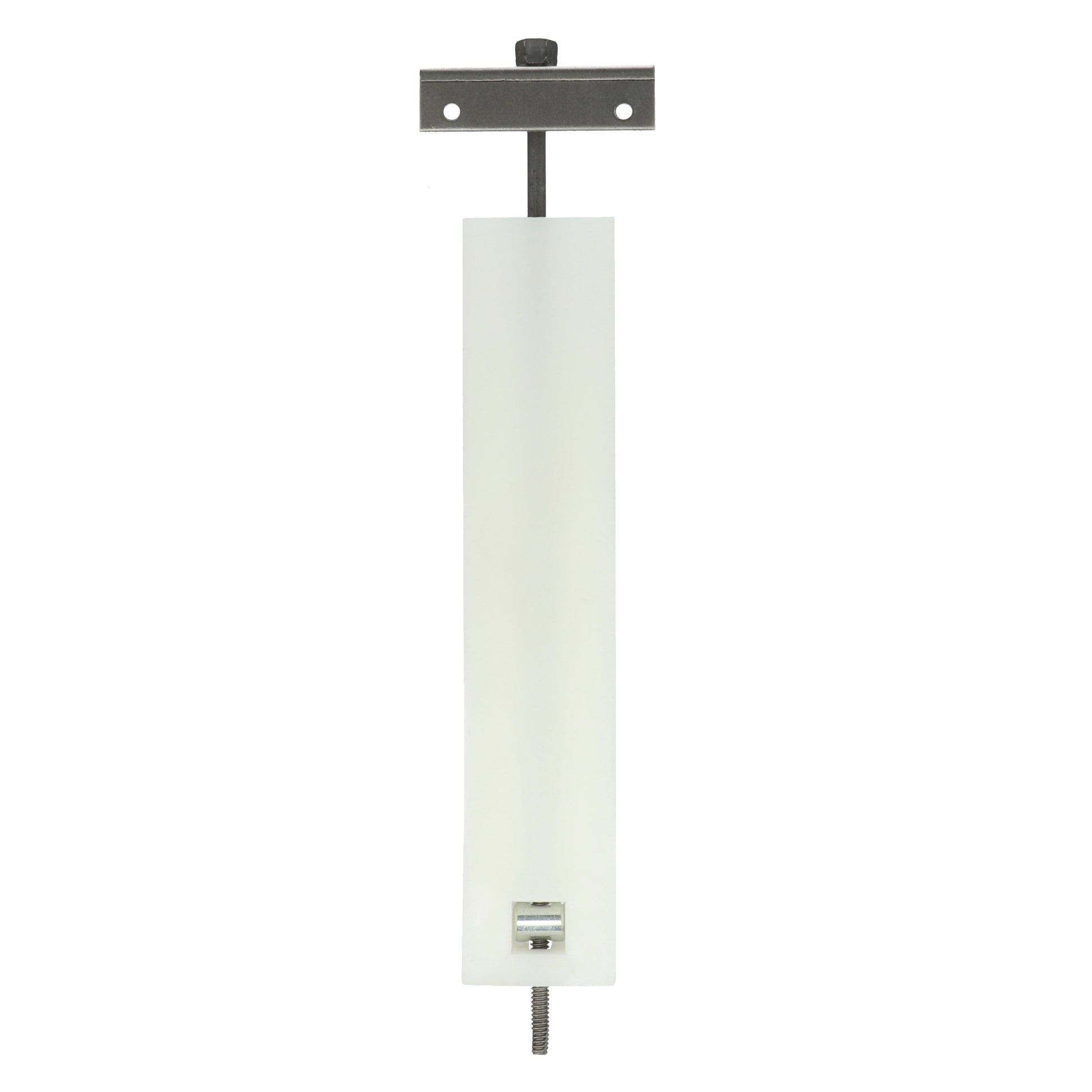

Diamond Billiard Products Leveling Wedges are the essential element of the advanced leveling system used on all Diamond tables. Each Diamond table has 18 leveling wedges without wood around the edges of the table. Sold individually, each wedge comes with a steel threaded rod and is a genuine OEM replacement for your Diamond pool table.

Did You Know?

• Every Diamond table is designed with precision in mind, featuring 4 leveling wedges with wood placed under the slate in the middle of the table.

  Altogether, this adds up to an impressive 22 leveling wedges under the slate, ensuring a perfectly level playing surface that stays level for the long haul.

•

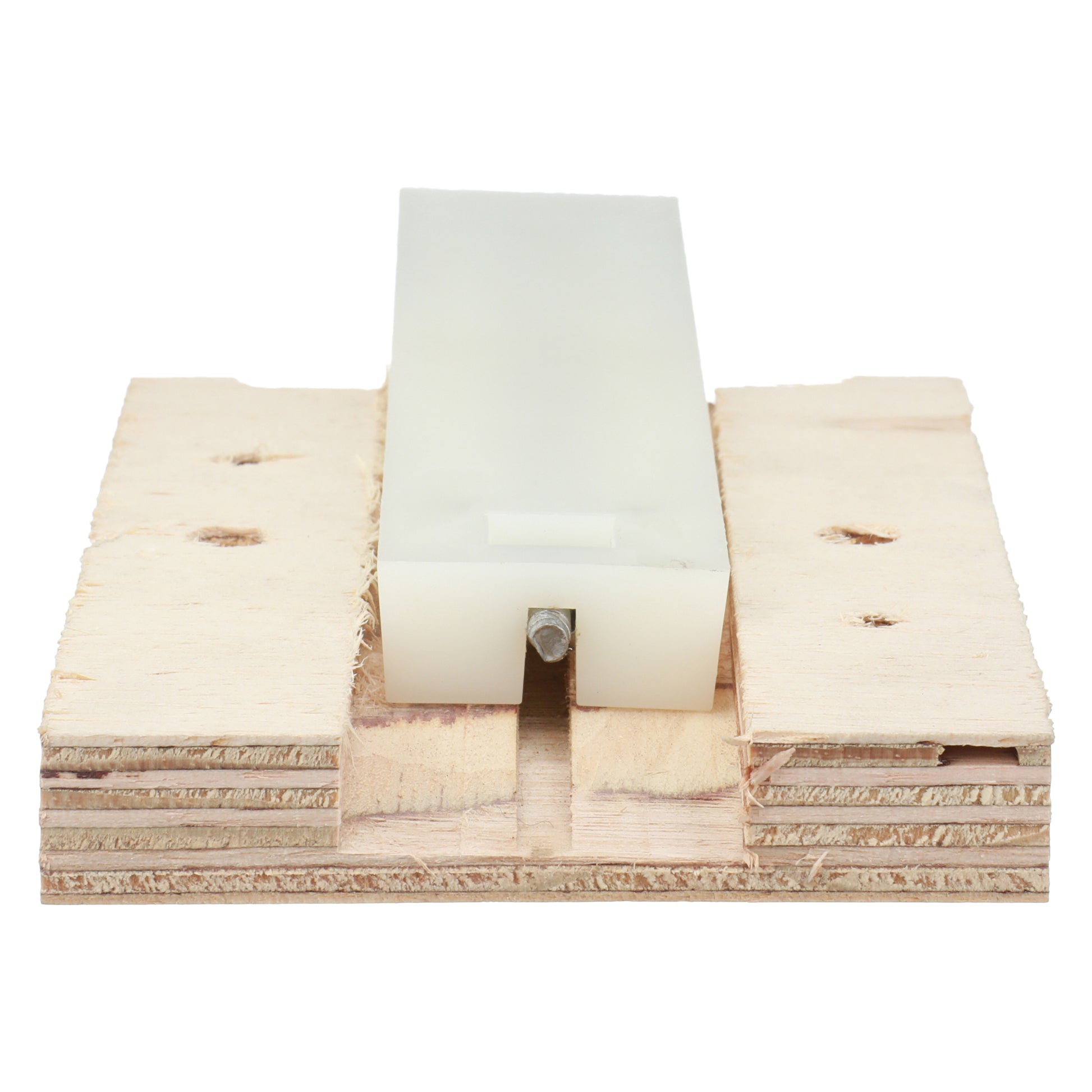

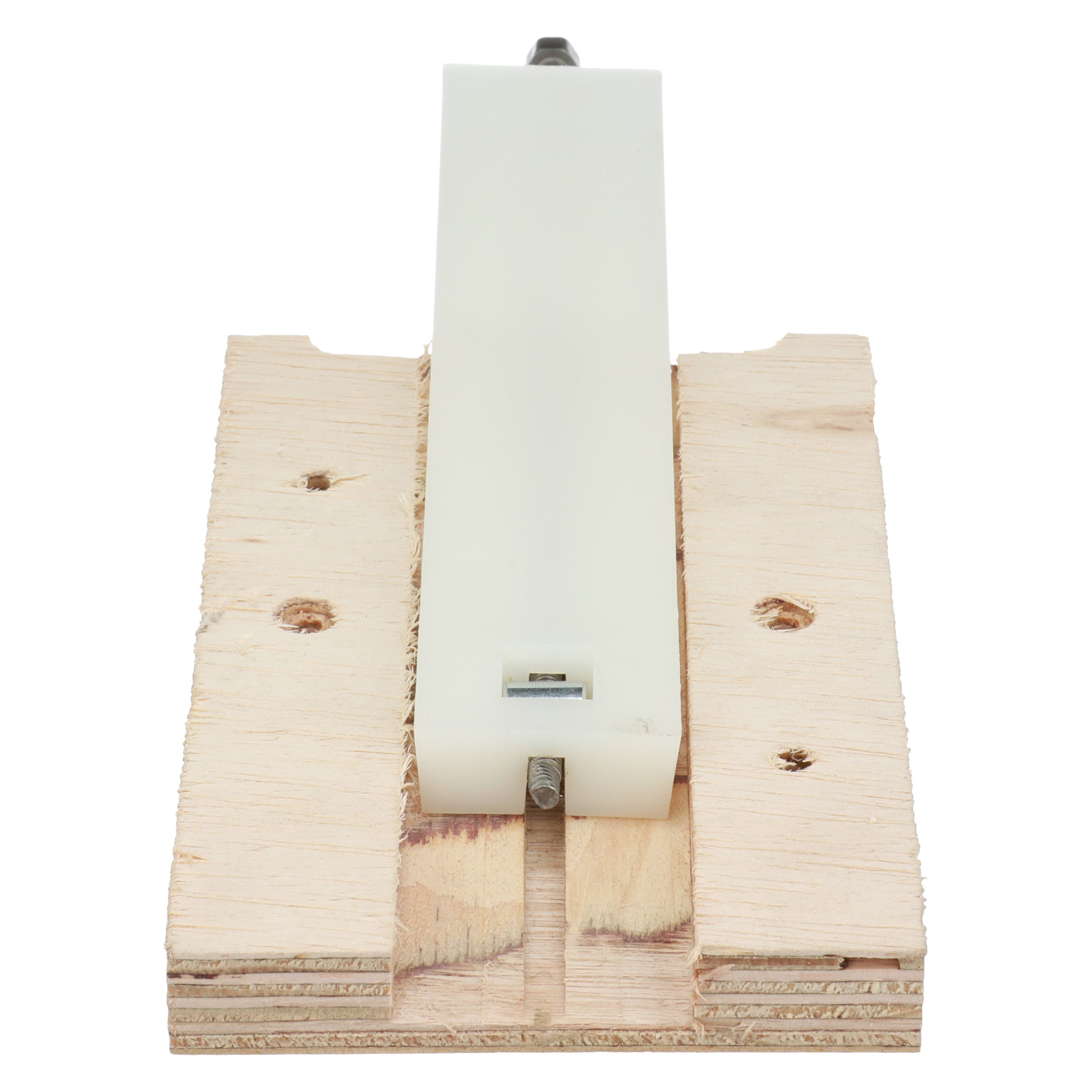

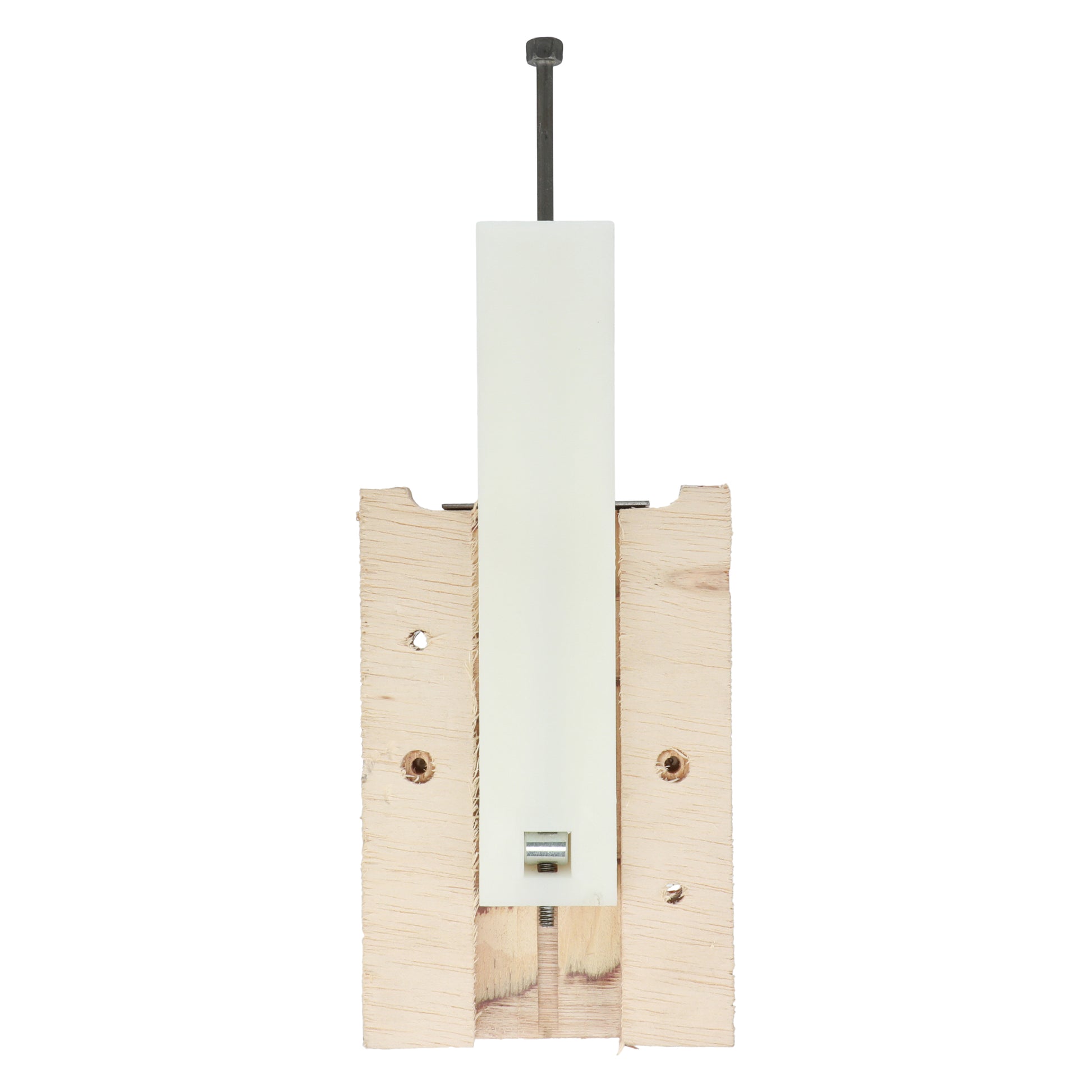

Diamond Billiard Products Leveling Wedges are the essential element of the advanced leveling system used on all Diamond tables. Each Diamond table has 4 leveling wedges with wood placed under the slate in the middle of the table. Sold individually, each wedge comes with a wood base, steel threaded rod and is a genuine OEM replacement for your Diamond pool table.

Did You Know?

• Every Diamond table is designed with precision in mind, featuring 18 leveling wedges without wood under the slate around the edges of the table.

• Altogether, this adds up to an impressive 22 leveling wedges under the slate, ensuring a perfectly level playing surface that stays level for the long haul.

•

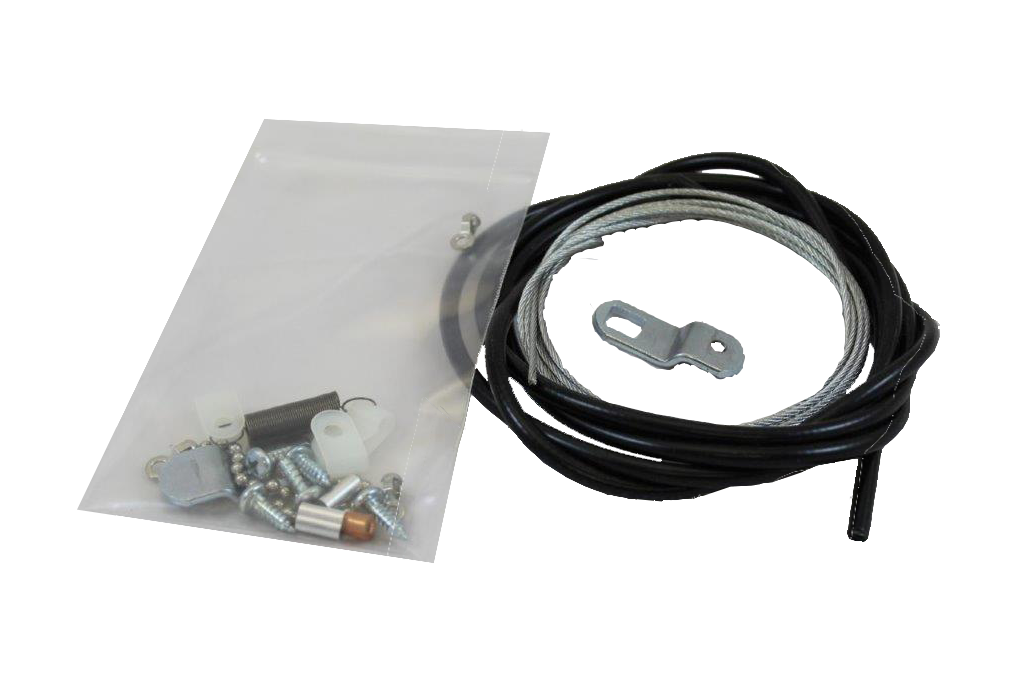

Diamond Billiard Products Main Cable Replacement Kit is a comprehensive solution to replace the cable ball drop system on the first generation Smart Table. This kit includes the cable, cable housing, screws, crimps and mounts, making it easy to install and get your table back up and running. It's a genuine OEM replacement for your Diamond Smart Table, ensuring the same level of quality and performance you expect from the brand.

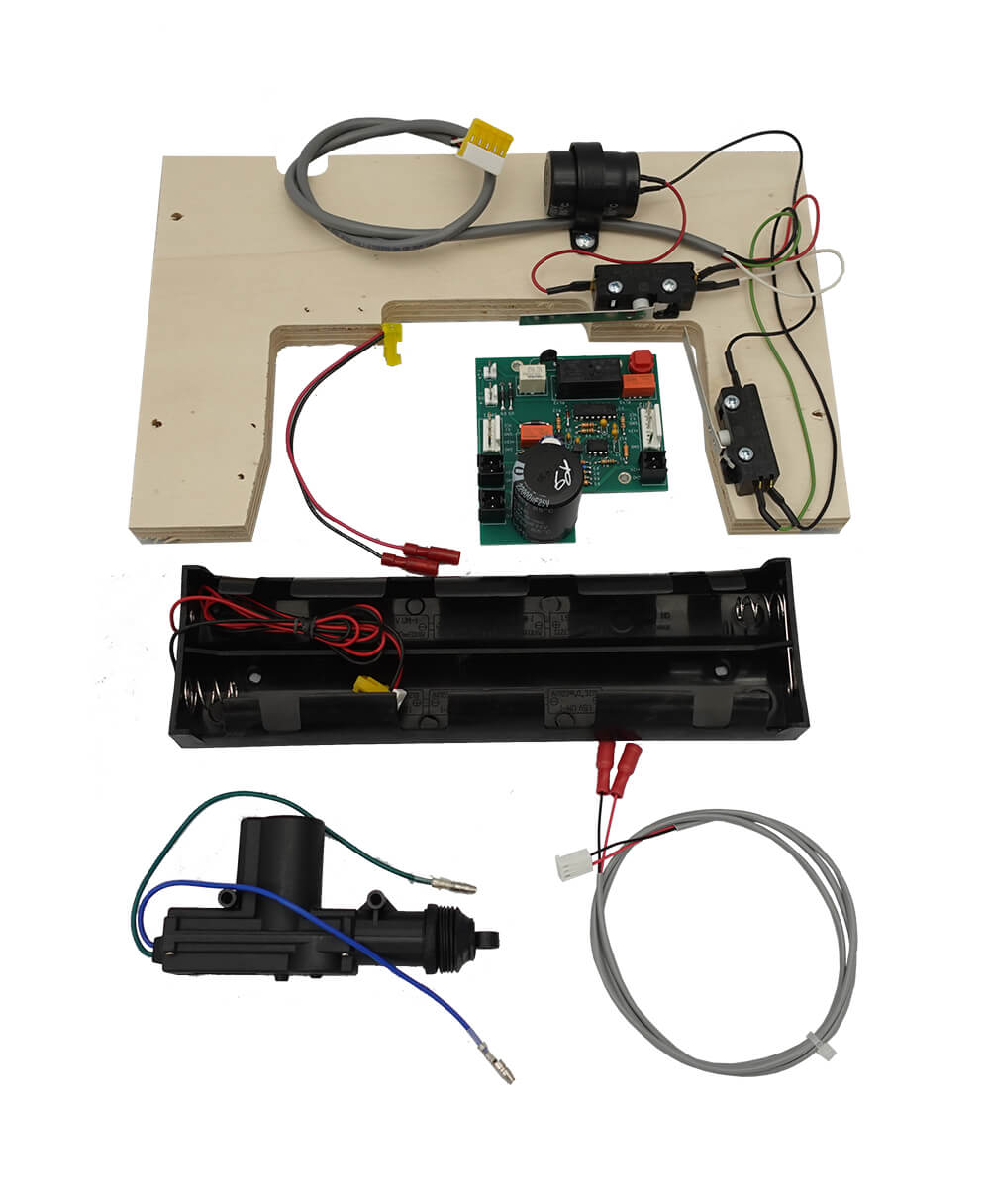

Diamond Billiard Products Retro Fit Kit is a comprehensive solution designed to upgrade pre-2017 Diamond Smart Tables to the latest ball drop system. This system employs electronic technology to activate the ball drop, replacing the old mechanical cable system.

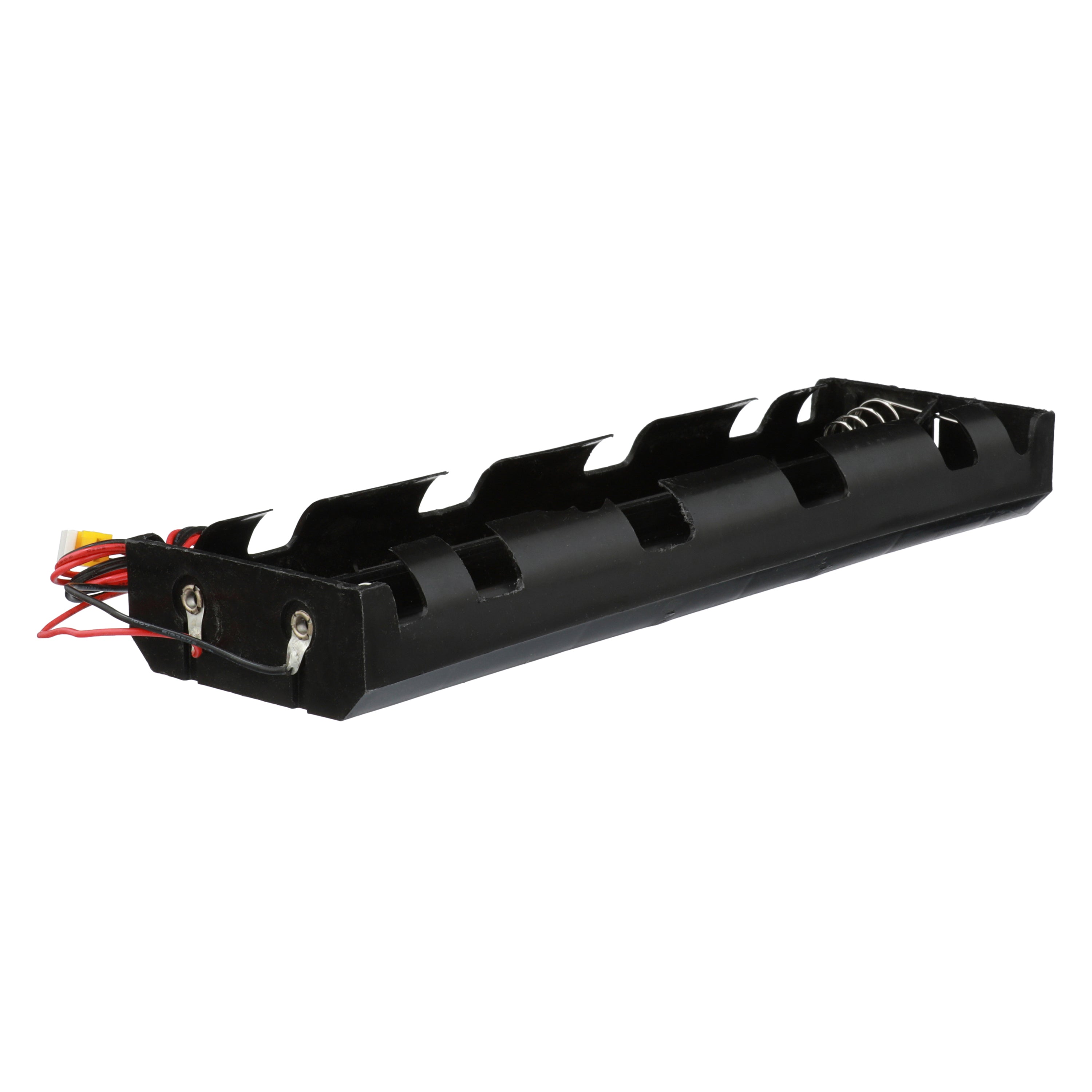

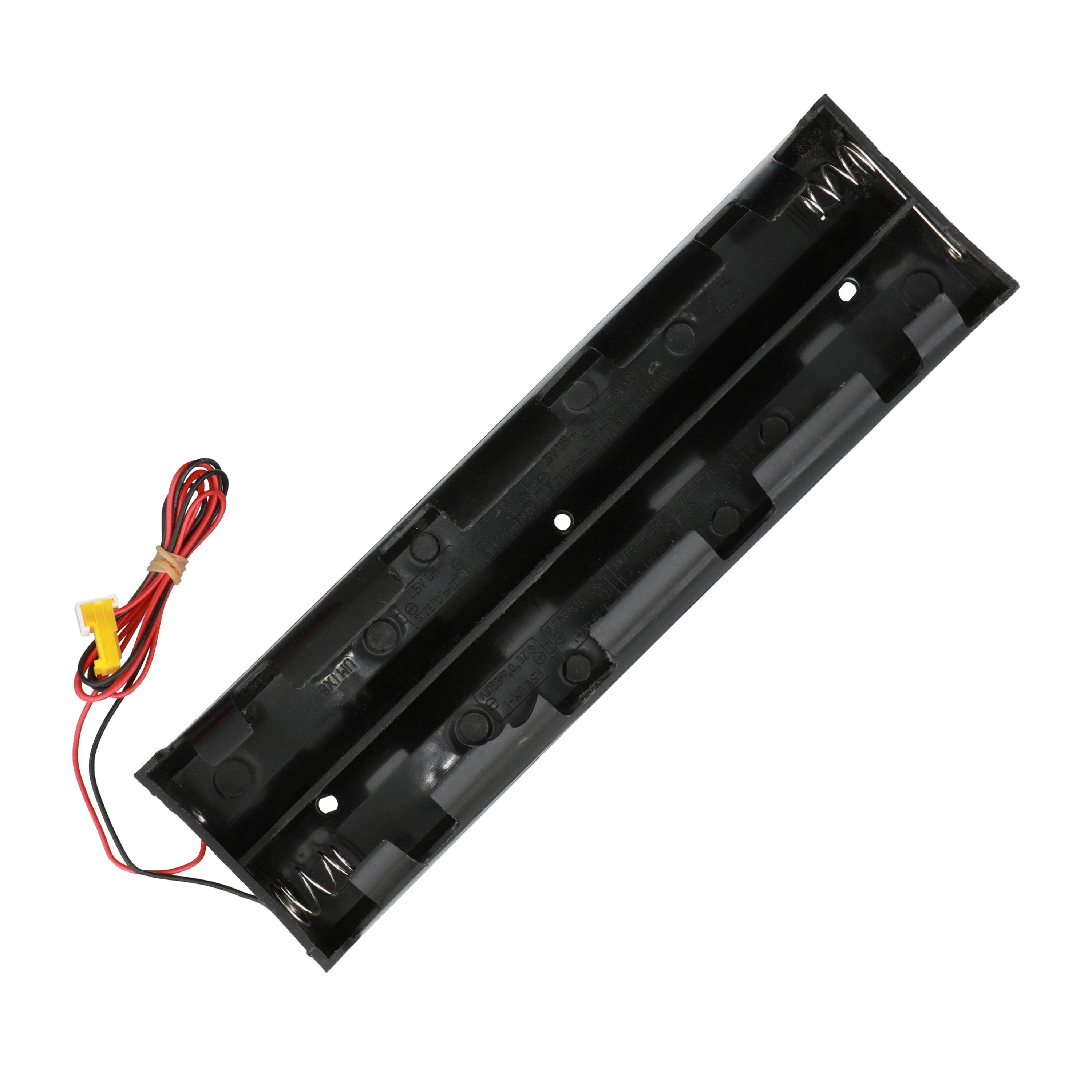

This kit includes the essential components required for the upgrade, such as the cash box cover, actuator motor and wire, timer circuit board, anti-cheat dual microswitches, single coin mechanism with R9 bracket, single coin door with locks, and the battery pack. All these parts are genuine OEM replacements used in new Diamond Smart Tables.

PARTS INCLUDED:

• (1) Cash Box Top, 0S-CAS003
• (1) Capacitor, Wiring Harness, Both Microswitches, D10S509
• (1) Plastic Loop Clamp, 8876T52
• (1) Coin Mech Bracket, 0S-MP250-RIGHT
• (4) Wood Screws, #6 x 1-1/4
• (1) Wood Screw, #10 x 3/4
• (2) 10-32x1 Machine Screws
• (2) 10-32 Fiber Lock Nuts
• (2) Plastic Spacers, 94639A454
• (1) R9 Timer Board, DTB209
• (2) Wood Screws, #6 x 1-1/4”
• (1) Battery Adapter Cable, BATADAPTCABLE
• (1) Actuator Cable, DPC709
• (1) Black Actuator, 330-010
• (2) Wood Screws, #6 x 1-3/4”
• (1) Bead Chain Splicing Link, 3606T41
• (1) Bead Chain w/ 28 Beads, 3606T91

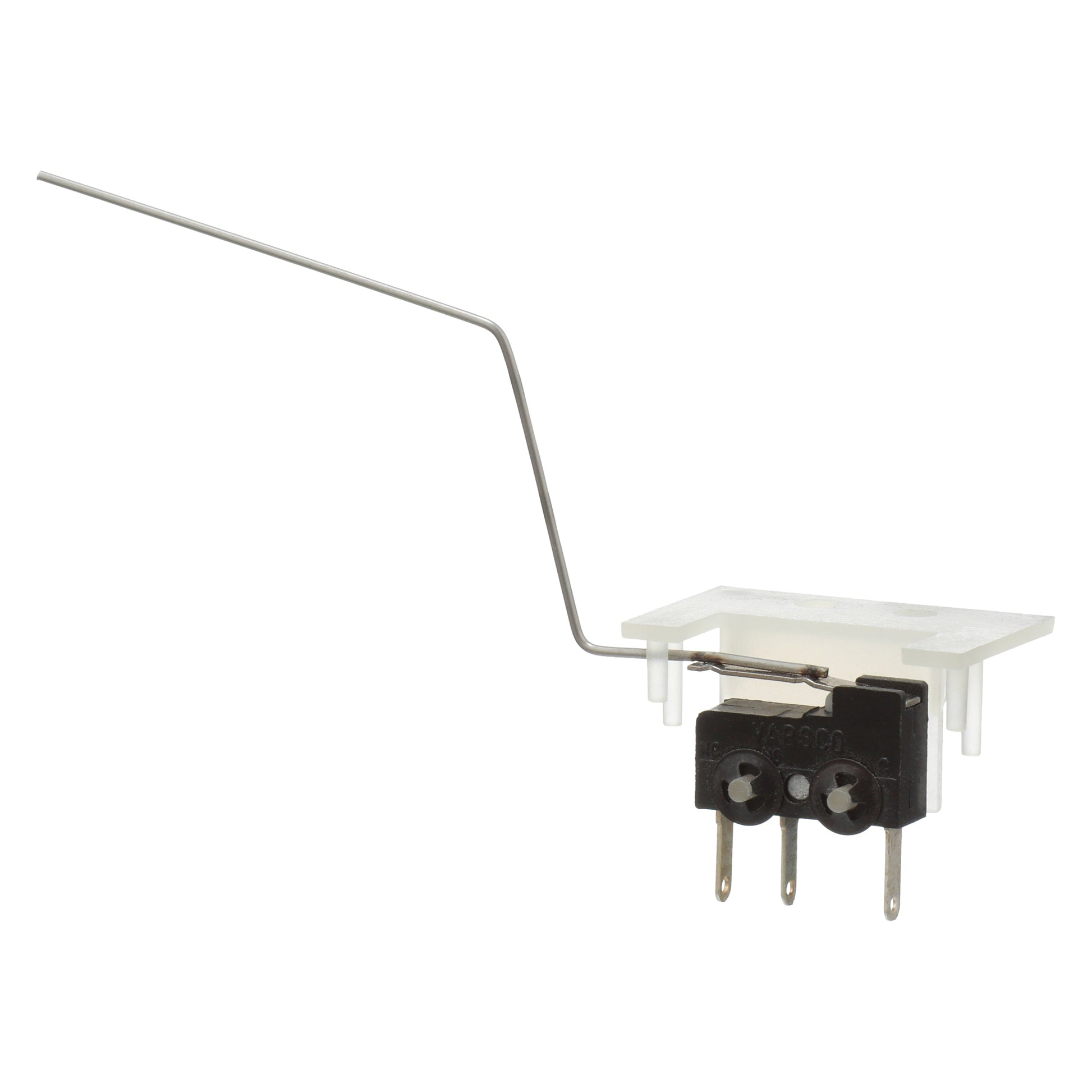

Diamond Billiard Products Ball Separator Micro Switch, which is responsible for controlling the laser sensor on the cue ball separator in the Diamond Smart table. This laser sensor remains in sleep mode until a ball rolls over the switch, activating the laser that separates the cue ball from the object balls. Ensure your table continues to operate at its best with this genuine OEM replacement part!

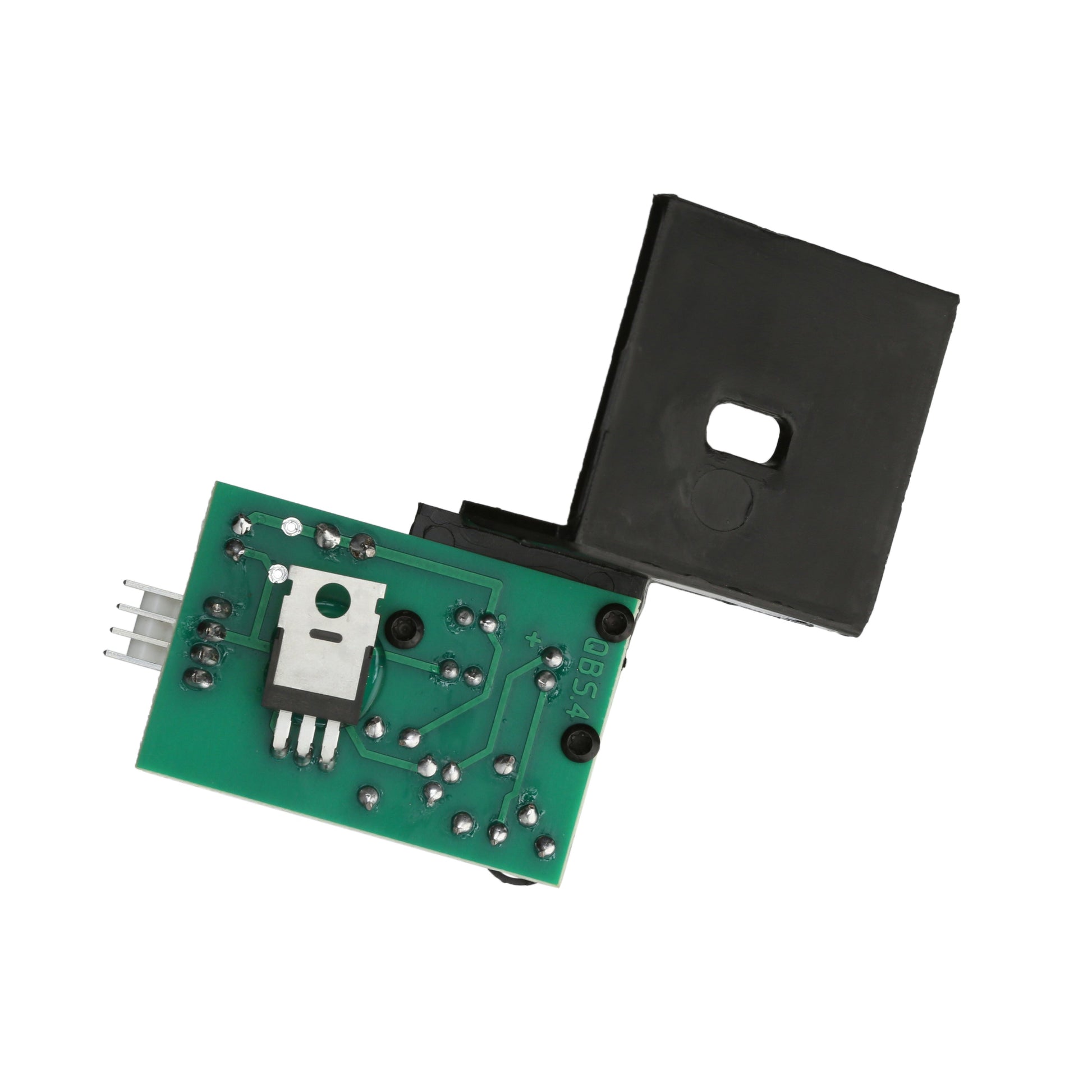

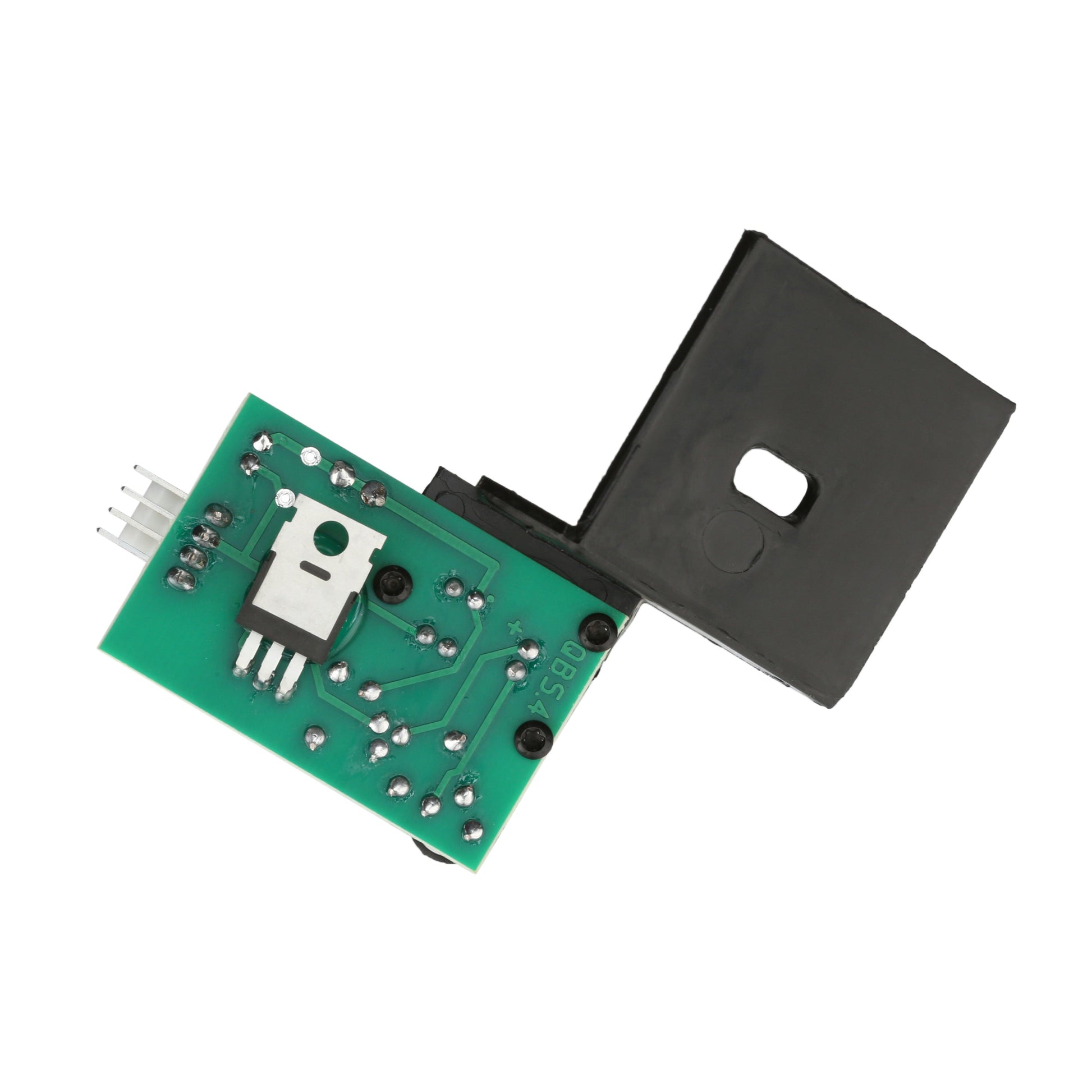

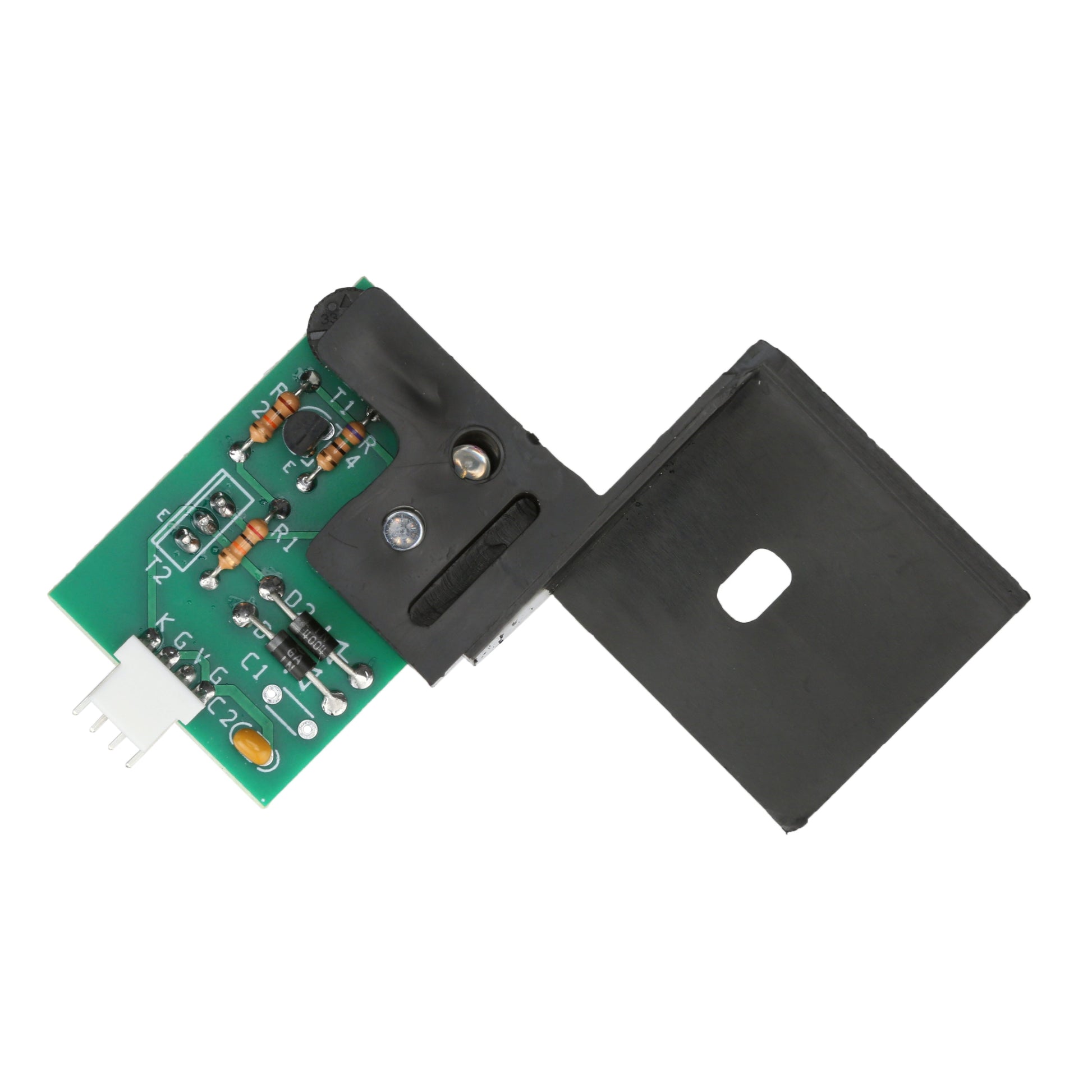

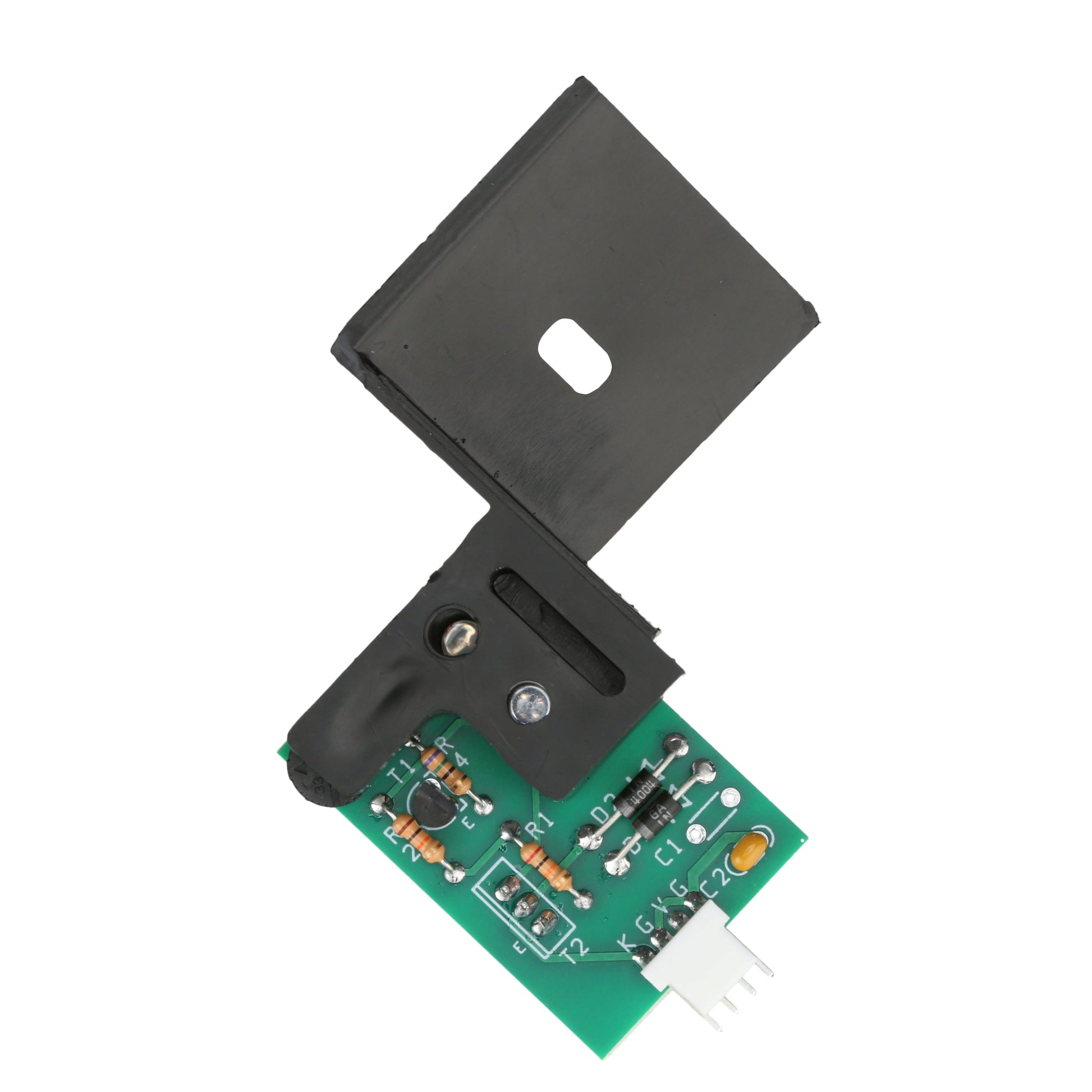

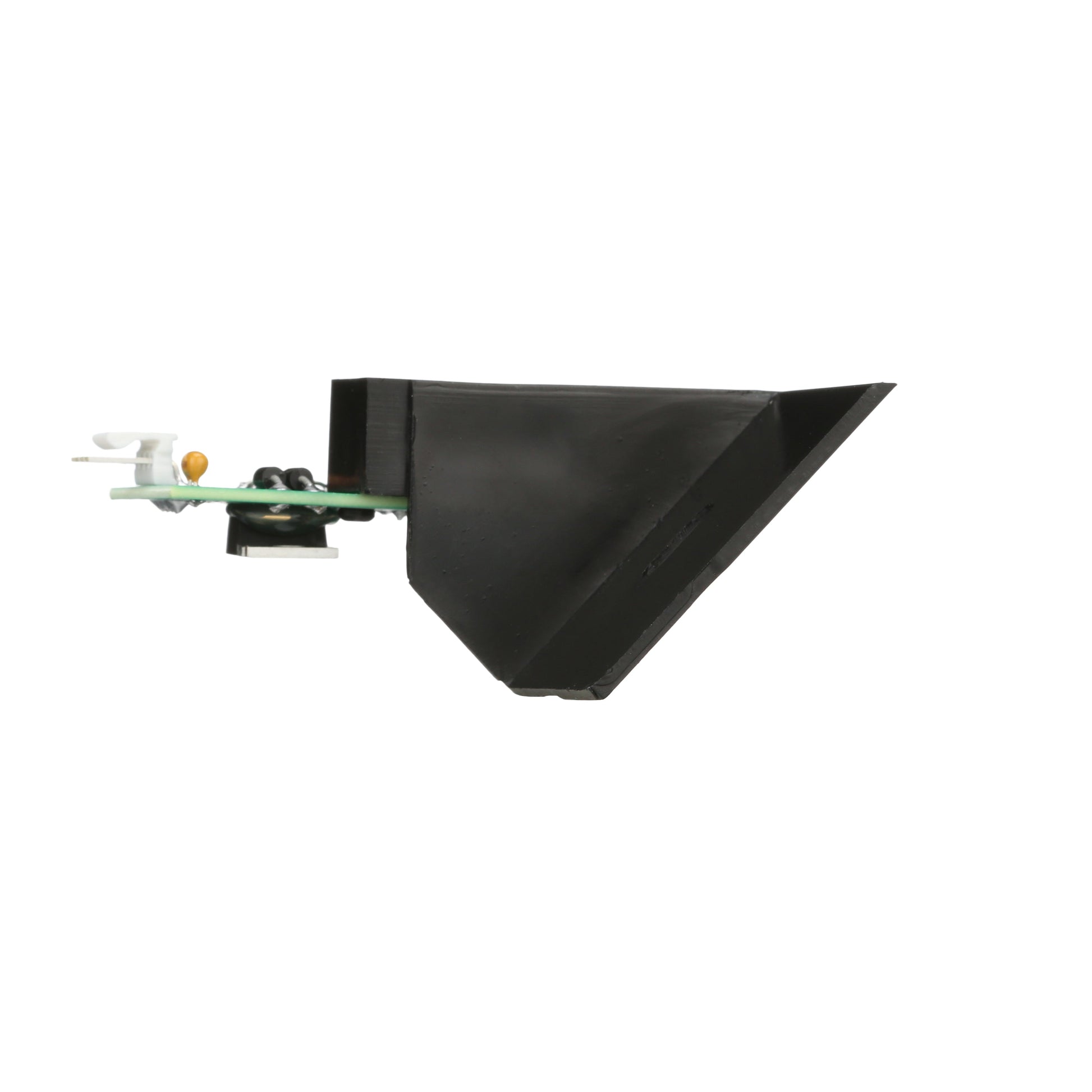

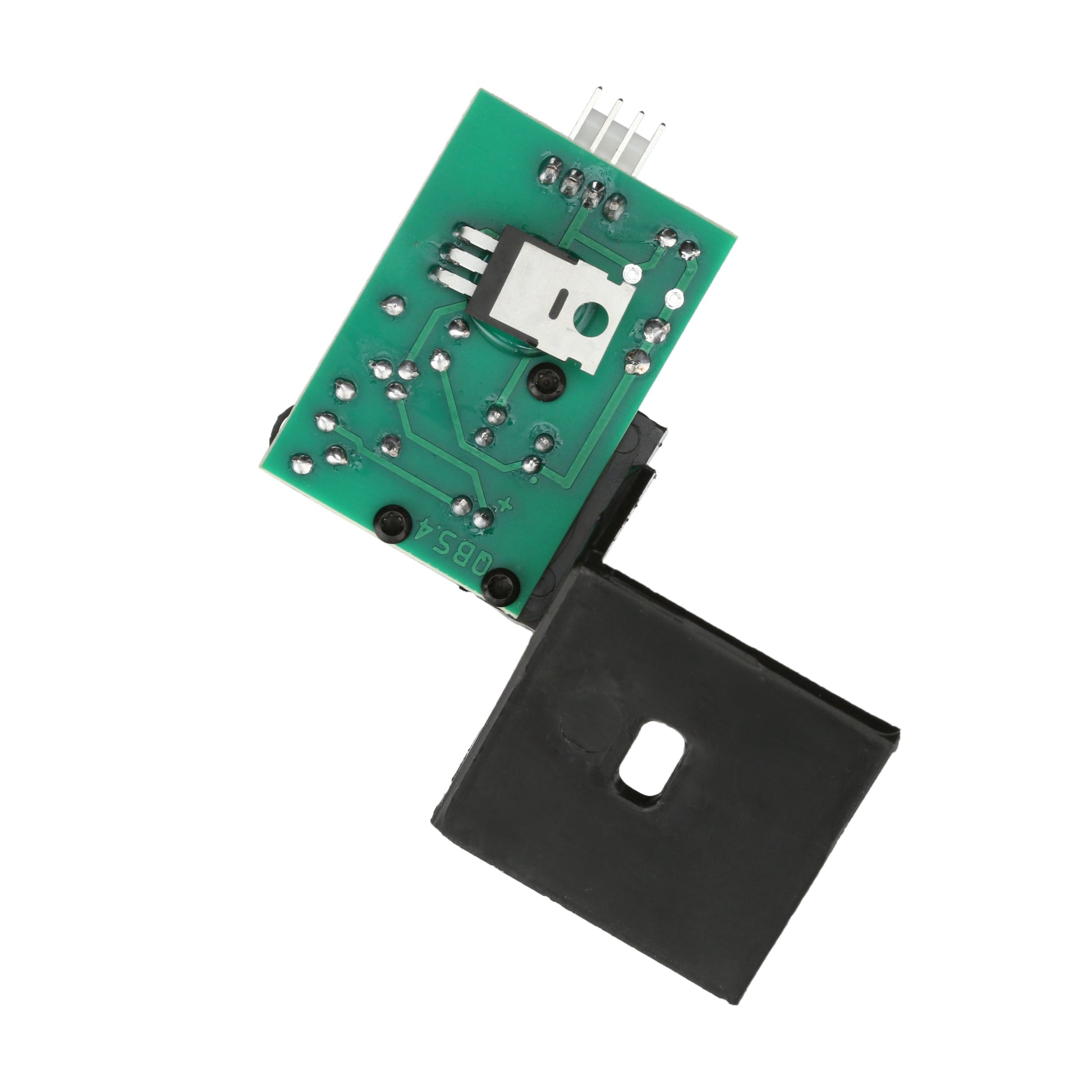

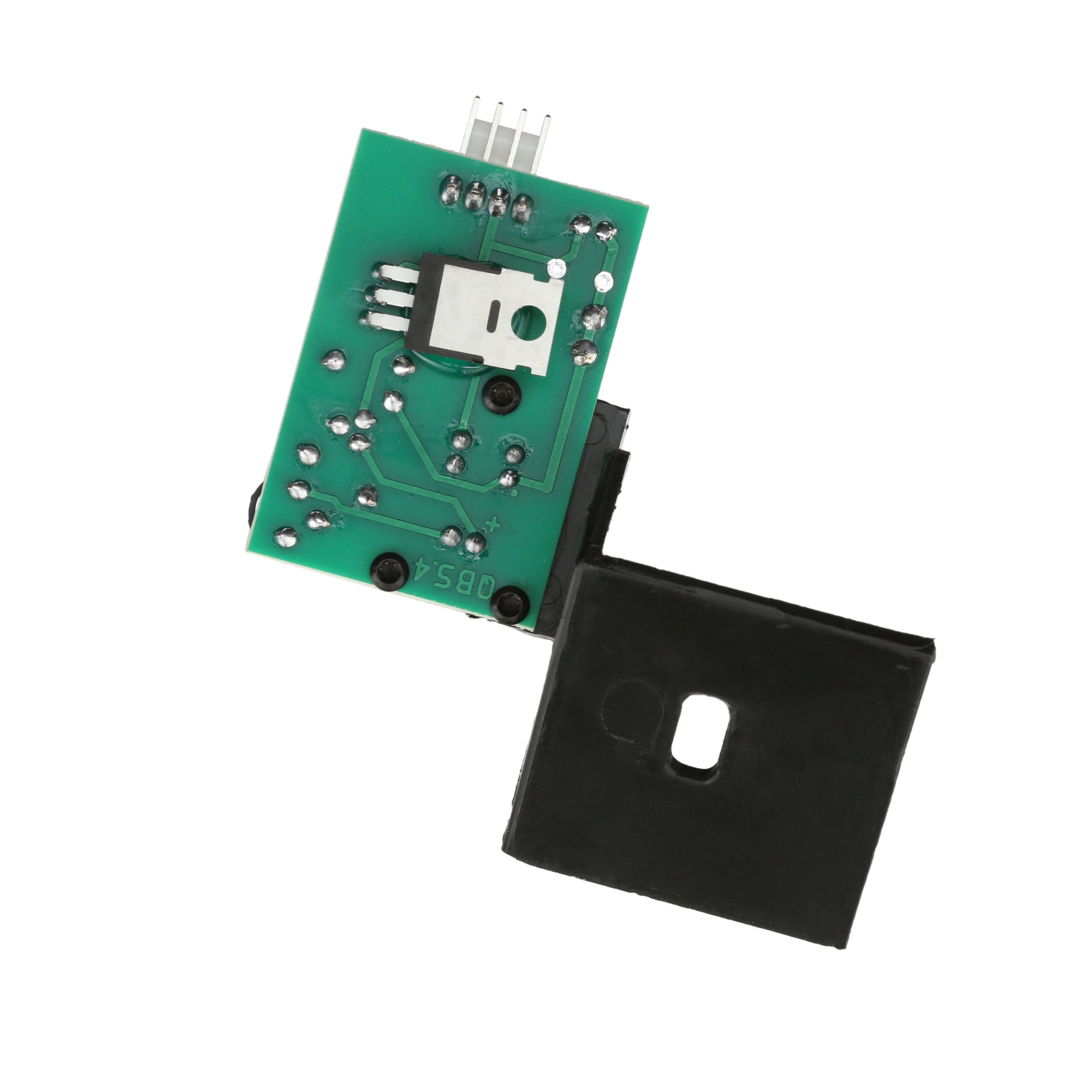

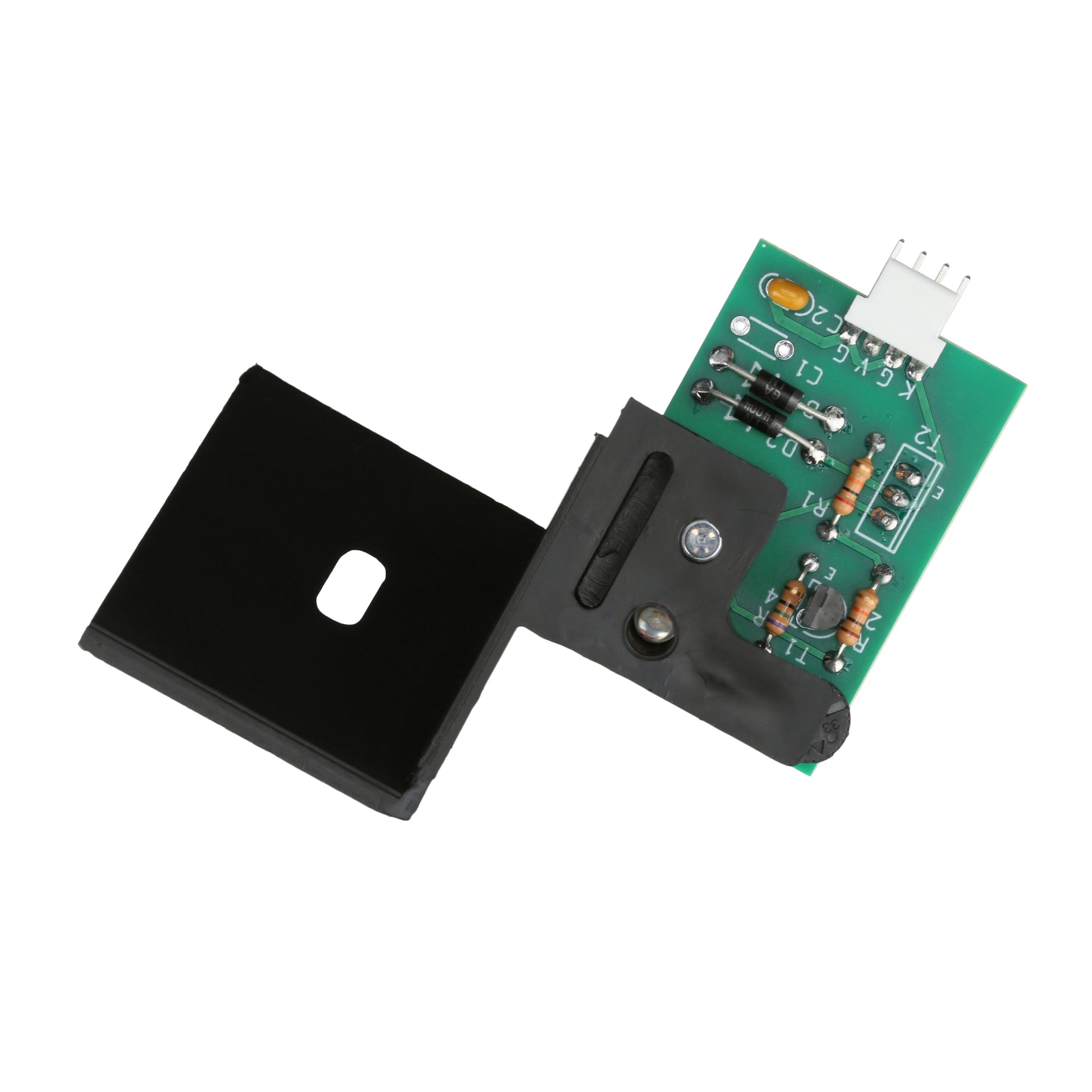

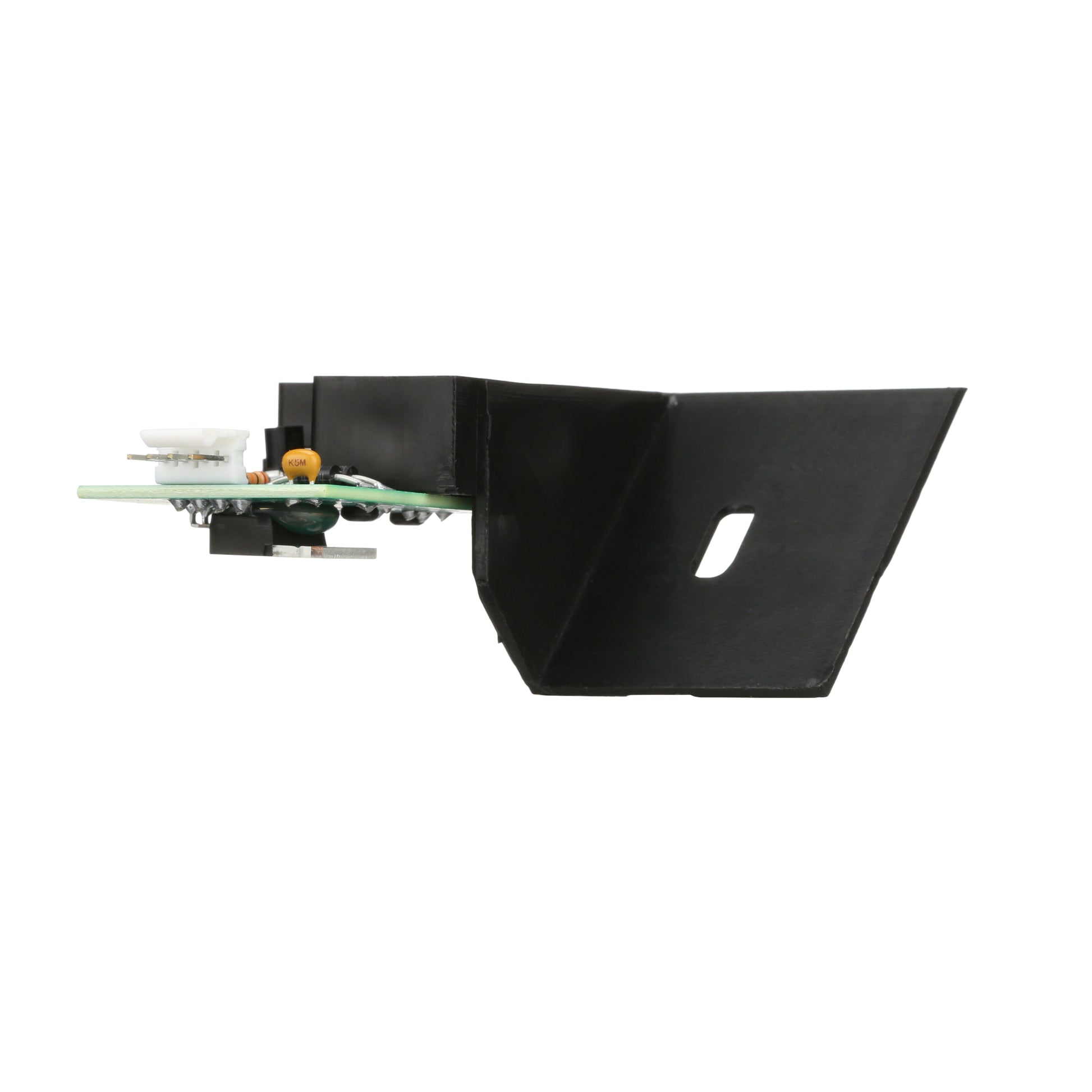

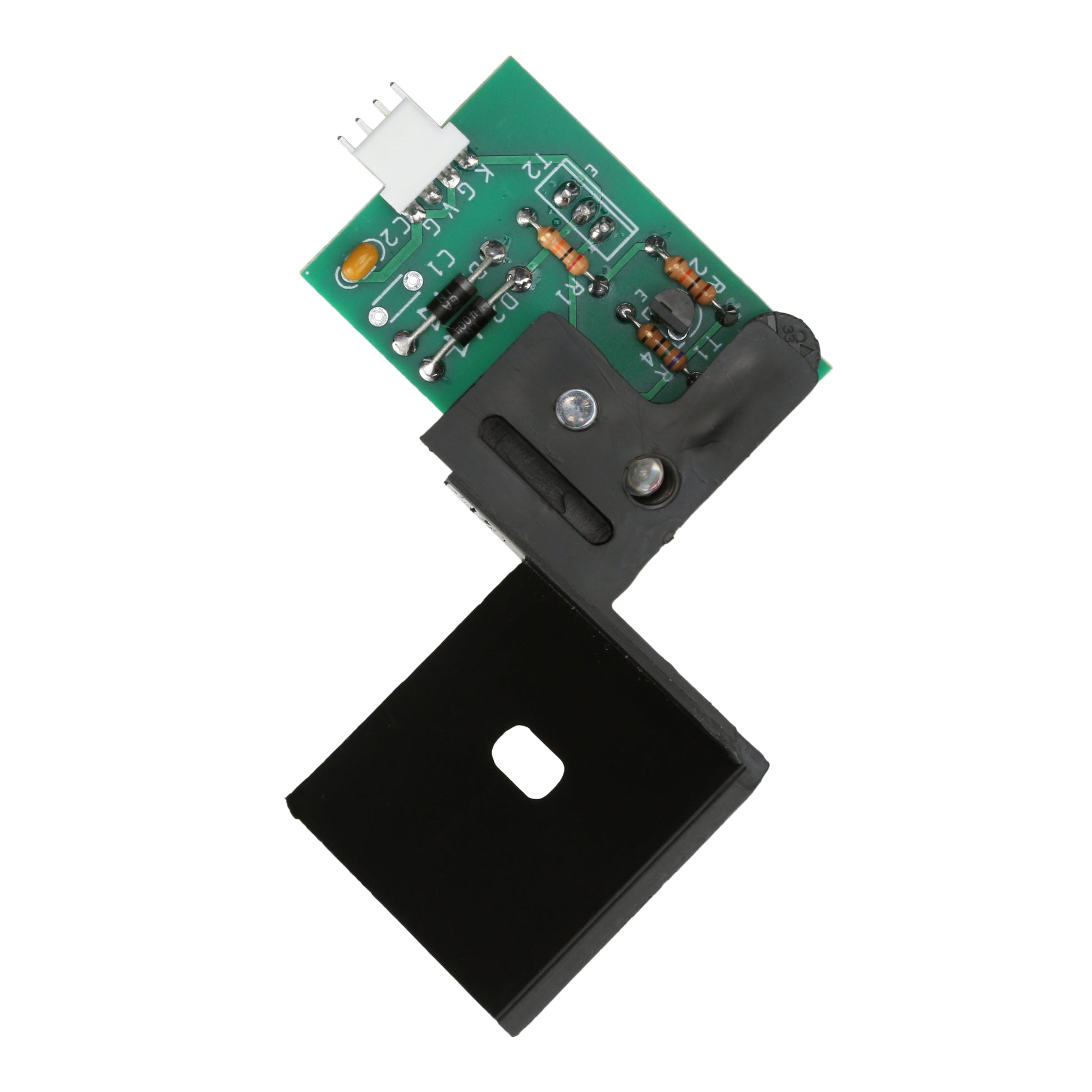

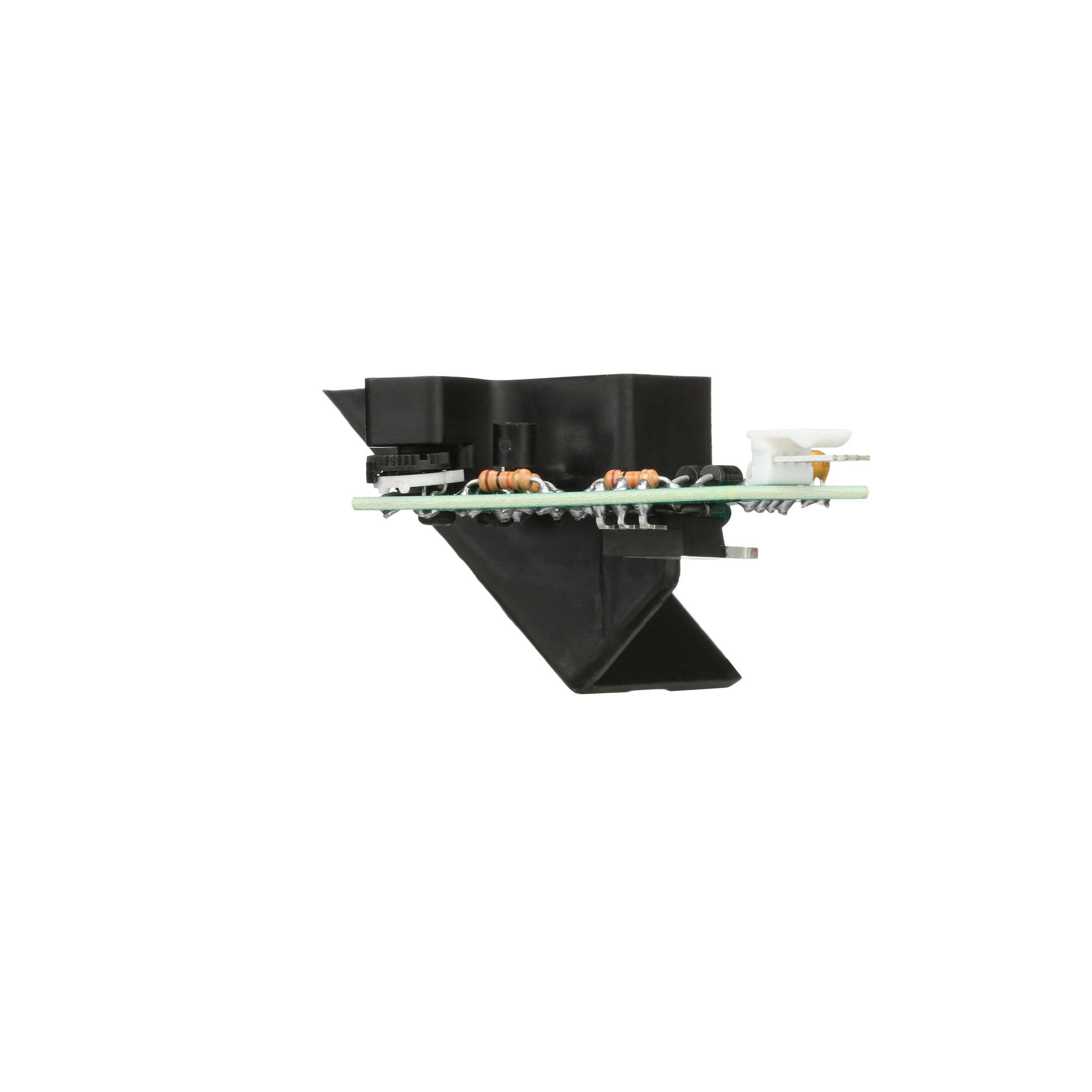

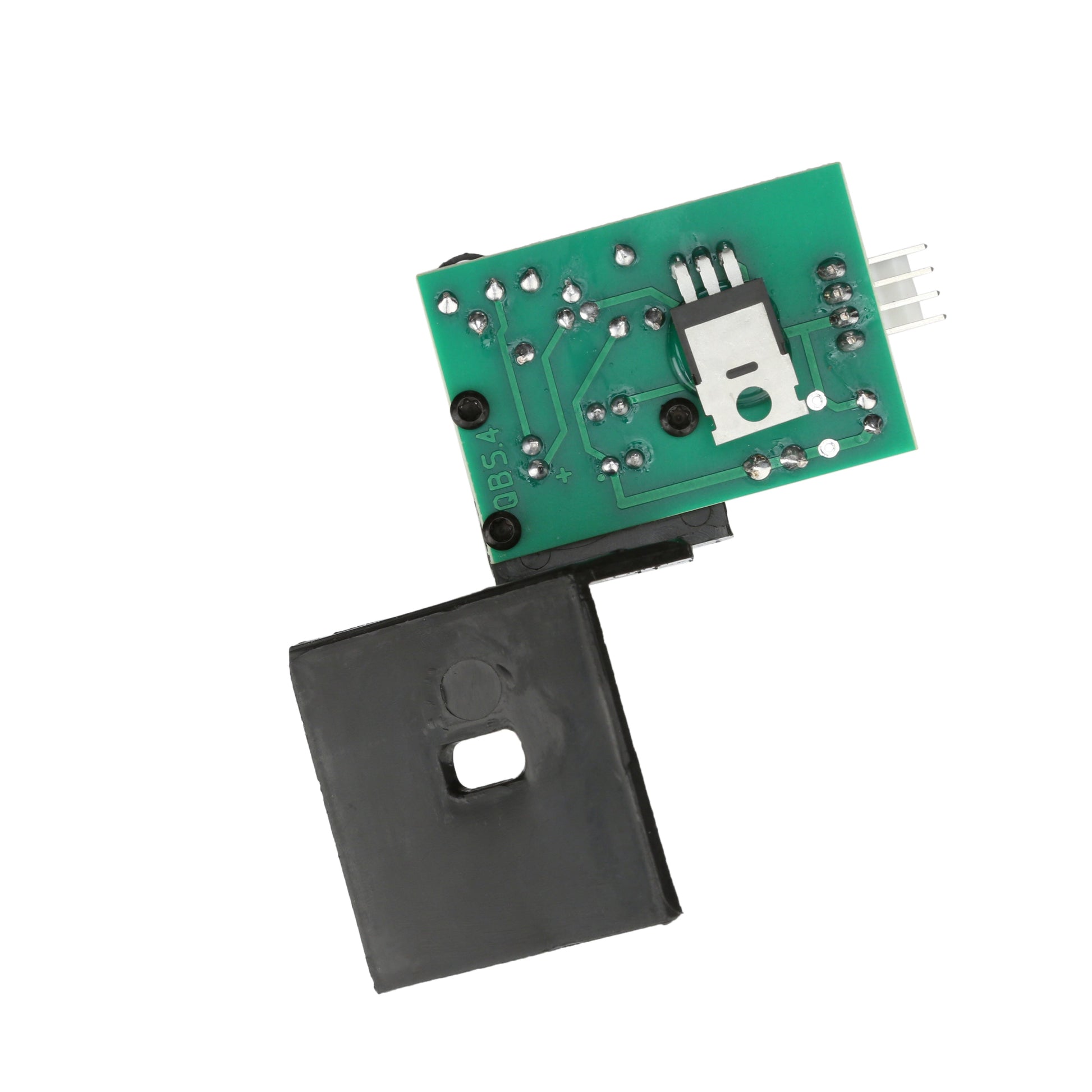

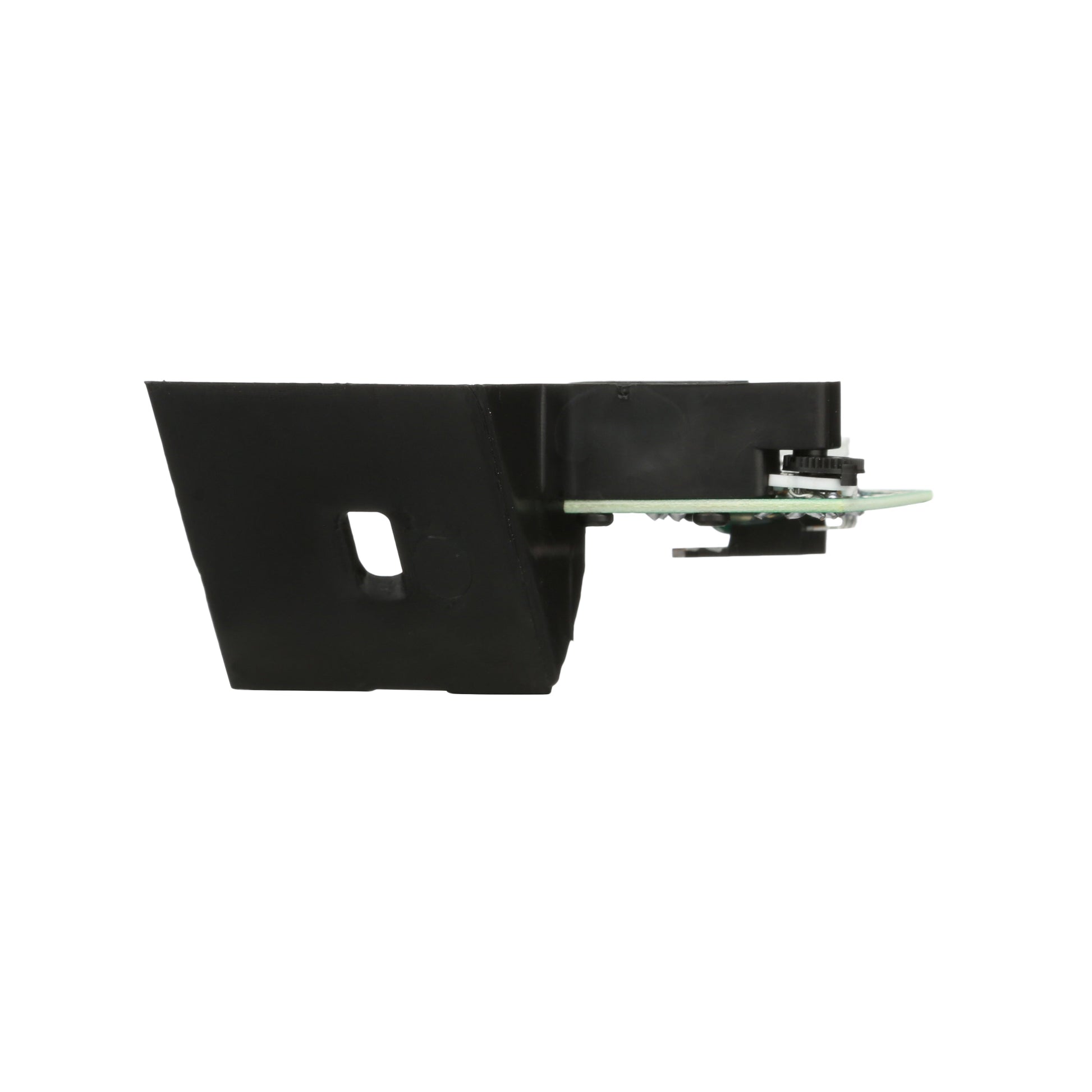

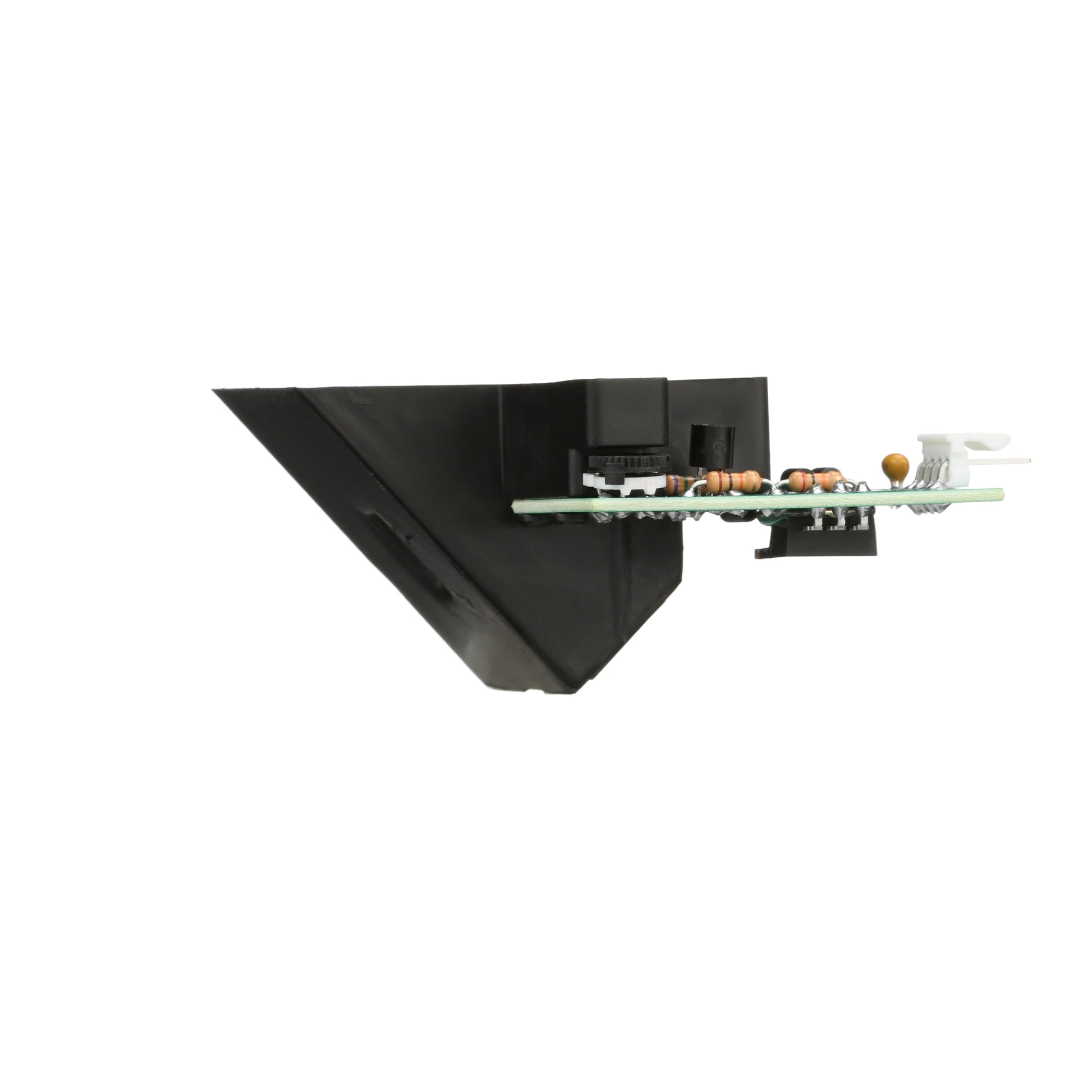

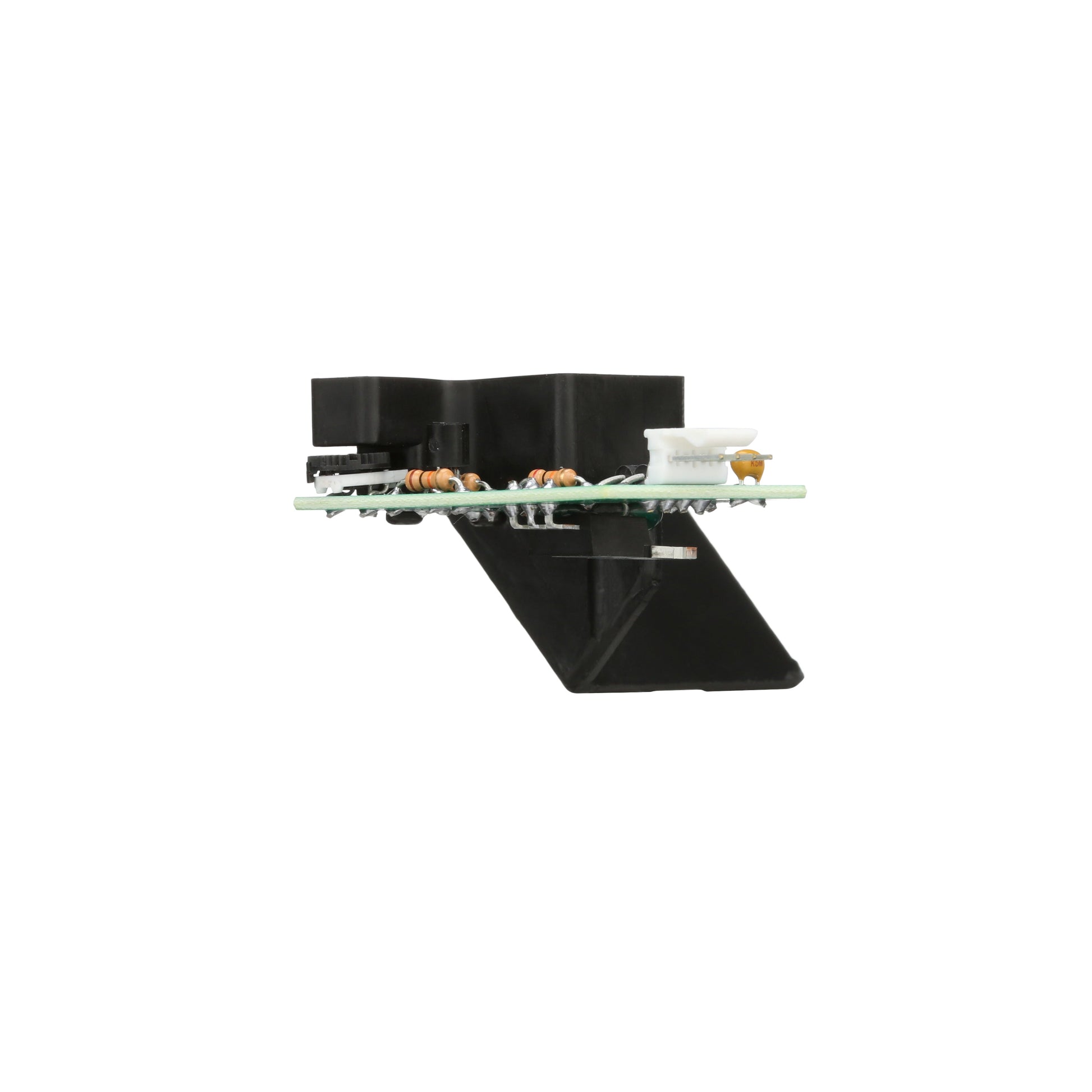

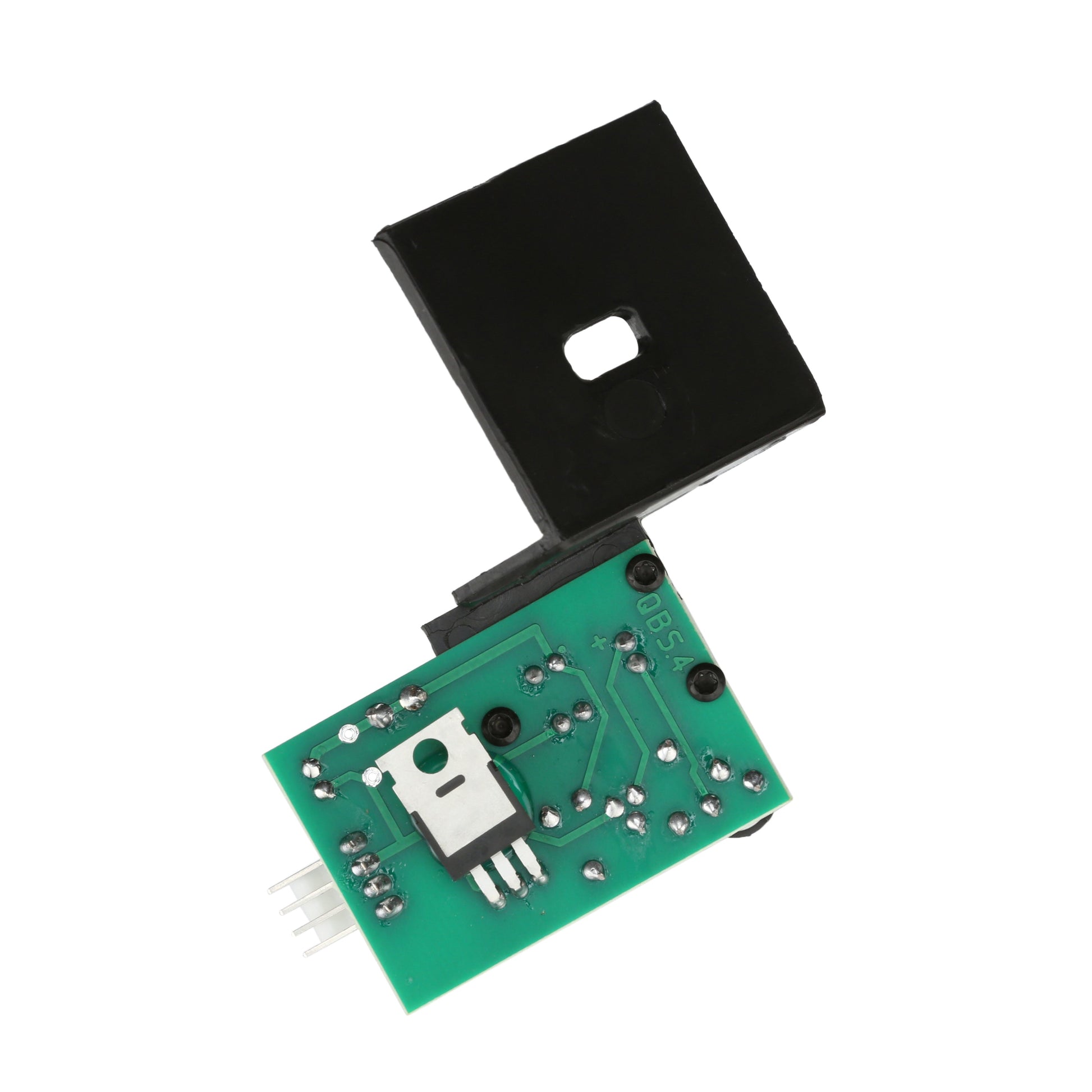

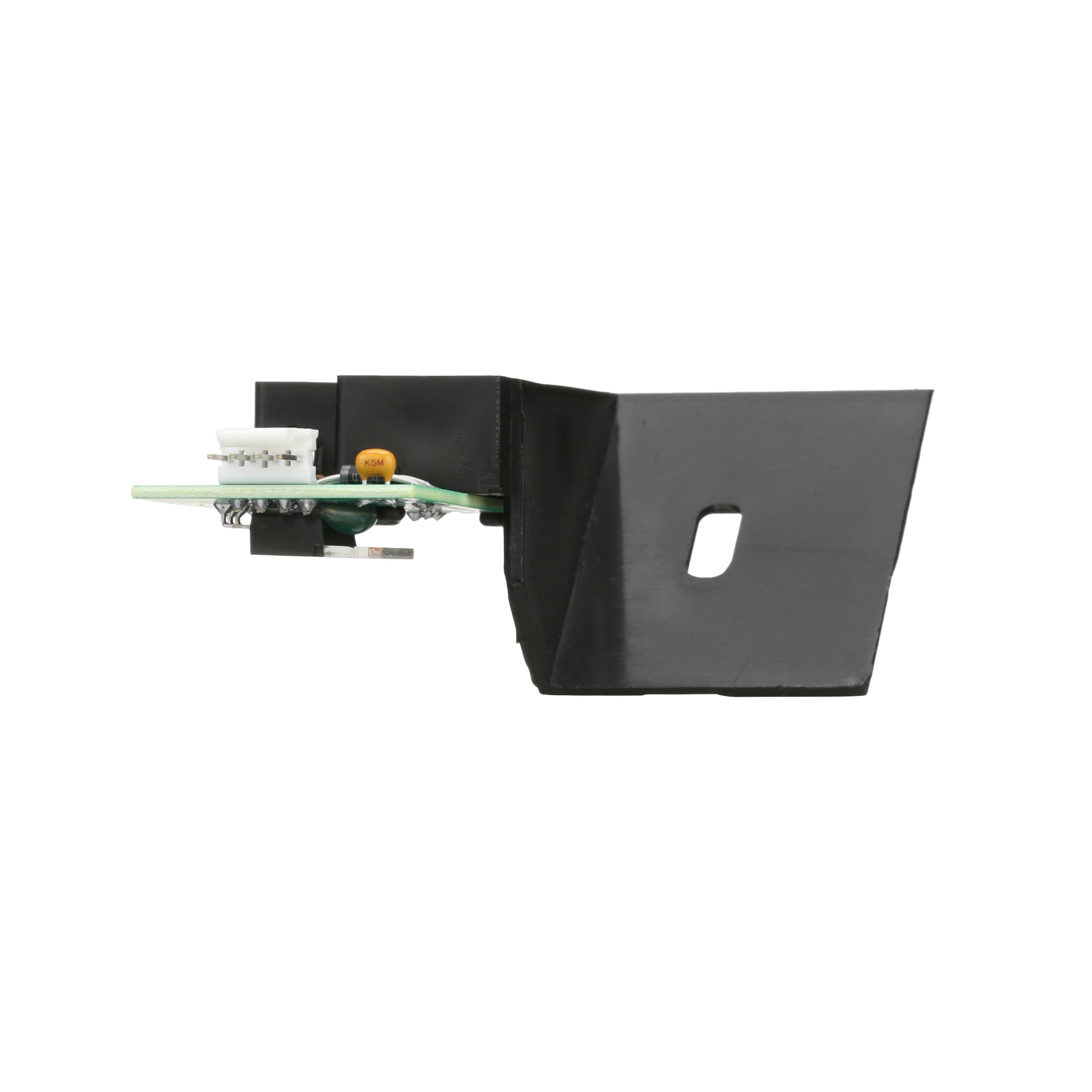

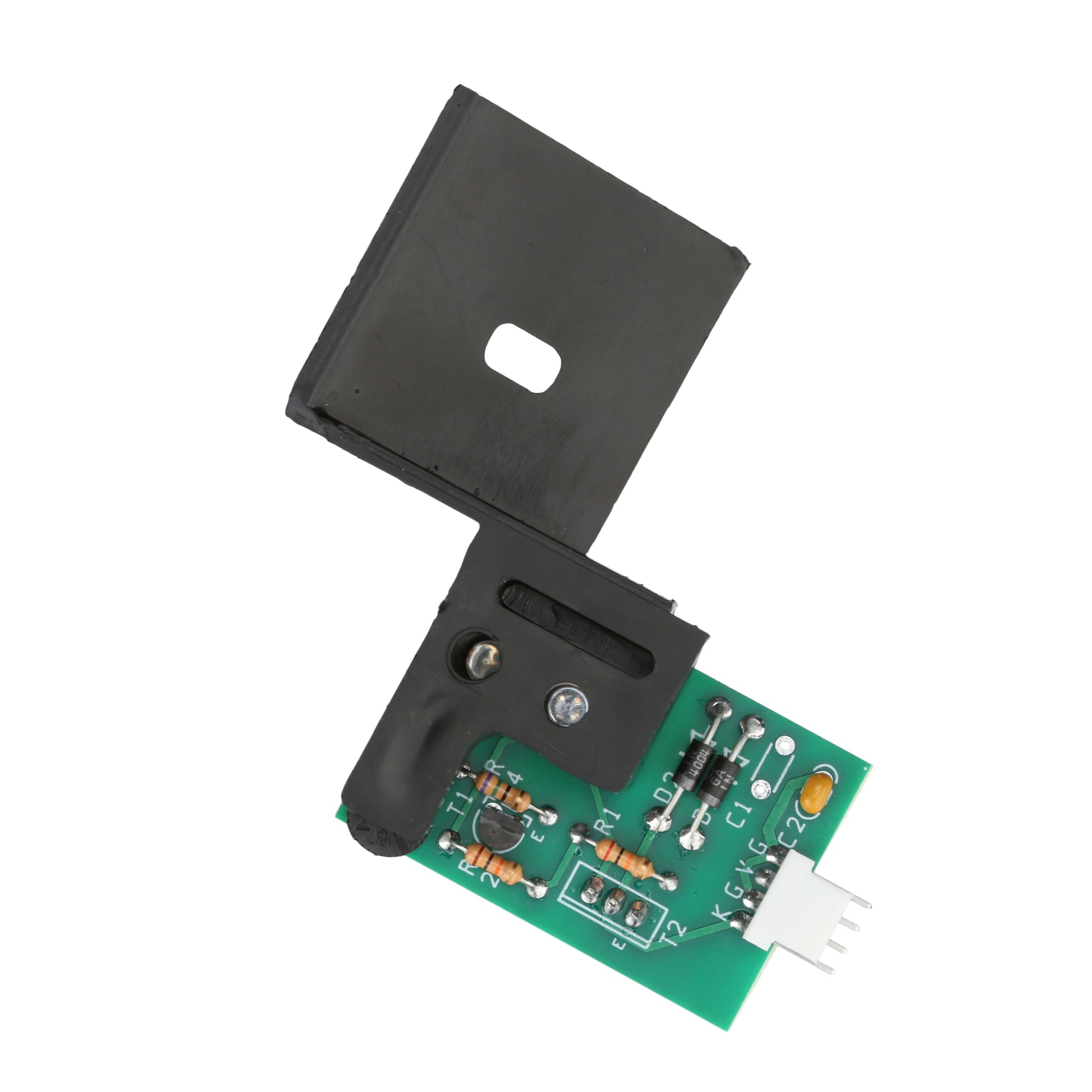

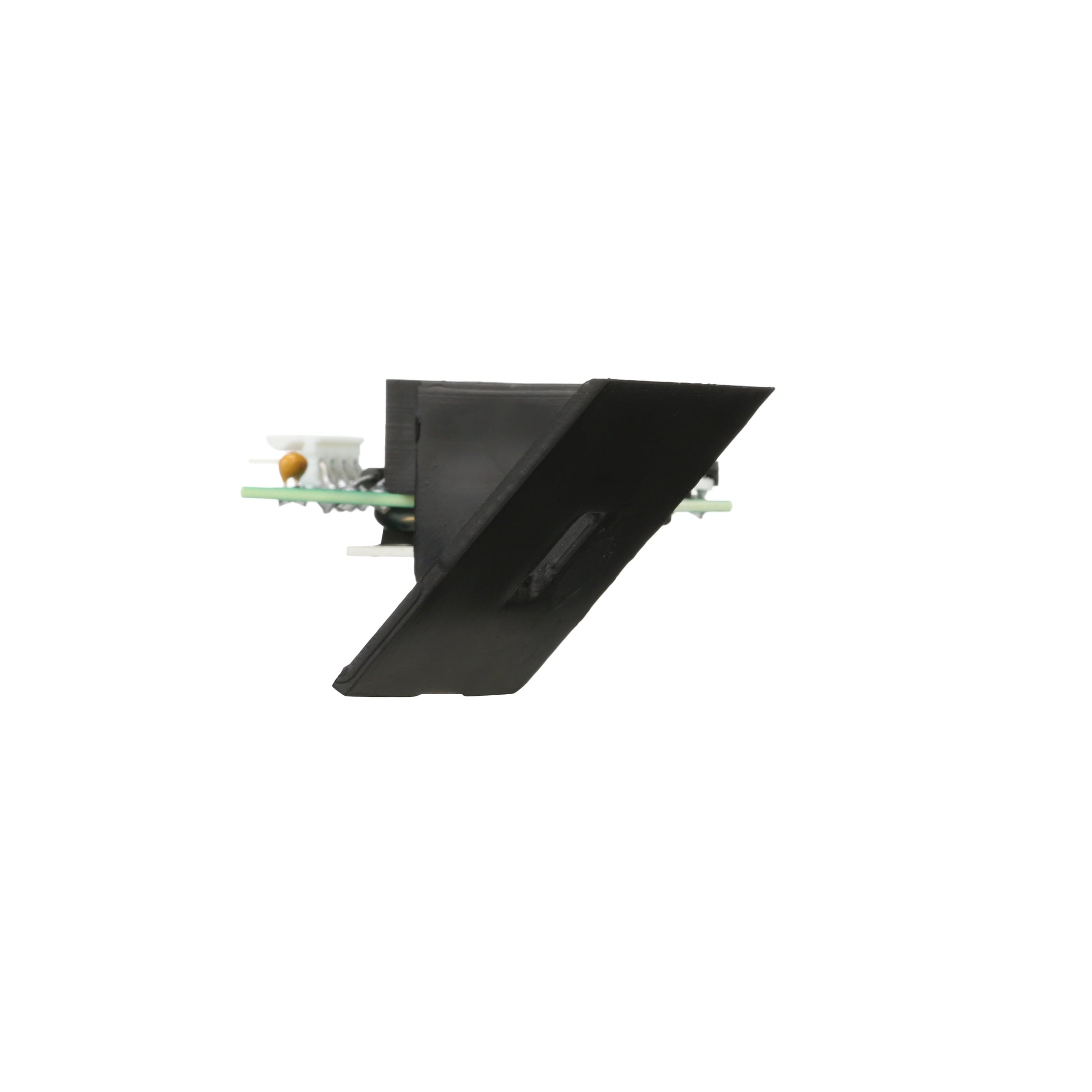

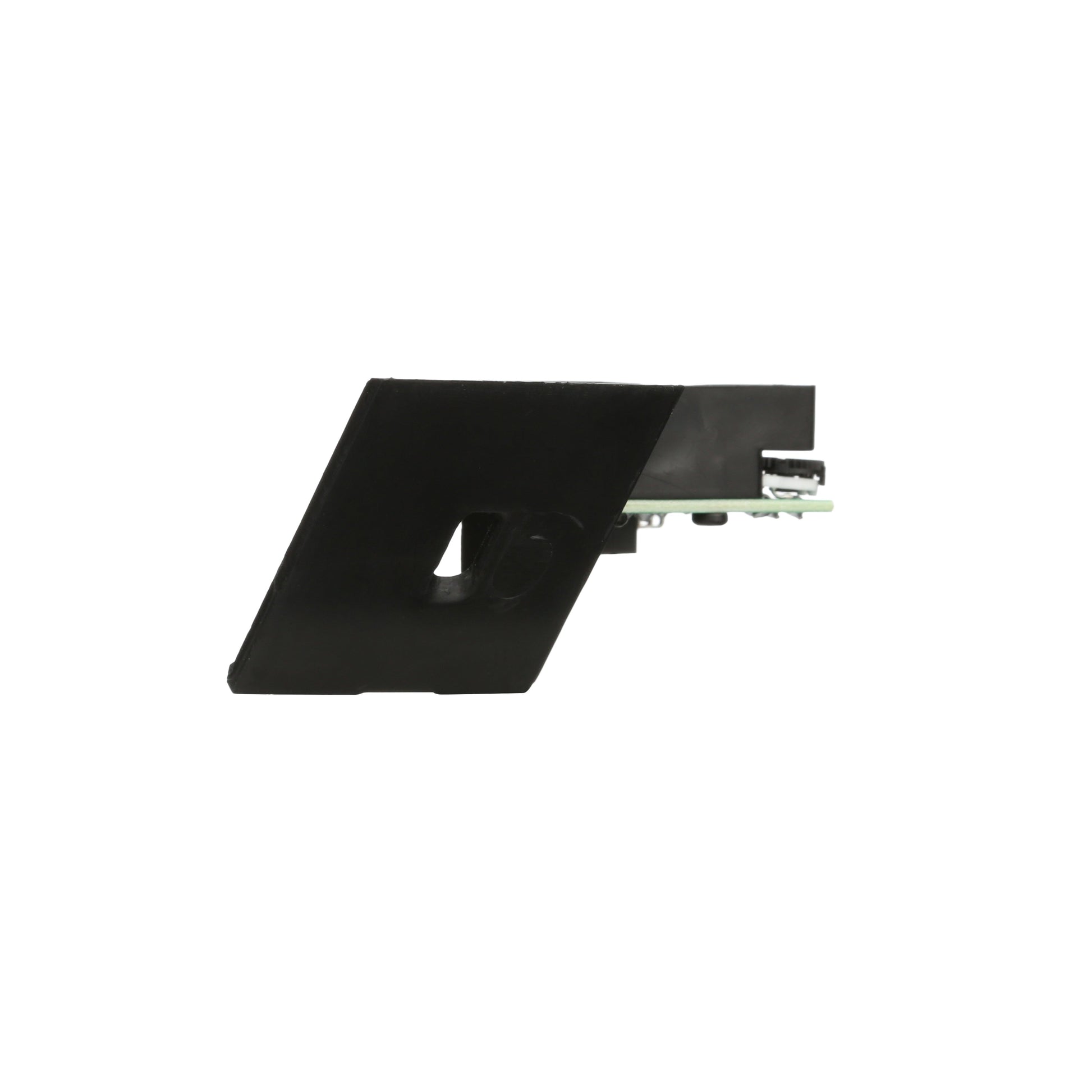

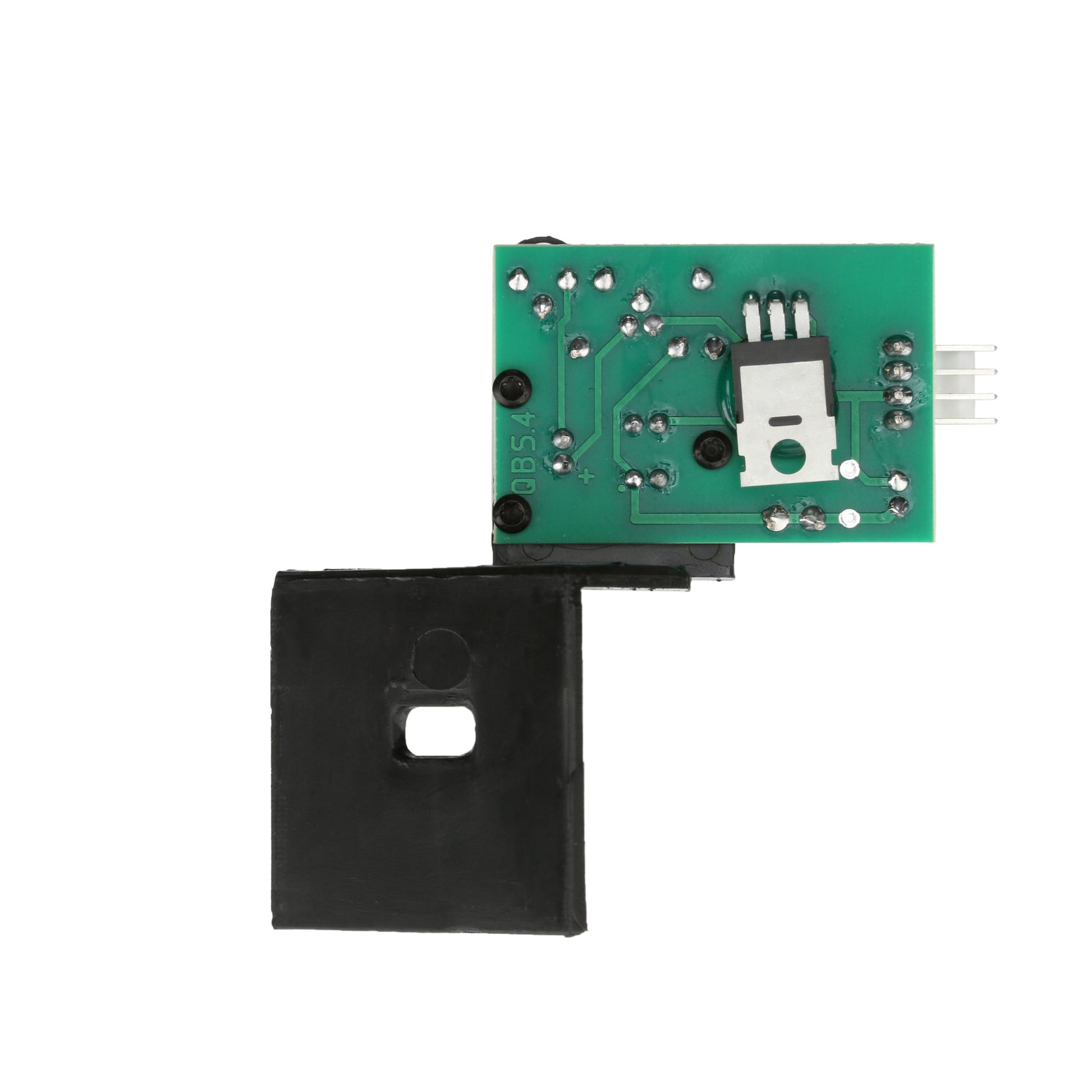

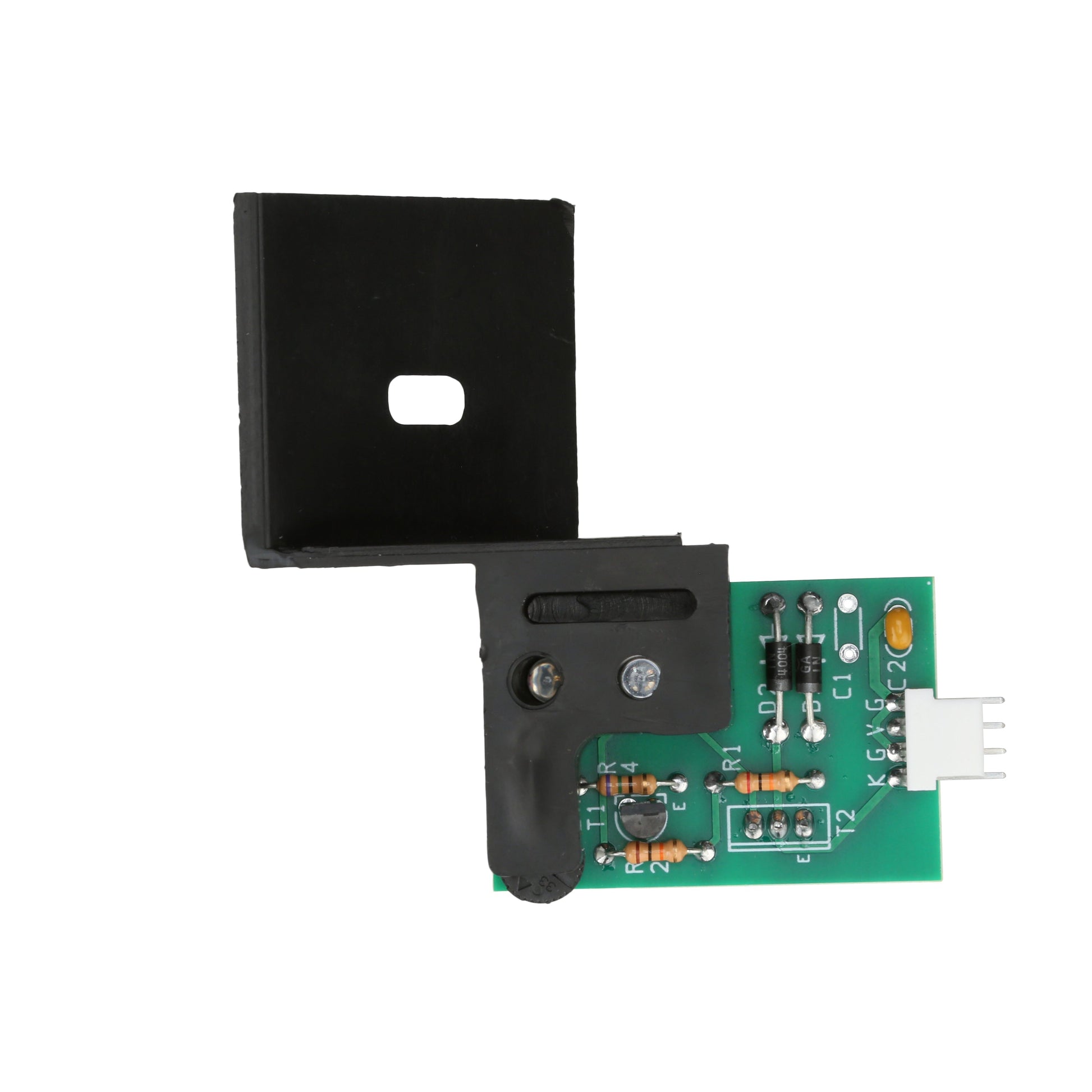

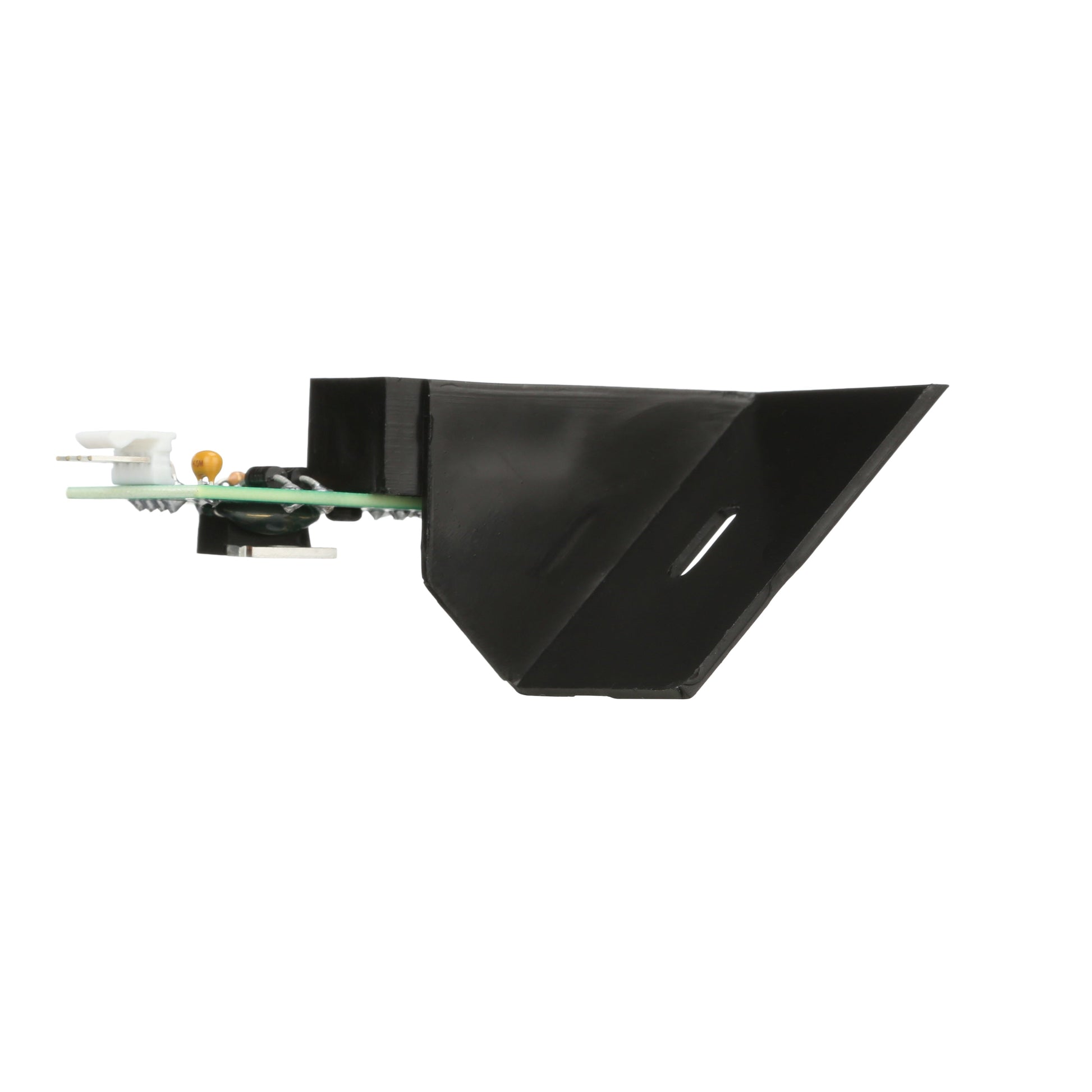

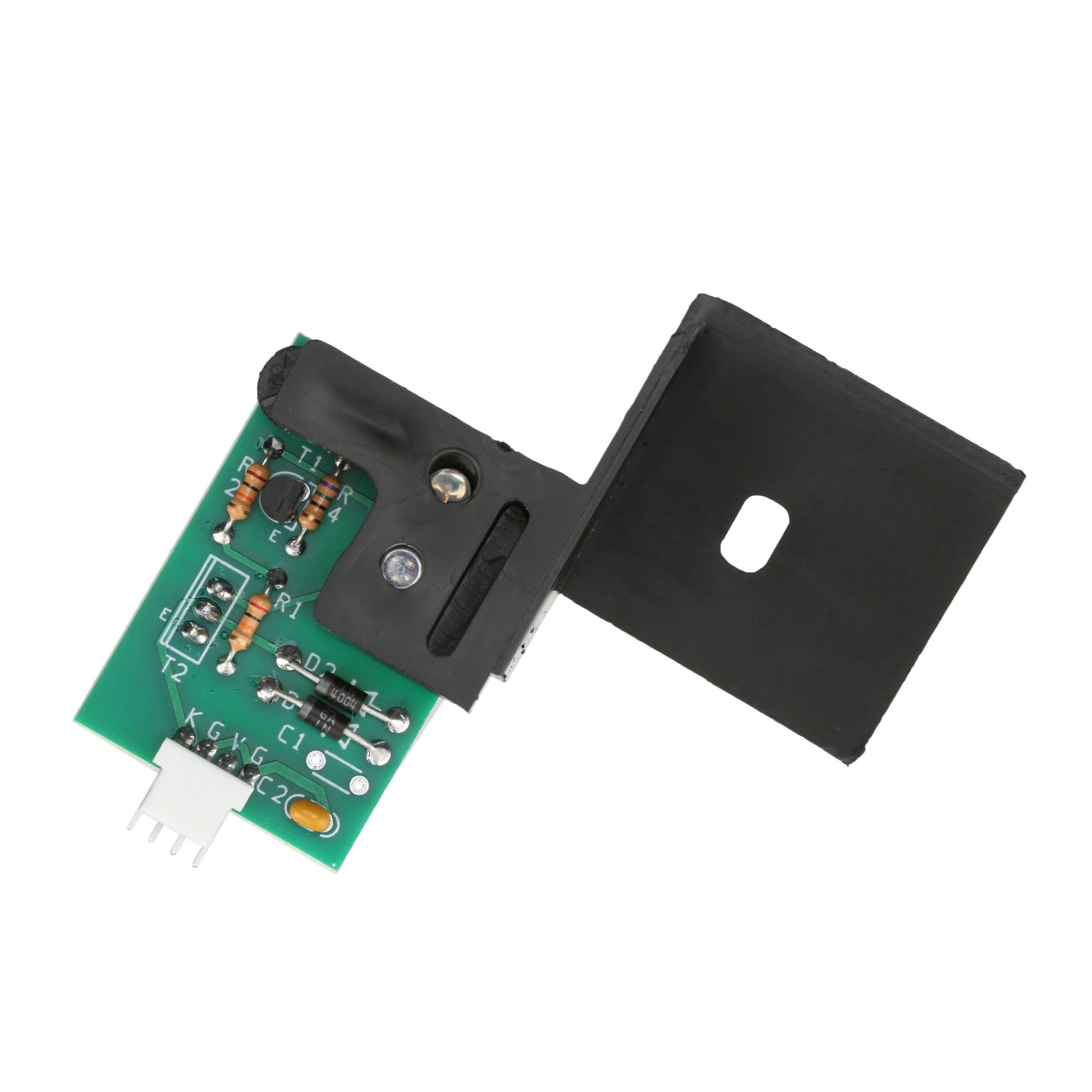

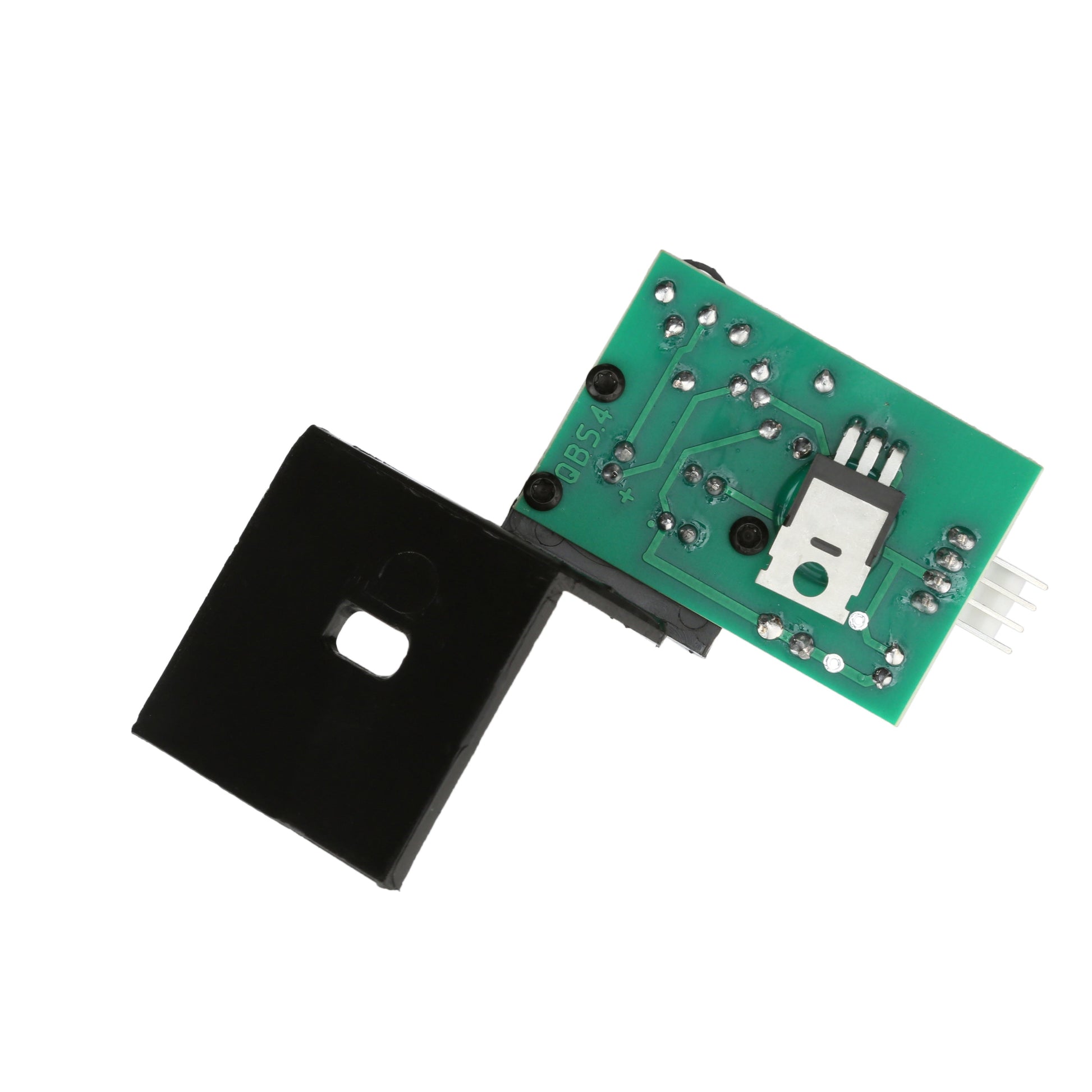

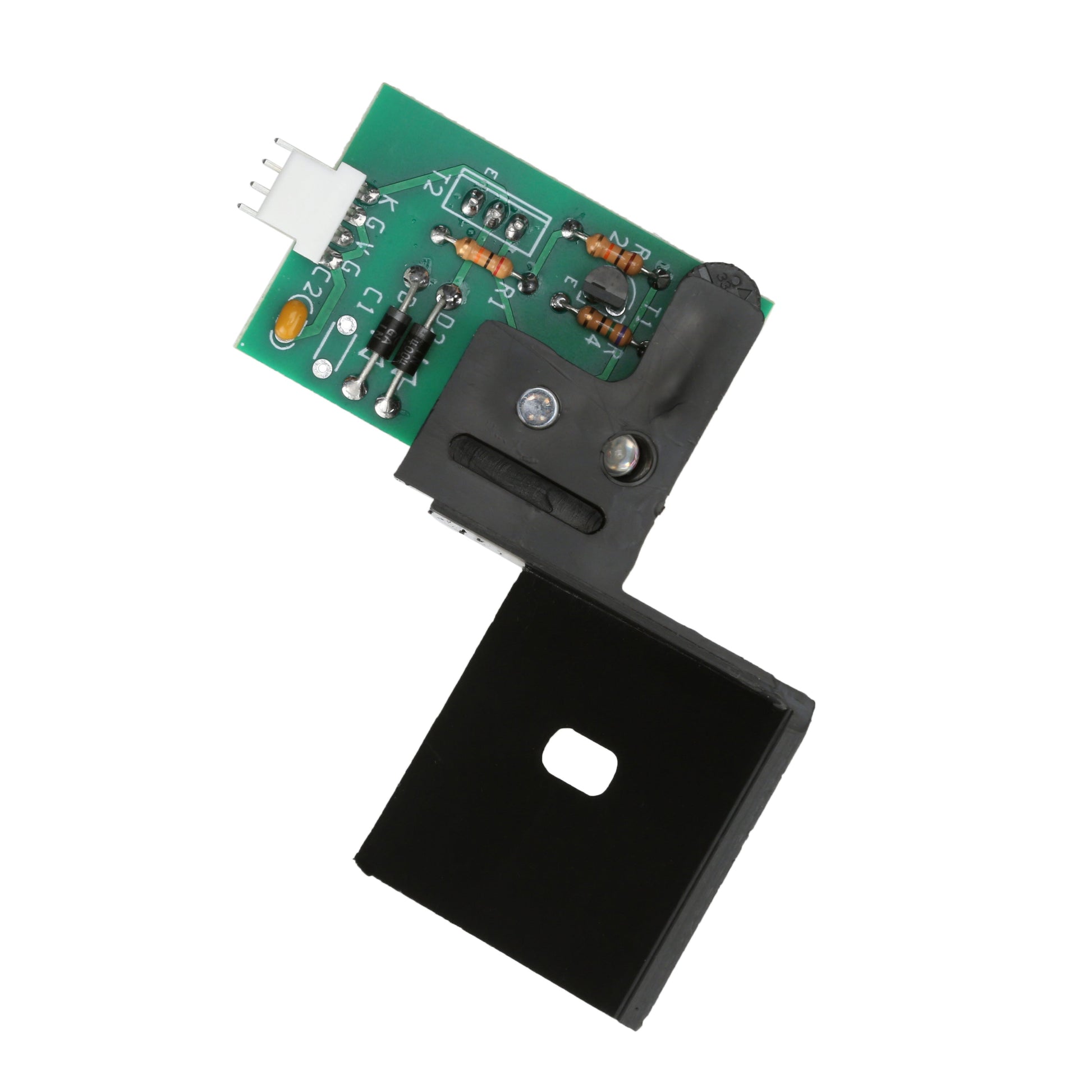

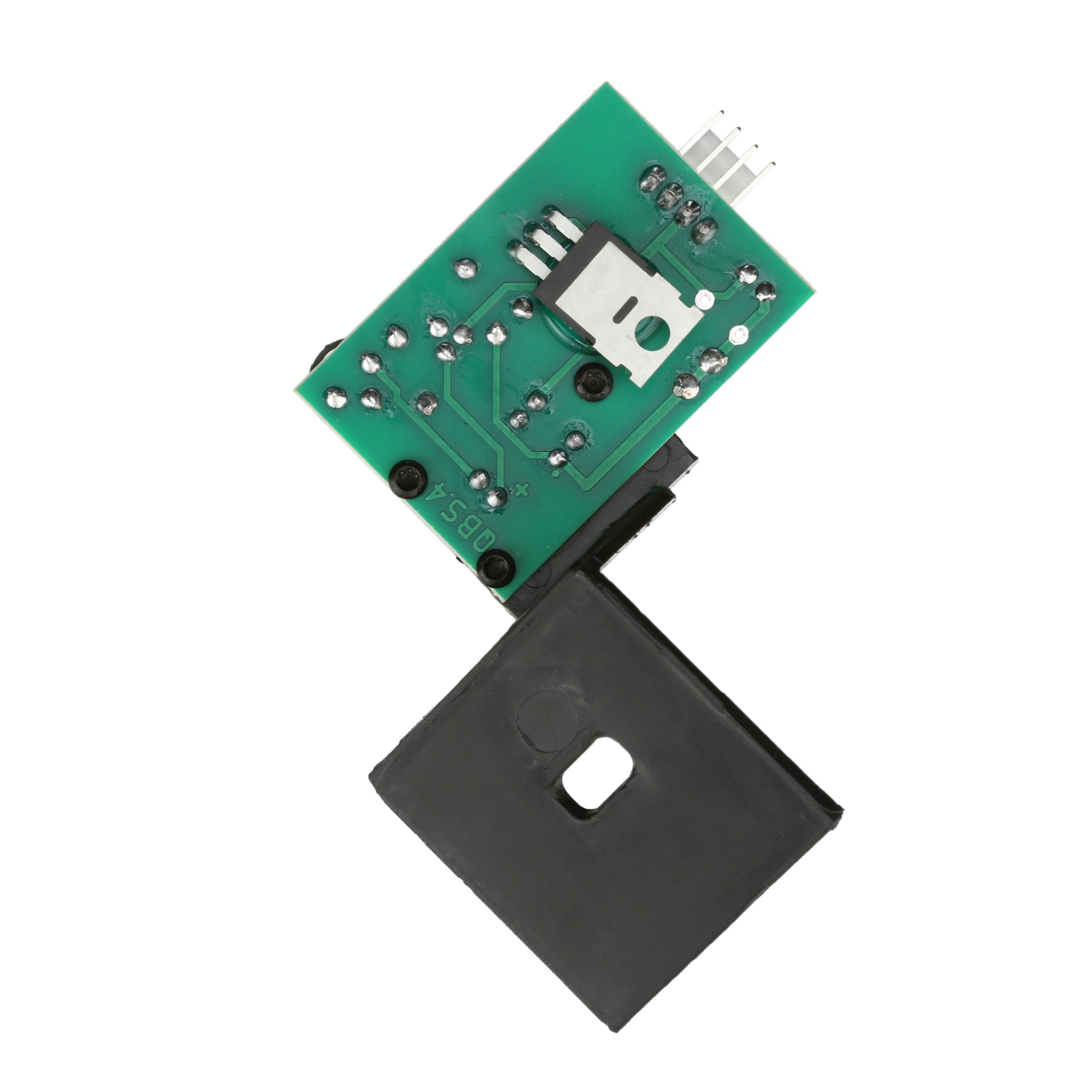

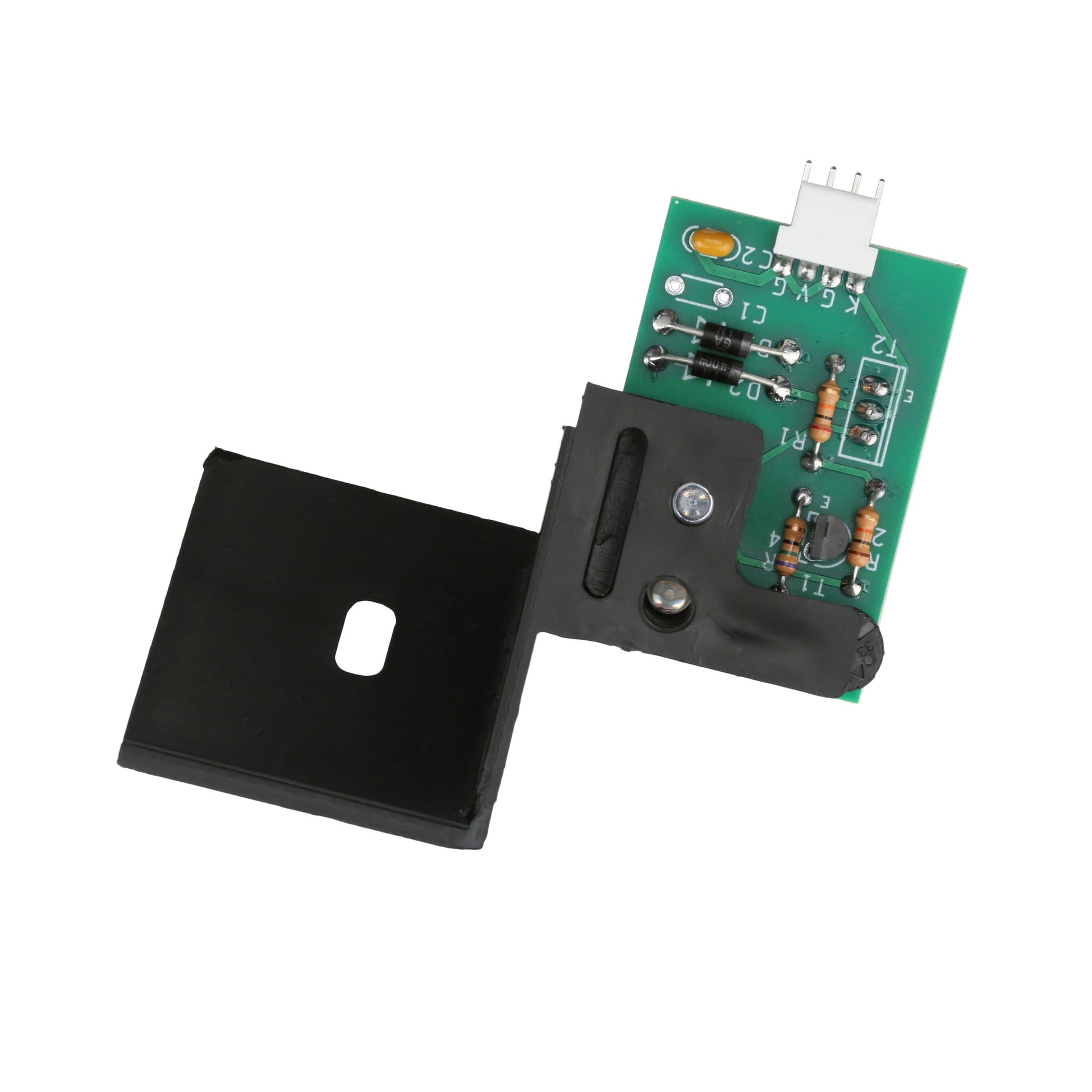

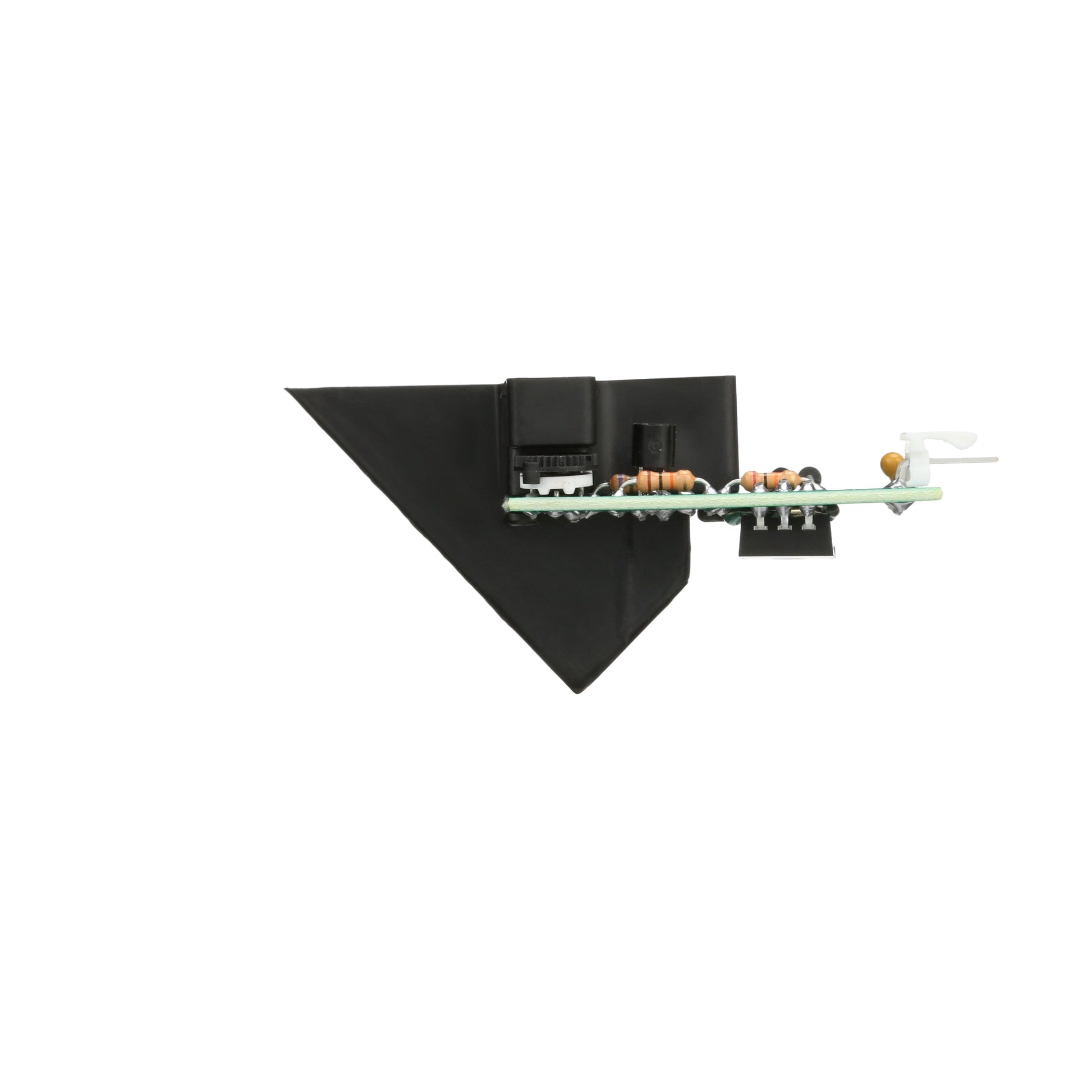

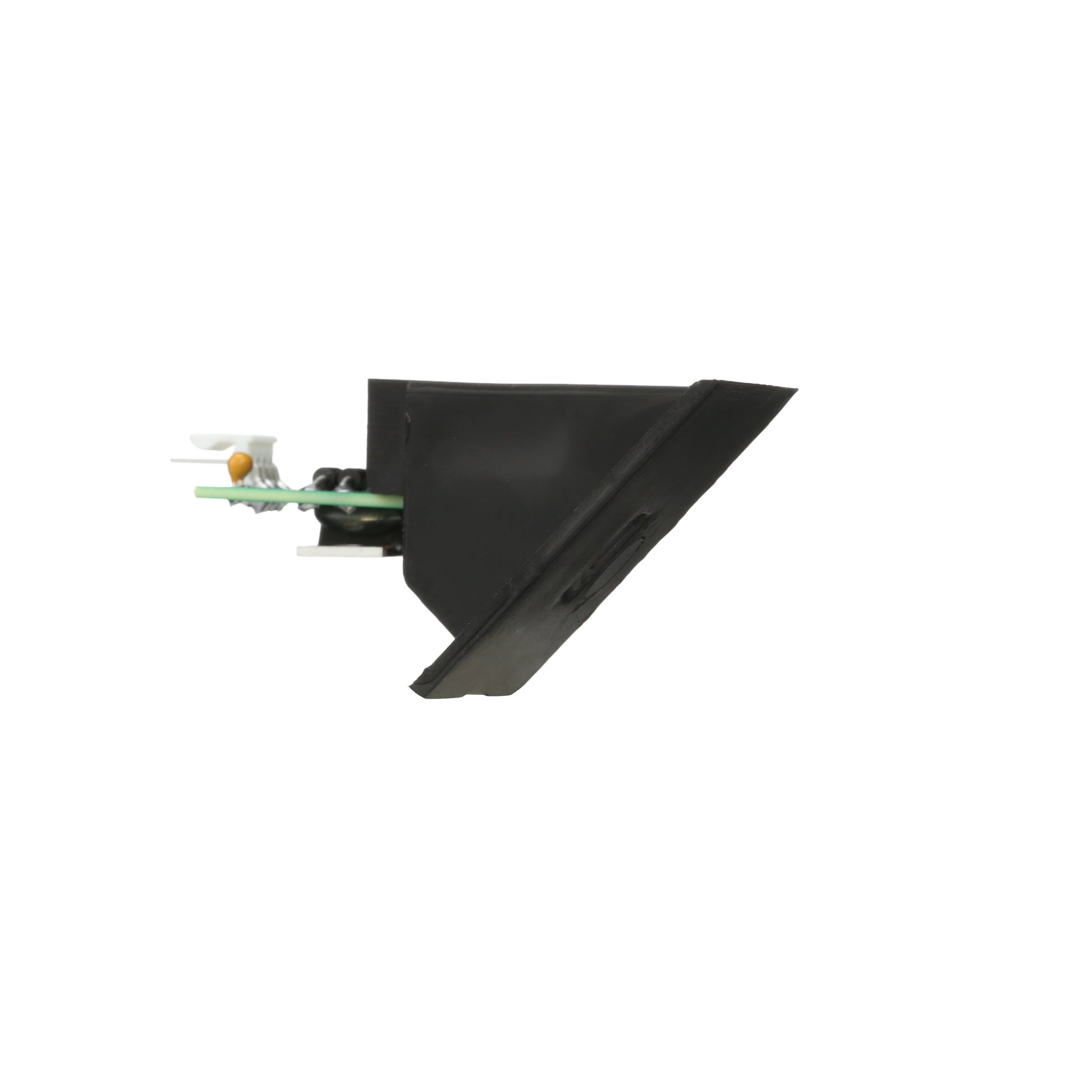

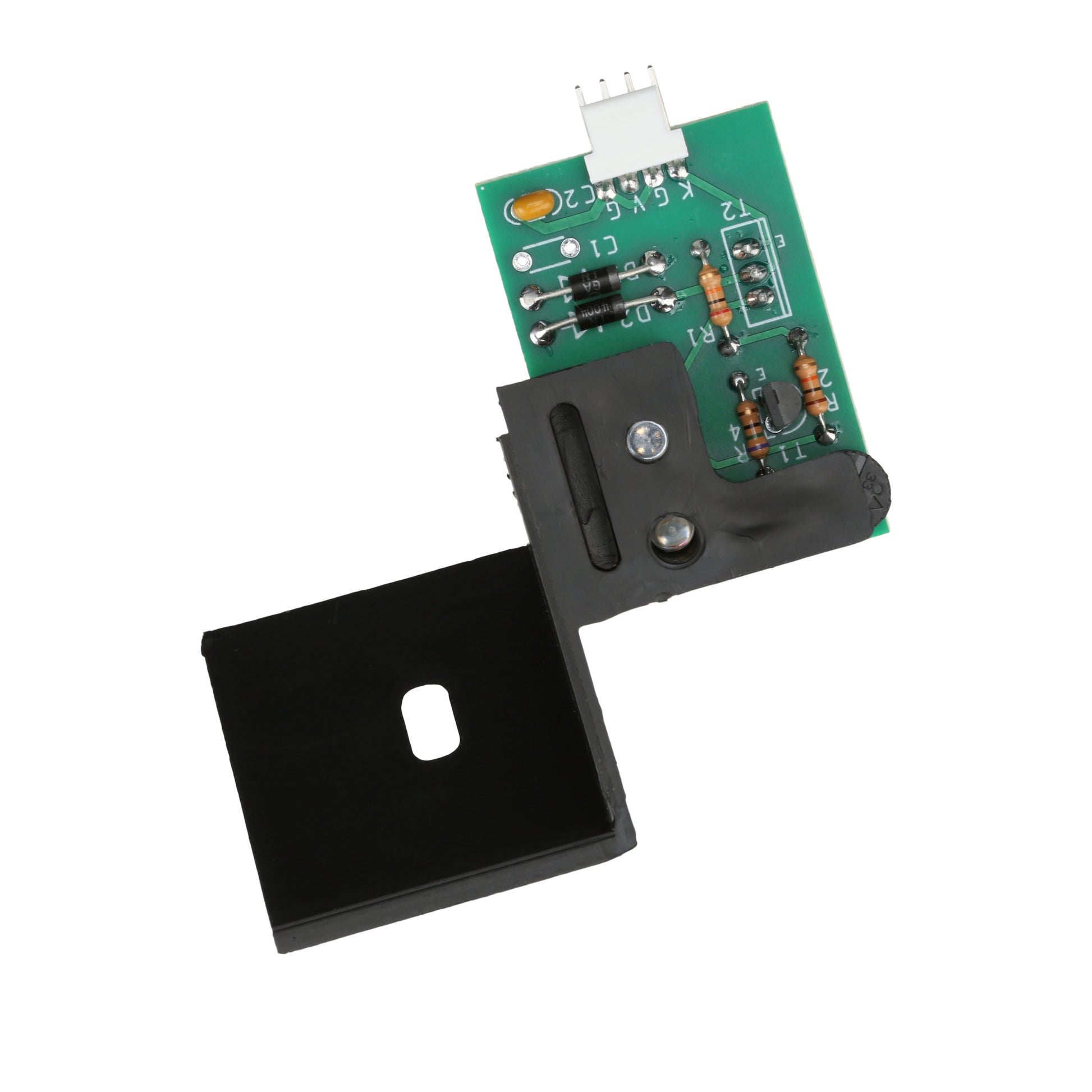

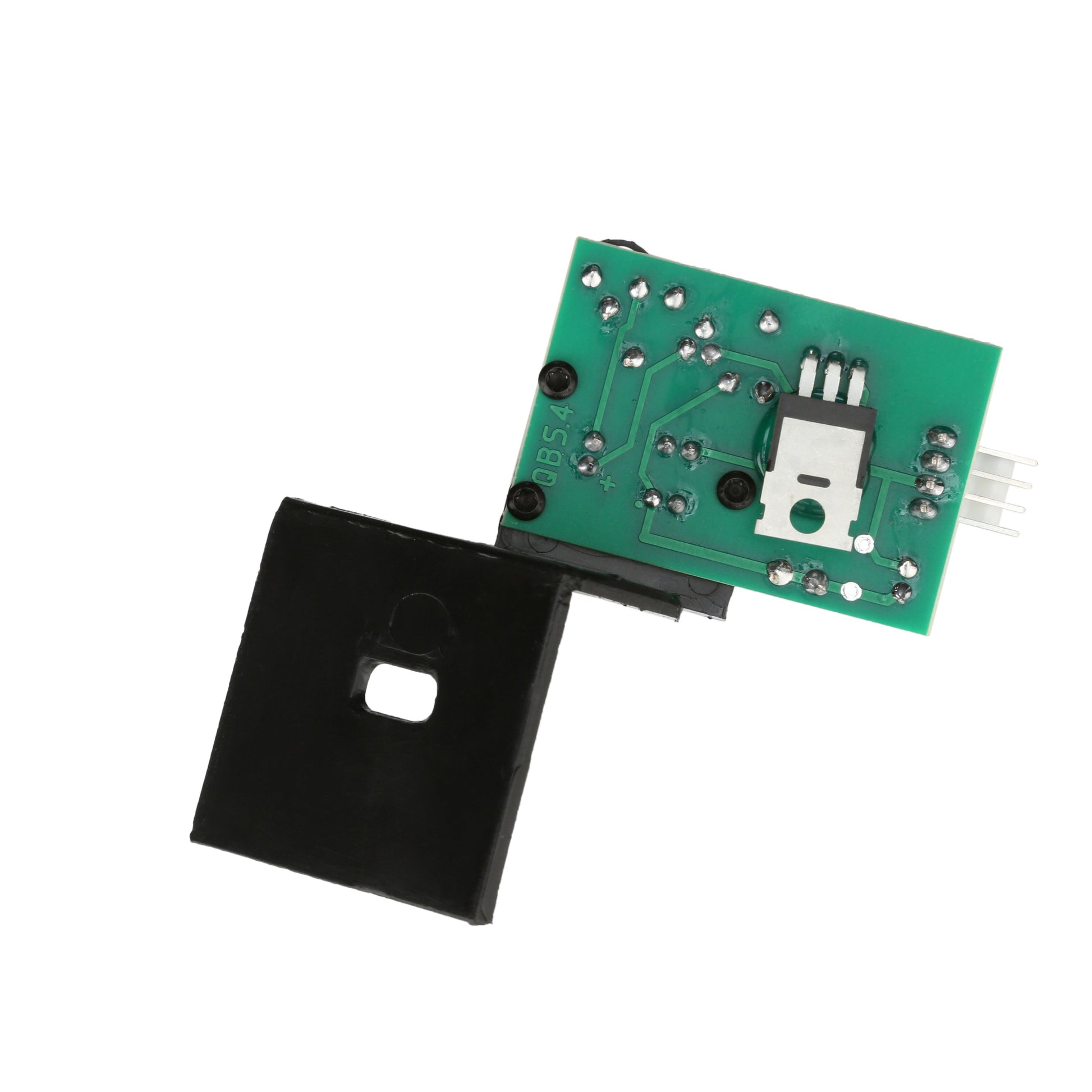

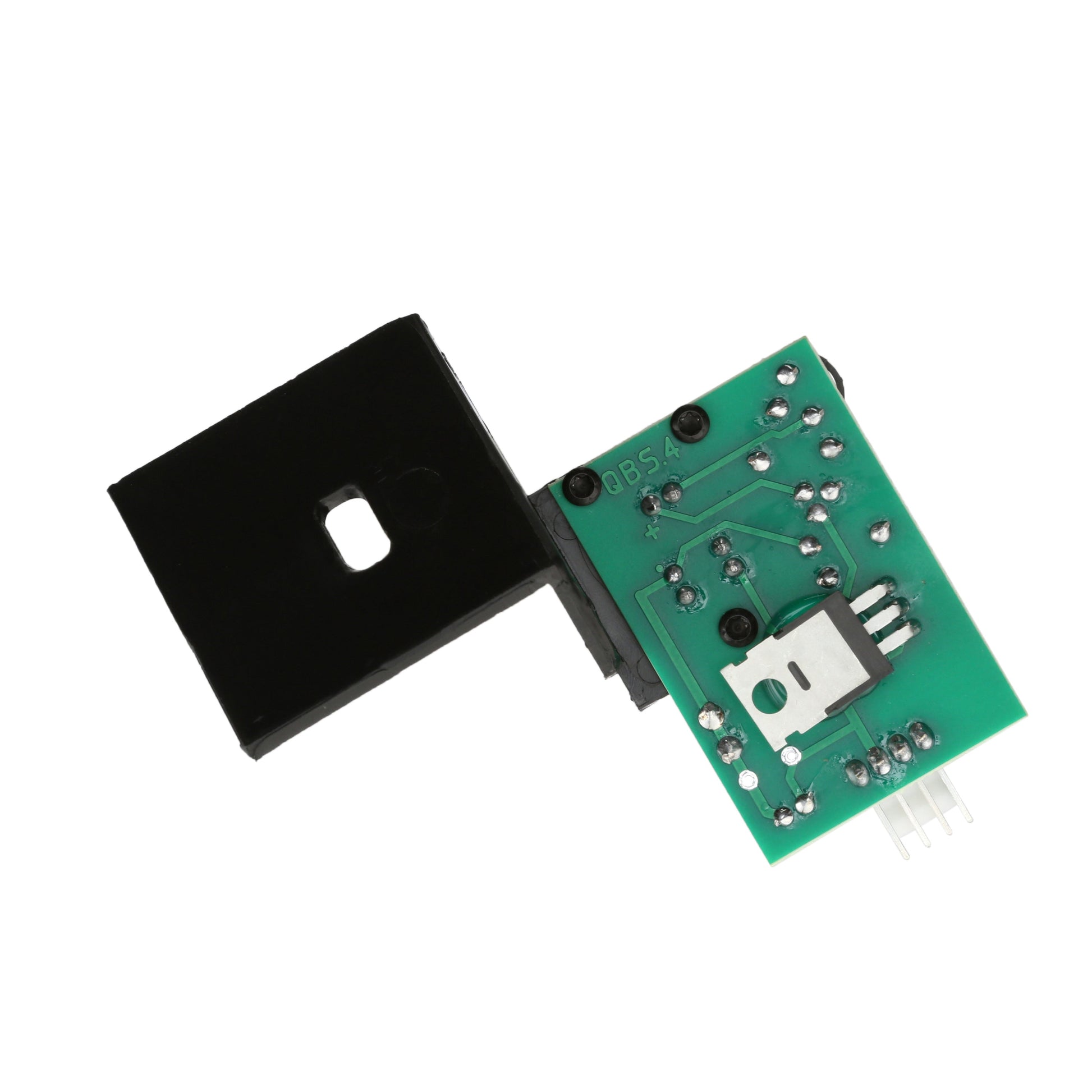

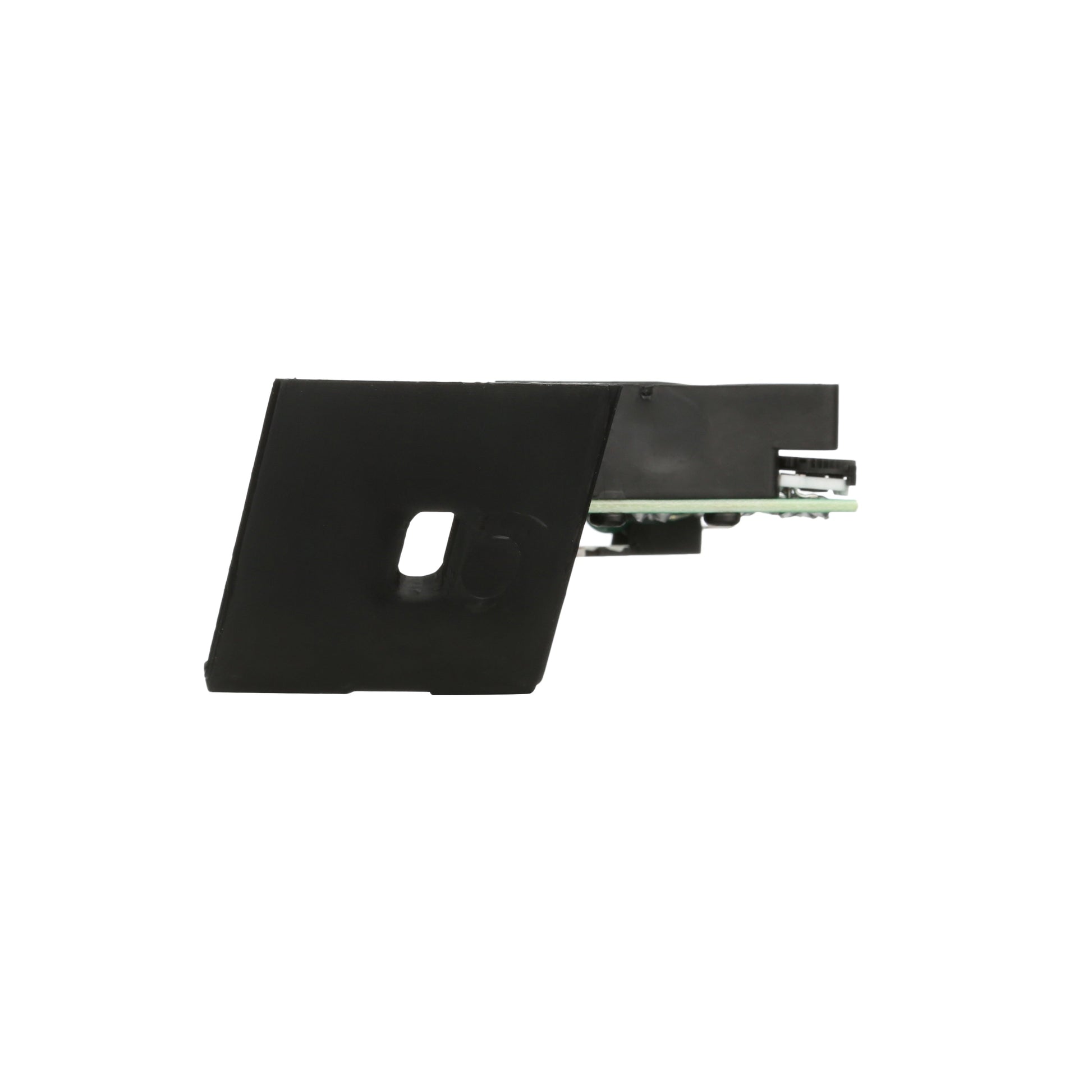

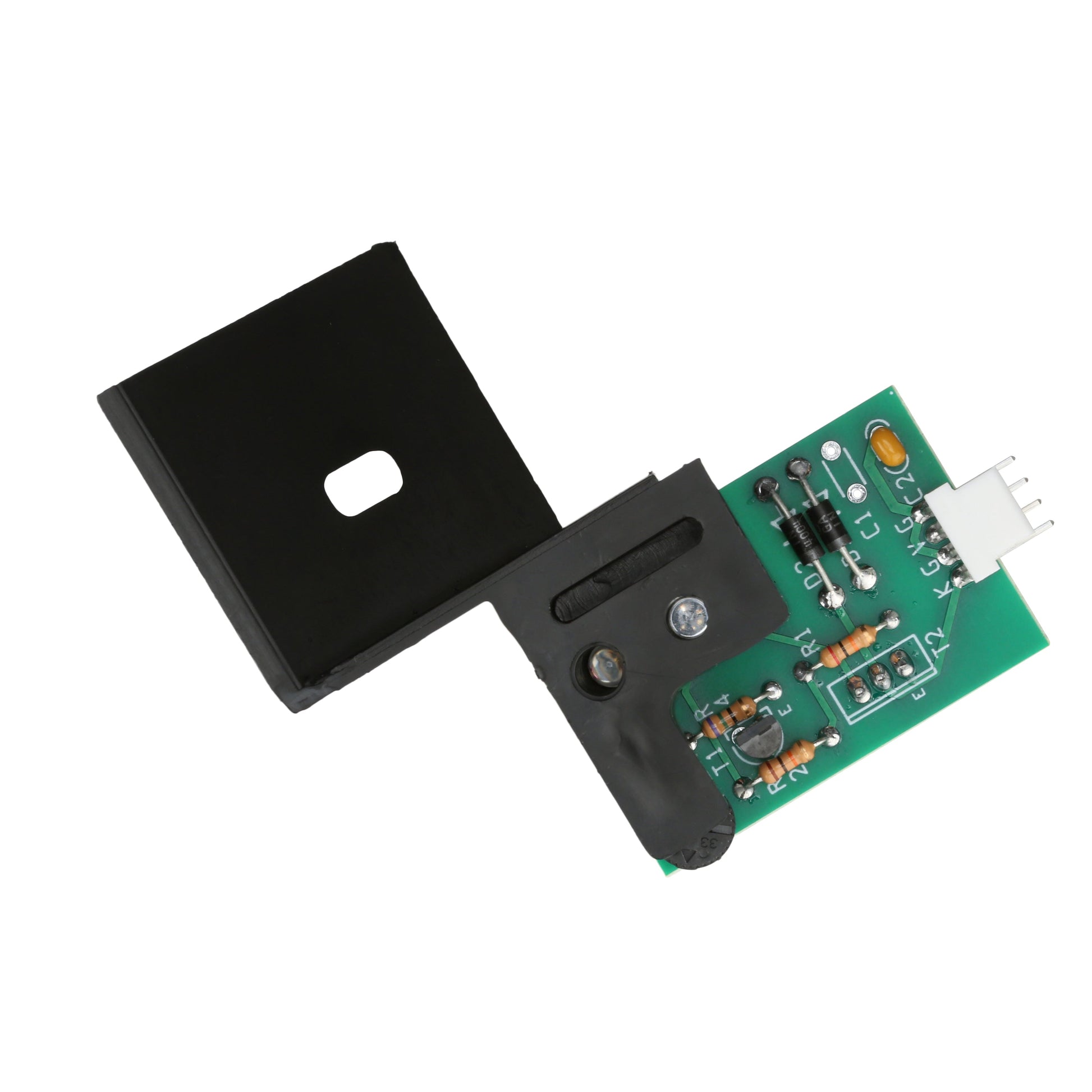

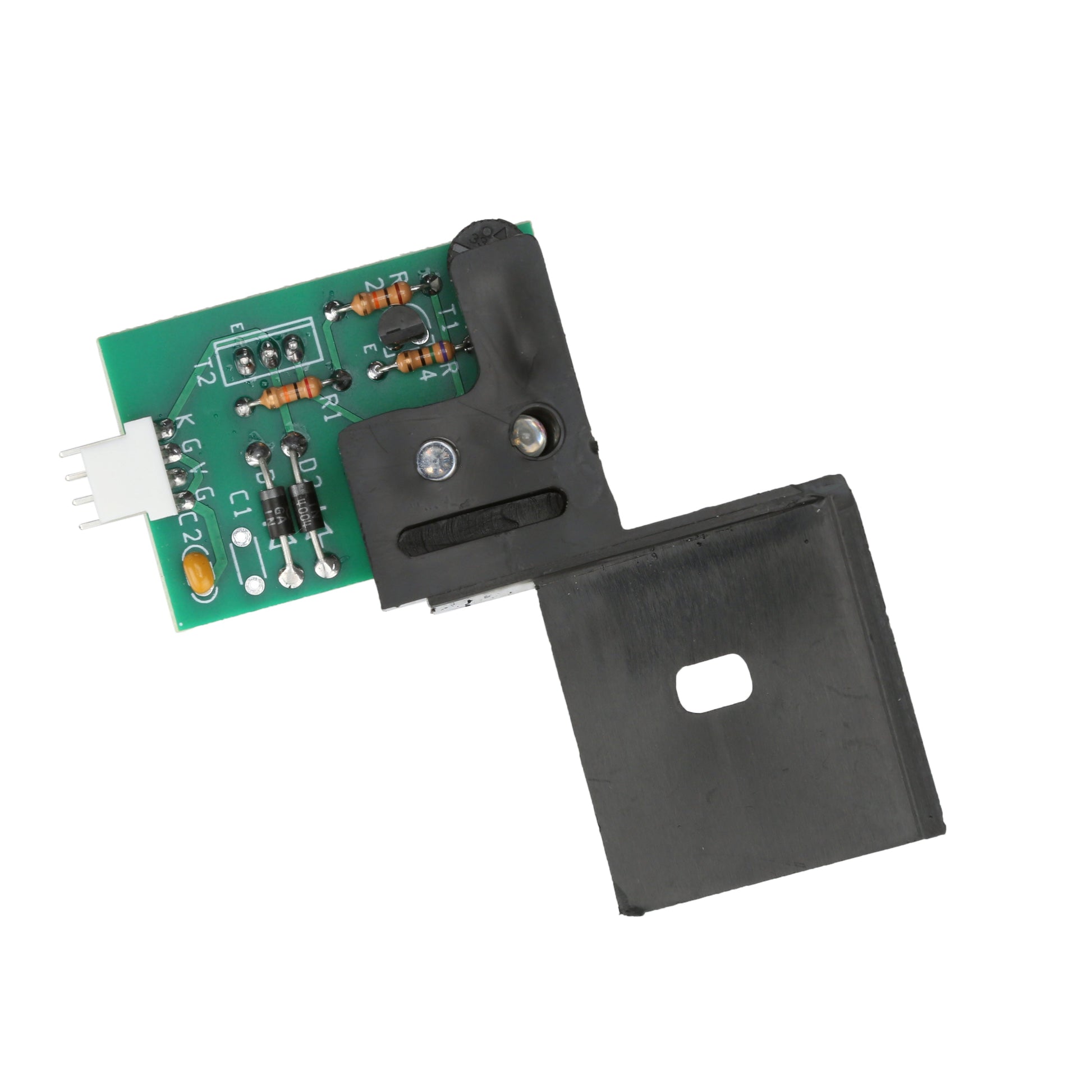

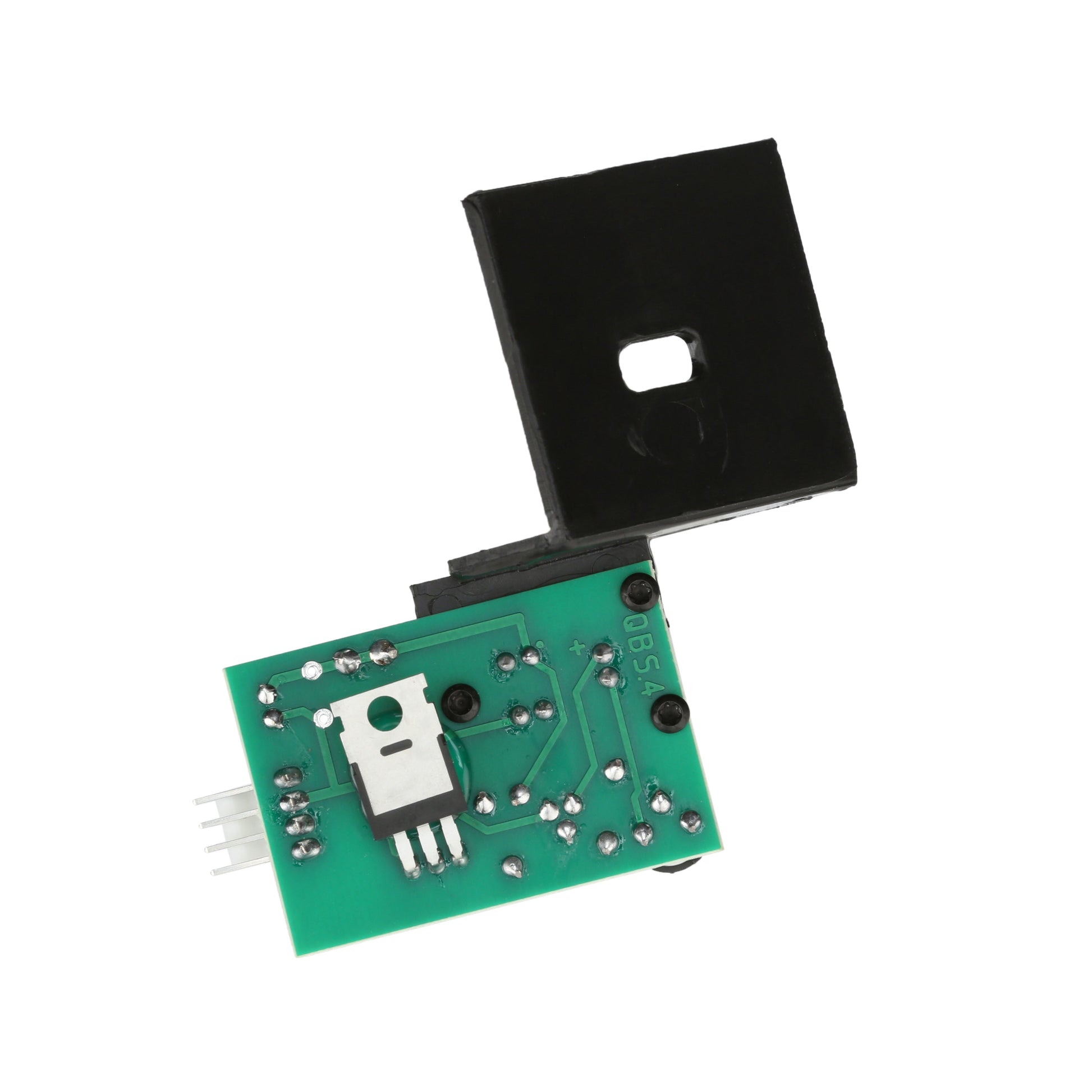

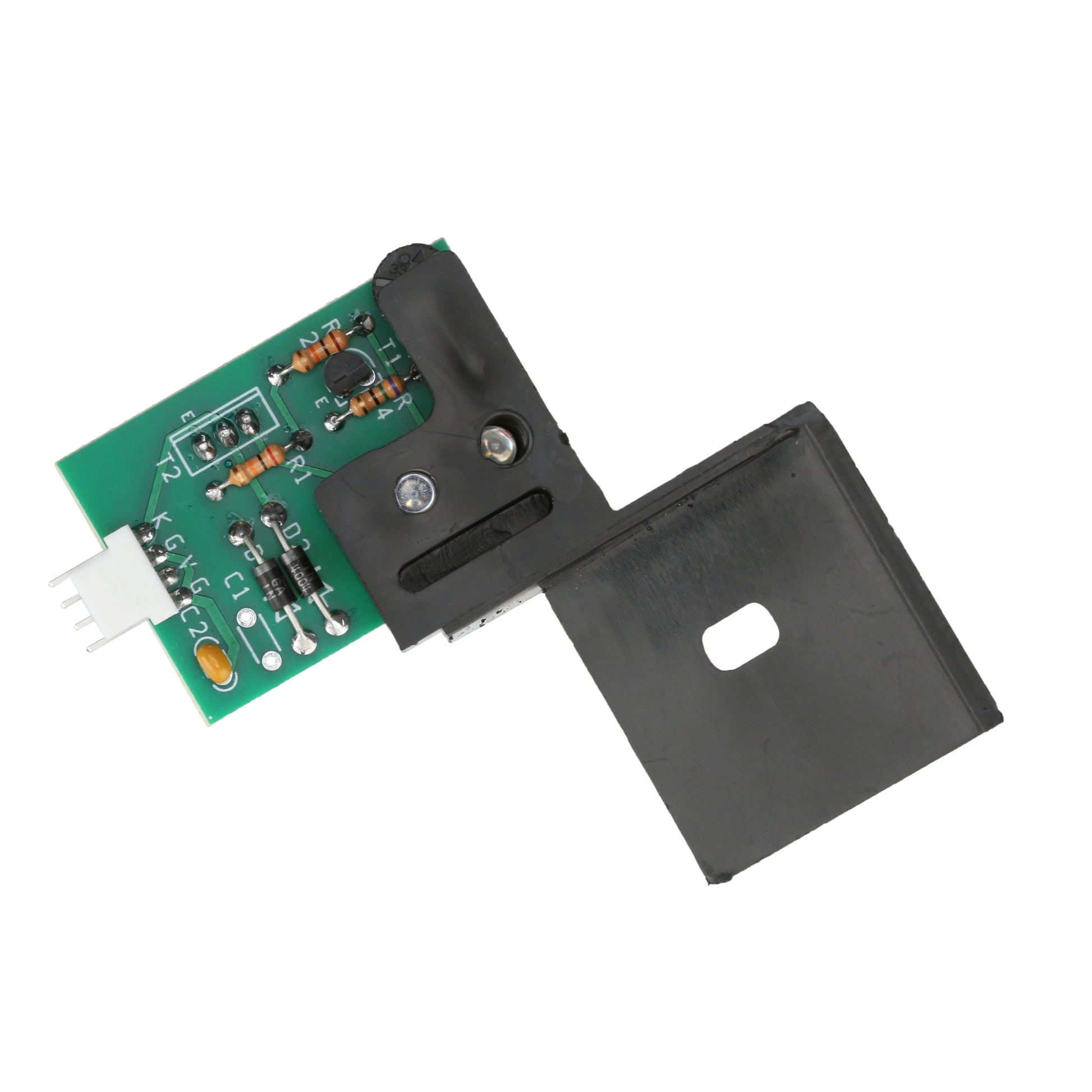

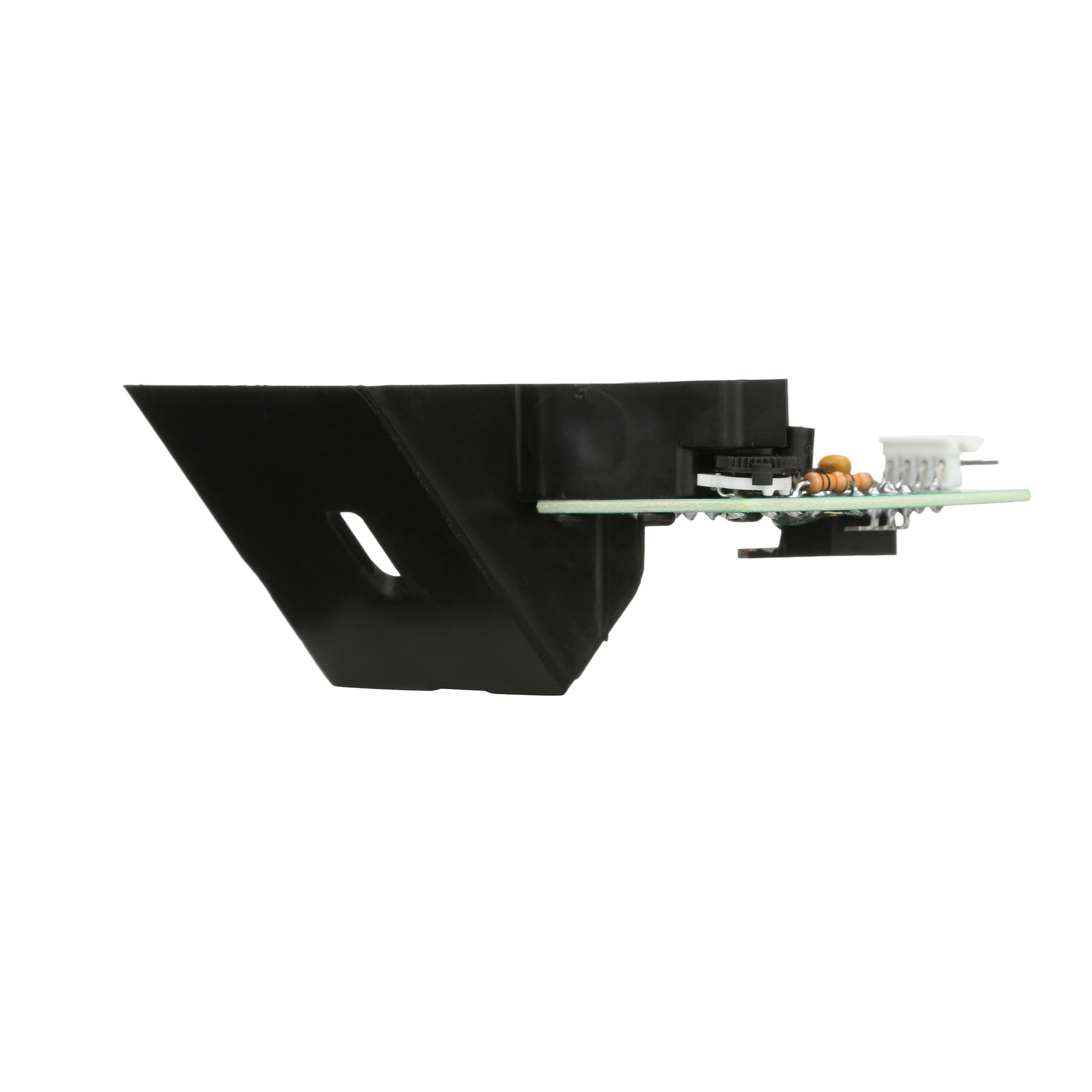

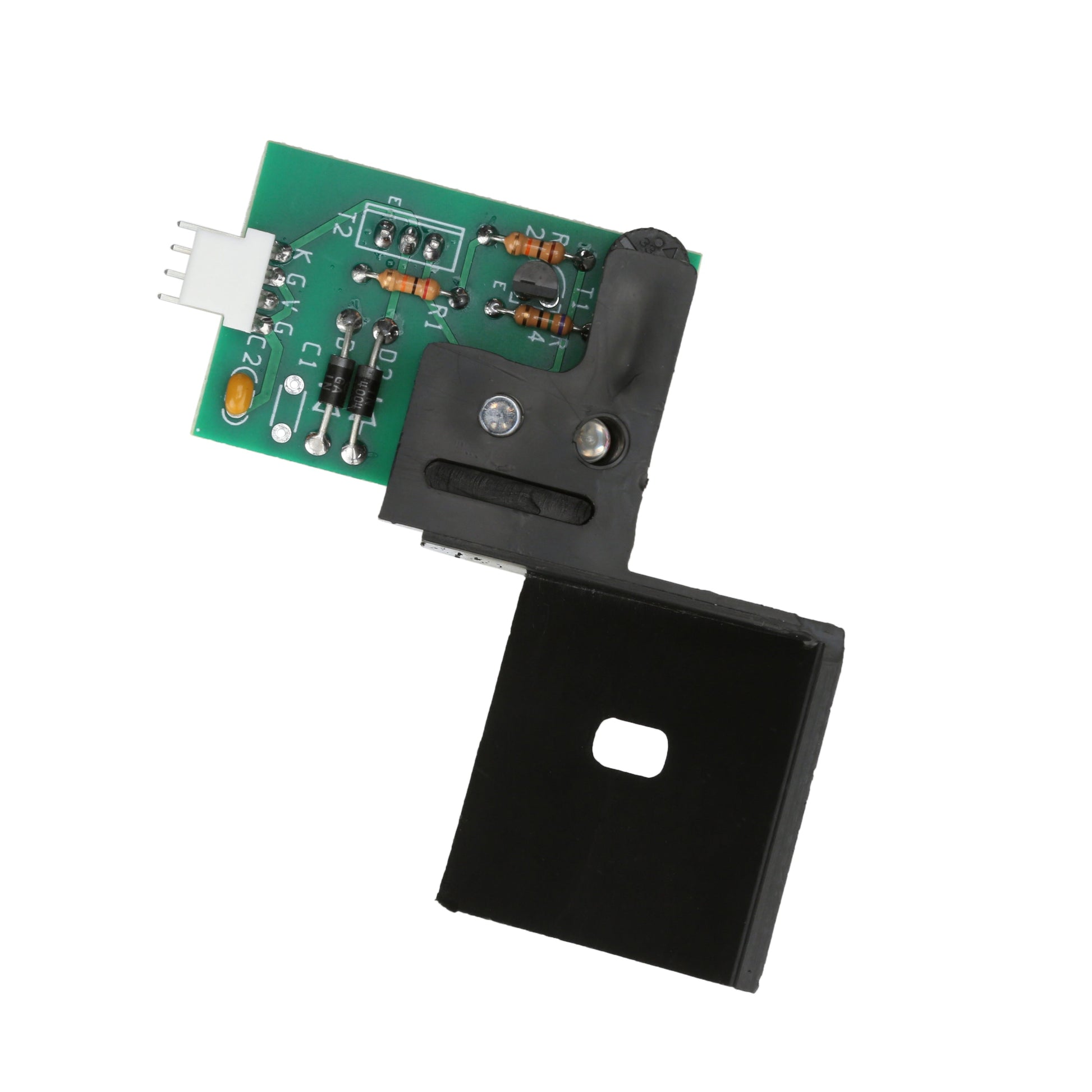

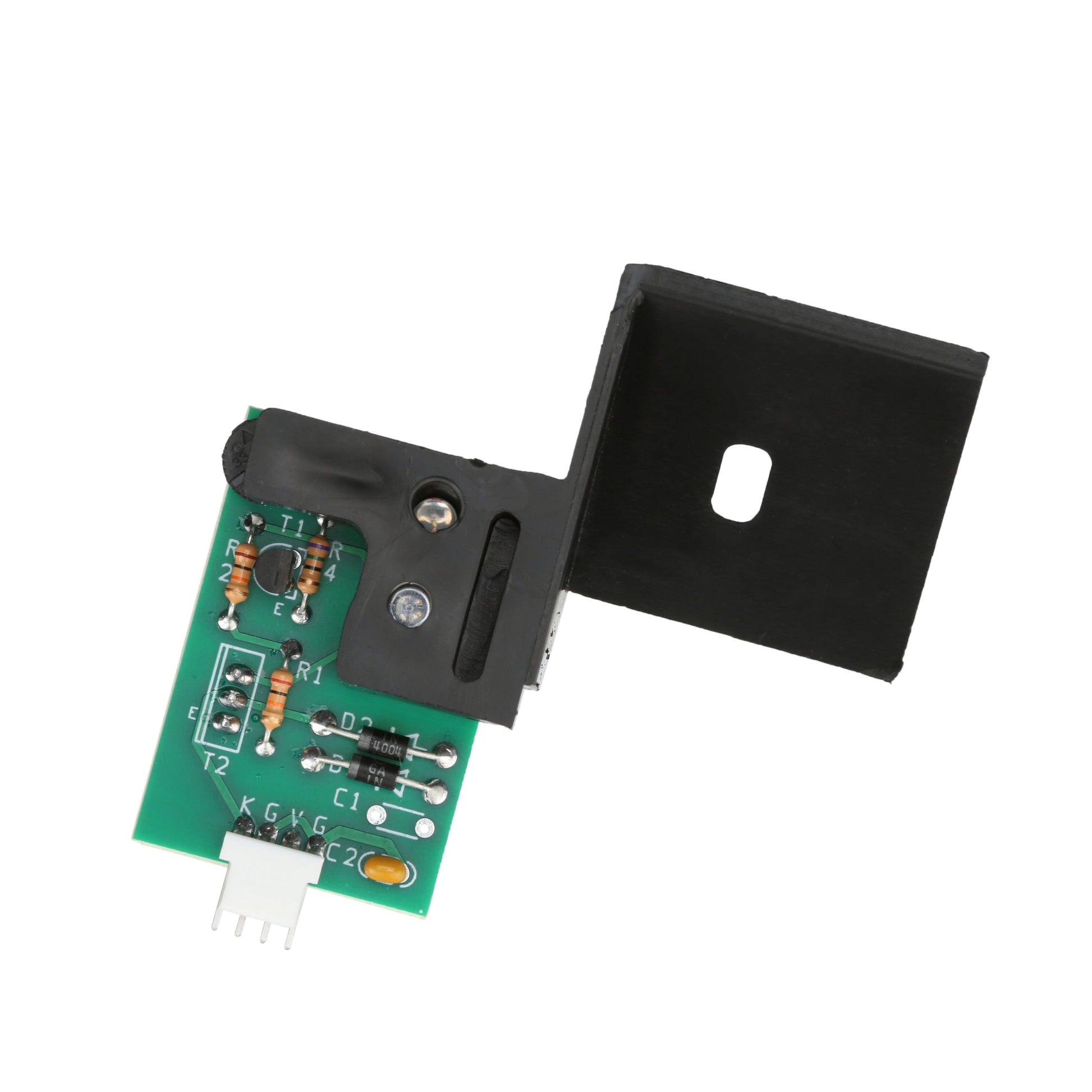

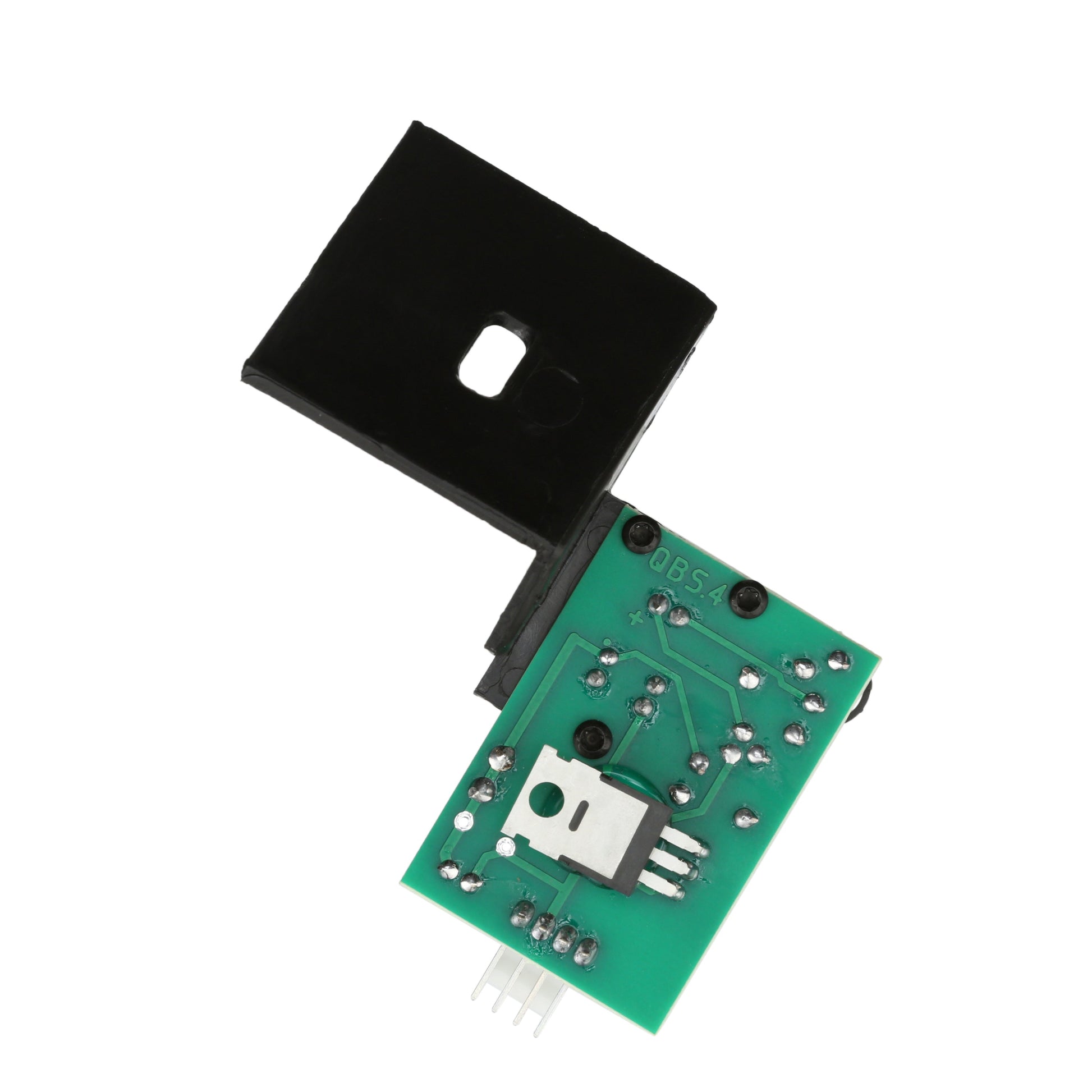

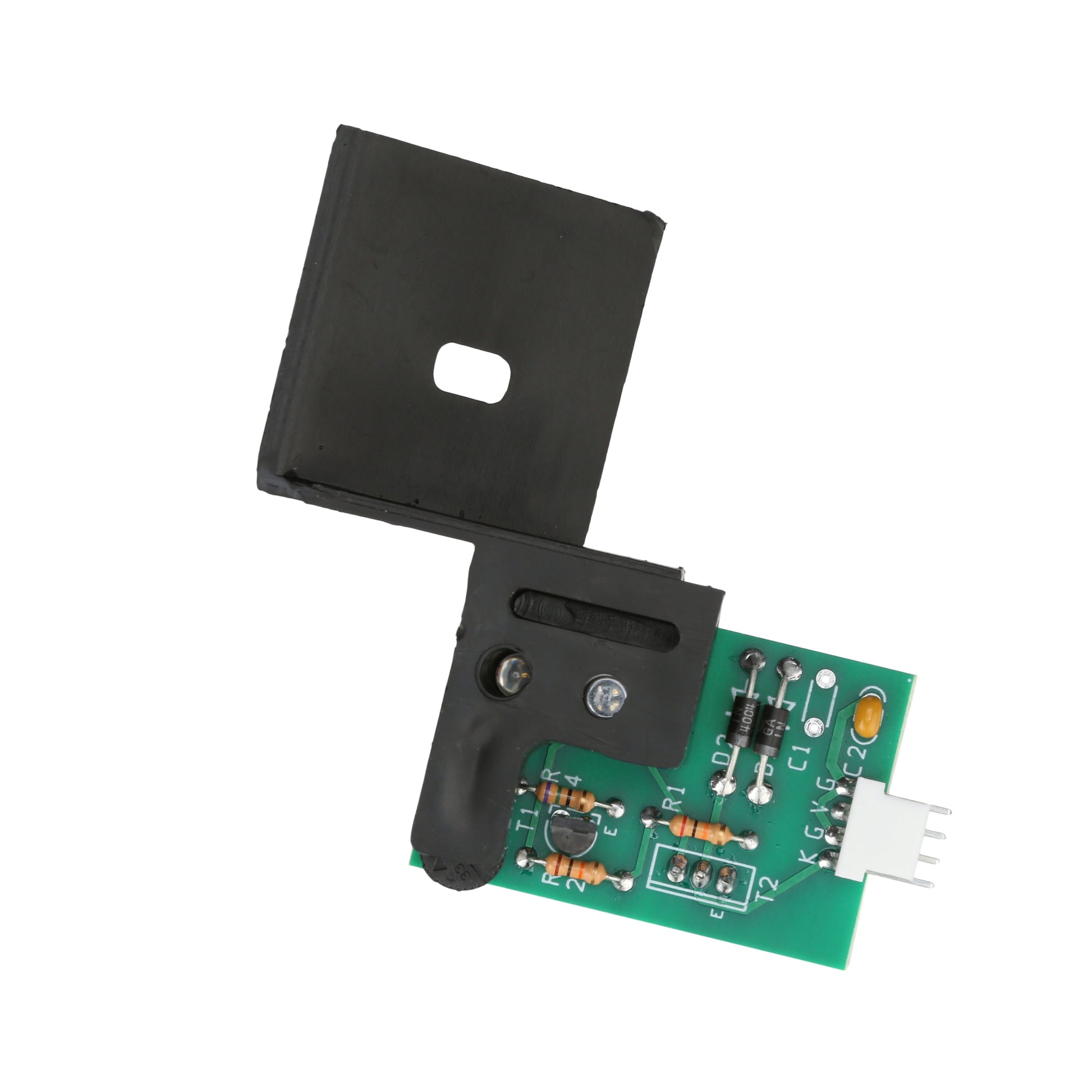

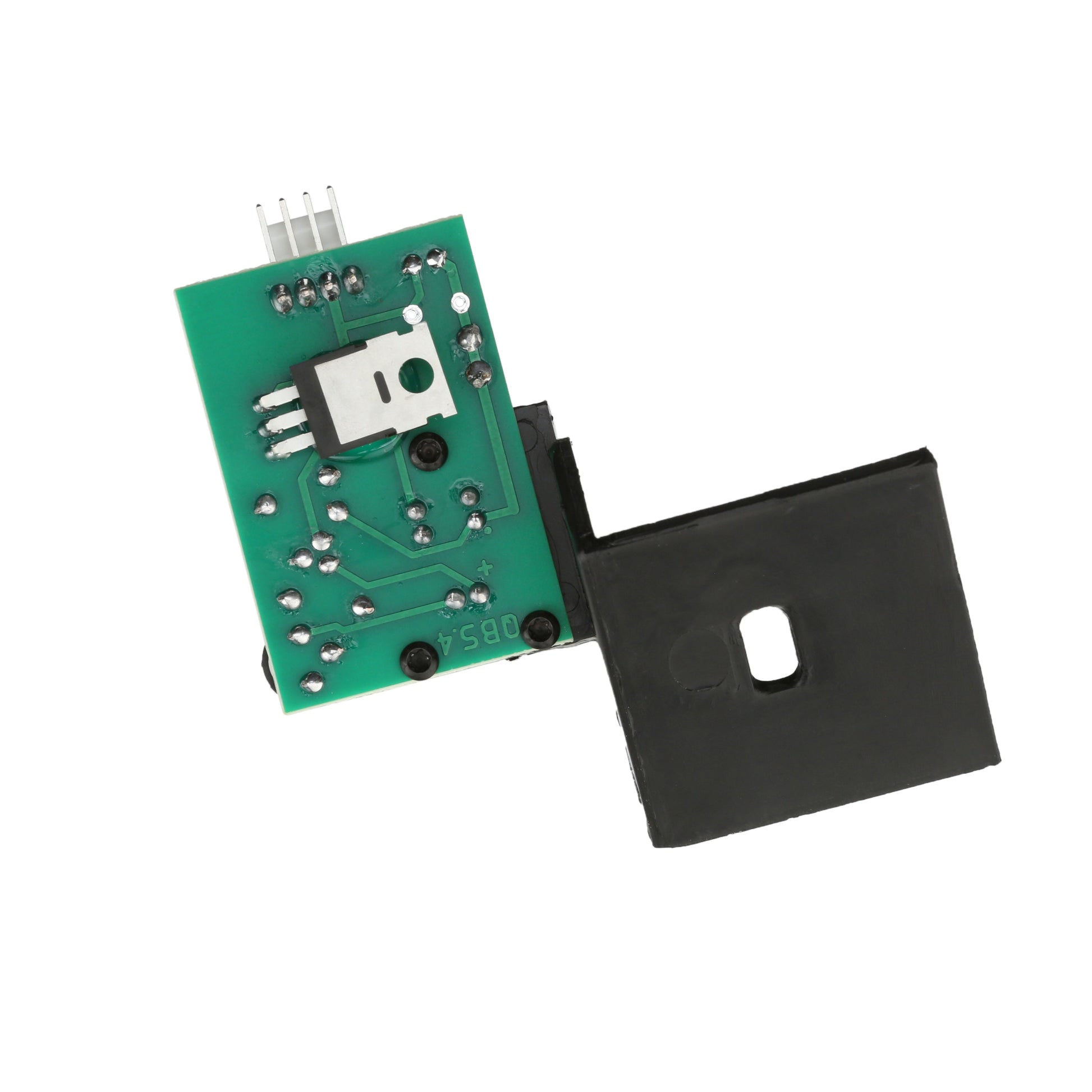

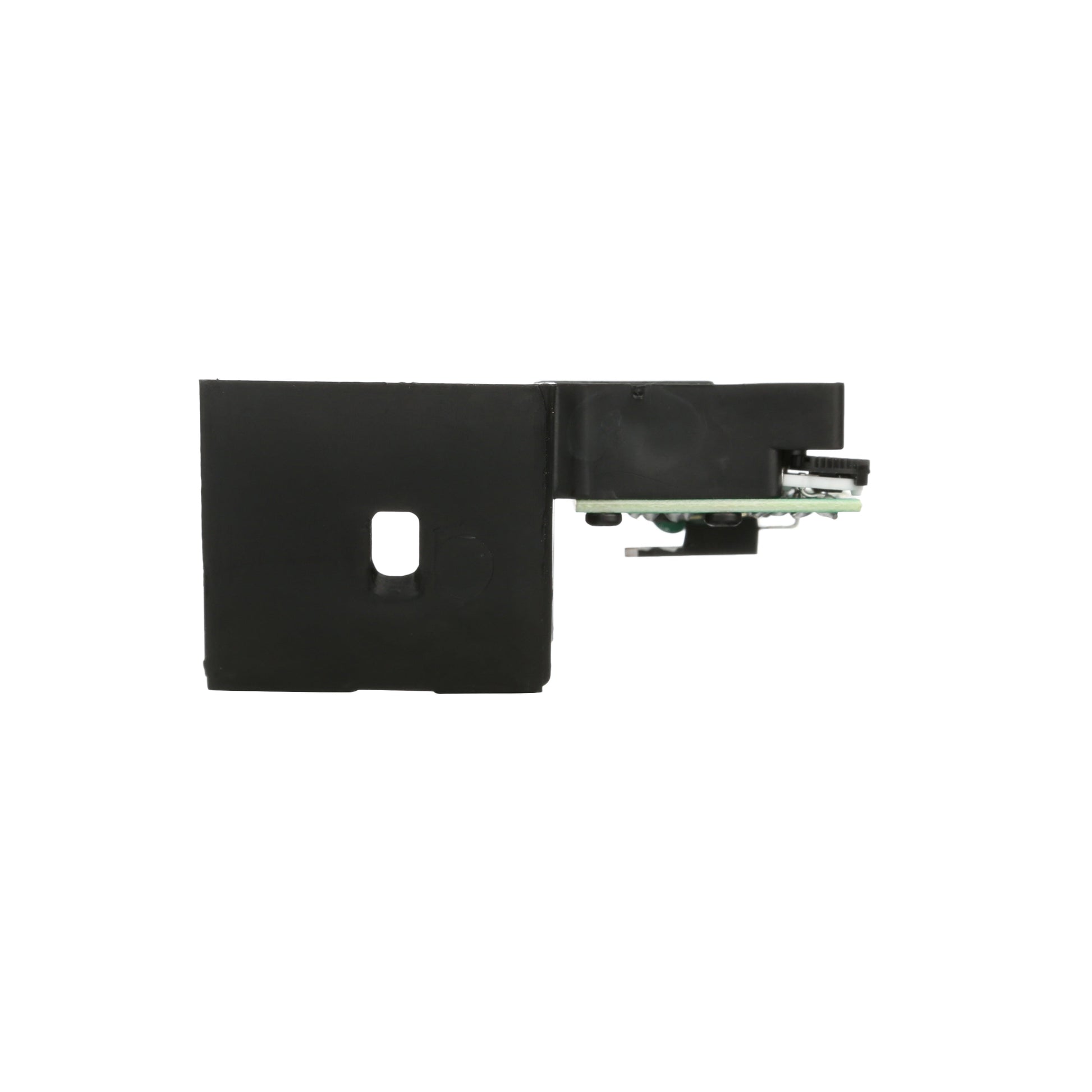

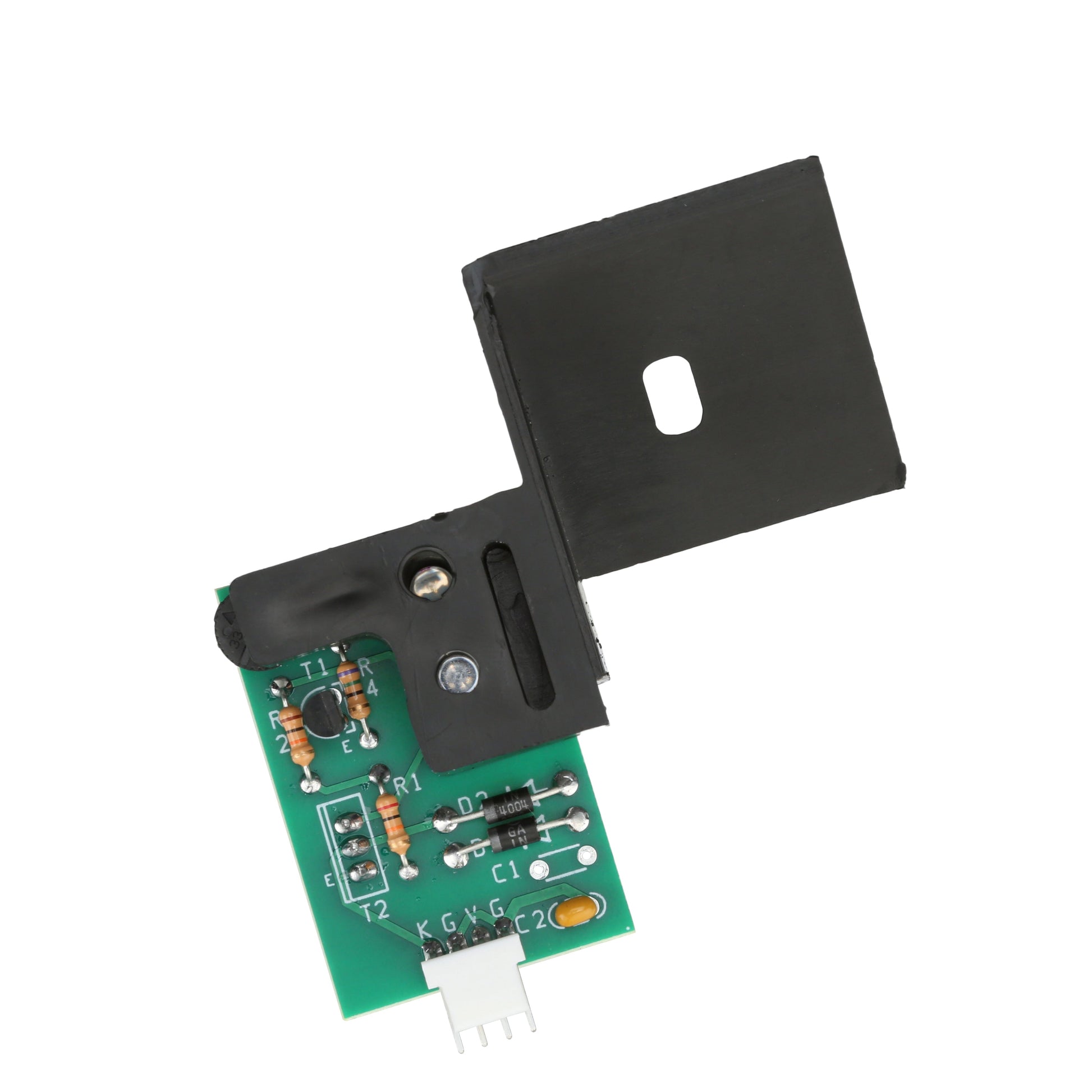

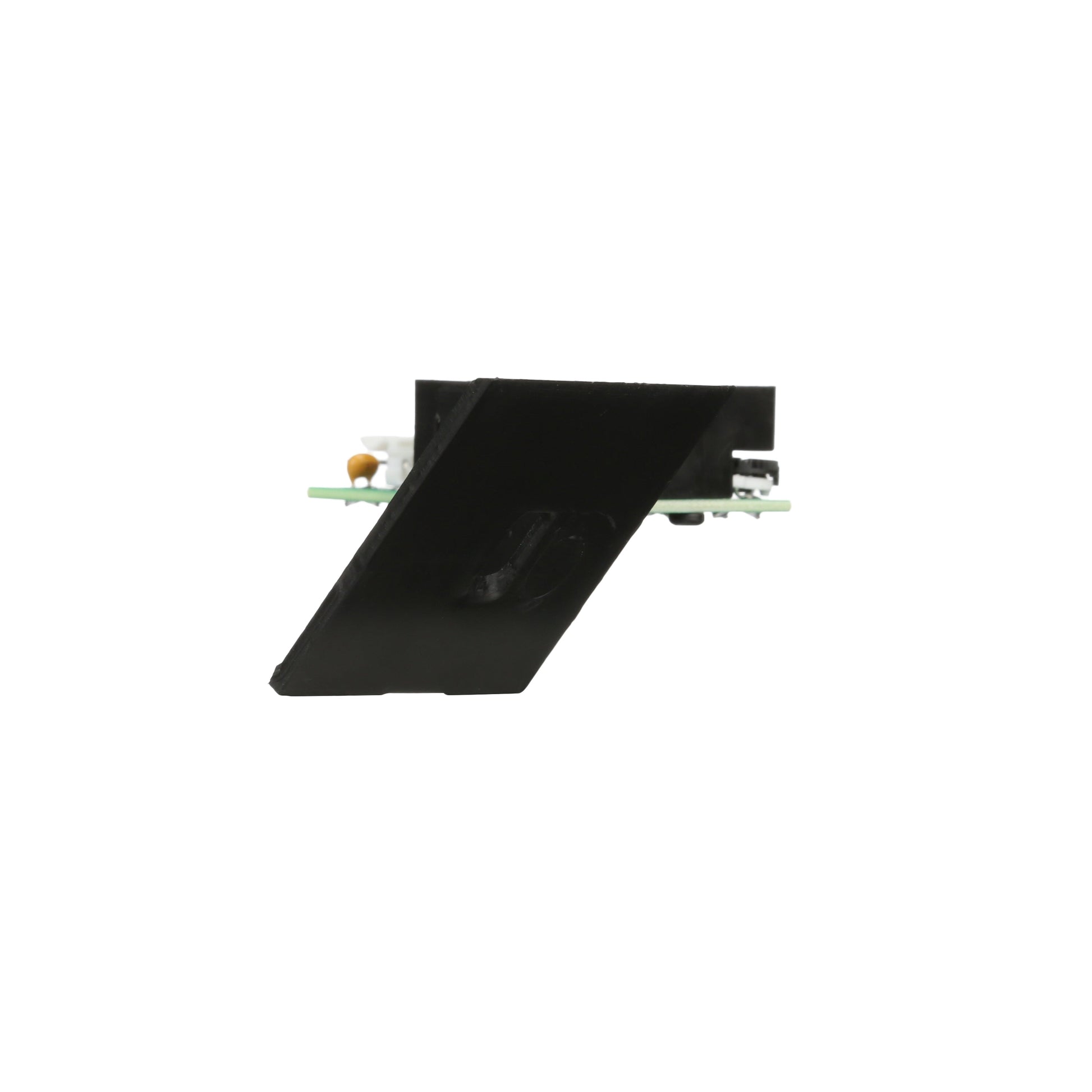

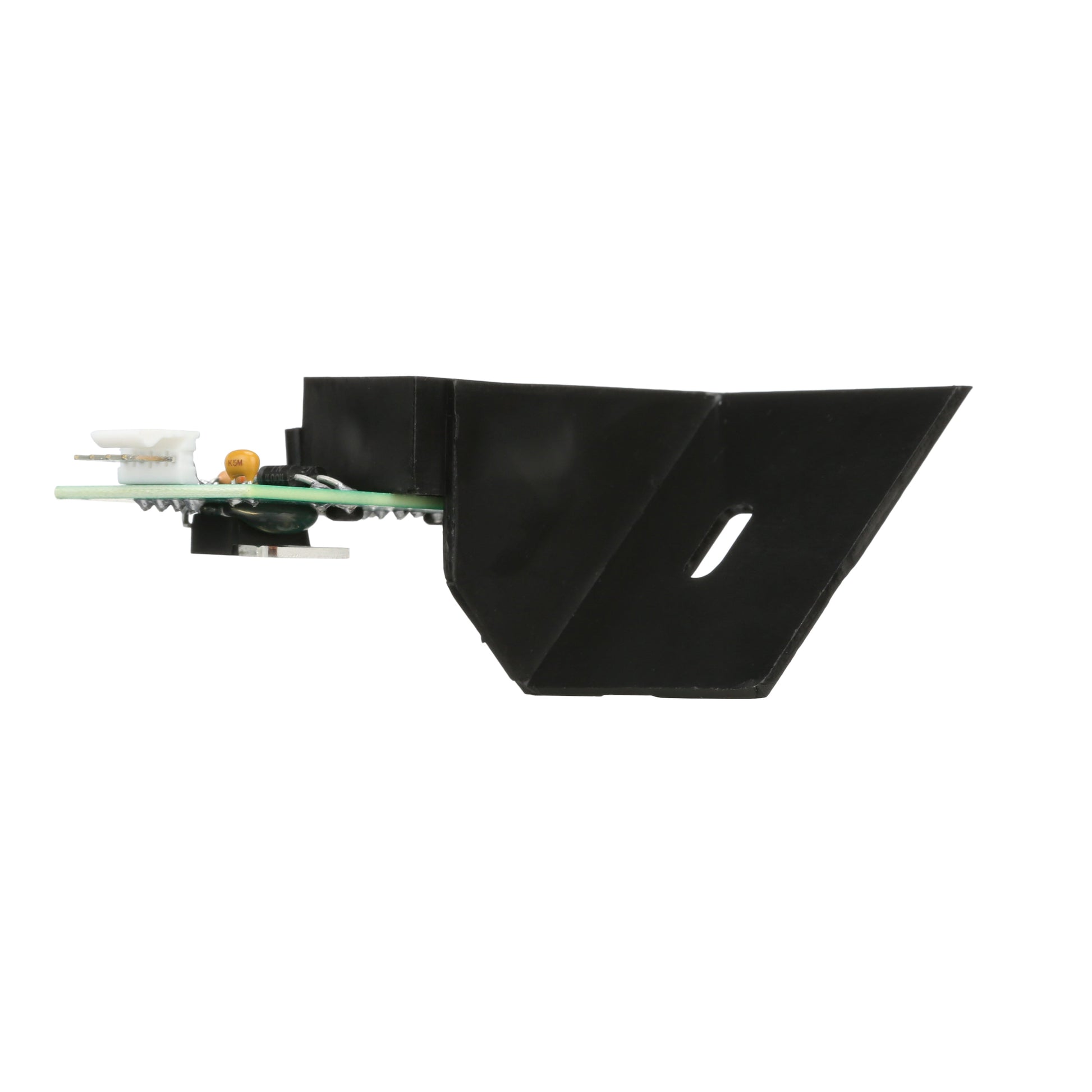

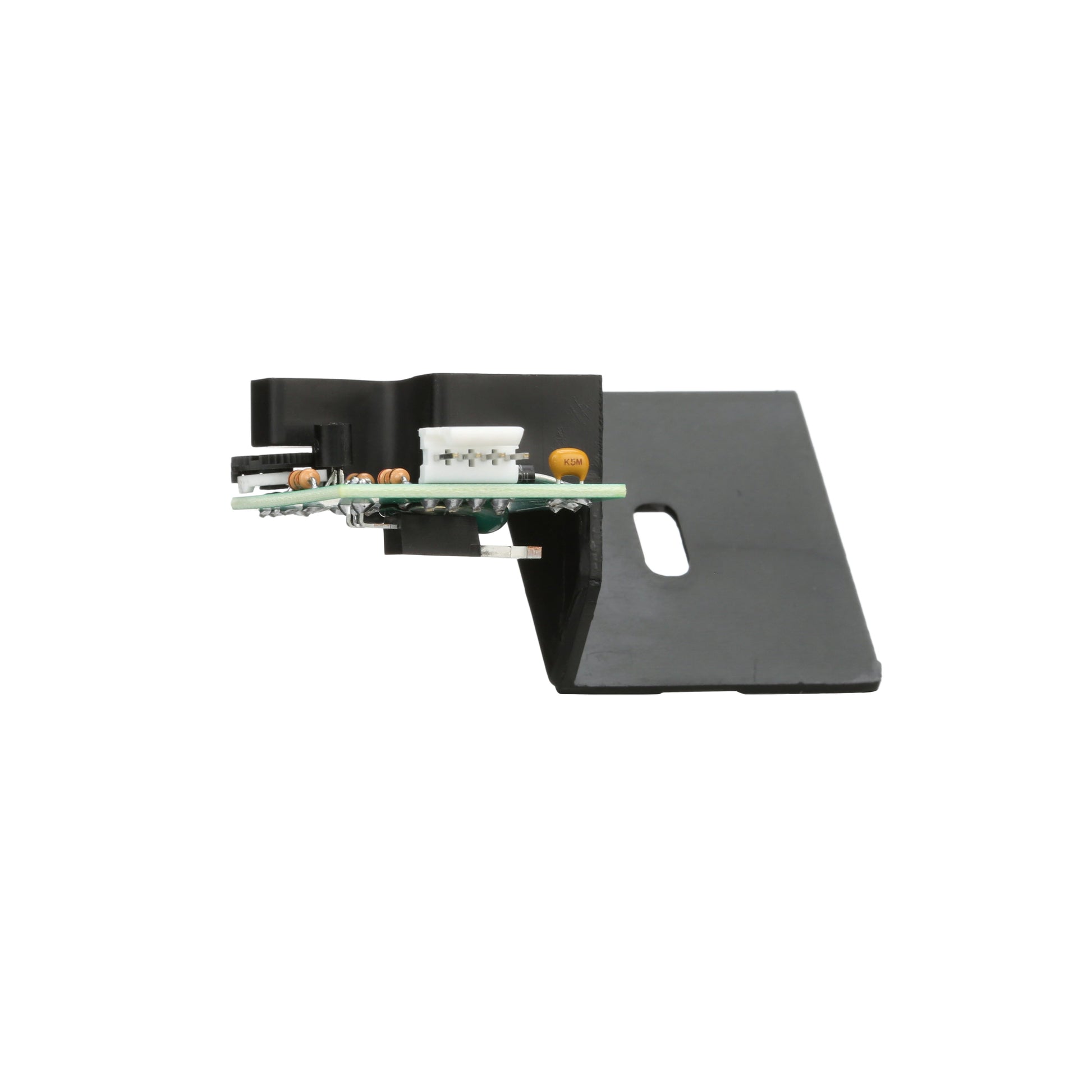

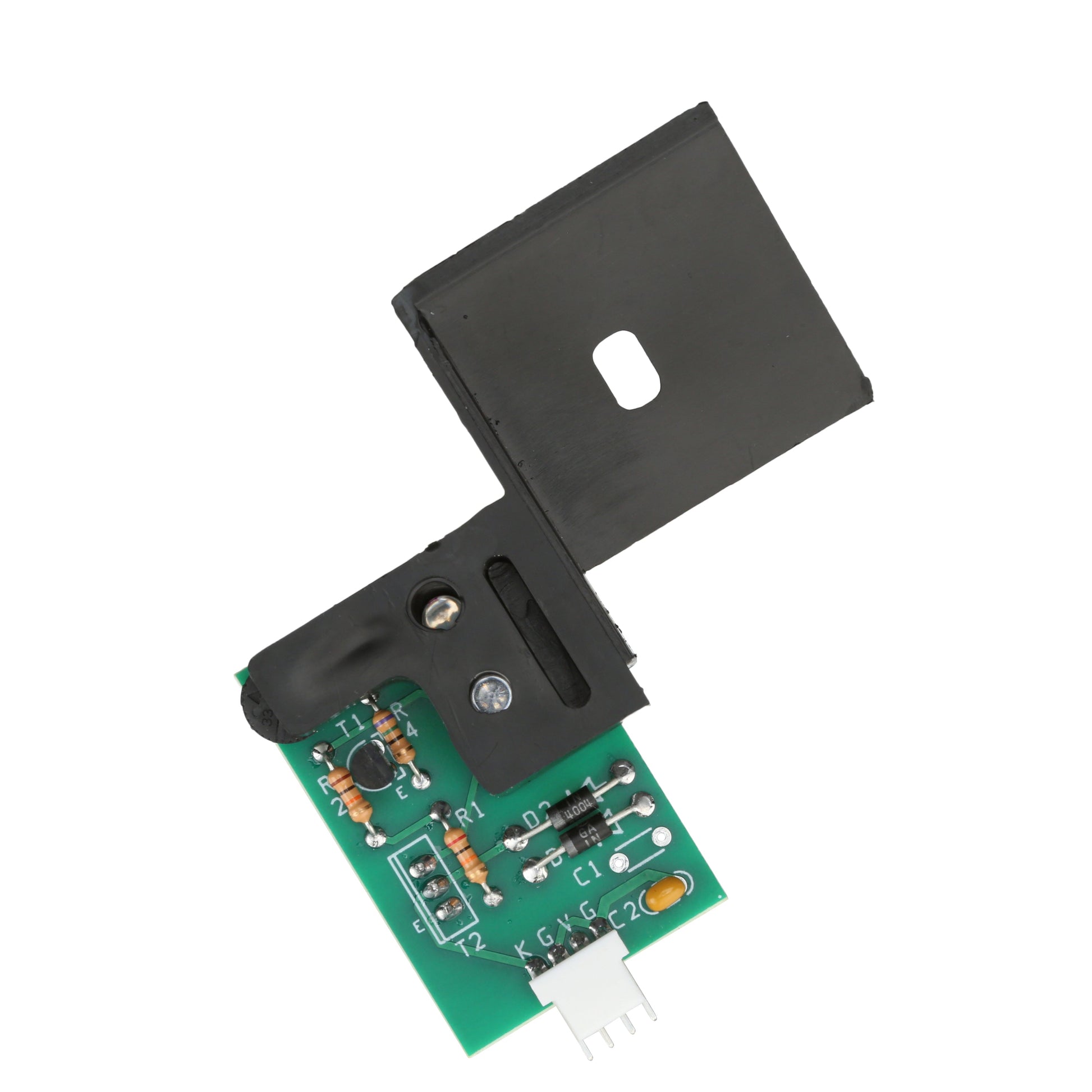

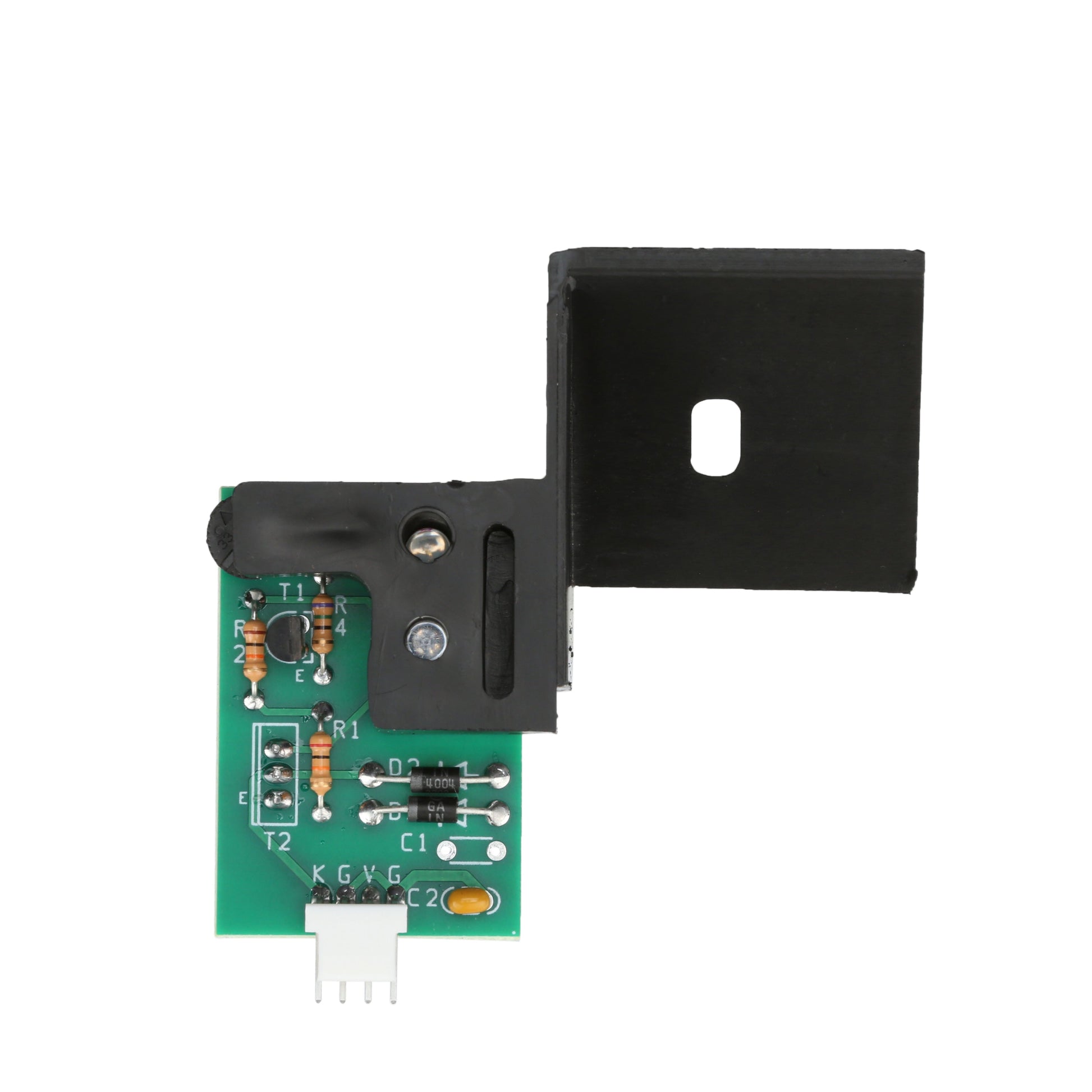

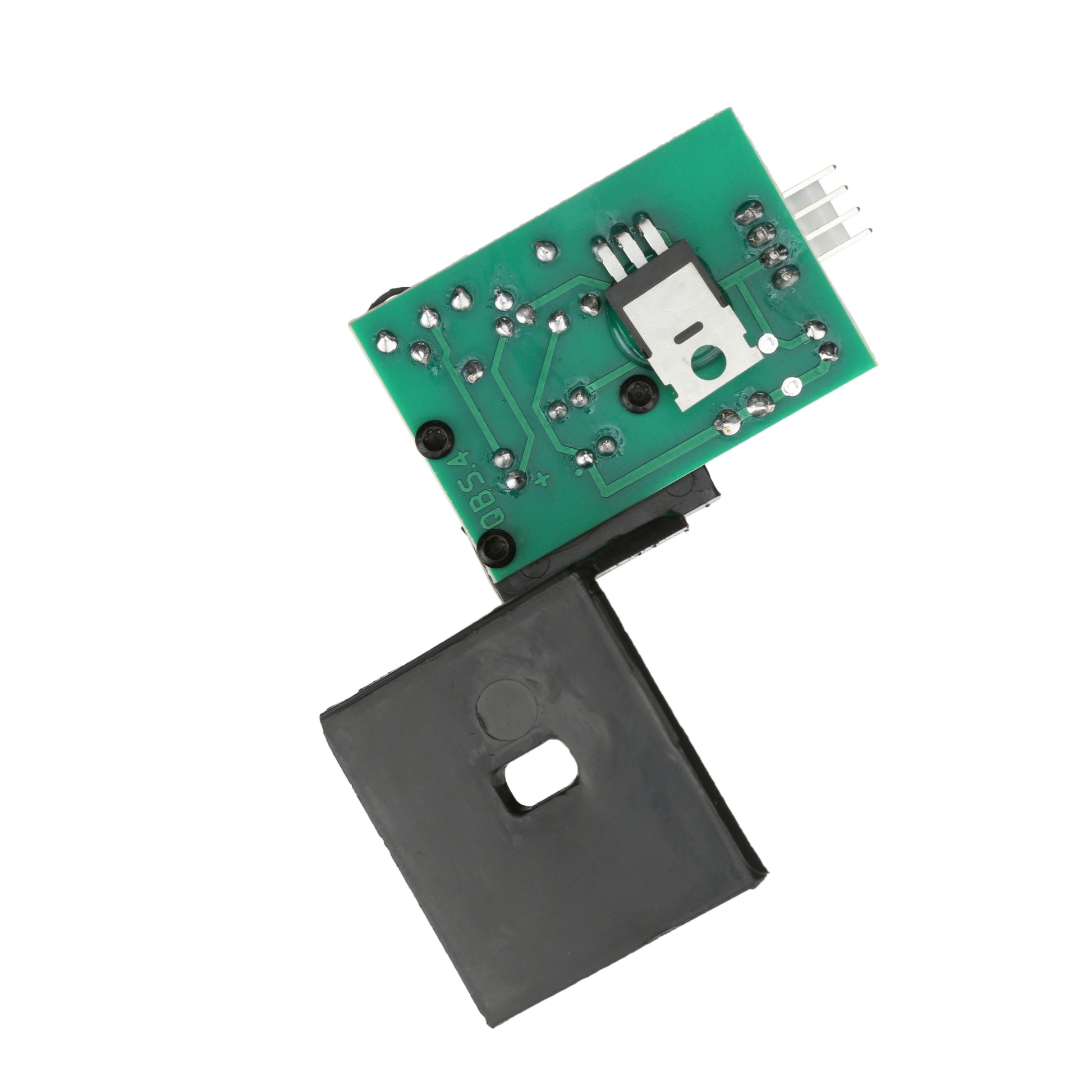

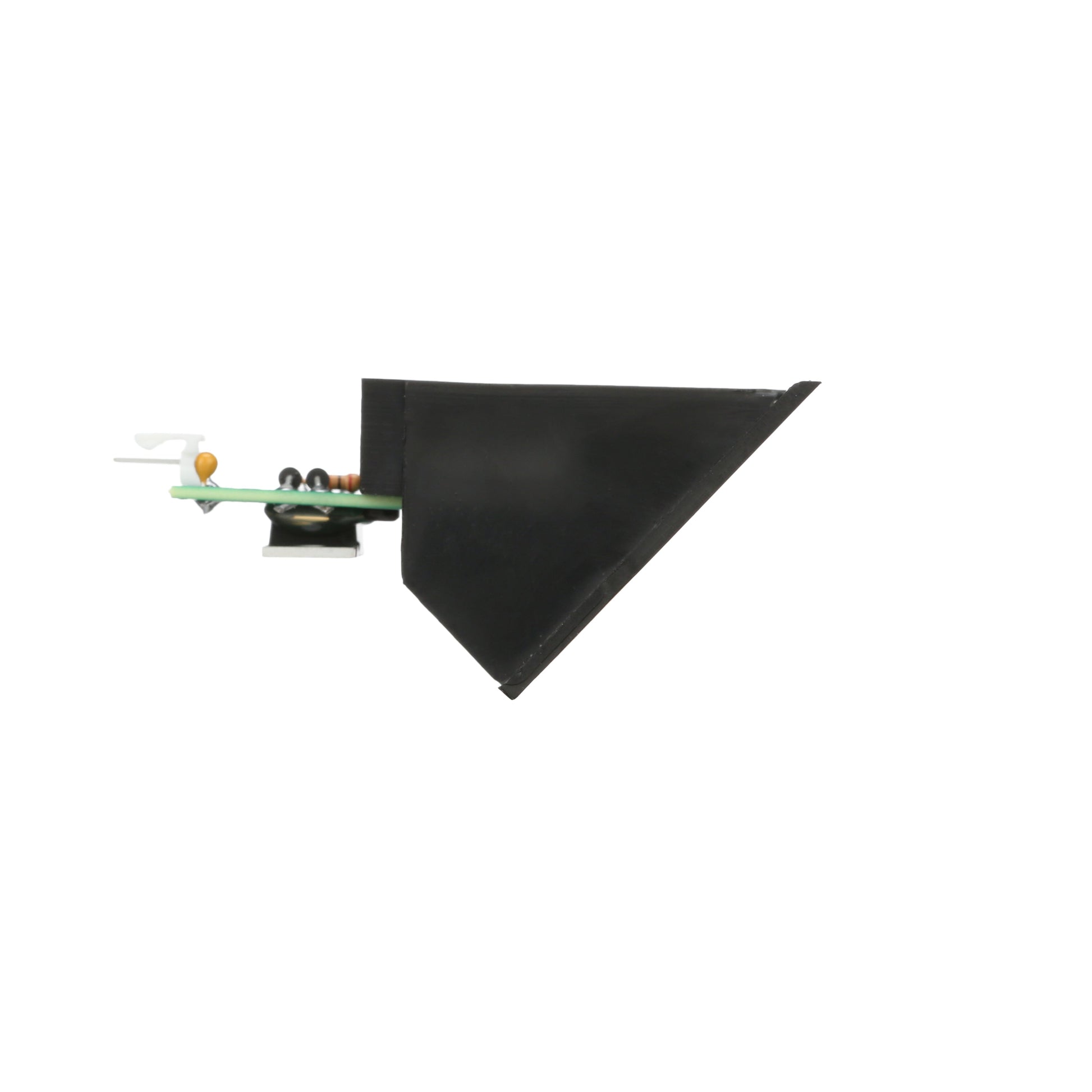

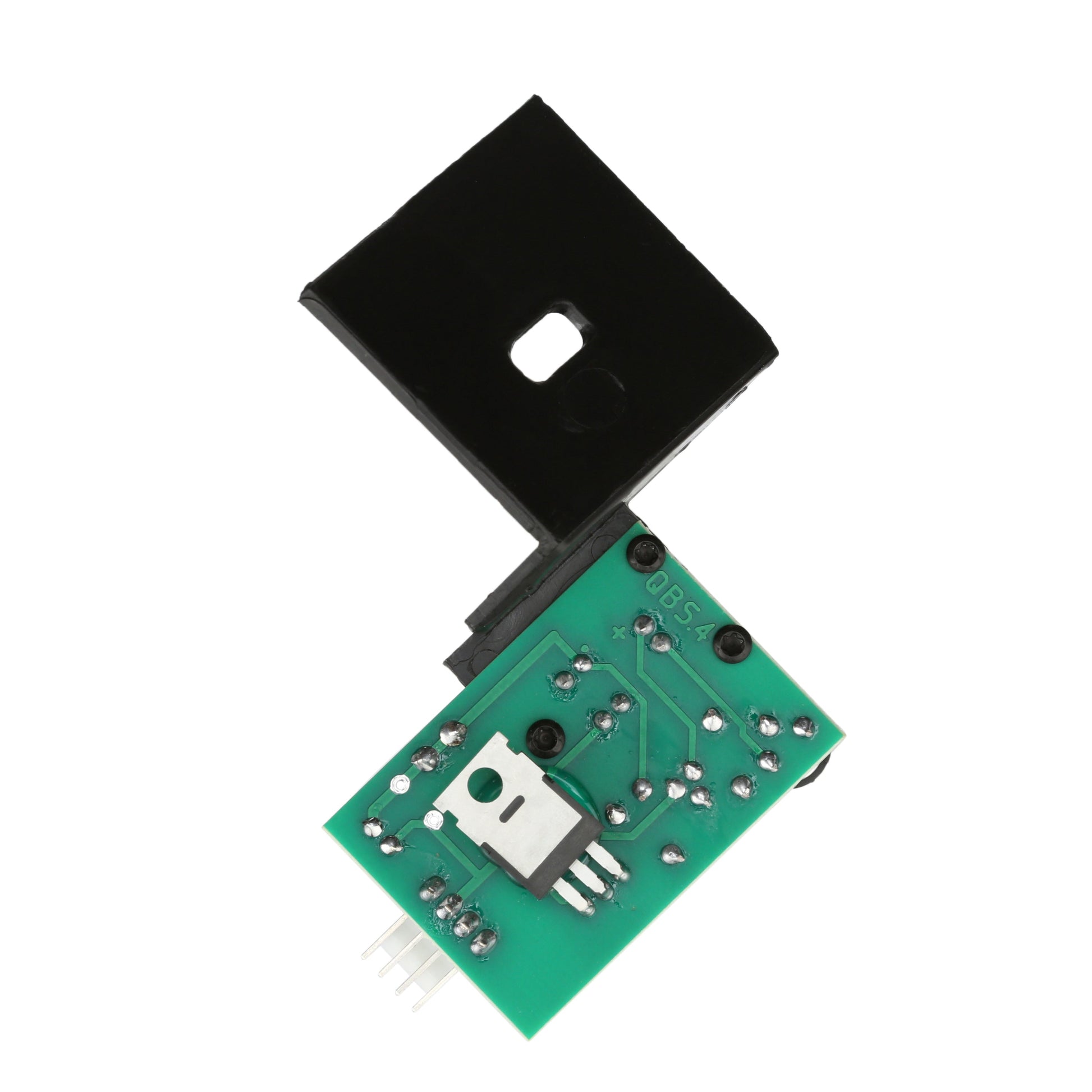

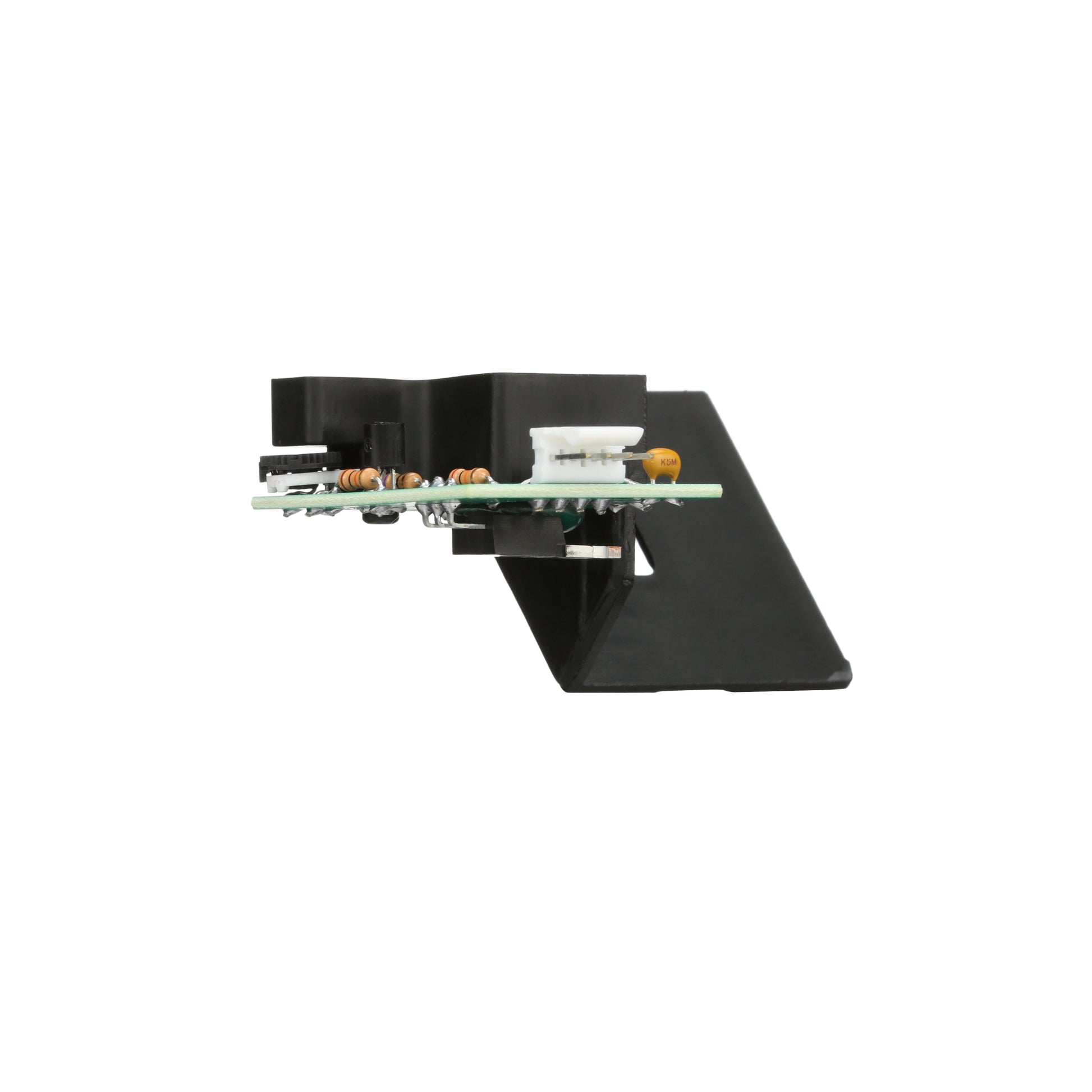

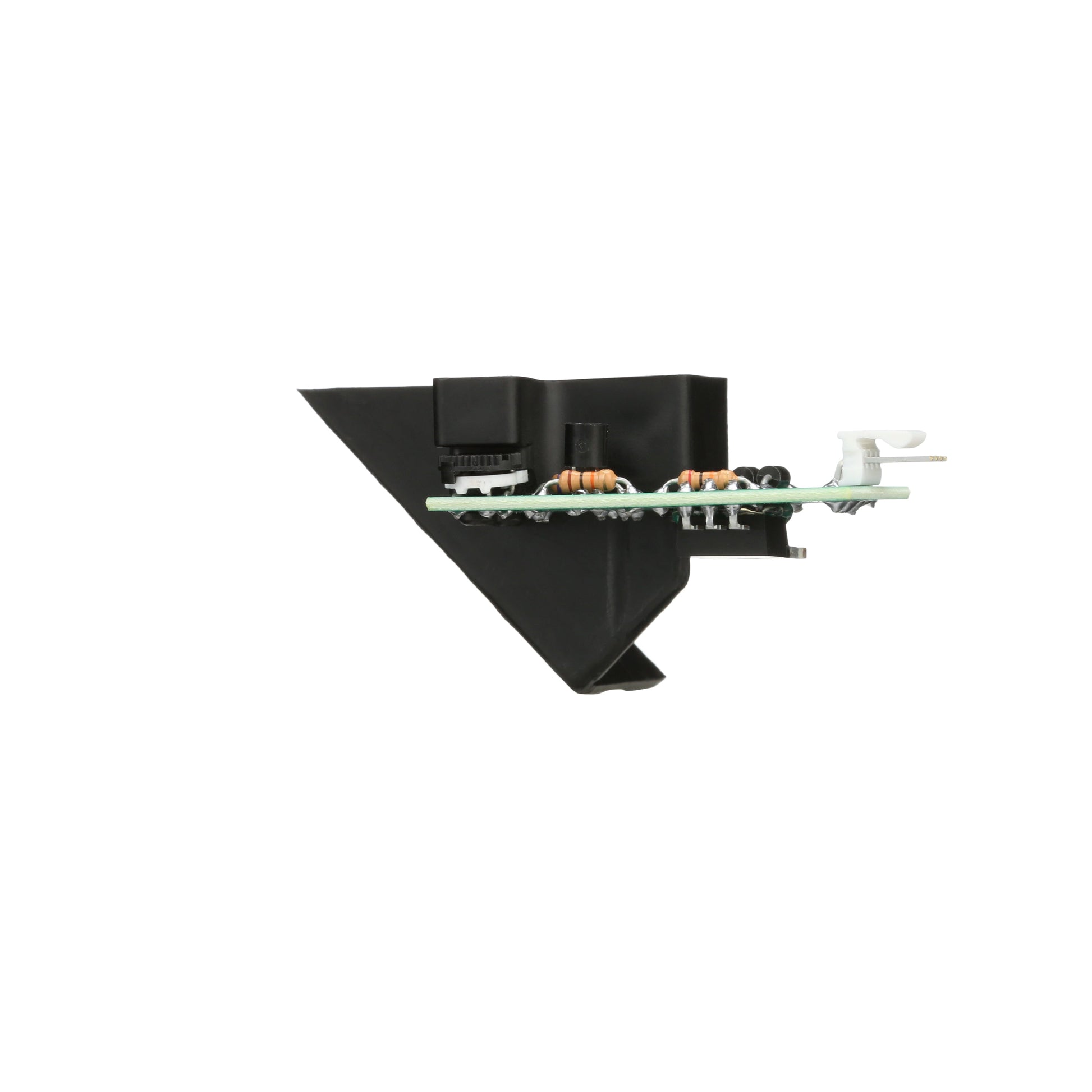

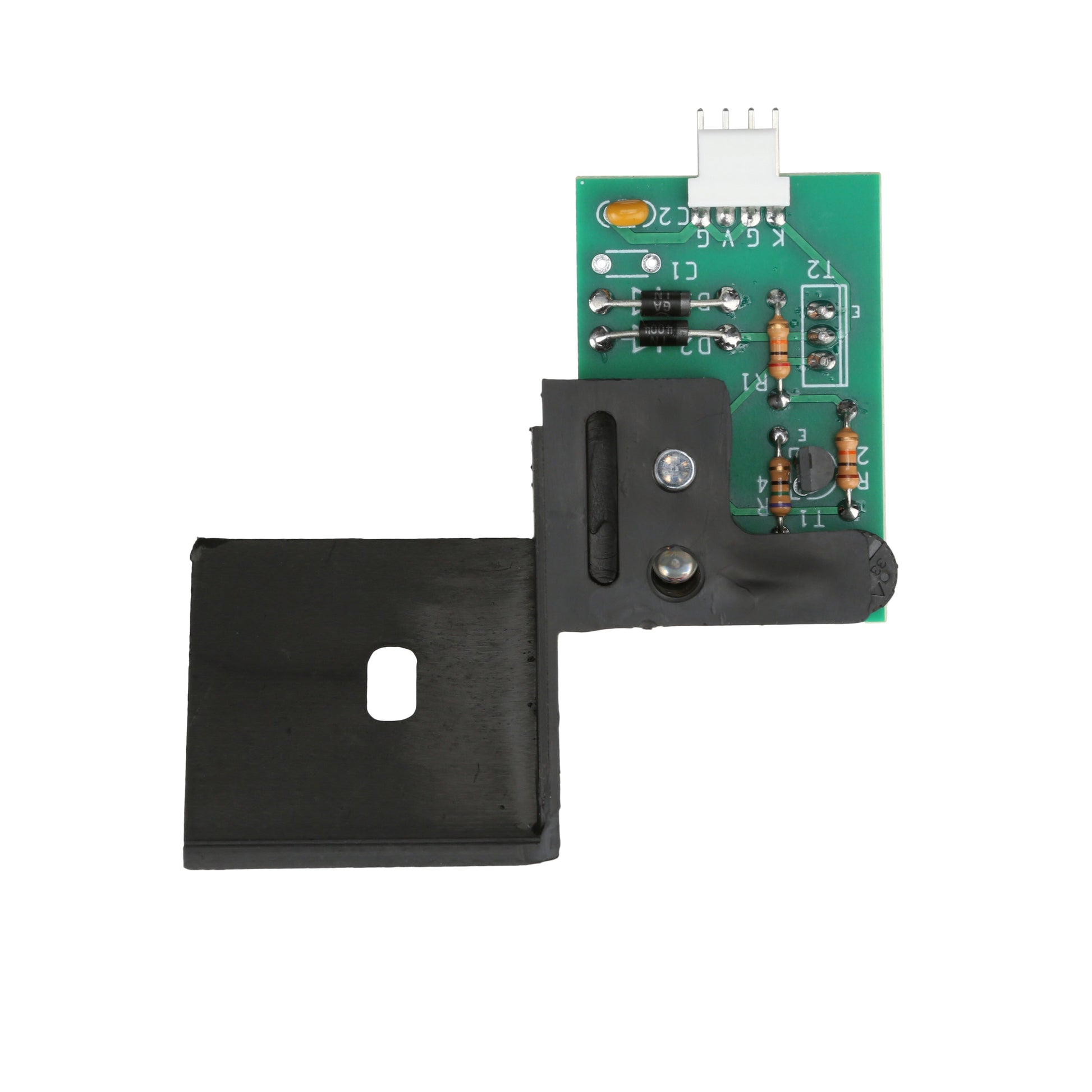

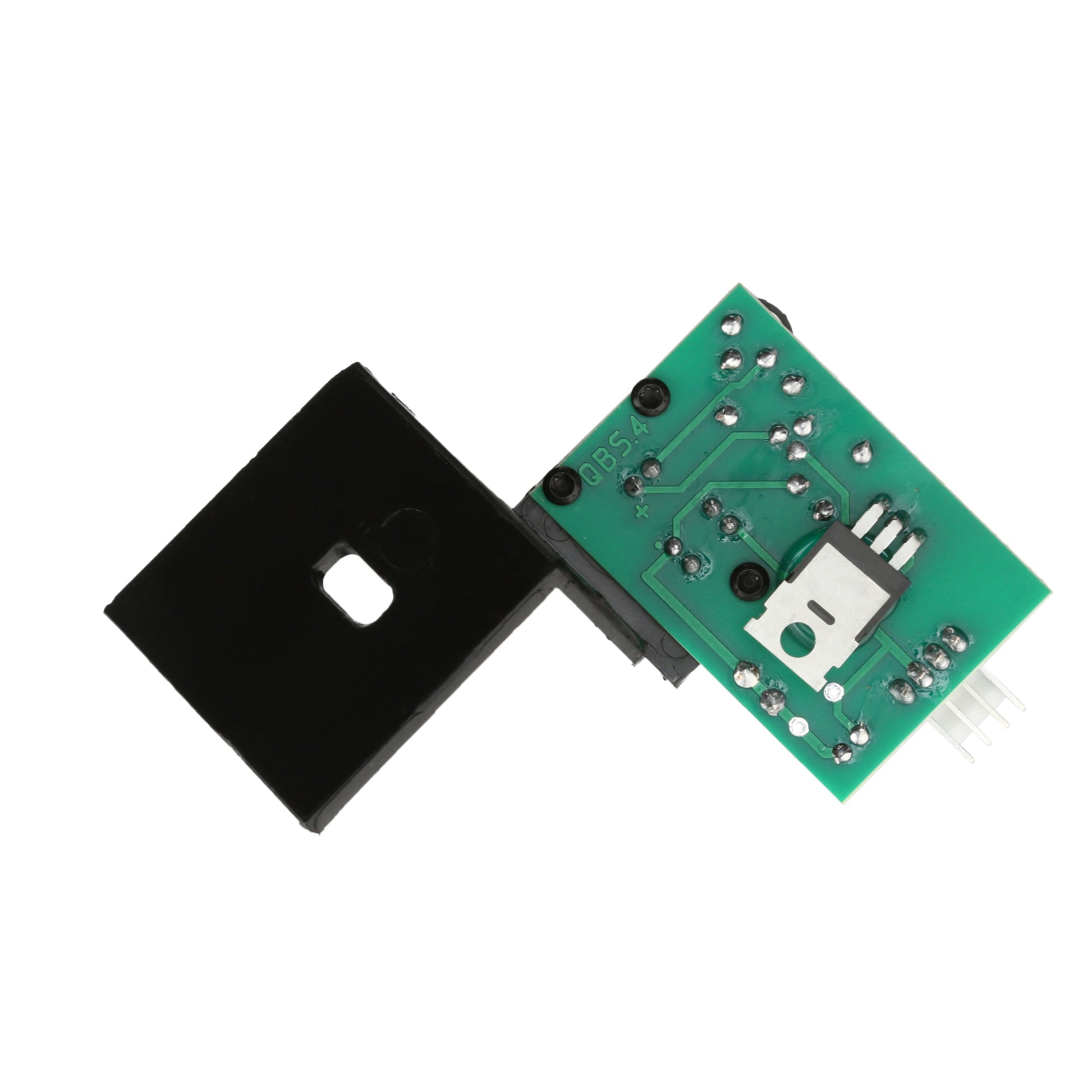

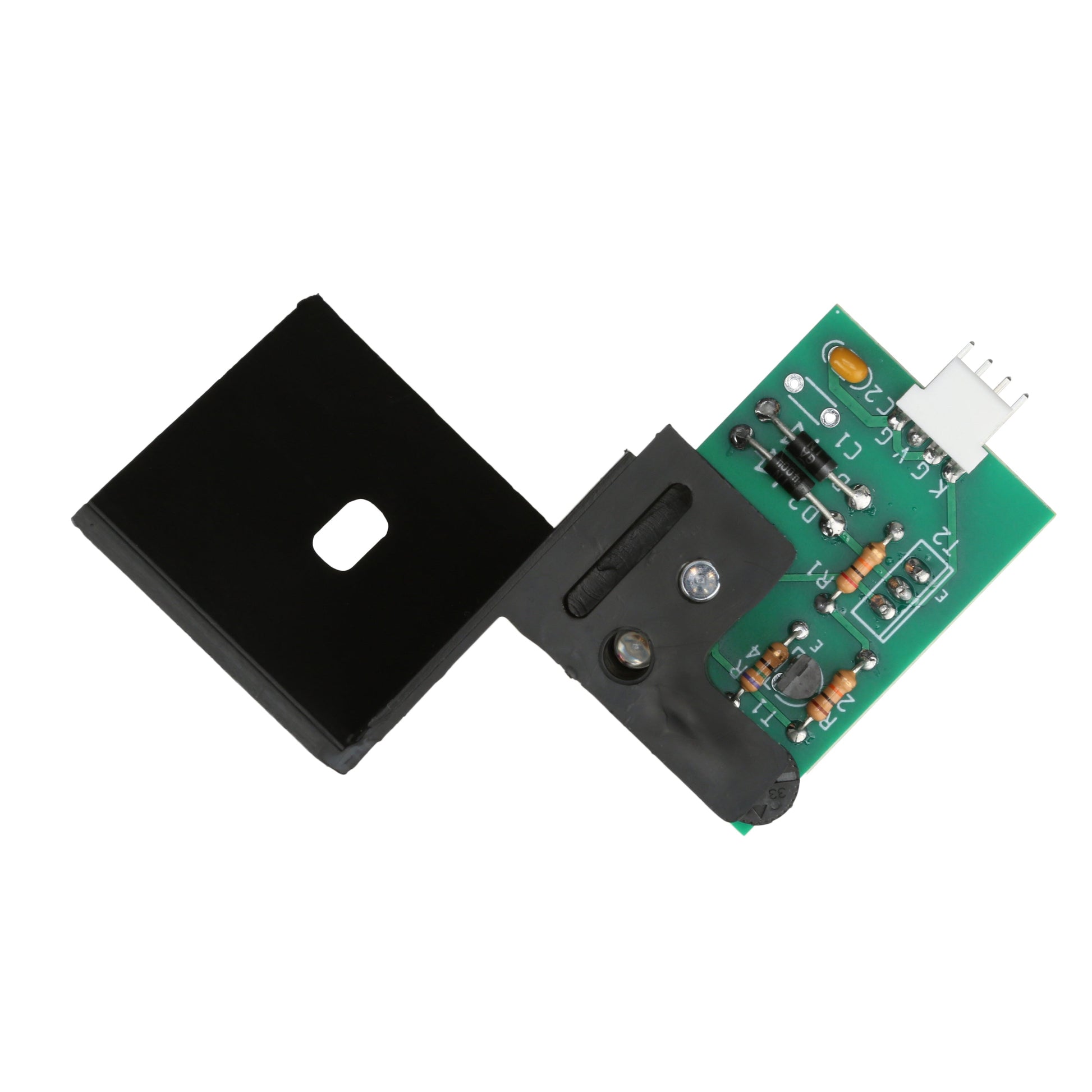

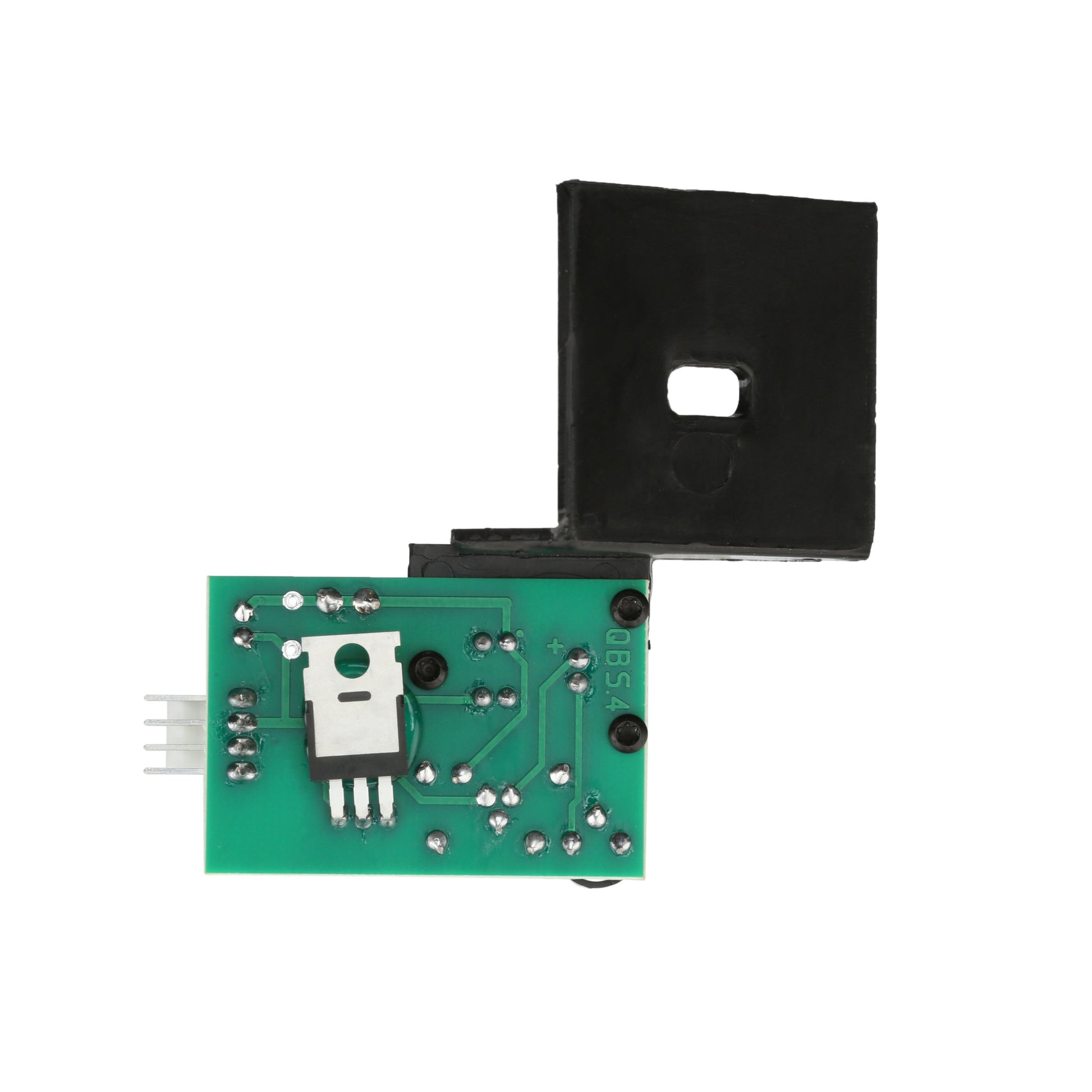

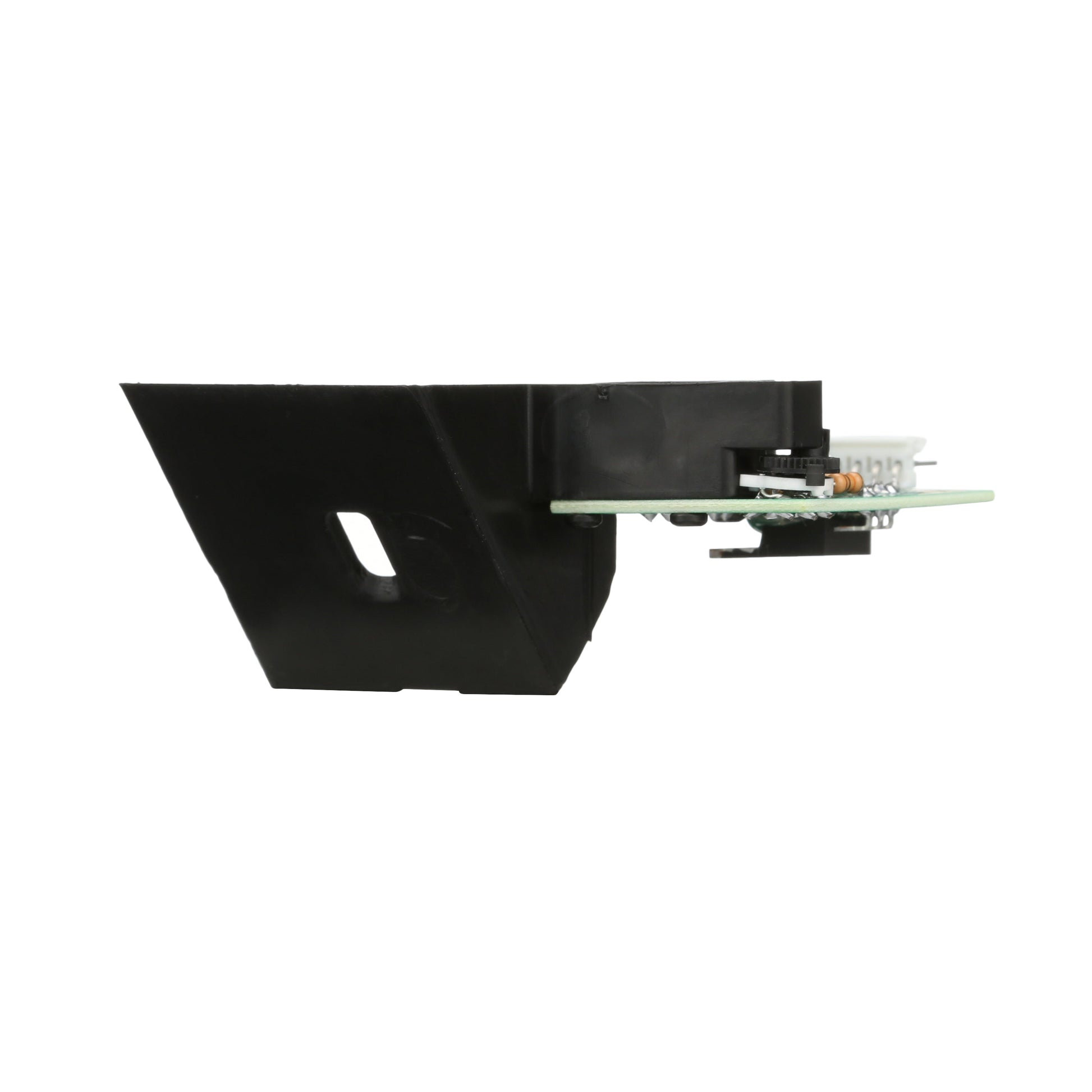

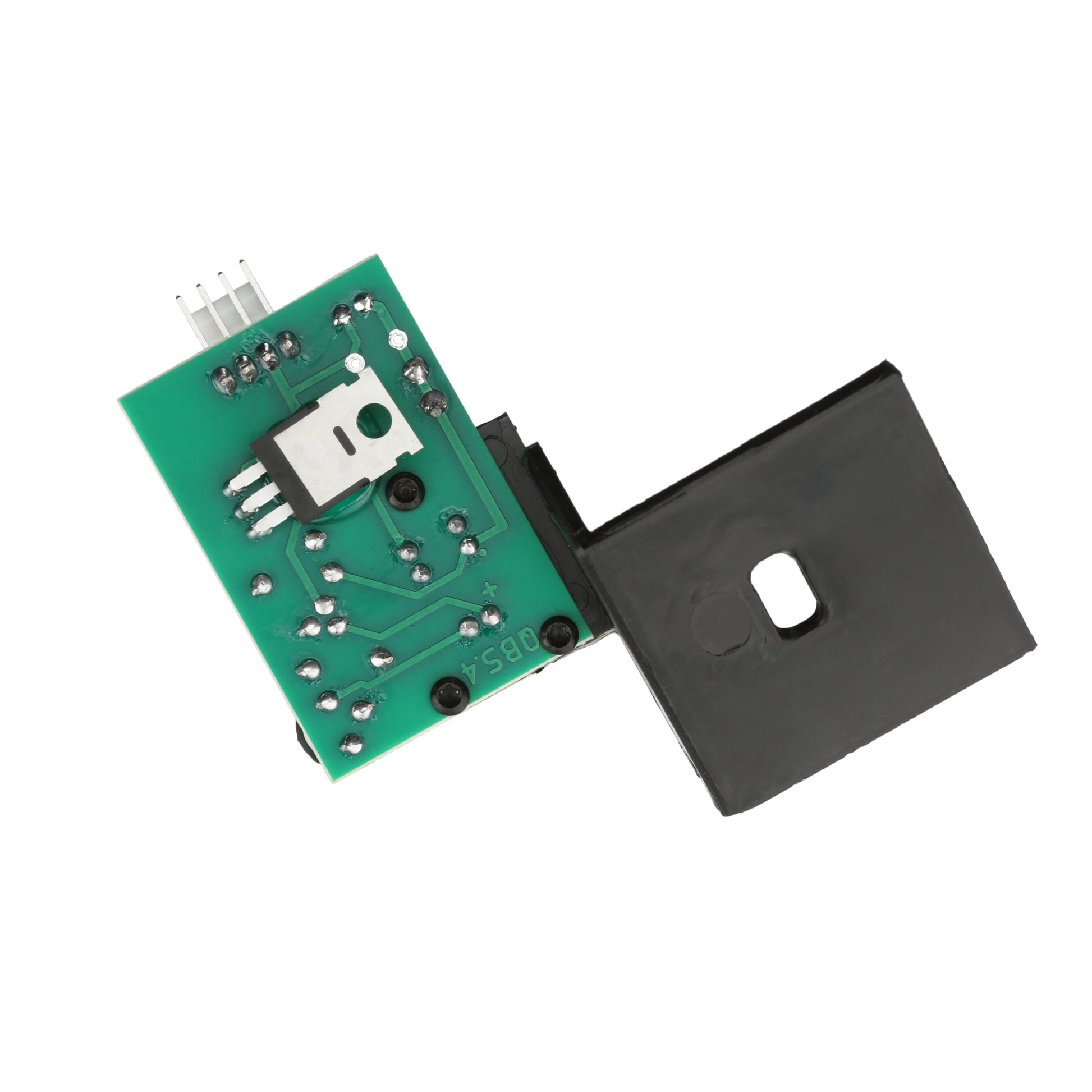

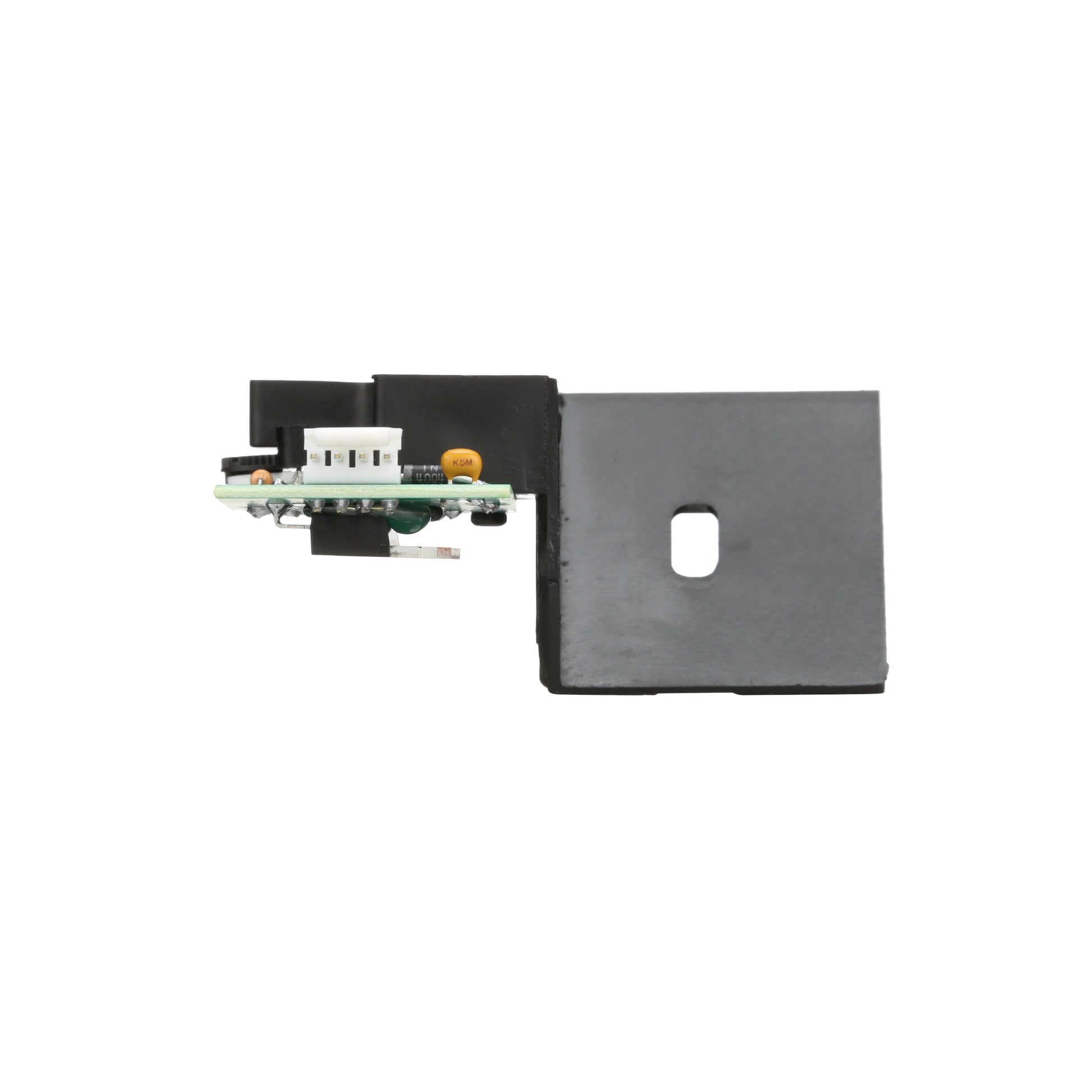

Diamond Billiard Products Optical Density Sensor is a high-tech component of the Diamond Smart table's ball separation system. It uses laser technology to accurately detect and track the cue ball as it travels through the center of the table. Once detected, the Solenoid Separator is signaled to quickly and accurately separate the cue ball from the other object balls. This cutting-edge technology helps ensure that your games of pool are always fair and accurate.
